SPECIFICATIONS

Color Print Speed: Not support

Dimensions: 137*116*166 mm

Input: DC 9V/2A

Interface Type: Usb

Max. Resolution: 203 Dpi

Max.print width: 48 mm

Media roll diameter: Max.80 mm

Media thickness: 0.06 ~ 0.19 mm

Media type: Thermal roll paper, thermal adhesive paper

Printing method: Direct thermal

Printing speed: 101 mm/s

Type: Adhesive sticker/receipt paper

Usage: Self-adhesive label and receipt printing

after-sales service: Call Center and on-line Technical Support

black print speed: Max 101 mm /s

brand name: Xprinter

max paper size: 20~60 mm

place of origin: Guangdong, China

private mold: No

products status: Stock

software development kit (sdk): Yes

warranty(year): 1-Year

Product Description

•


• Product Overview

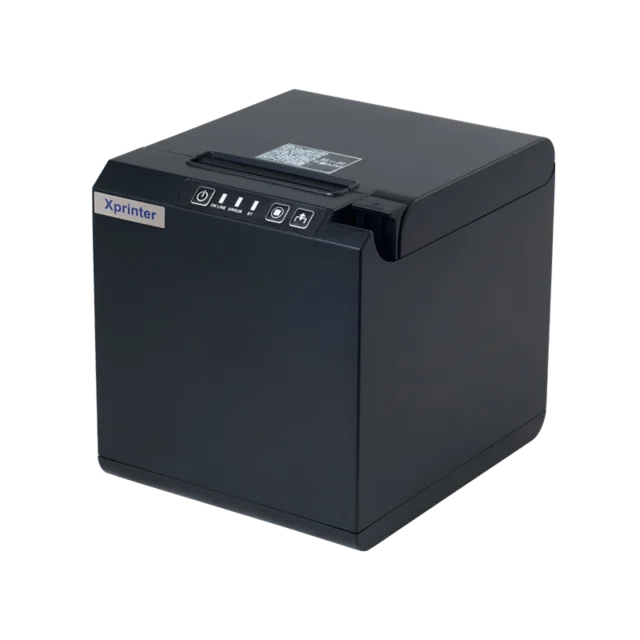

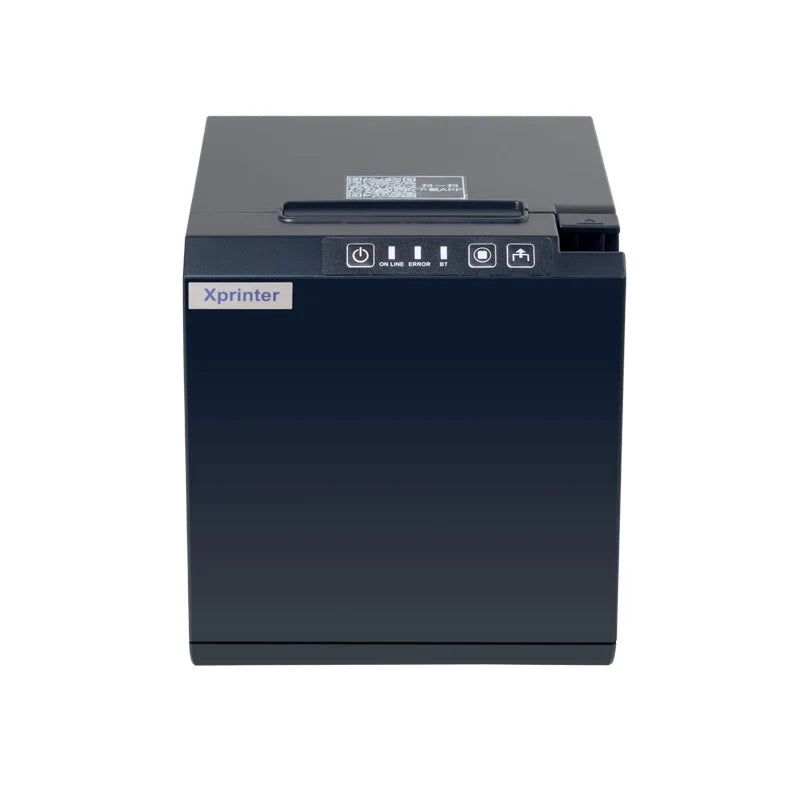

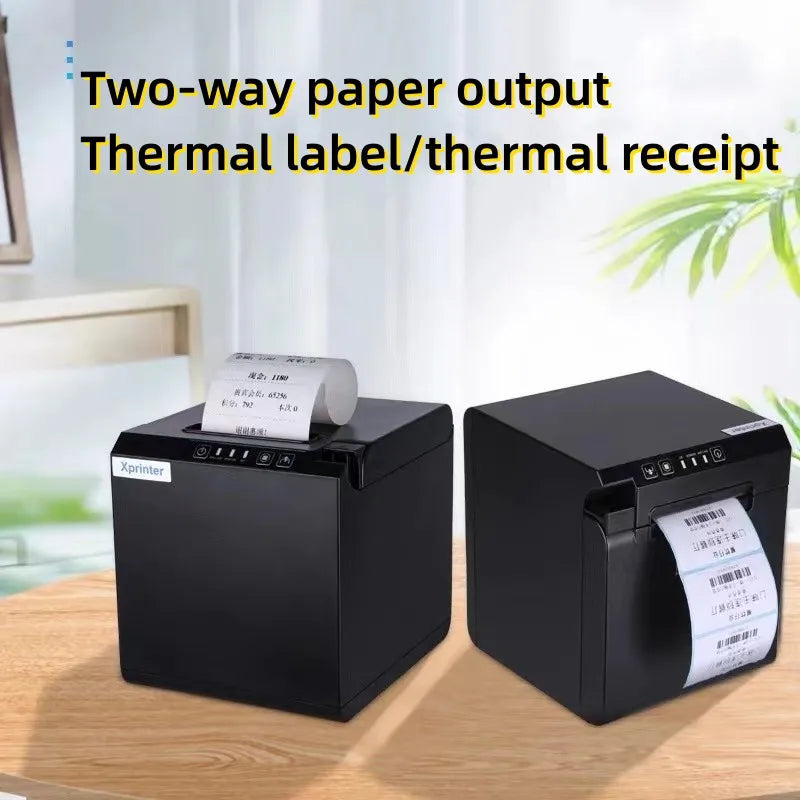

Xprinter T202UA, a printer with dual modes of label printing and receipt printing integration.

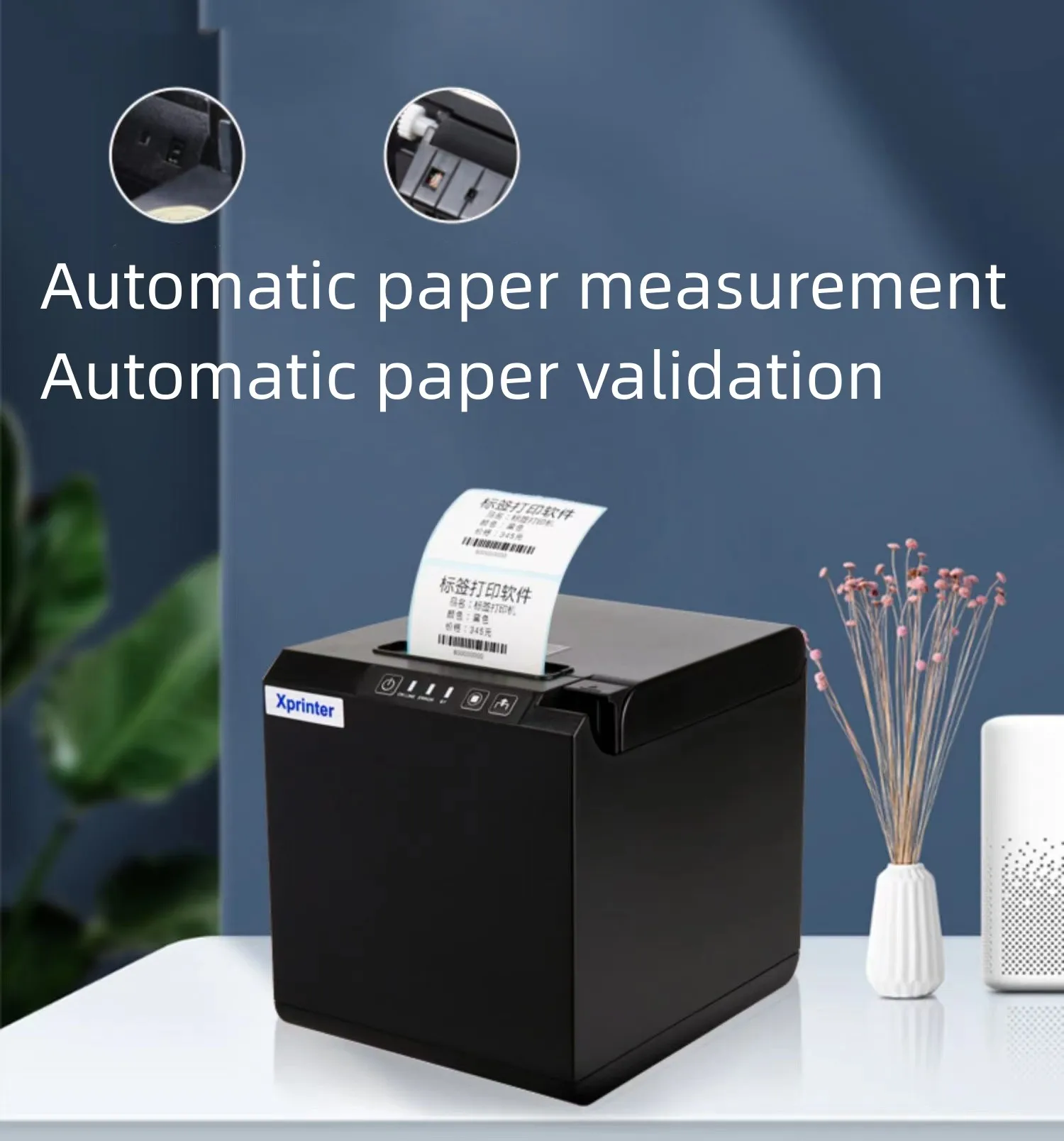

● With automatic paper verification function ● Supports horizontal and vertical placement for printing ● High sensitivity photoelectric sensor, ensuring accurate detection of paper

● Supports multiple 1D barcode, QRCODE printing ● multiple interfaces, supporting USB/USB+BT/USB+Lan interface optional

Model	XP-T202UA

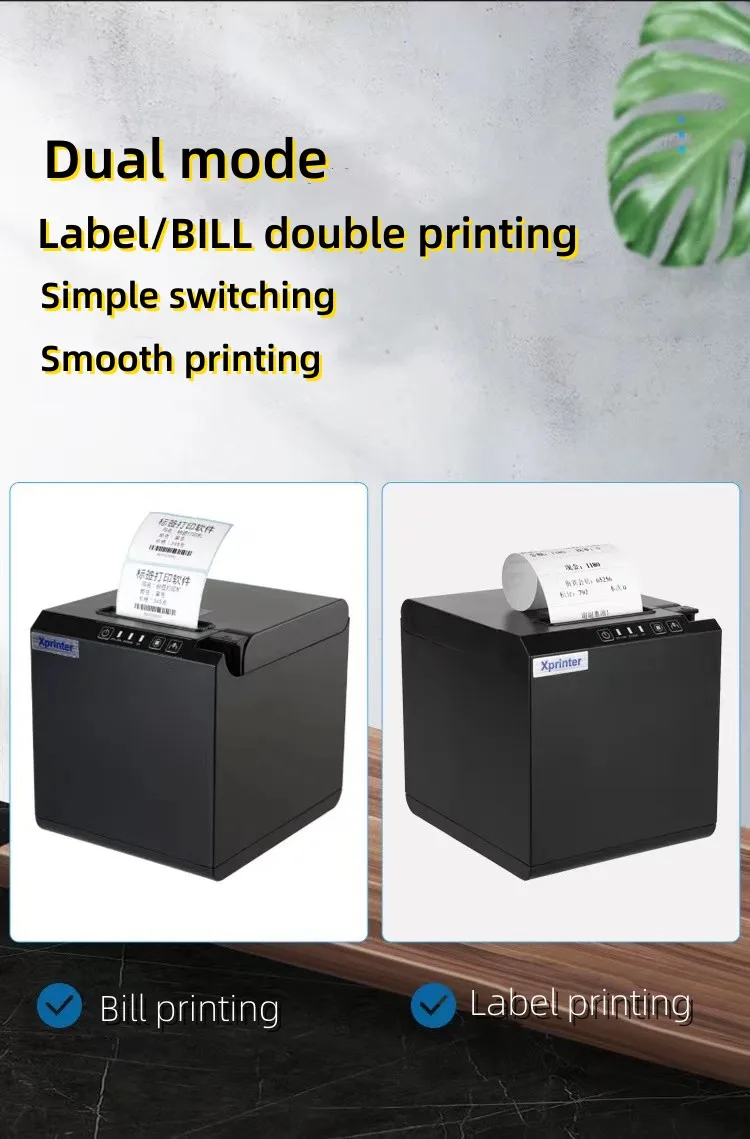

Print mode	Label print mode	Receipt print mode
Printing Features
Resolution	203 DPI
Printing method	Direct Thermal

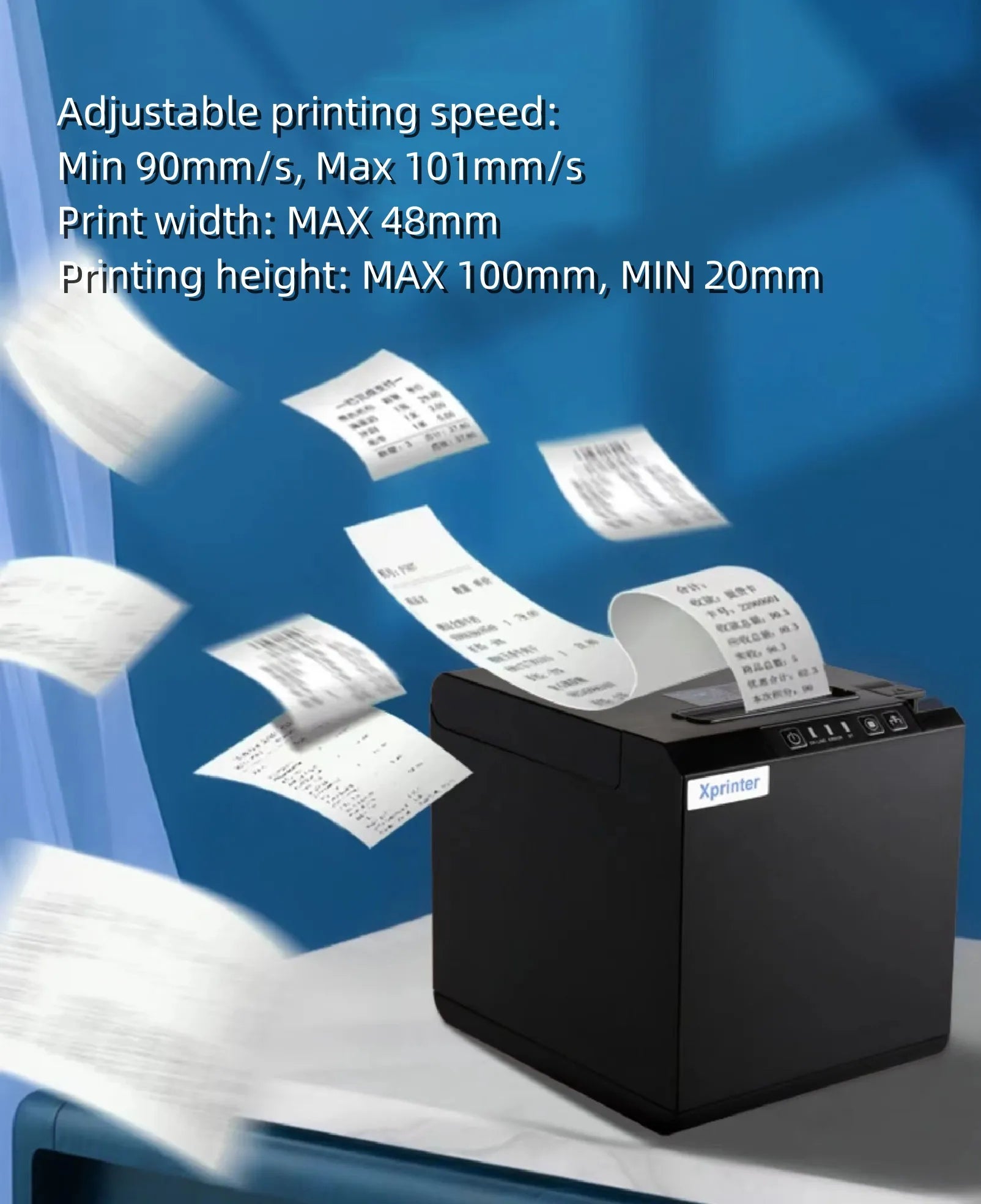

Max.print speed	101 mm/s	90 mm/s
Max.print width	48 mm	48 mm
Media type	Thermal roll paper, thermal adhesive paper, receipt paper
Media width	25~58 mm	58 mm

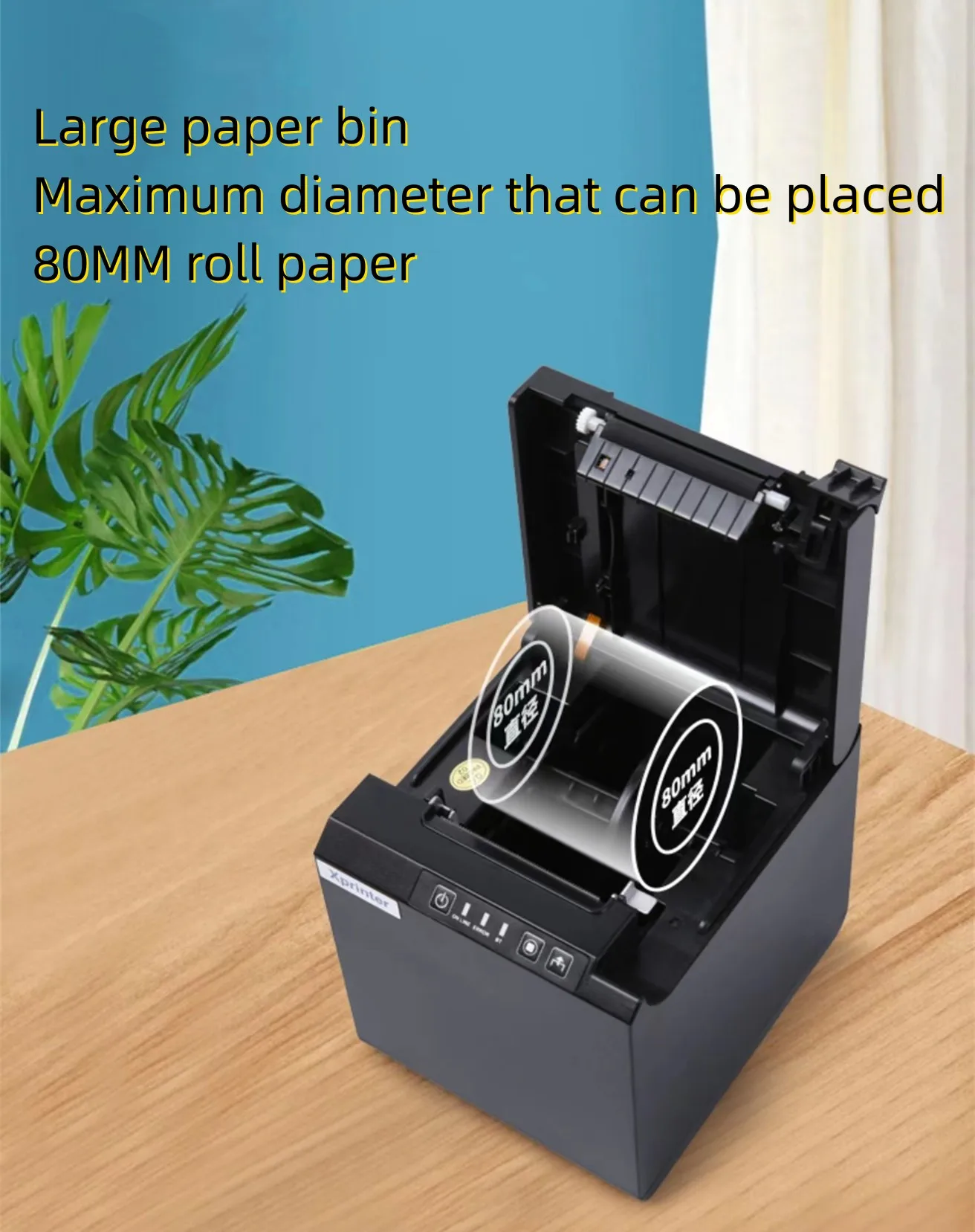

Media roll diameter	Max.80 mm
Performance Features

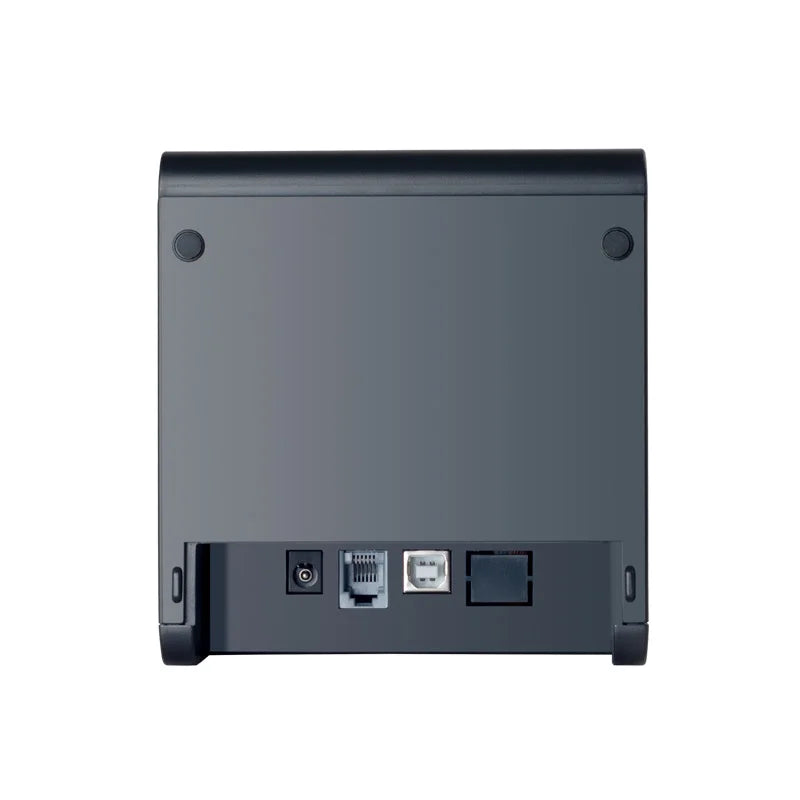

Interface	USB
Sensors	Print head temperature sensor/ Paper end/ Cover open / Gap	Print head temperature sensor/ Paper end/ Cover open
Drawer port	1 ports (Pin 2 for cashdrawer)
Physical Features
Dimension	137*116*166mm (D*W*H)

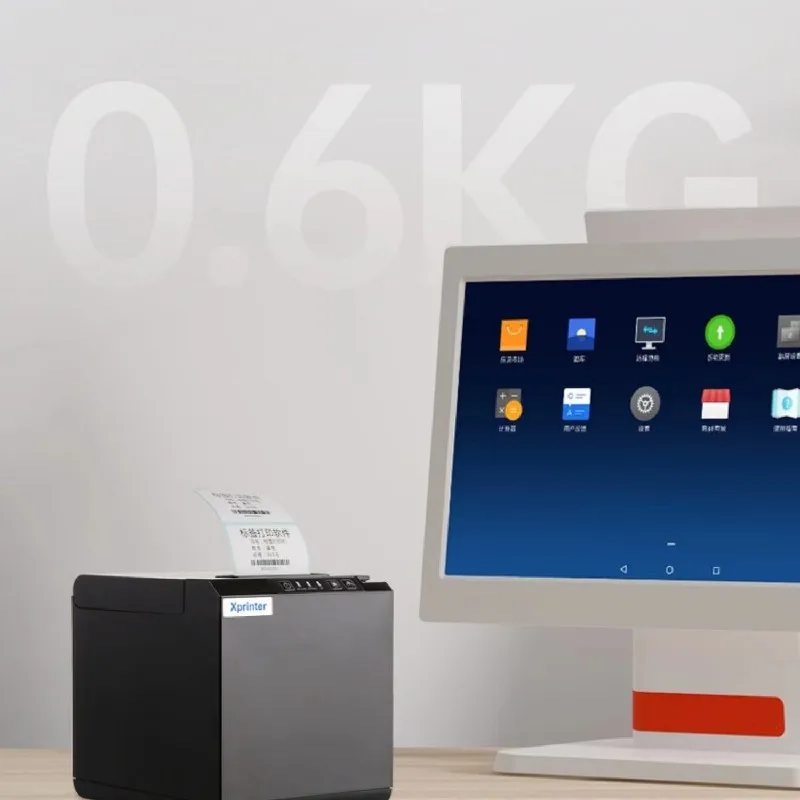

Net Weight	0.60 kg
Input	DC 9V/2A
SDK	iOS/ Android/ Windows
Print head life	100 km
Warranty	12 months

Related Products

Packing&Shipping

Xp-T202UA	Packing specifications
QTY per carton	G.W. per set	Dimension per set (D*W*H)	G.W. per carton	Dimension per carton (D*W*H)
12 sets	1.42 kg	285*170*180 mm	18.5kg	590x550x400 mm

Company Profile

Xiamen Huayin Techenology Co., Ltd is a one-stop service supplier focusing on POS & barcode thermal printing equipment and consumables.Our business comprehensively cover product research, customization, sales, maintenance, after-sales service, etc.

Our Services & Strength

1. Professional team support, quick response. A professional after-sales team can solve problems including hardware and software. 2. Cooperate with manufacturers to provide OEM/ODM customization Customized services allow you to better promote your brand. 3. Sufficient supply We also have e-commerce sales in China, so we have strong inventory as support to ensure sufficient supply of export products. Delivery time can be greatly shortened and non-customized products can be shipped within three days. 4.Focus on thermal printer and consumables Focus on thermal printing industry, pay attention to high quality products, refuse inferior products, with the strength to promote high-quality and market-competitive products to our customers.

FAQ

Q: What is the Minimum Order Quantity of thermal printer?

A: MOQ is 1 set, Better price for large quantity.

Q: Can I get a sample before bulk order?

A: Sure. Sample is available but sample charged on customer.

Q: Can I get the product with my on logo?

A: OEM order is available, but extra cost will increase accordingly.

Q: Delivery Method?

By Express Courier including by air, by load or by sea, such as DHL, Fedex, USP, EMS etc.

Q: What is the payment terms?

A: Alibaba Assurance.

Q: WHAT IS THE WARRANTY FOR YOUR PRINTERS?

A: We support 12 months for all of our products.

Q: HOW DO YOU CONTROL QUALITY?

A:Our products have obtained CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI certifications.

Q: Do you provide technical support services?

A: Our services include technical support and after-sales service to enable customers to achieve normal operation after receiving products.

Q: What is the delivery date after I place the order?

A: Normal 1-3 days for 1-300 sets, 3-7 days for more than 300 sets.
