SPECIFICATIONS

2.4g wi-fi transmission rate: 600Mbps

5G Wi-Fi Transmission Rate: 1300Mbps

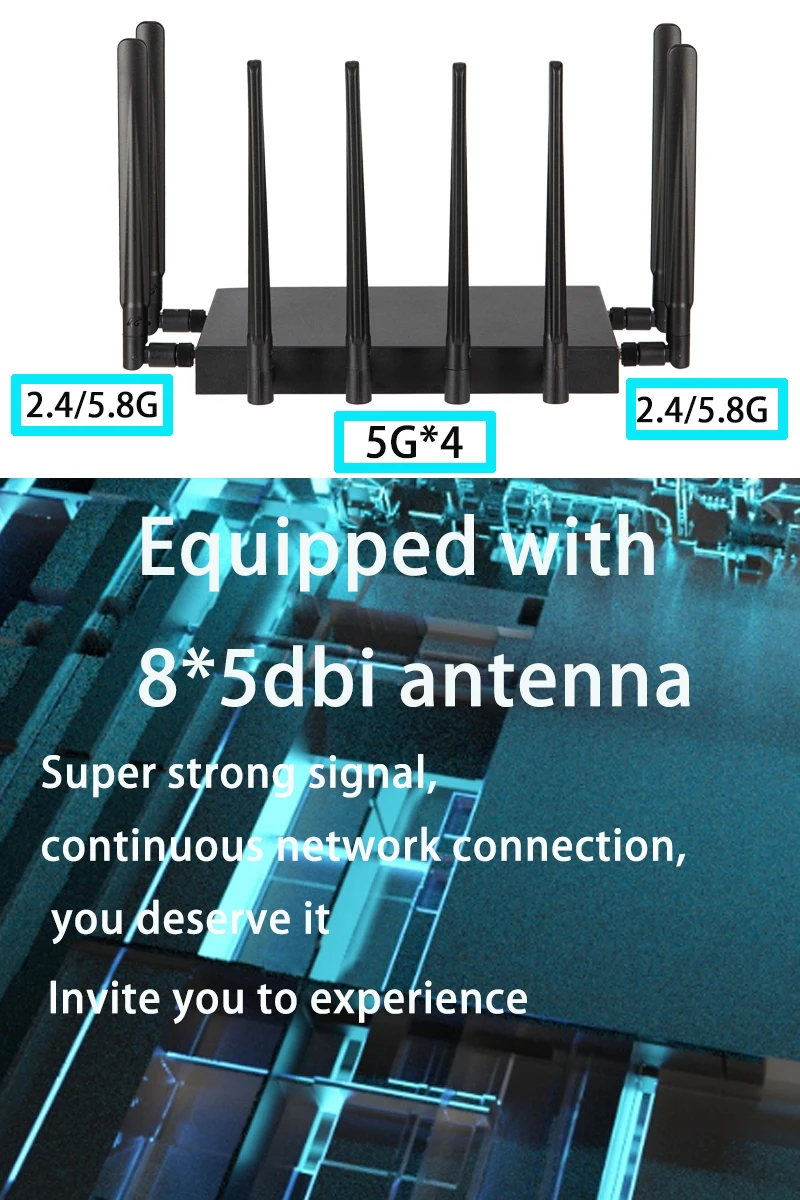

Antenna: 8*5dbi antenna

Brand: WZ-LAN

Chipset: MT7621A+ MT7975+MT7915

Encryption Type: WPA2-PSK,WPA2,WPA3,WPA2-Enterprise,WPA-PSK,WPA,WEP,WPA-Enterprise,WPA2-Personal,WPA-Personal,WPA3-Personal

Flash: 16MB SPI

Interface: 1WAN+4LAN

Power supply: DC 12V 2A

Product name: 5g Wifi 6 Router

RAM: DDR3 256MB

SIM card slot: 2 SIM Card Slots

Supports WDS: No

Supports WPS: No

WAN Ports: 1 x10/100/1000Mbps

WIFI: 802.11 A/b/g/n/ac/ax

WiFi Transmission Standard: WiFi 802.11 ax

Wireless Speed: 1800Mbps

application: ENTERPRISE

function: FireWall,QoS,VPN,SDK available

lan ports: 4

max. lan data rate: 1750Mbps

place of origin: Guangdong, China

private mold: Yes

products status: New

standards and protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11ac,Wi-Fi 802.11a,Wi-Fi 802.11ax

type: Wireless

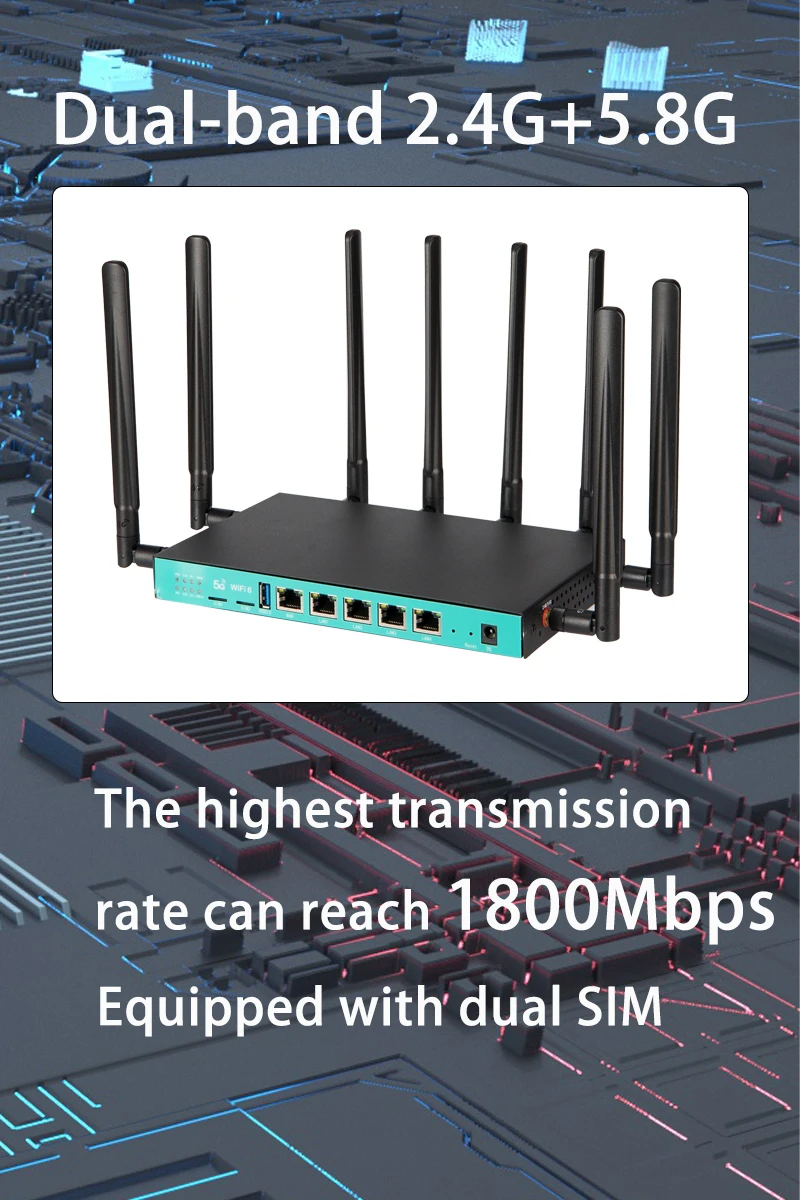

wifi supported frequency: 2.4G & 5G

wired transfer rate: 10/100/1000Mbps

with modem function: No

Product Description

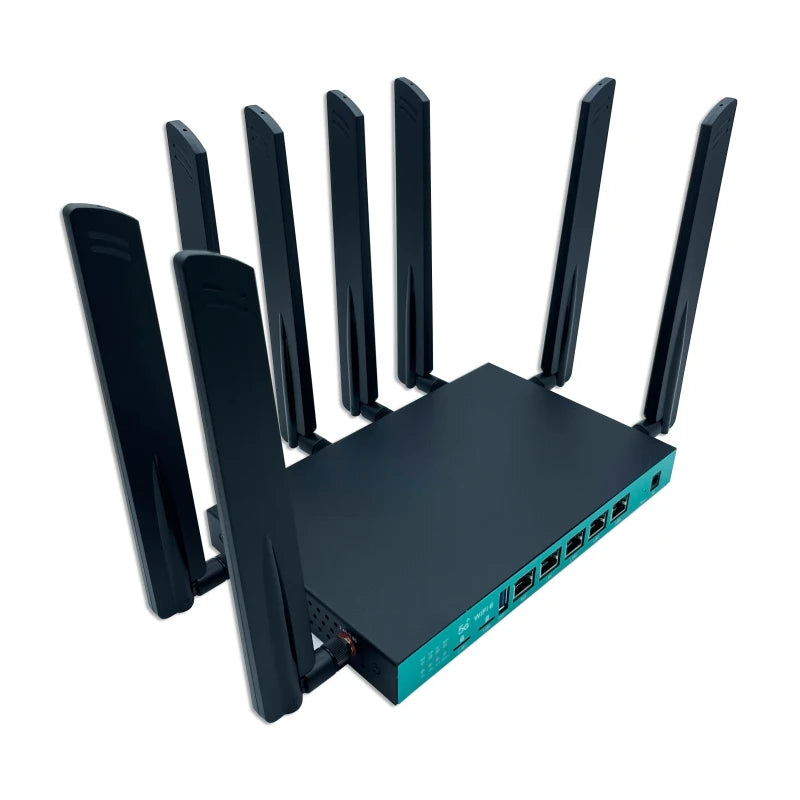

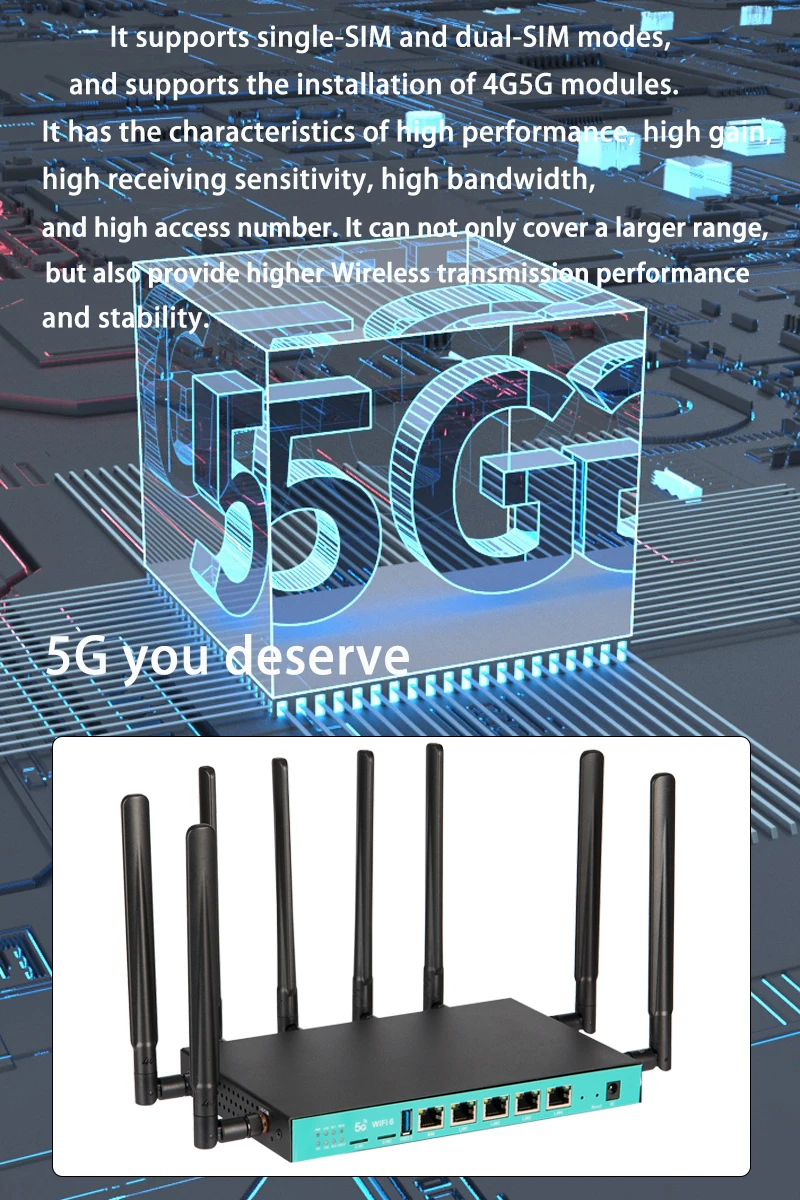

WL225 is a 5G+WIFI6 routing product. It accesses the Internet through 5G mobile communication dial-up or 1000Mbps WAN port dial-up, and then shares the Internet network via wireless WiFi6 and 1000Mbps wired LAN.

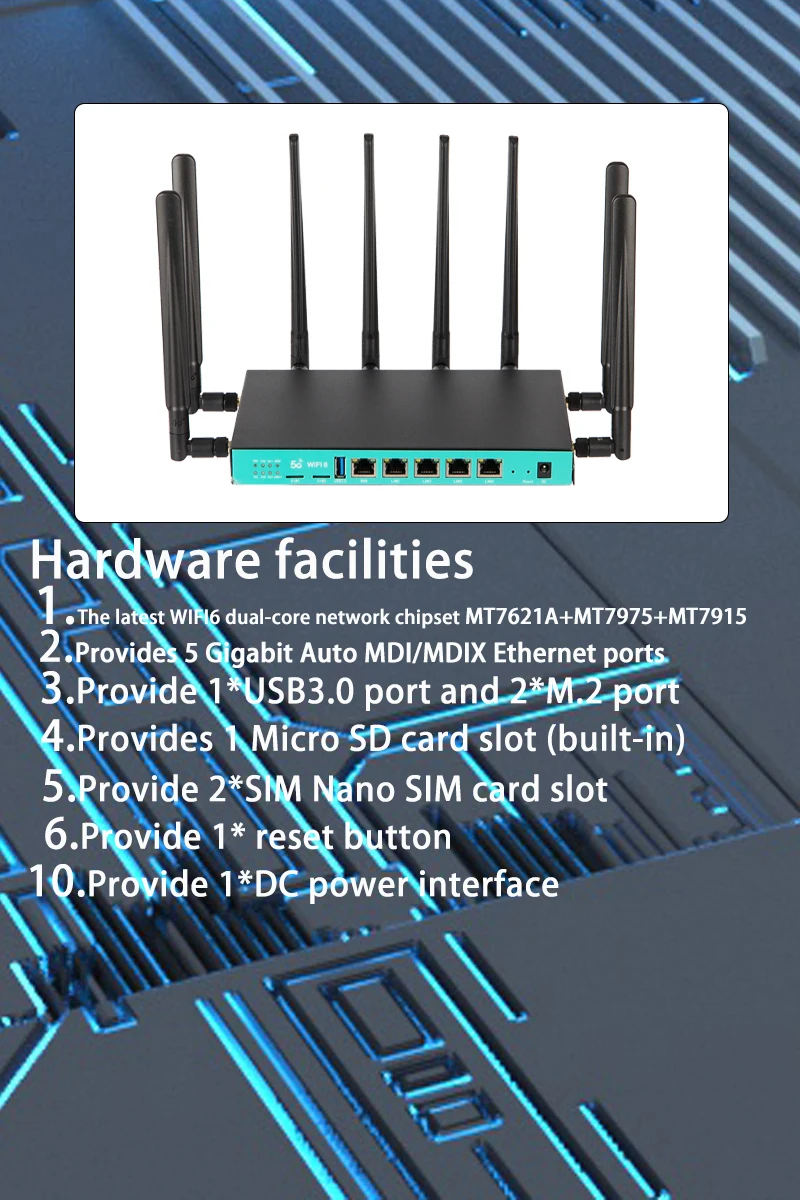

Product Feature： 1)MT7621A Chipset，MIPS Dual core CPU，Main frequency Up to880 MHZ 2)Using independent WIFI6 chip, MT7975D and MT7915D, the rate is up to 1800Mbps 3)Using high-speed 256MB DDR3, with 16MB Nor Flash 1 WAN+4 LAN 1000M Self-adaptive port, support Auto MDI /MDIX. 4)Support “one-click flash mode”, users can easily enter to the recovery mode 5)Built-in M.2*2pcs standard interface Support 4G&5G function after install 5G module

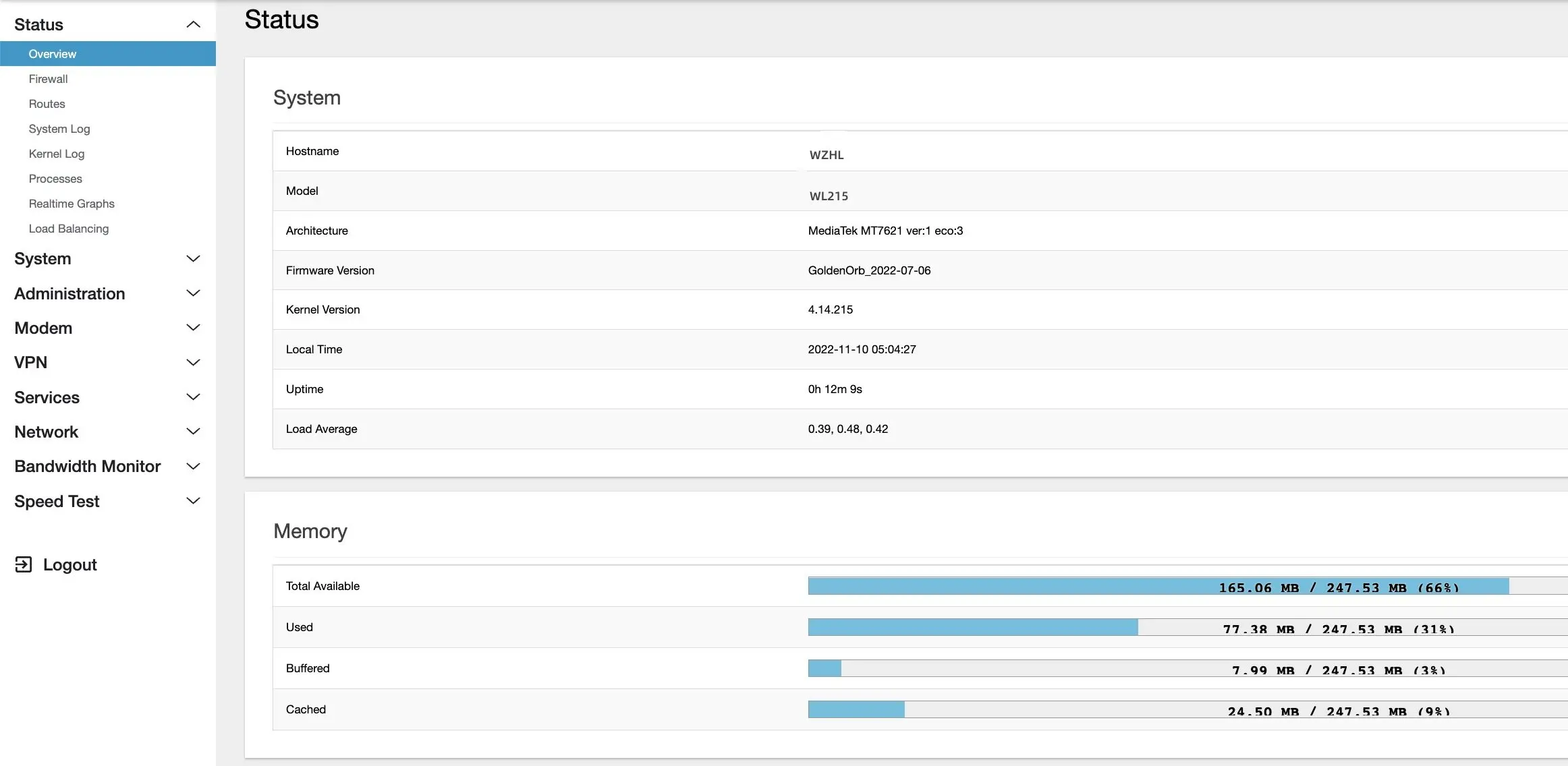

Hardware&software (support OpenWRT)

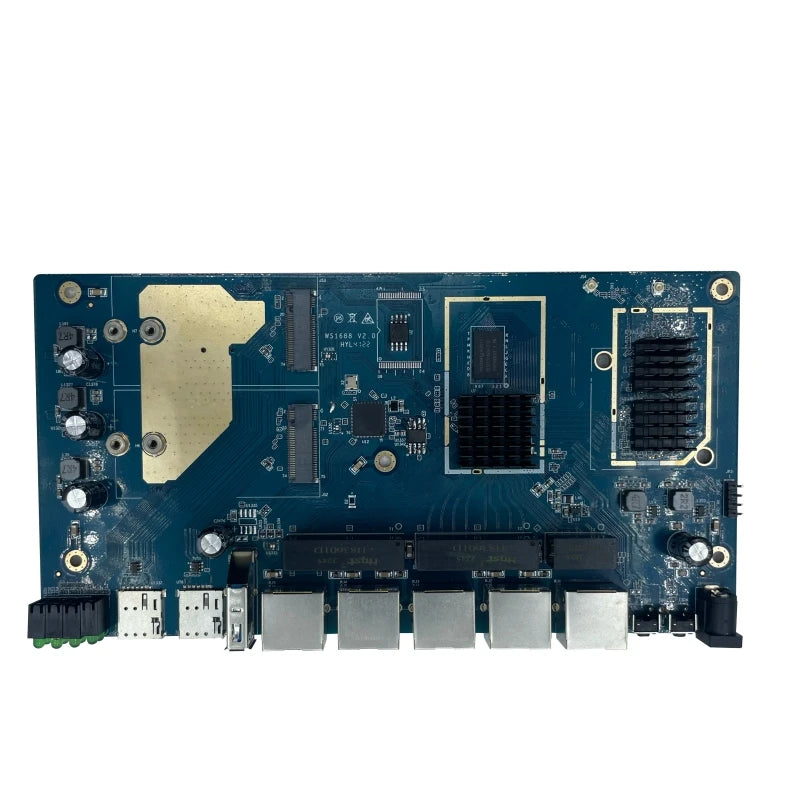

Processor	MT7621A +MT7975D+MT7915D/MIPS Dual core CPU/880MHZ

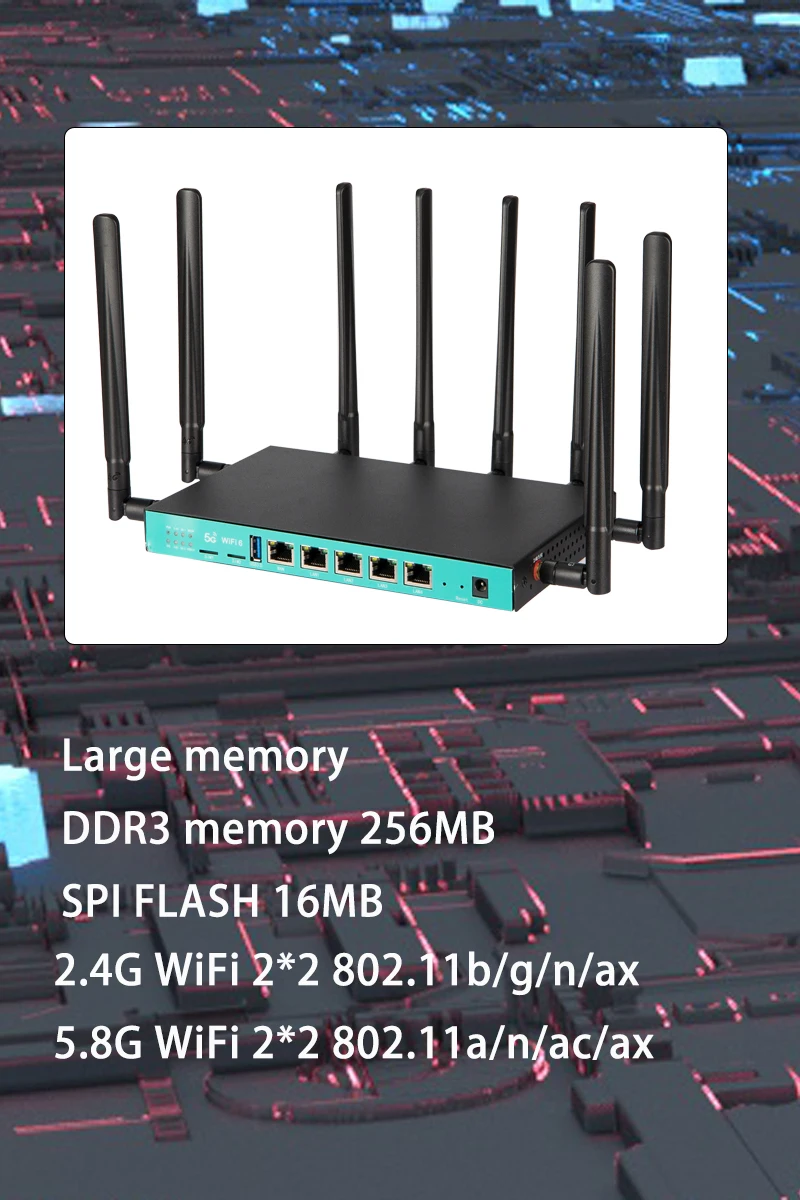

Memory	DDR3 256MB
Flash Memory	Nor Flash 16MB,support NAND Flash

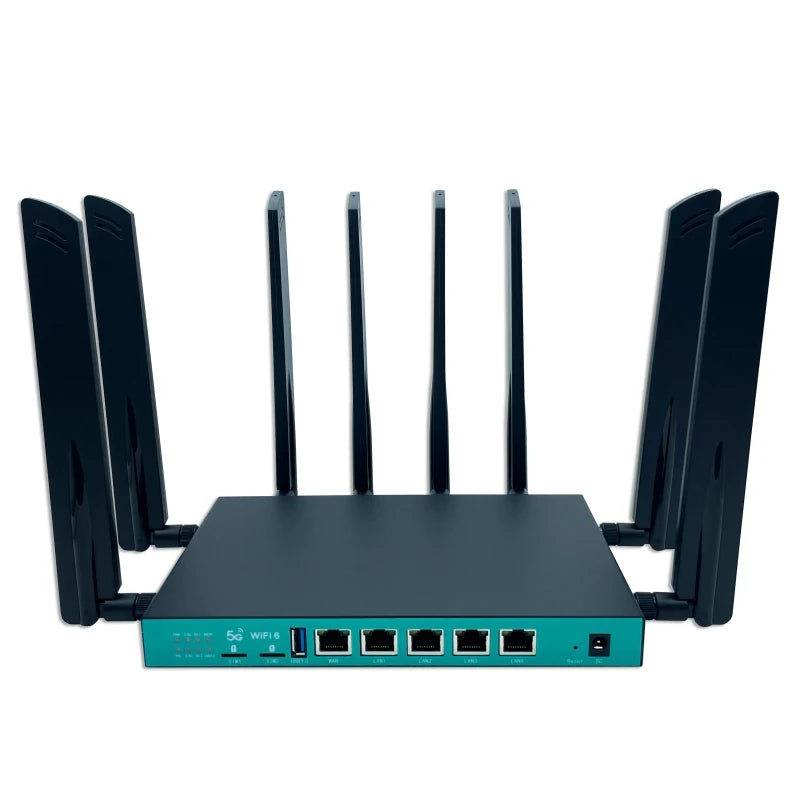

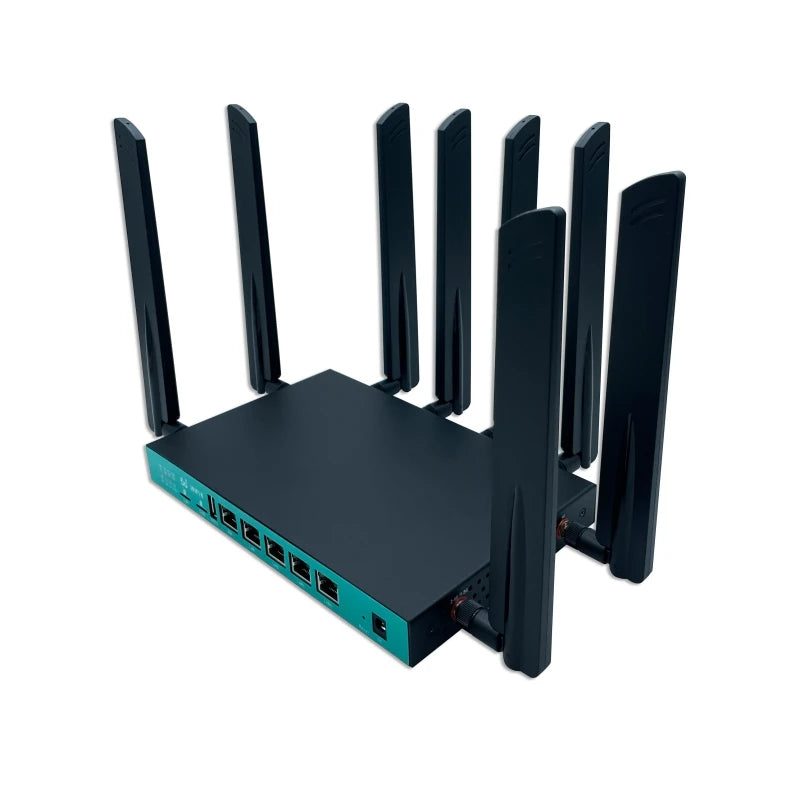

Network port	1*10/100/1000M RJ45 Ethernet Port(Auto MDI/MDIX)
		4*10/100/1000M RJ45 Ethernet Ports(Auto MDI/MDIX)
SIM card interface	SIM card interface 2
Power connector	DC5.0 * 2.1MM interface
Pushbutton	Reset button 1pcs

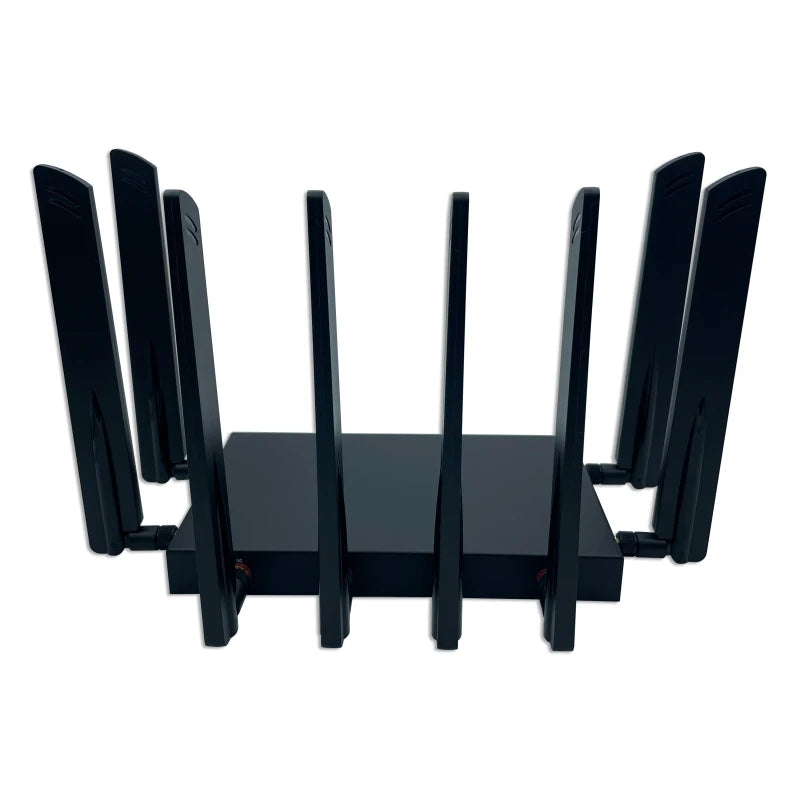

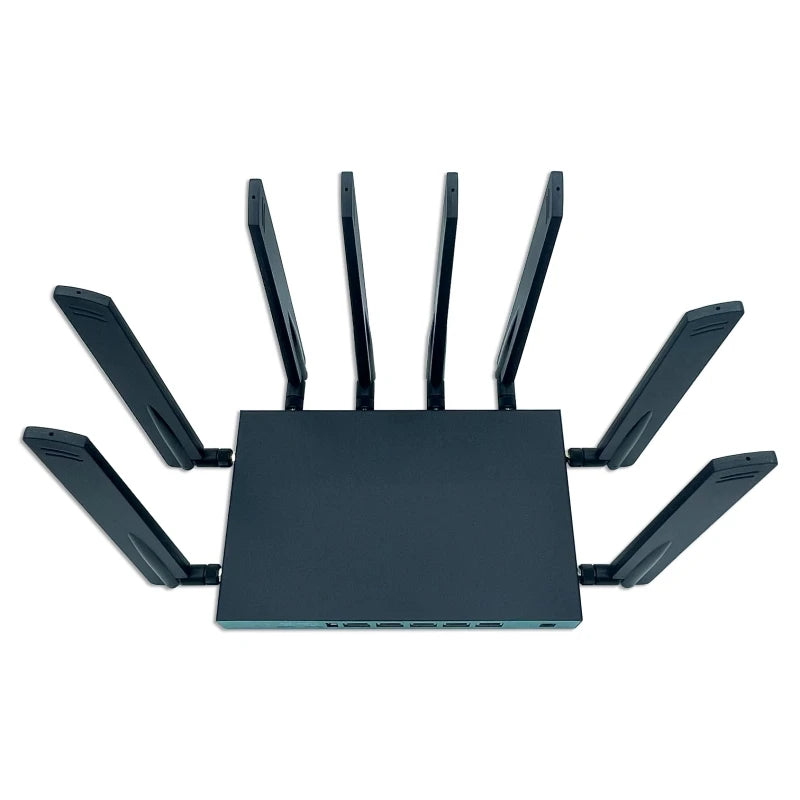

Antenna	8*internal 5dBi antenna

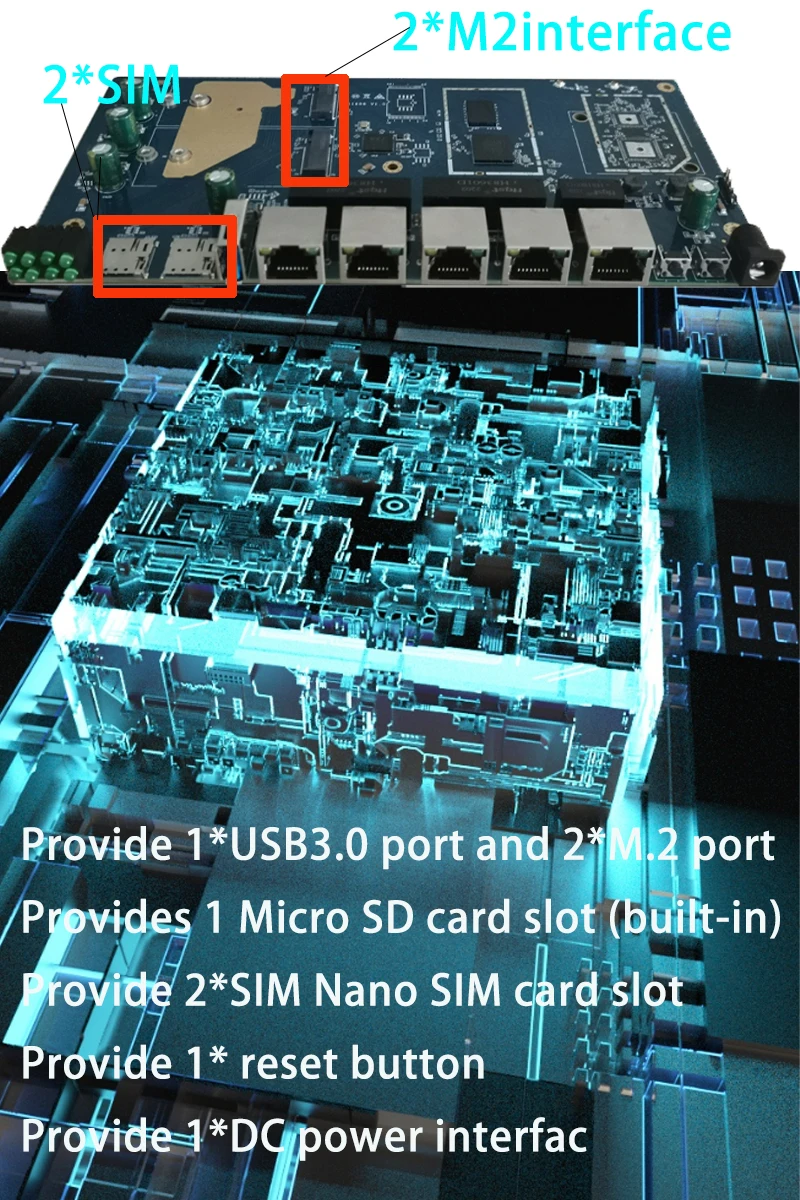

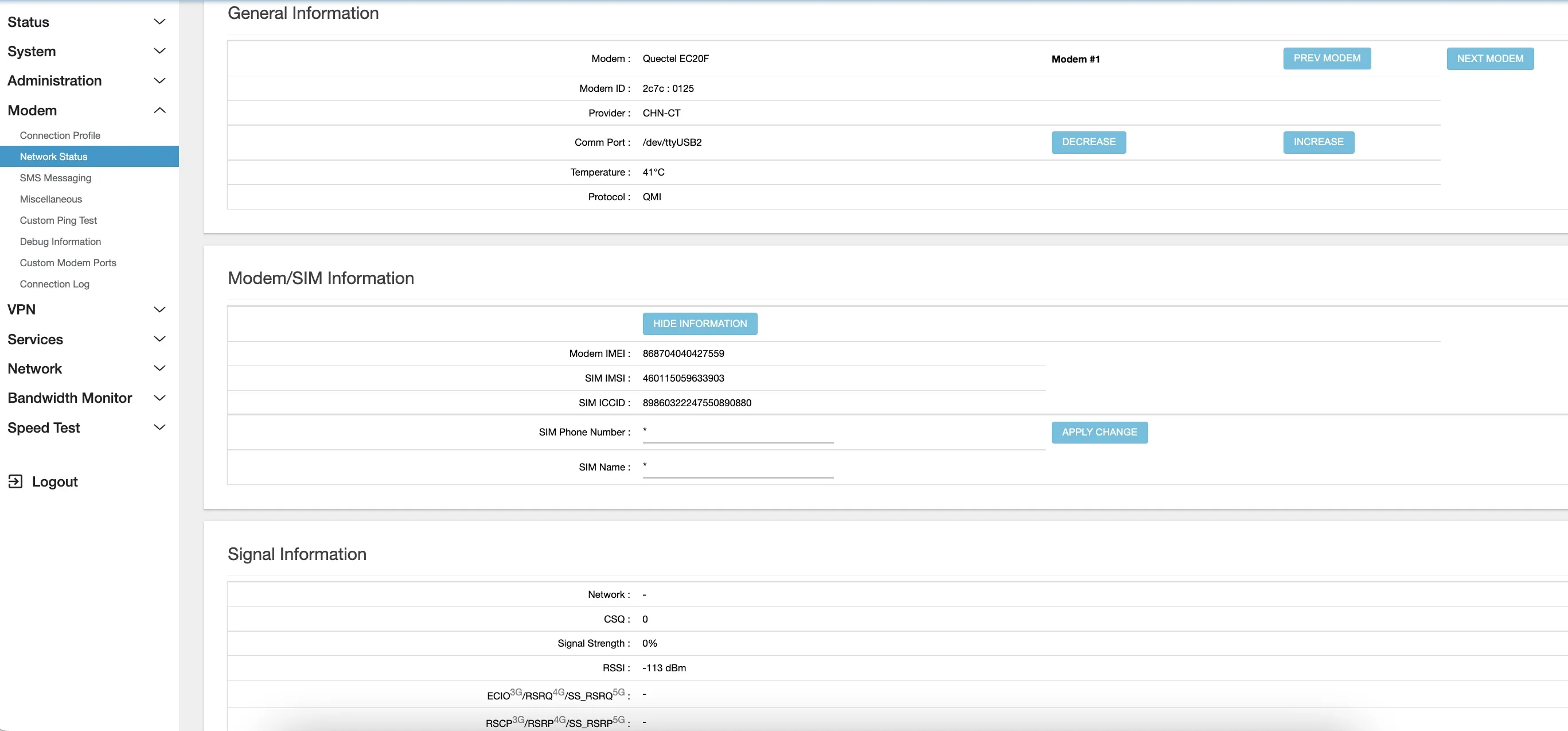

4G/5G module interface	Built-in M.2*2pcs standard interface
