SPECIFICATIONS

Brand Name: Topteng

Condition: New,100% Brand New

Material: Plastic

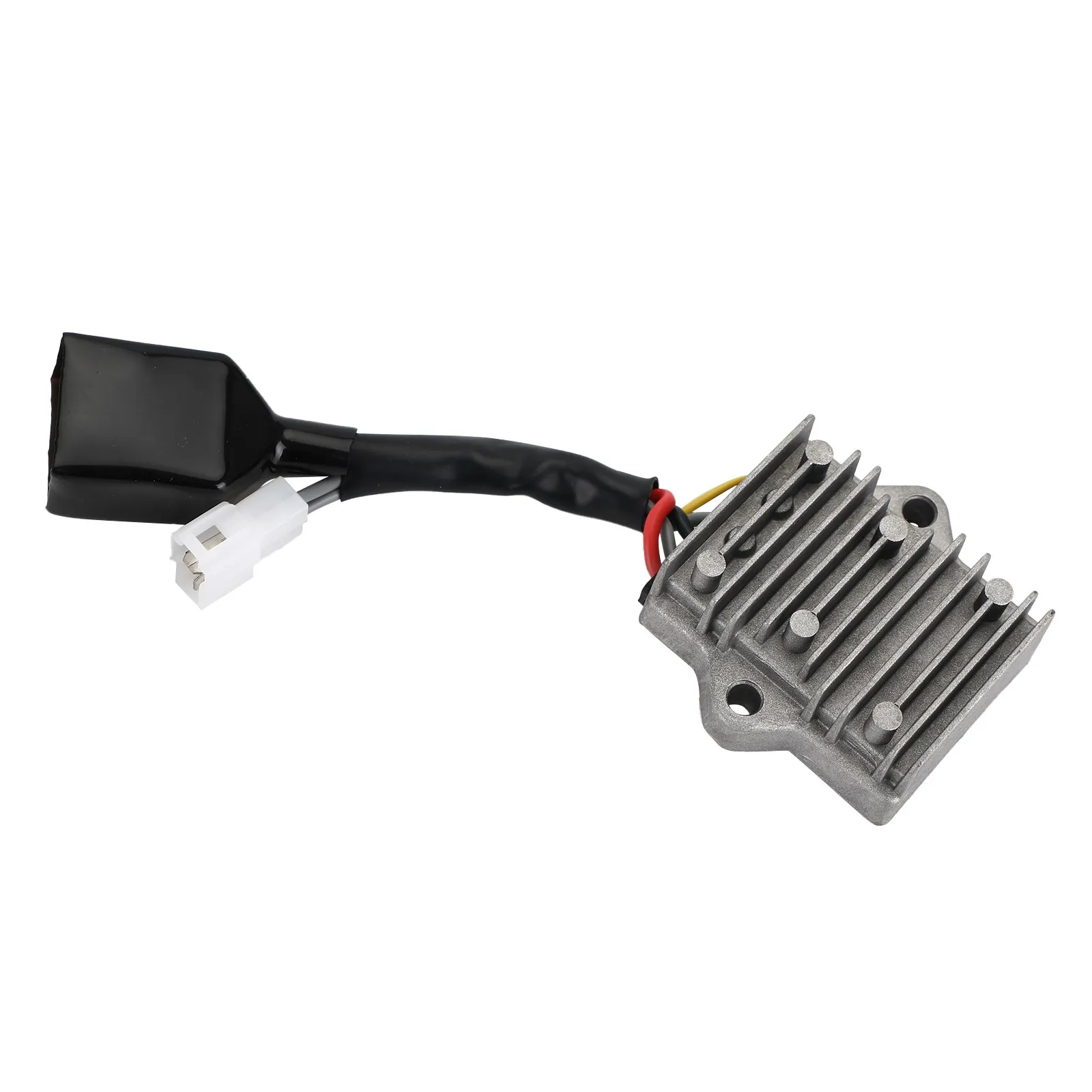

Model: RRV-A361

Model Number: RRV-A361

Place of Origin: China

Placement on Vehicle: Not Specified

Purpose: for replace/repair

Warranty: 12months

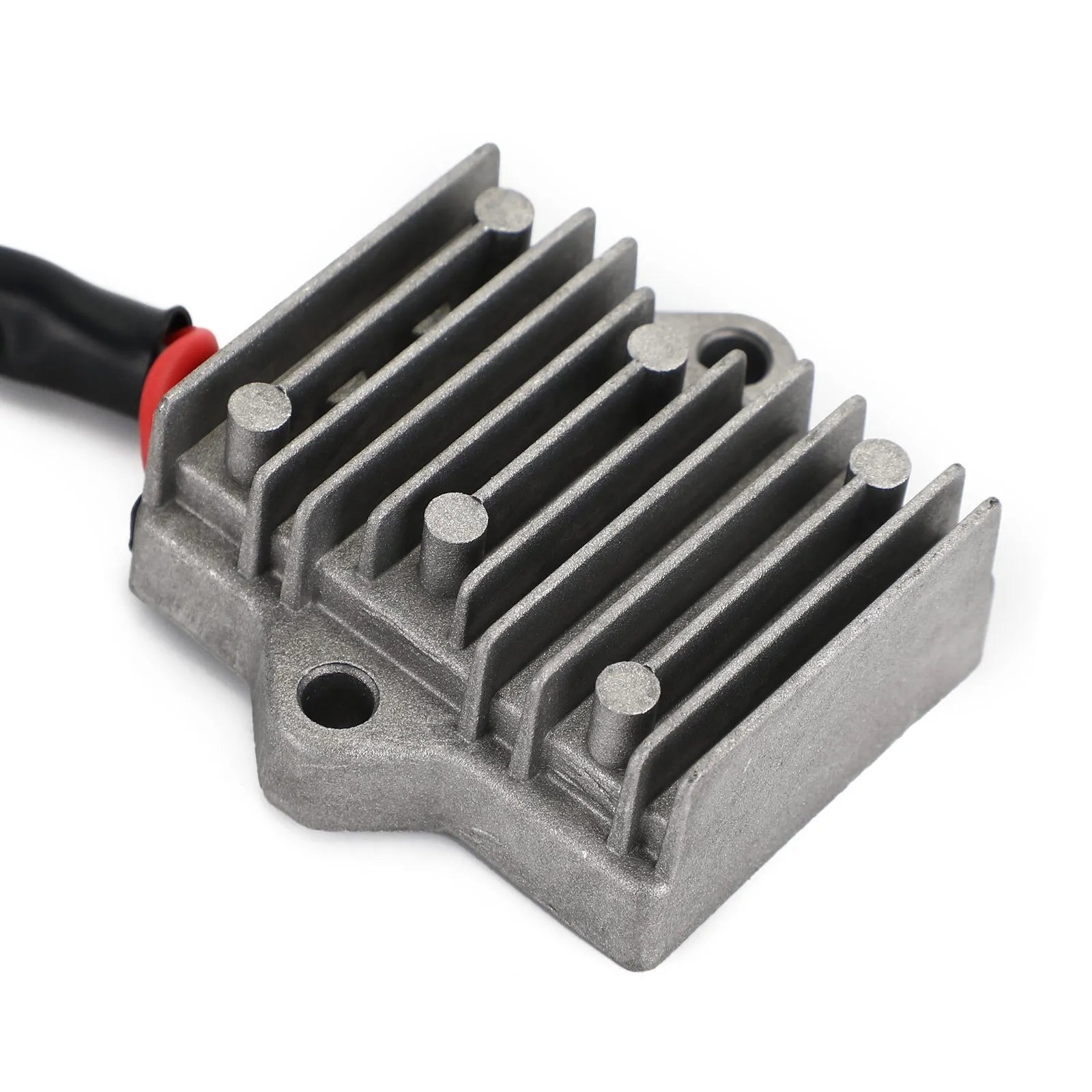

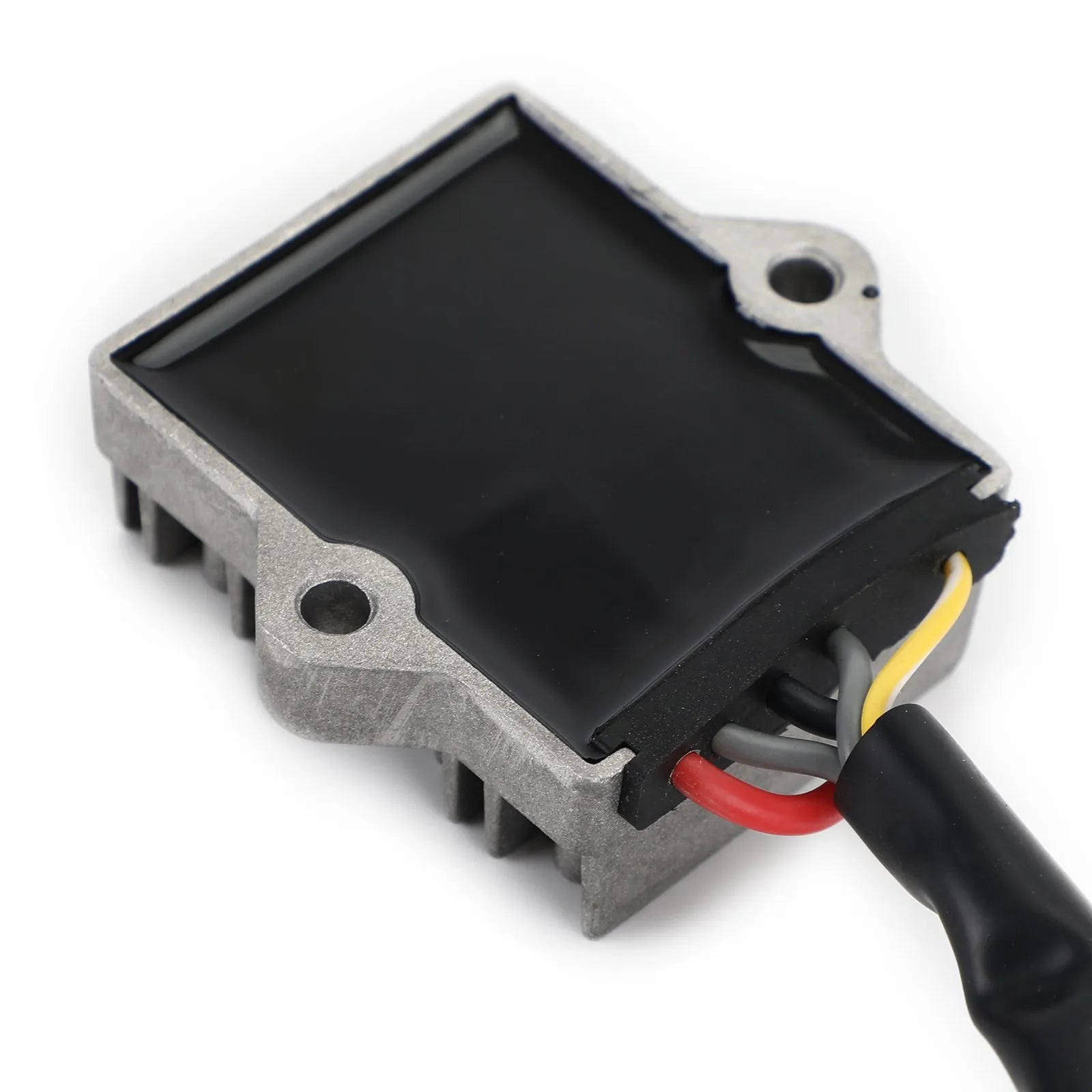

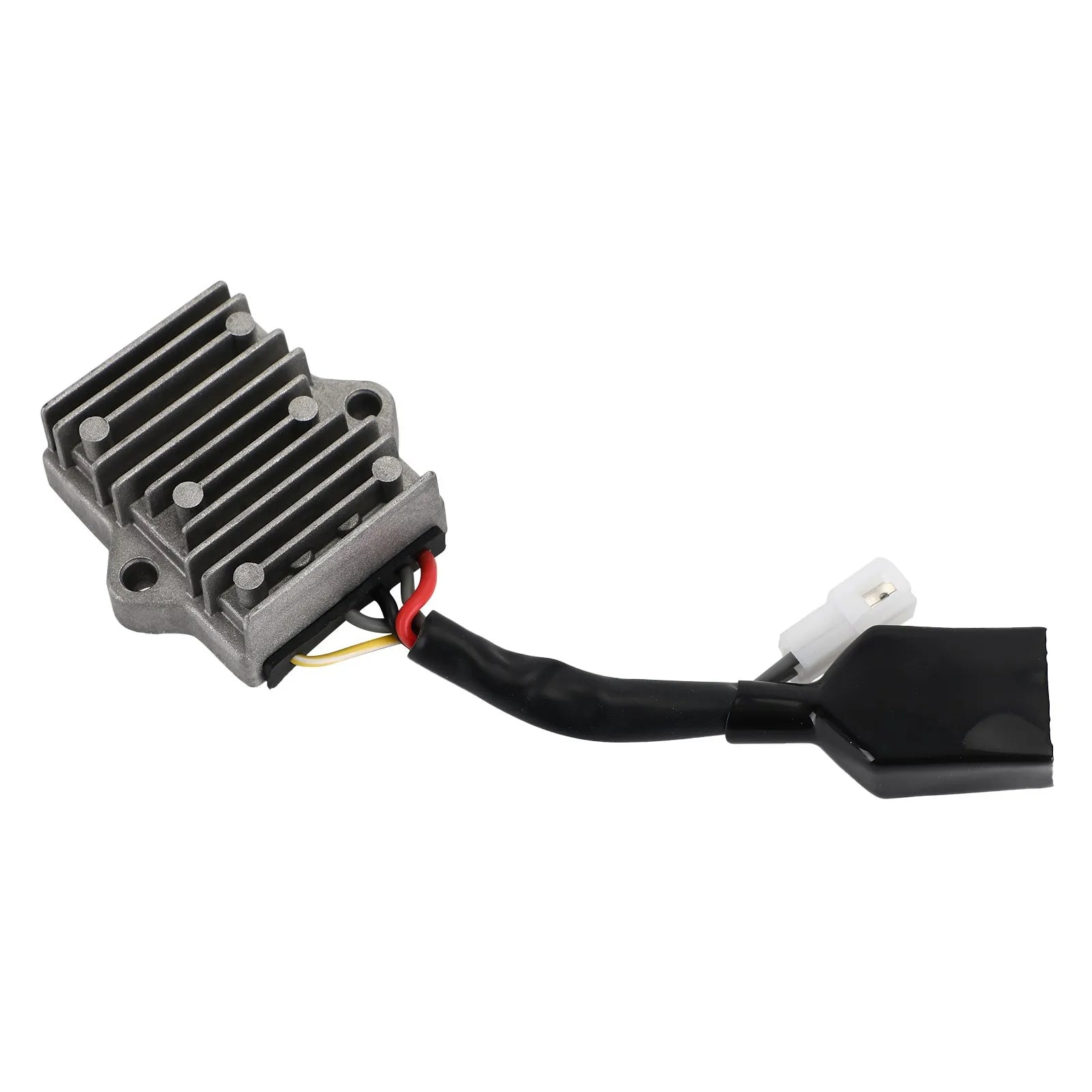

Voltage Regulator Rectifier For Kawasaki Z125 Pro BR125 2017-2021 21066-0713 21066-0764

Features:
OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
All products shipped are tested.
Instruction is NOT included.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1 PC
Type: Voltage Regulator Rectifier

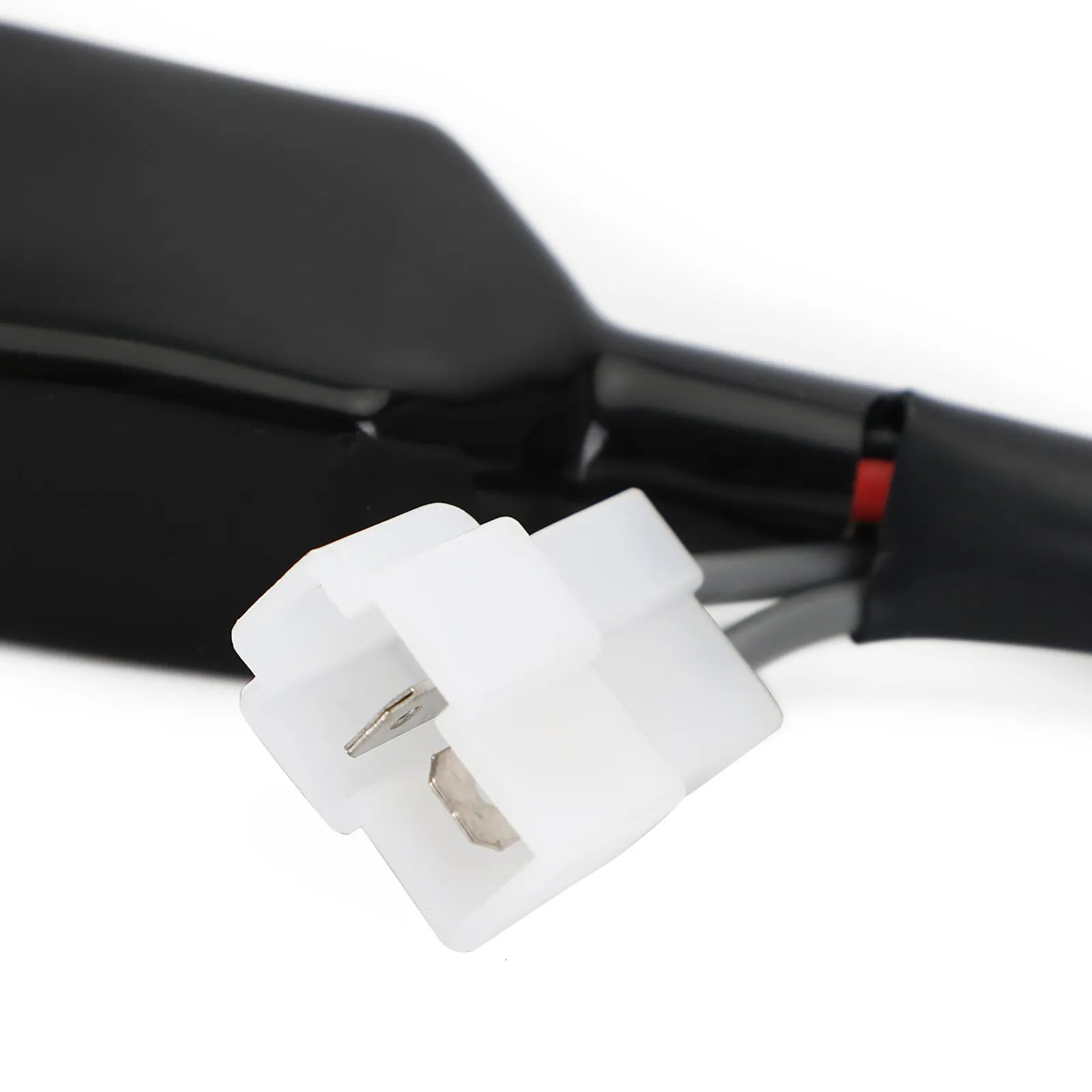

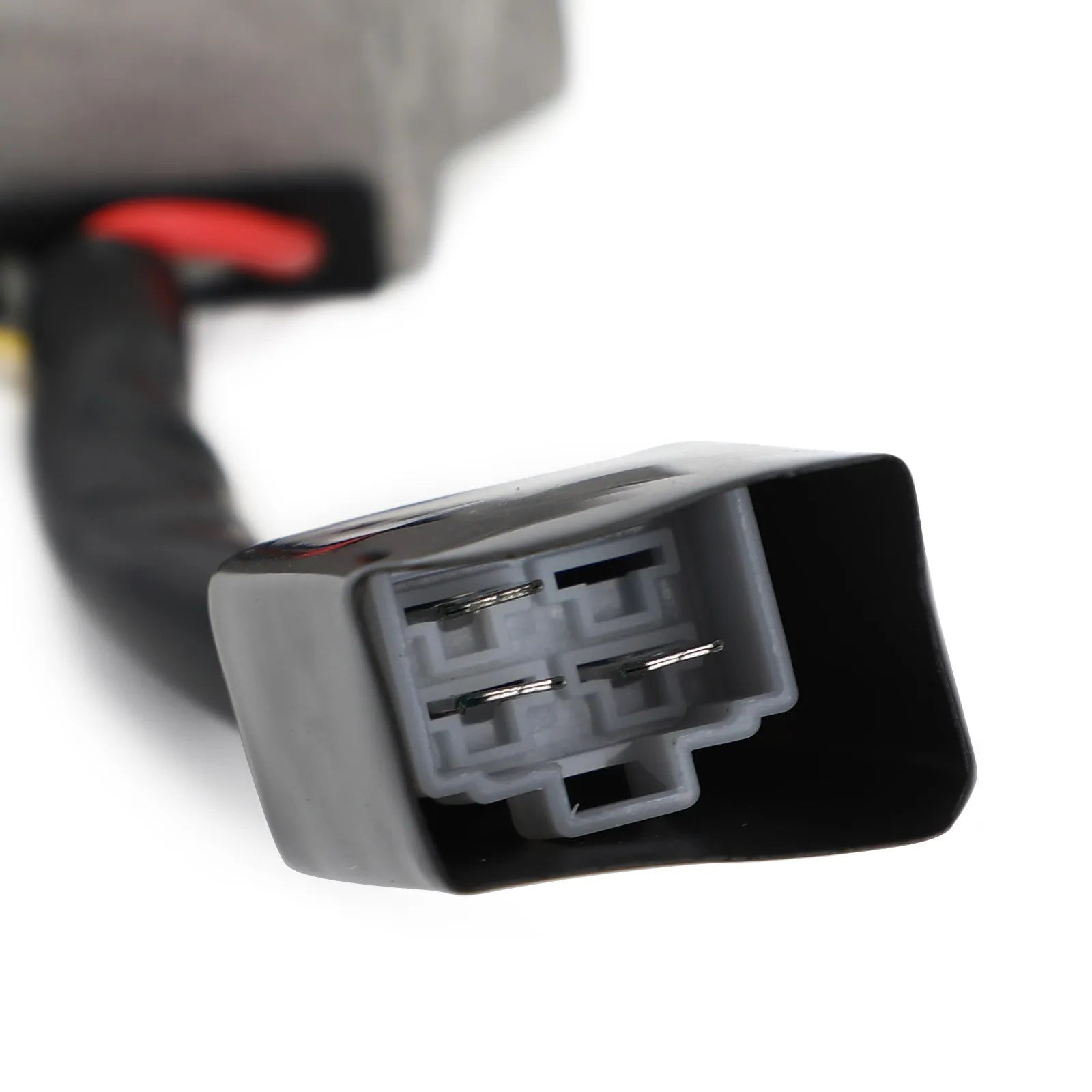

Wiring Diagram:
Yellow/White - Light
Red - Battery (+)
Black - Ground (-)
Gray - Power Coil
Gray - Powe Coil

If you find that the headlight remains on and cannot be turned off after installing the rectifier
You can first disconnect the rectifier and then turn on the ignition switch.
If the headlight still stays on, it indicates that a short circuit has occurred in one of the wires during the installation process.

Replacement Part Number:
21066-0713
21066-0764

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

For Make/Model/Year:
For Kawasaki BR125 Z125 Pro 2017-2021

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package includes:
1x Voltage Regulator Rectifier

NOTICE:
Signs that your regulator needs replacing:
Depending on the location of the regulator rectifier, the part can easily overheat. Other causes for a dead regulator rectifier center on the battery. Ground connections are important for good voltage, and if there is a faulty voltage, the regulator rectifier can run hot. Bad grounding, corroded battery connection and poor or loose battery connections will cause faulty voltage too.

There are generally two ways for the regulator rectifier to fail:
The first deals with diode burnout, resulting in battery drain. It is easy to assume that the issue is a bad battery because of symptoms such as dimming headlights and poor starts. Checking the voltage with a voltmeter versus relying on symptoms alone will prove highly beneficial. If the voltage drops below 13 volts, the motorcycle will begin to drain the battery and eventually the engine will stop. Check for bad connections and corrosion; these can also cause voltage issues.
The other failure type is shunt regulator burnout, where the regulator rectifier fails to control the voltage, resulting in battery overcharge. Again, a voltmeter will be useful for diagnosis. Though generally, readings above 17 volts mean the regulator rectifier is not converting the excess power correctly and all of that excess voltage may cause the headlights to become extremely bright and then blow.
