SPECIFICATIONS

Application: indoor

Back: Cold-rolled sheet metal board

Display area: 585.6 x 48.19mm

Features: 1GB RAM and 8GB ROM

Housing material: Sheet Metal / Aluminium Profile

Housing size: 598.62 x 65mm

WIFI: Support

audio format: mp3,wma

color: black

key work: shelf screen stretch bar display

lifespan (hours): 60000h

media available: catalog

picture format: gif, jpeg, png, bmp

place of origin: Guangdong, China

type: LCD

use: Retail Store/supermarket

video format: mpg,mpg1,mpg2,mpg3,mpg4,avi,mp4,ts,mkv,wmv

view angle（h/v）: 178°/178°

warranty: 1 Year

Products Description

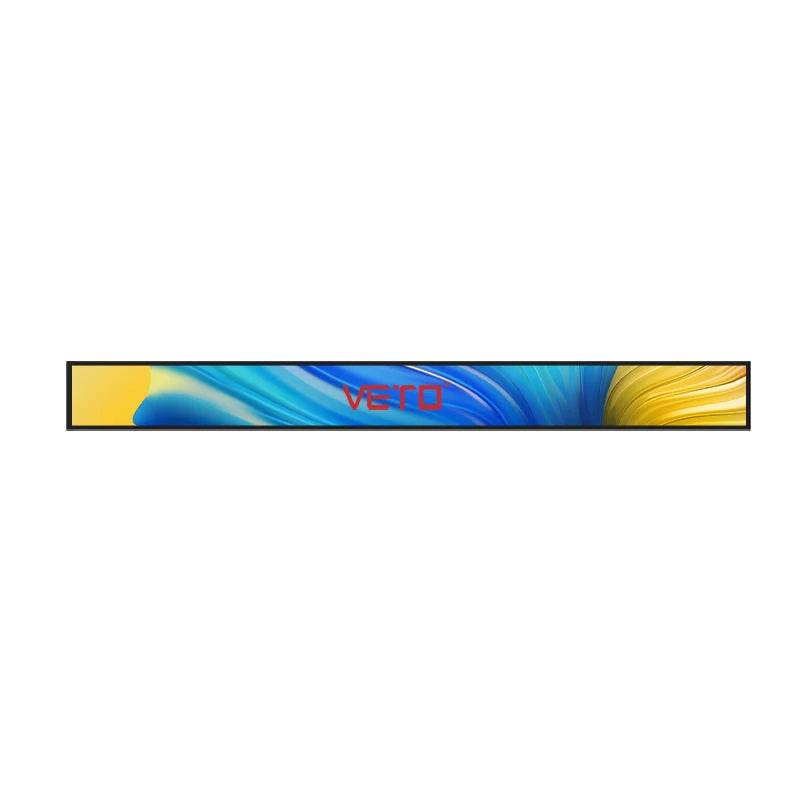

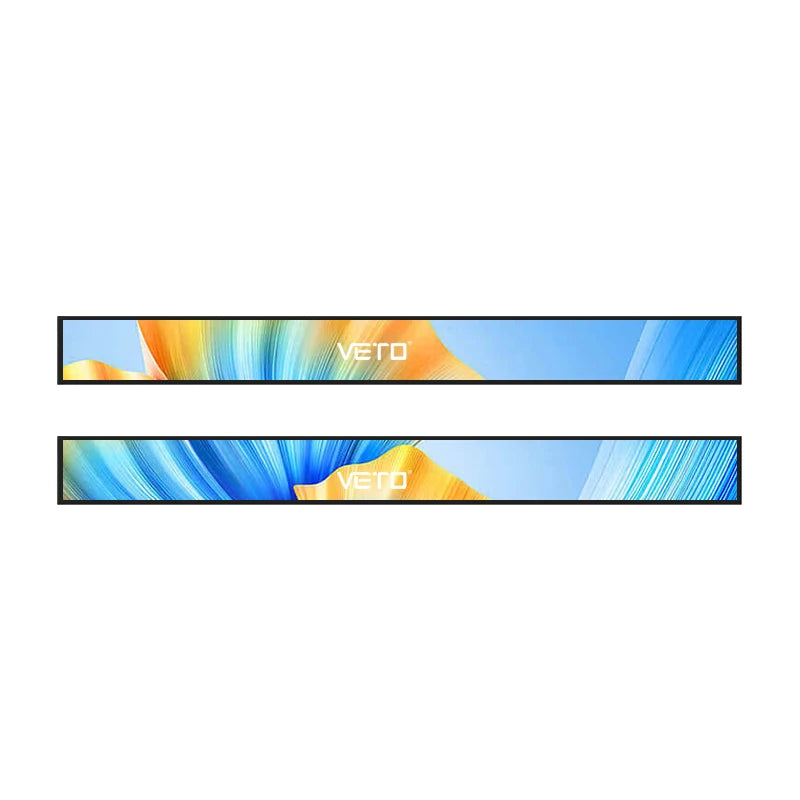

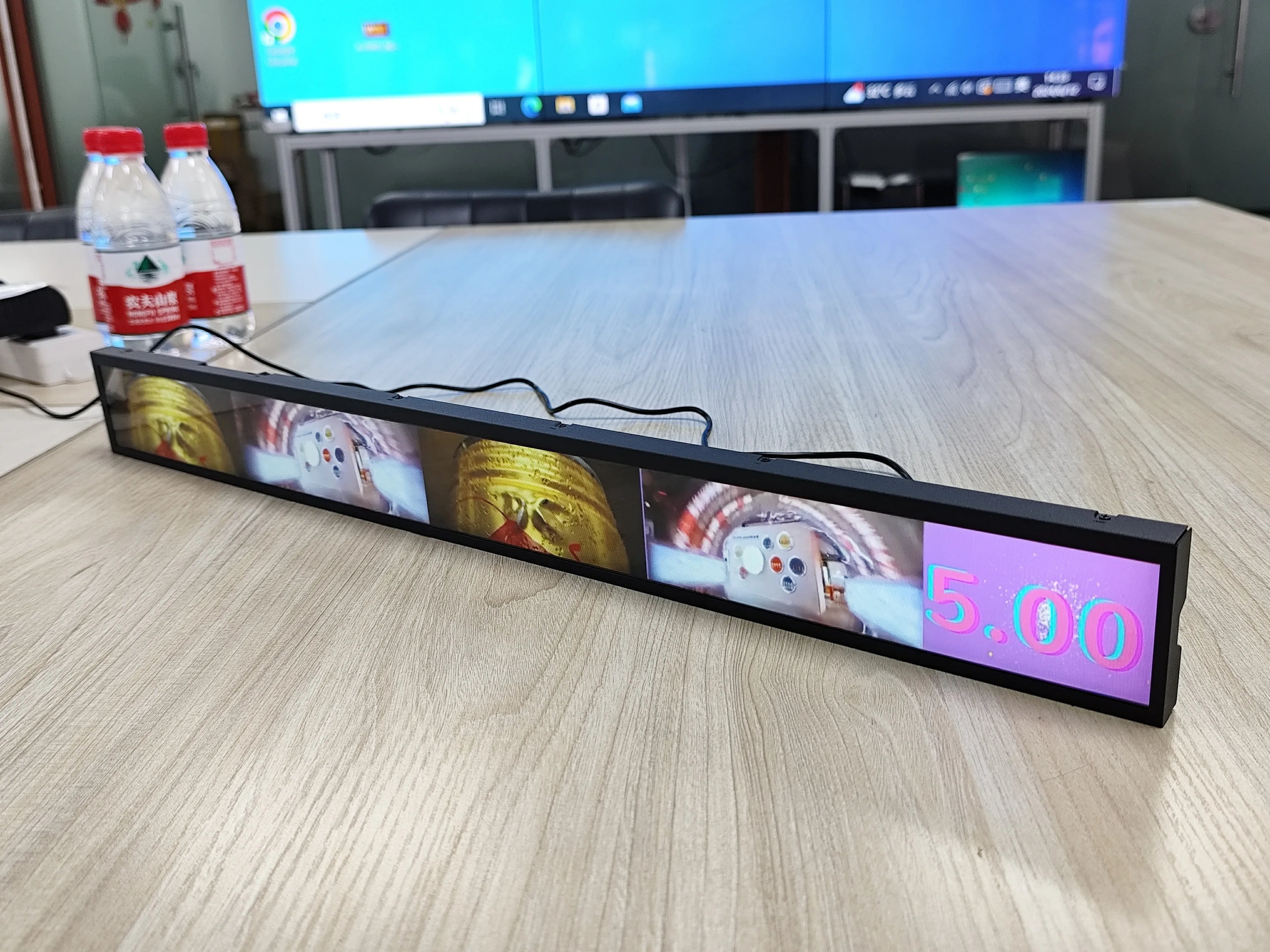

VETO 23.1 Inch indoor stretched bar lcd panel Android Shelf Advertising Screen tft lcd bar style display for supermarket retail

Stretched Bar LCD Display

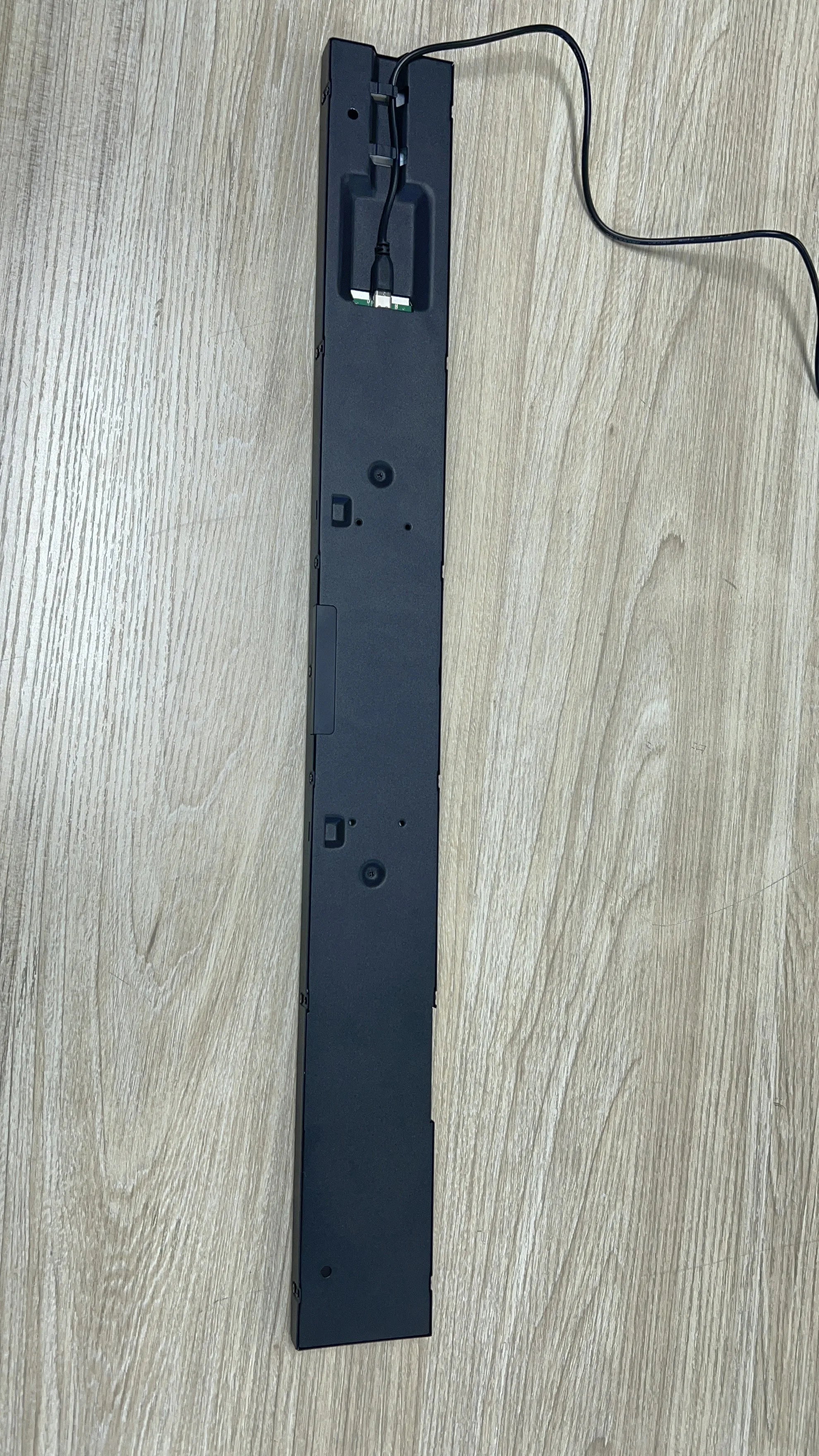

Stretched Bar LCD Display Key Features: 1. TFT LCD screen,LED backlight,1920*158 resolution, 500nits,  2. Solution: Android 4core, ARM Cortex-A9 R4, 28nm , with USB,OTG WIFI RJ45,TF card,5.1OS, including software license,cloud control. 3. Including bracket to fixed to the shelf
Panel Specifications	Panel type	TFT LCD

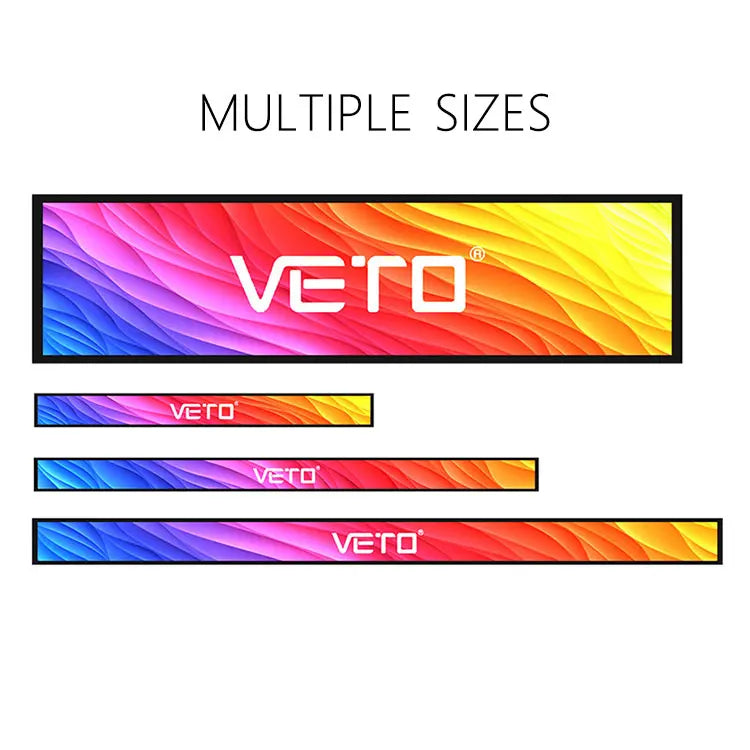

		Diagonal Aspect Ratio	23.1inch（customizable）
		Viewing Angle	H178º/ V178º
		Luminance(nits)	500cd/m2
		Contrast	3000:1
		surface treatment	AG coating (Haze 40%)
		Life(hrs)	more than 60000
Connection	CPU	ARM Cortex-A9 R4, 28nm
		RAM	1G
		RJ45	x1
		Storage	8G EMMC
		USB	x1
		OTG	x1
		WIFI	802.11a/b/g/n
		HDMI	NO
		TF Card	can support up to 128GB
		Power Supply	AC100~250V 50/60 HZ
		Function	including software to upload advertising contents,cloud control
Display	AVI,MOV, MKV, WEBM,MP4, M4V, FLV, 3GP, 3G2,3GPP,DAT,VOB, EVO,MPG, ASF, TP, TRP, TS, M2TS, MTS, H. 265(HEVC)1080P 30fps,H.264 (BP/MP/HP level 4.1,1920X1080@60fps), H. 263(profile 3,1920X1080@60fps), S263(profile 3,1920X1080@60fps),MPEG-1(MP, 1920X1080@60fps),MPEG-2(MP, 1920X1080@60fps ), MPEG-4(ASP,1920X1080@60fps), Xvid(Home theater 1920X1080@60fps), MJPEG (baseline,1920X1080@60fps), ON2 (1920X1080@60fps),Divx(3.11,1280x720@60fps, support mulitple language display
Consumption	Power Supply	AC100~250V 50/60 HZ
		Max.Consumption	≤2.75W
Dimension	Power Supply
