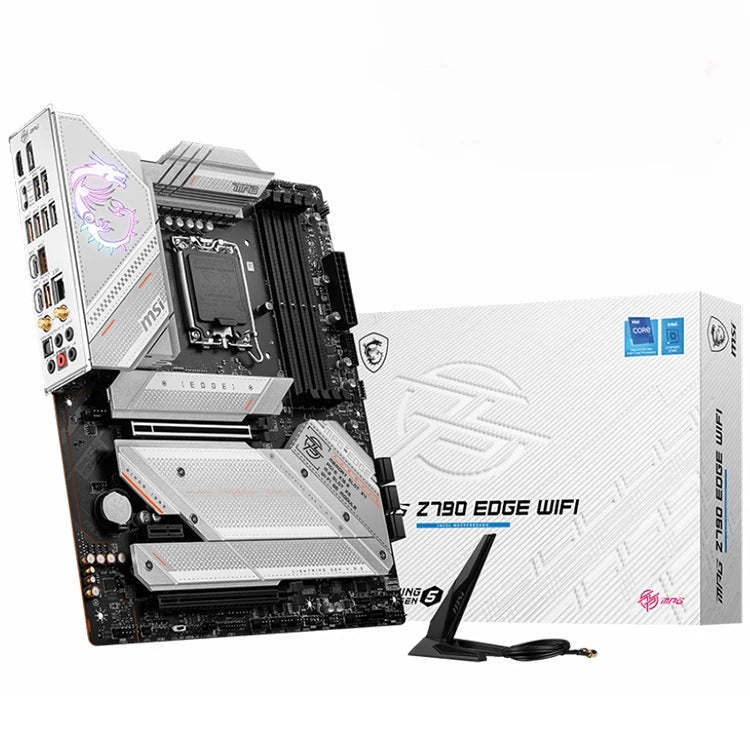

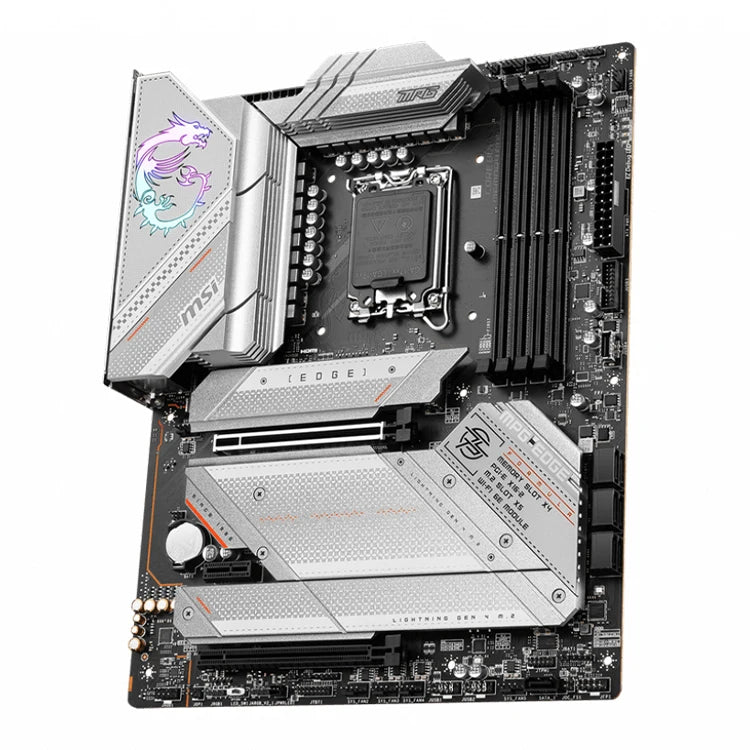

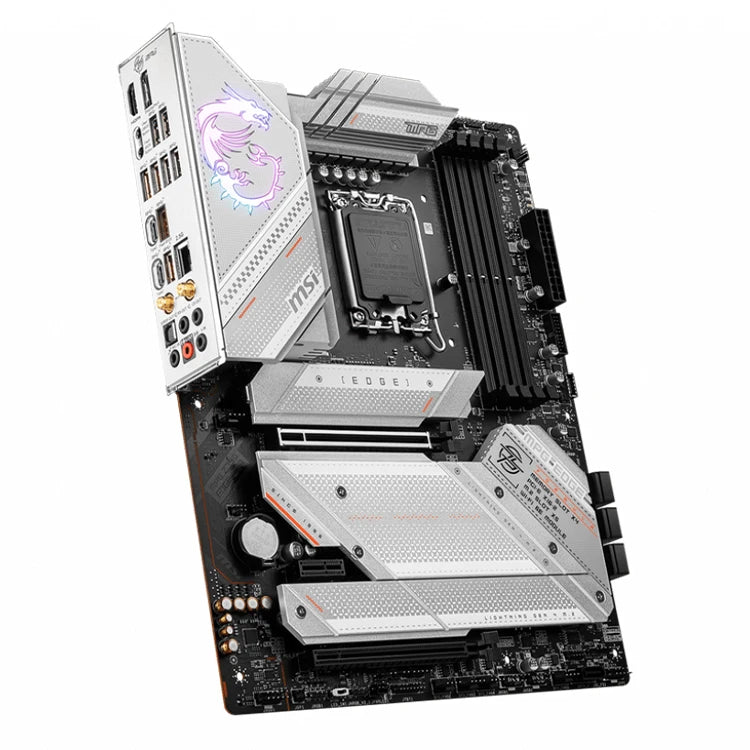

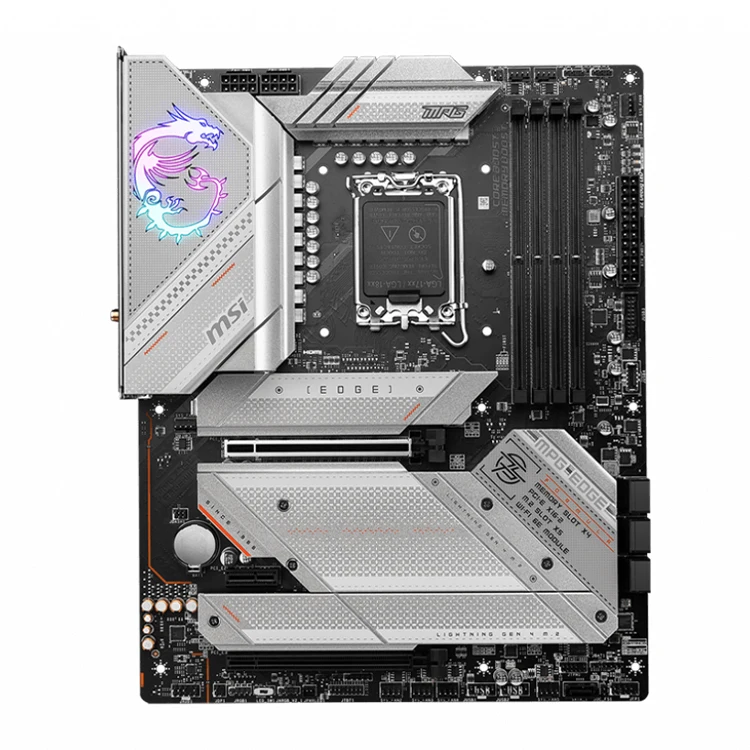

Used MS'I MPG Z790 EDGE WIFI DDR4 Motherboard with 128GB DDR4 Memory Supports 12/13th Gen Intel Core Professors 12700k 13900k
Used MS'I MPG Z790 EDGE WIFI DDR4 Motherboard with 128GB DDR4 Memory Supports 12/13th Gen Intel Core Professors 12700k 13900k
Description
SPECIFICATIONS
AUDIO: Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
CHIPSET: Intel Z790
CPU: 12th/13th Gen Intel Core
LAN: Intel 2.5Gbps LAN
MAX MEMORY (GB): 128
ONBOARD GRAPHICS: 1x DisplayPort
SOCKET: LGA 1700
STORAGE: 5x M.2 slot
Storage: 7x SATA 6G port
application: Desktop
brand name: MPG
chipset: Intel Z790
chipset manufacturer: Intel
cpu type: Intel
form factor: ATX
graphics card type: Integrated
hard drive interface: SATA
maximum ram capacity: 128 GB
memory bank: 4 DDR4
memory channel: Four
memory type: DDR4
package: No
place of origin: Guangdong, China
ports: Wi-Fi,SATA,PCI-Express X8,PCI-Express X4,AGP 2X,M.2,USB 3.0,PCI-E 3.0
private mold: Yes
products status: Used
socket type: LGA 1700
with cpu: No
Used MS’I MPG Z790 EDGE WIFI DDR4 Motherboard with 128GB DDR4 Memory supports 12/13th Gen Intel Core Professors 12700k 13900k
-
· Supports 13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1700 socket
· Supports DDR4 Memory, up to 5333+(OC) MHz
· Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
· Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
· Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
· 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
· AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
· High Quality PCB: 6-layer PCB made by server grade level material
· Pre-installed I/O Shield: Better EMI protection and more convenience for installation

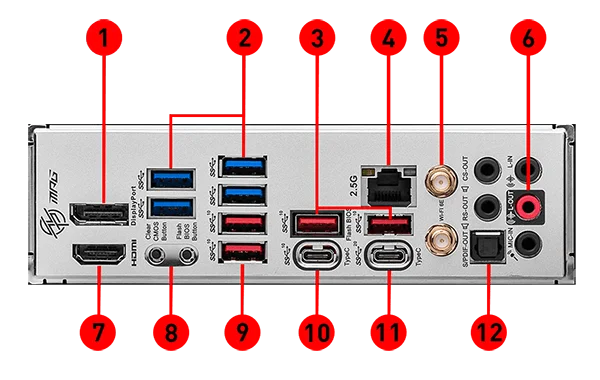

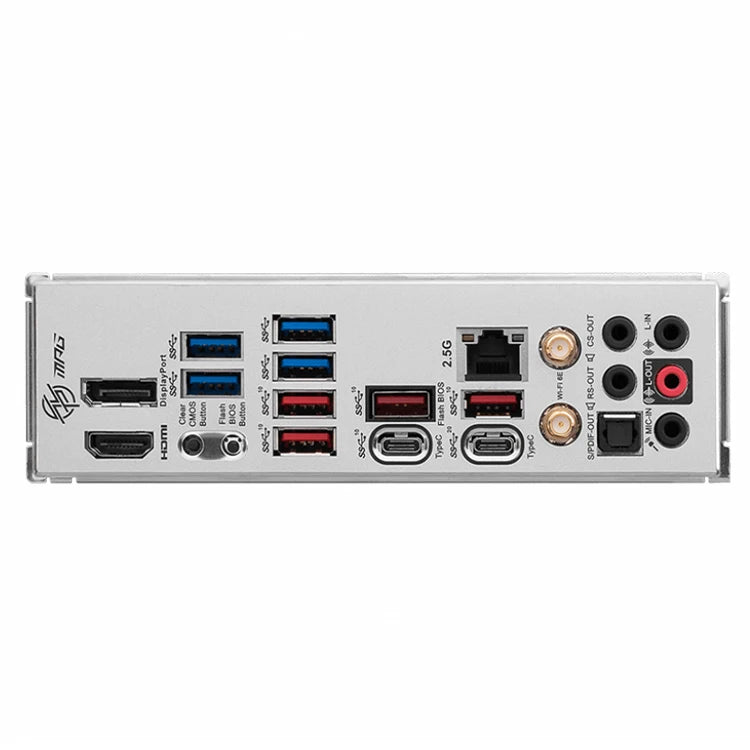

BACK PANEL PORTS
1. Display Port
2. USB 3.2 Gen 1 5 Gbps (Type-A)
3. USB 3.2 Gen 2 10Gbps (Type-A)
4. 2.5G LAN
5. Wi-Fi / Blue tooth
6. Audio Connectors
7. HDMI™
8. Clear CMOS / Flash BIOS
9. USB 3.2 Gen 2 10Gbps (Type-A)
10. USB 3.2 Gen 2 10Gbps (Type-C)
11. USB 3.2 Gen 2x2 20Gbps (Type-C)
12. Optical S/PDIF Out
| CHIPSET | INTEL Z790 |
| CPU SUPPORT |
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
| MEMORY |
4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133(By JEDCE & POR) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| ONBOARD GRAPHICS |
1x HDMI™ 1x DisplayPort Support HDMI™ 2.1, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT |
2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| STORAGE |
5x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_5 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 7x SATA 6G port |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function. |
| USB |
4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Intel® 2.5Gbps LAN |
| WIRELESS / Blue tooth |
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Blue tooth® 5.2**, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. ** Blue tooth5.2 will be ready in Windows 10 build 21H1 and Windows 11." |
| AUDIO |
Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| INTERNAL I/O |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| LED FEATURE |
4x EZ Debug LED 1x EZ LED Control switch |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB DIMENSION |
ATX 243.84mmx304.8mm |
