SPECIFICATIONS

After-sales Service Provided: Online support

Applicable caring materials: Wood+plastic+aluminum plate-brass+acrylic

Drill bits: Diameter: 3.175mm, tip:0.1 mm, length:30mm

Feature: Coupling,double nuts for tolerance,no connecting parts

No. of Spindles: Multi

Power (kW): 3.2

Power supply: 24V(11V-240V)

Product name: CNC Wood Working Machine

Spindle Motor Power (kw): 775 spindle motor

Support system: windows xp/win7/win8/ win10/linux

Working Table Size(mm): 300X180

bed dimension: 300x180x40mm

brand name: TWOTREE

cnc or not: CNC

controlling software: GRBL control CNC TTC3018s

core components: Bearing,Motor

dimension(l*w*h): 420*355*280mm

key selling points: Easy To Operate

lead screw: T8 screw

machine type: CNC Router

machinery test report: Provided

number of axes: 3

place of origin: Guangdong, China

positioning accuracy (mm): 0.1 mm

range of spindle speed(r.p.m): 1 - 8000

repeatability (x/y/z) (mm): 0.1 mm

travel (x axis)(mm): 300 mm

travel (y axis)(mm): 180 mm

video outgoing-inspection: Provided

voltage: 24V (110V -240V)

warranty: 1 Year

weight (kg): 7.5

Product Description

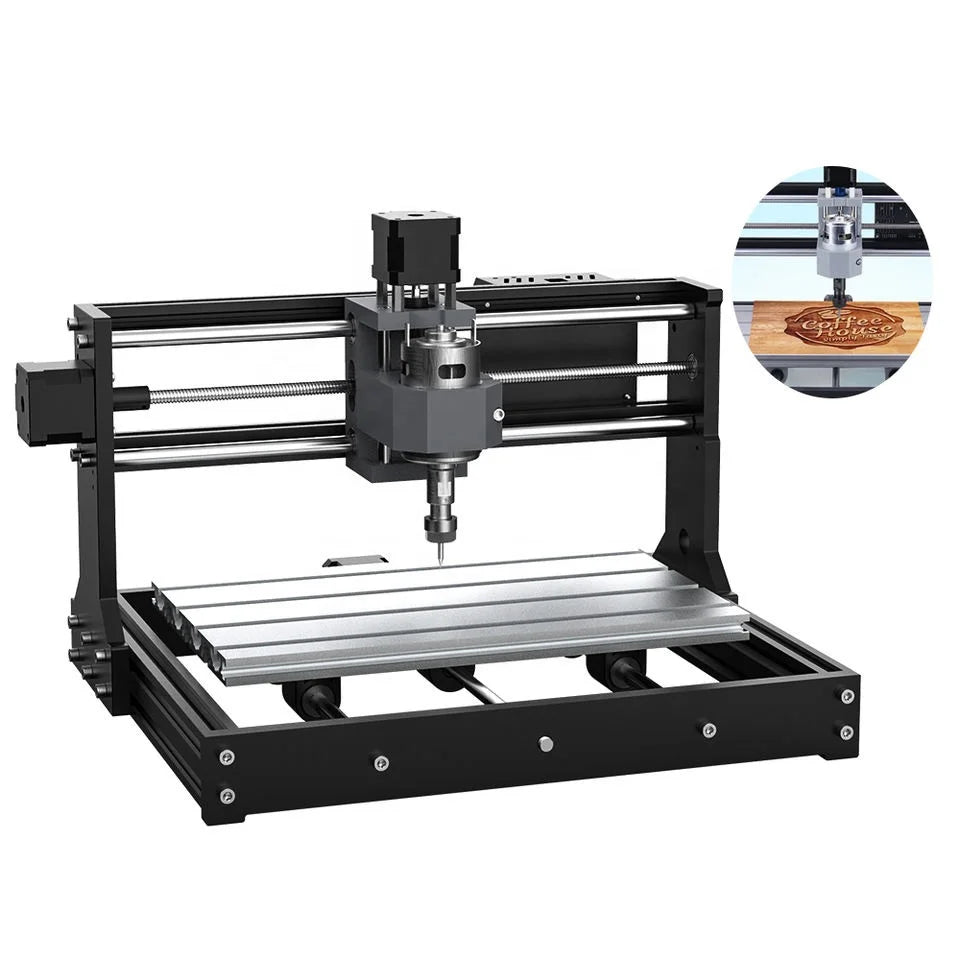

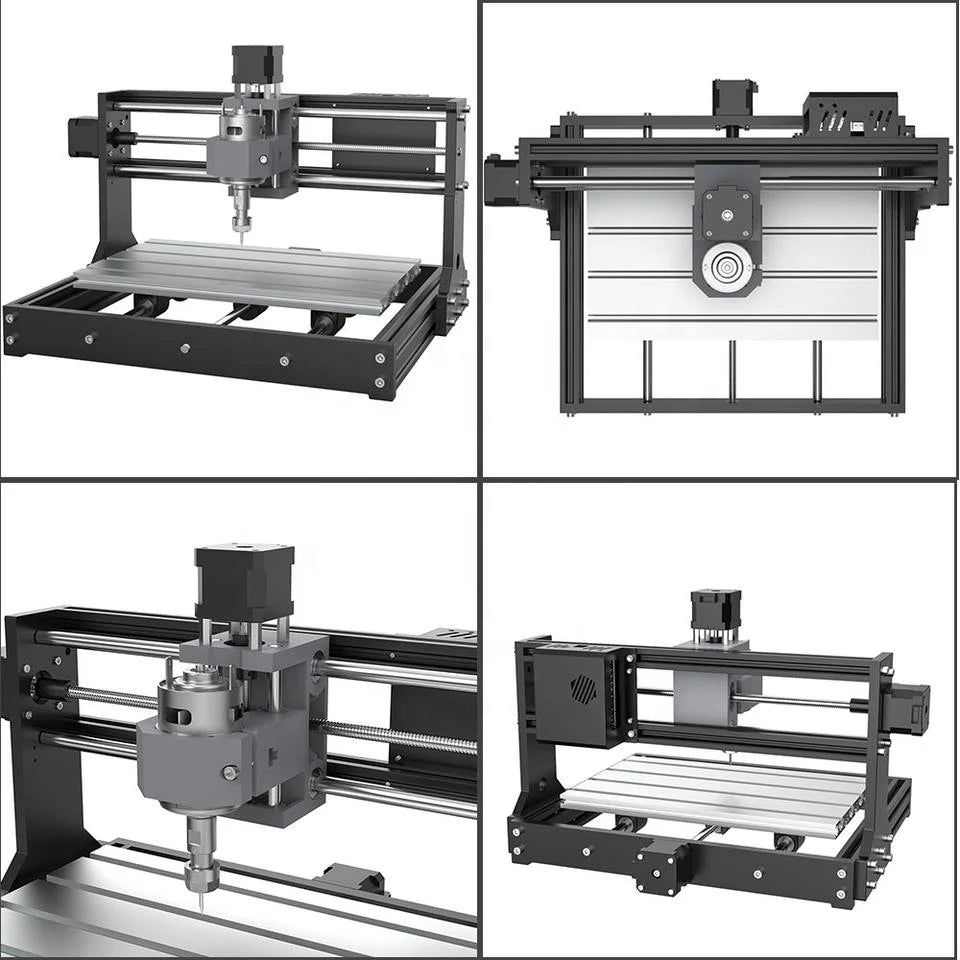

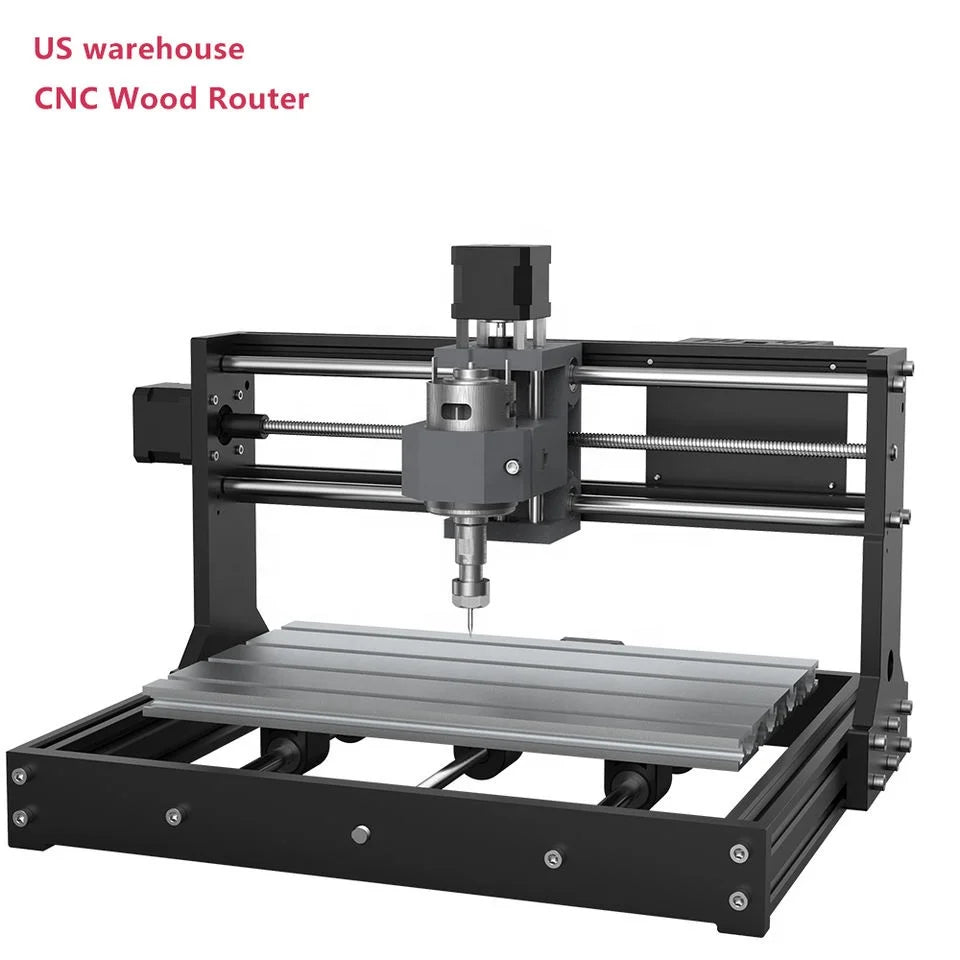

Twotrees CNC 3018-PRO Router Kit GRBL Control 3 Axis Plastic Acrylic PCB PVC Wood Carving Milling Engraving Machine, XYZ Working Area 300x180x45mm

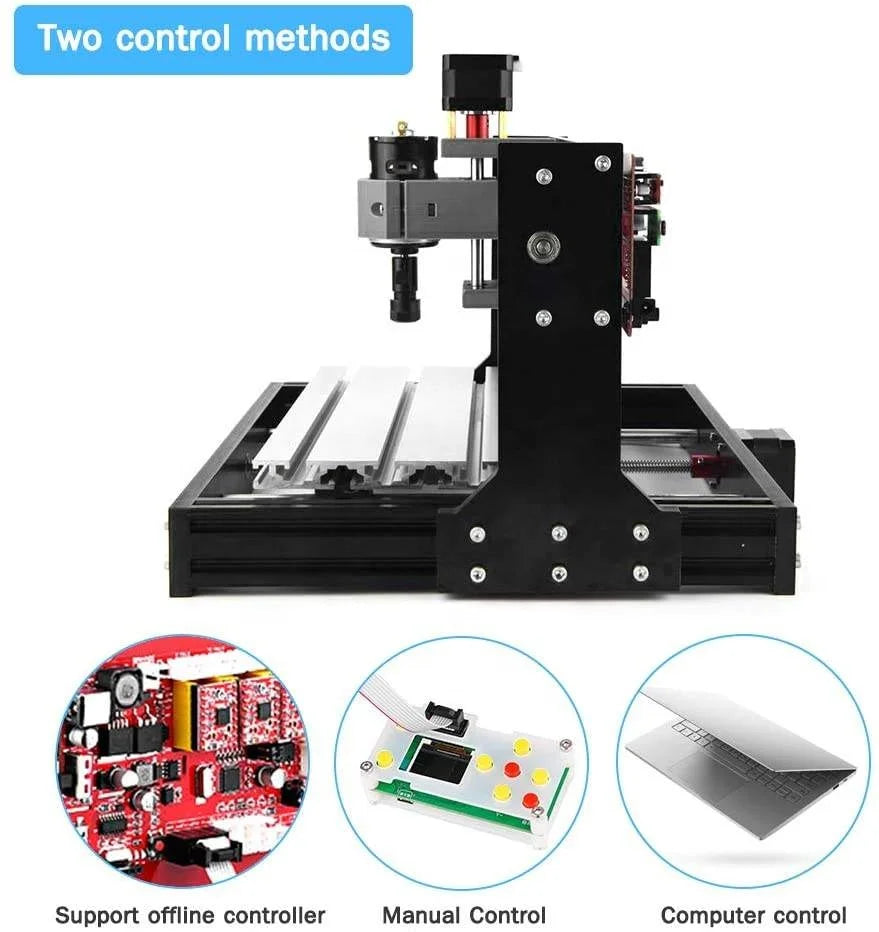

CNC 3018 Pro	New Control Board -- Integrated Driver Chip + Fixed Heat Sink + External Fan + Sturdy Casing to extend the life of the control board, Self-contained short circuit protection, Not easy to damage. With an integrated mainboard and custom software, communication between the software and hardware is seamless by design.

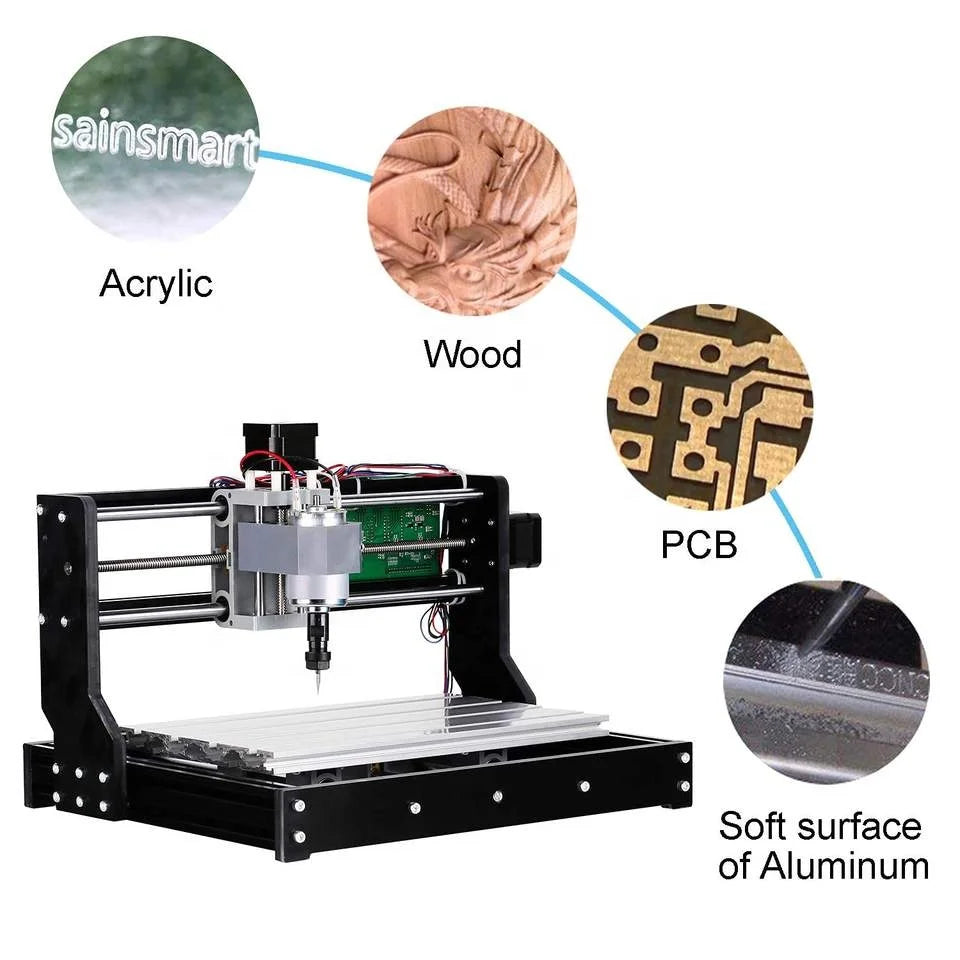

Versatile	Capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVCs, and PCBs, the Twotrees 3018-PRO can be used on a wide range of projects and materials.
Easy to Install	This CNC router kit comes with paper instruction, just follow the 8 steps to install.

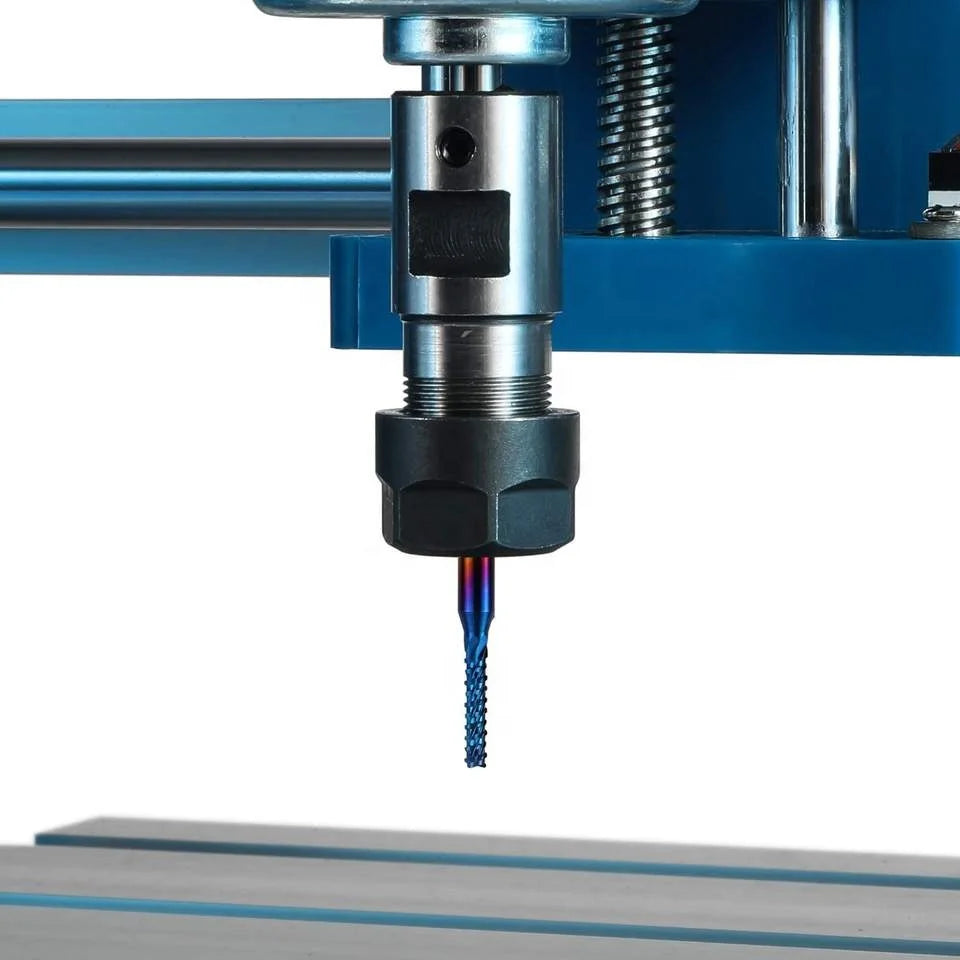

Spindle	75 spindle motor (12-36V) 24V:10000r / min.
Supported System	Windows XP / Win 7 / Win 8 / Win 10
multi-purpose	Replaceable Drill bits, engraved metal; Replacing the laser head

Express logistics support

Company Profile

ShenZhen TwoTrees Technology Co.,Ltd is a one-stop service provider for 3D print production, R&D, sales, accessories and 3D print-related derivatives.we focus on research and develop new technology to create new products.Provide efficient and affordable 3D printing solutions for individuals, families, education and enterprises.Meet each customer's requirements for efficiency, quality and rapid prototyping. The company is located in Shenzhen, and cooperates with a number of institutions of higher learning to establish an industry-university research and teaching practice base for research and development, manufacturing, after-sales and other series. The company covers an area of nearly 2,000 square meters, with advanced large-scale research and development centers and 3D printing laboratories. The modern production line, together with four 24 hour uninterrupted professional test lines and strict quality control system, ensures product quality from the source.
