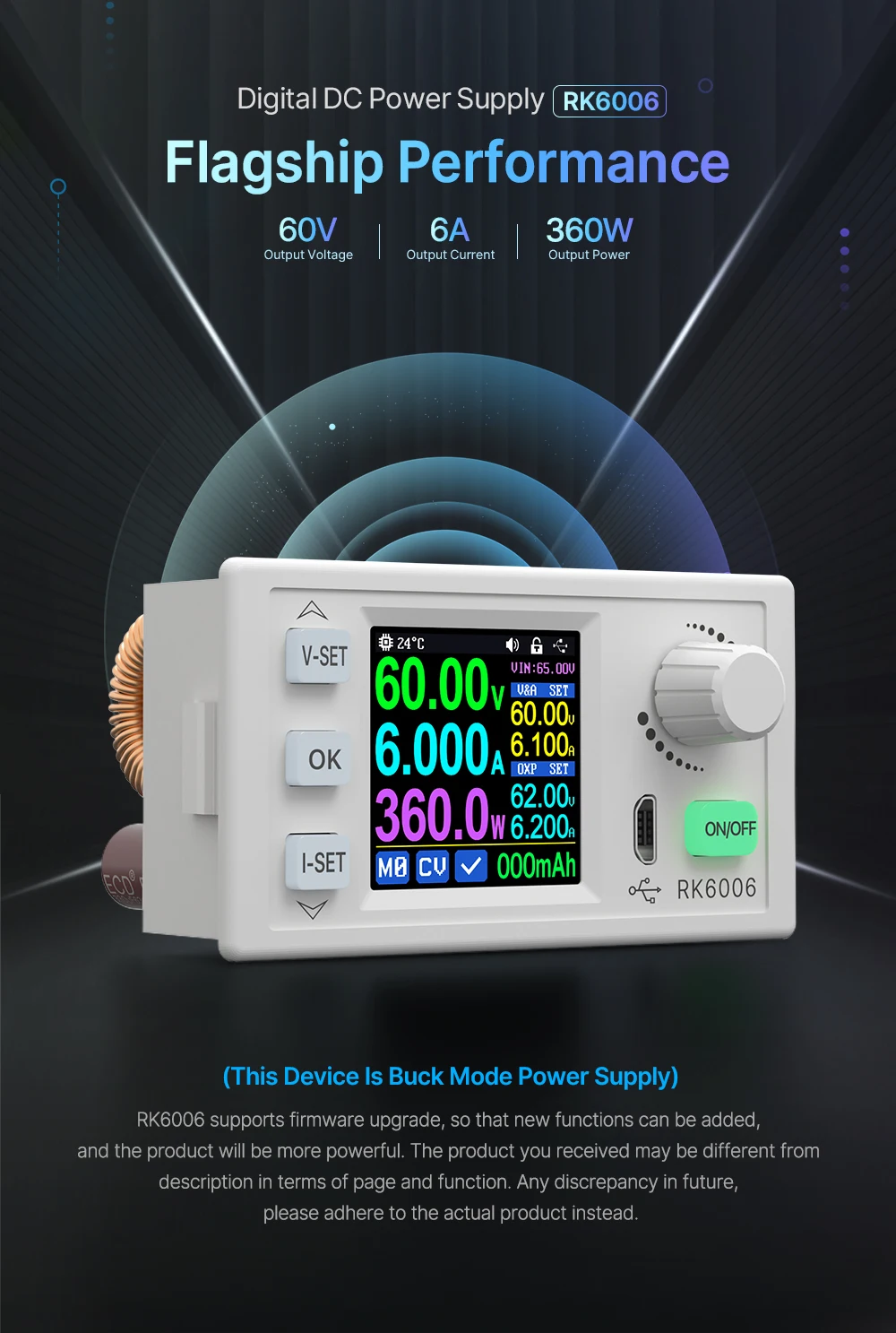

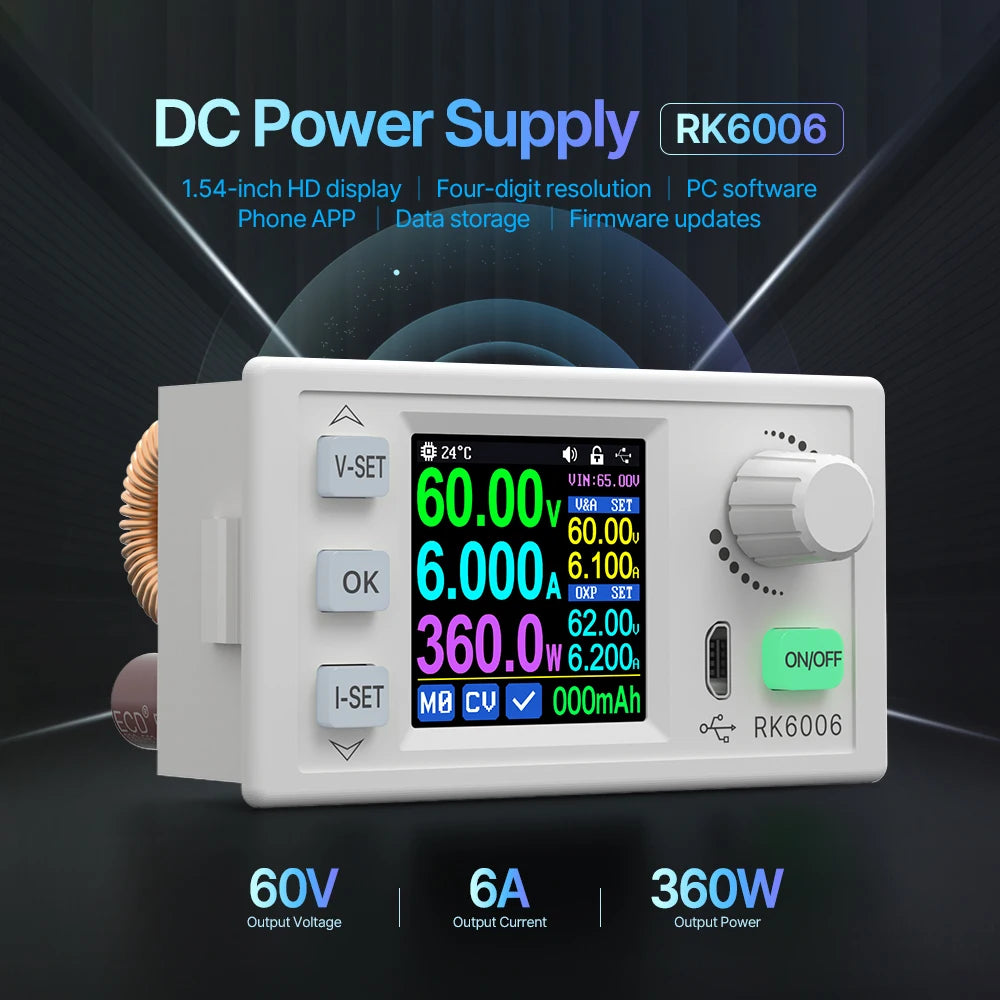

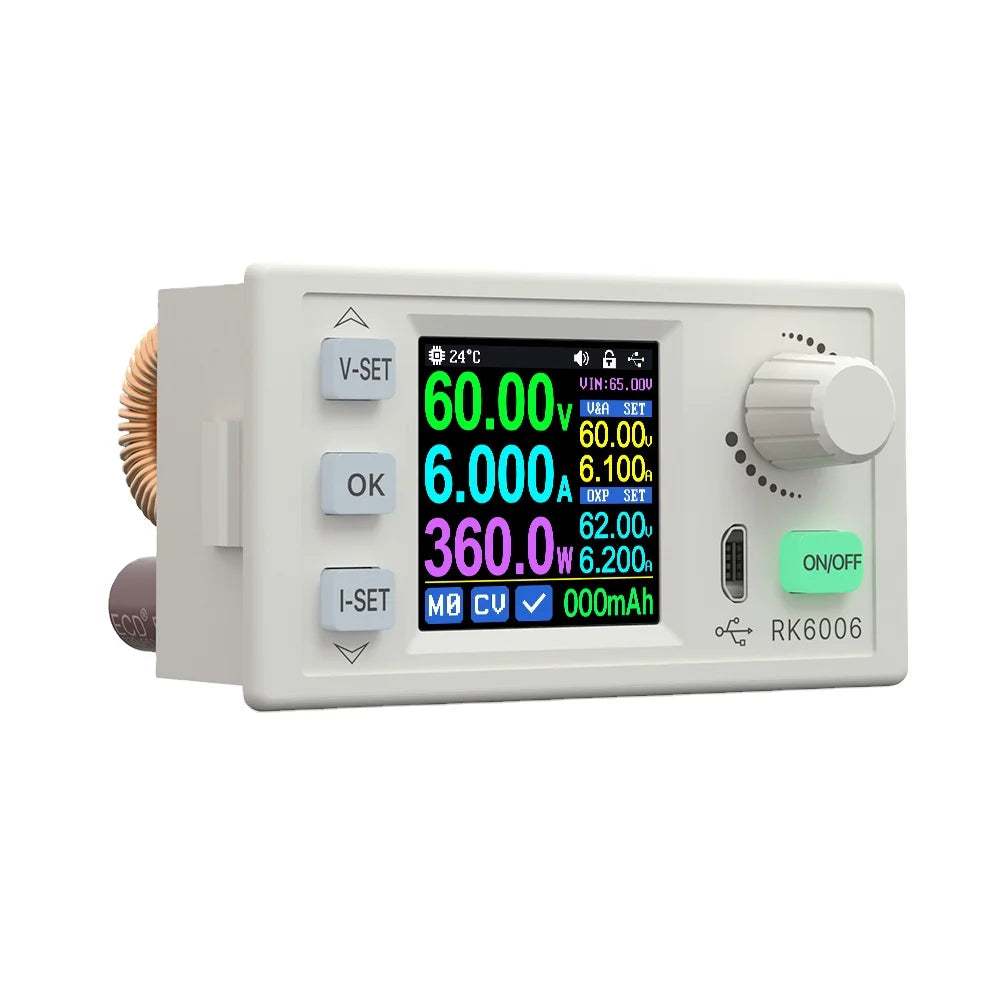

RD RK6006-BT 60V 6A 4 Digit Communication Adjustable DC to DC Step Down Voltage Bench Power Supply Buck Converter
RD RK6006-BT 60V 6A 4 Digit Communication Adjustable DC to DC Step Down Voltage Bench Power Supply Buck Converter
Description
SPECIFICATIONS
Application: Industry,Laboratory
Brand Name: RD
Buck working mode: (input voltage/1.1)-1
Efficiency: 0.9
Input Voltage: DC 12-68.00V
Model Number: RK6006-BT
Operating Temperature: -10 ℃~40℃
Output Current: 0-6.000A
Output Current accuracy: ±(0.5%+5 digits)
Output Frequency: NO
Output Power: 0-360W
Output Type: Single
Output Voltage: 0-60.00V
Output Voltage accuracy: ±(0.3%+3 digits)
Output ripple typical: 100mV VPP
Output voltage resolution: 0.01V
Place of Origin: Zhejiang, China

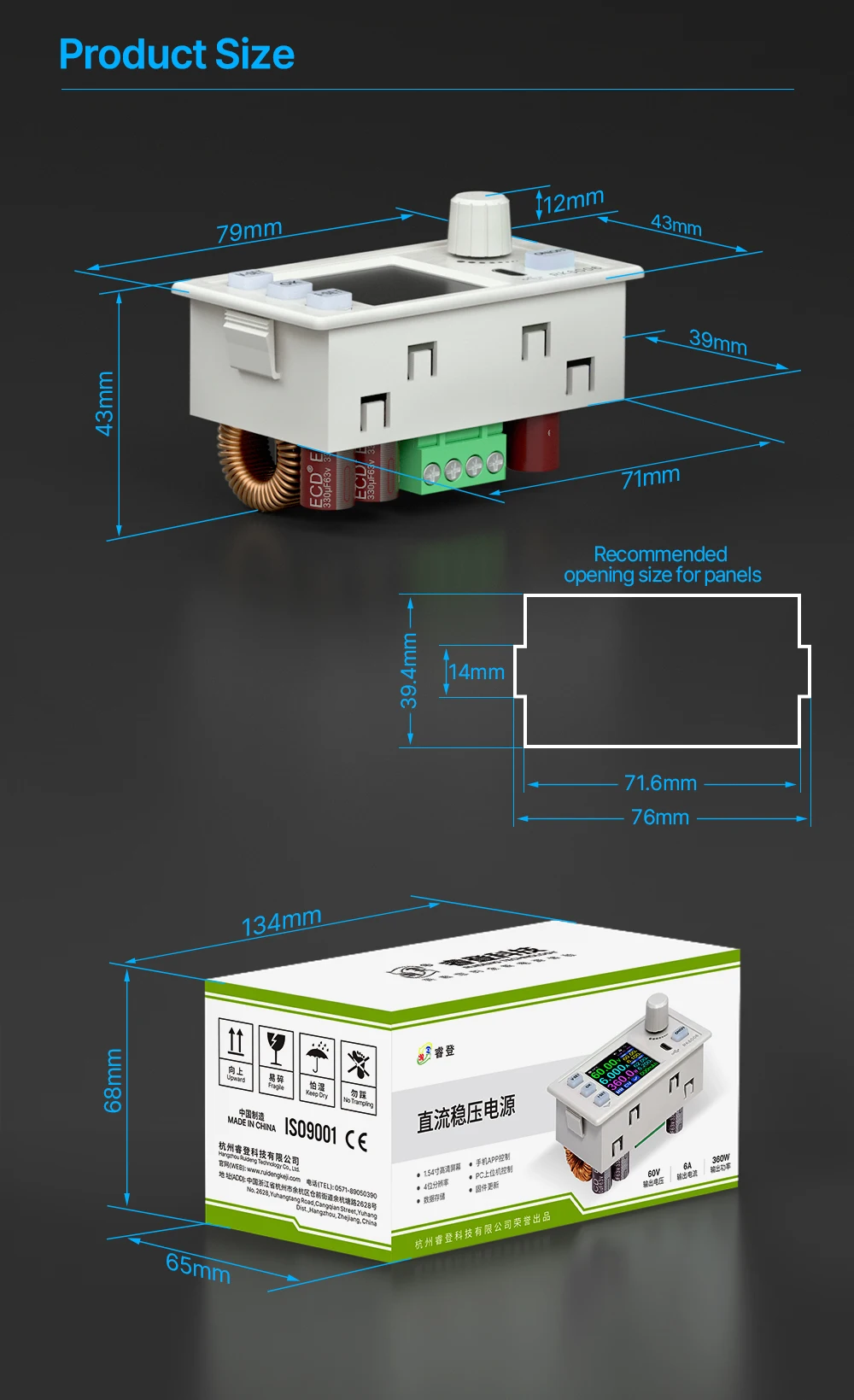

Product Dimension: 79*43*54(mm) (L*W*H)
Product Weight: about 0.15kg

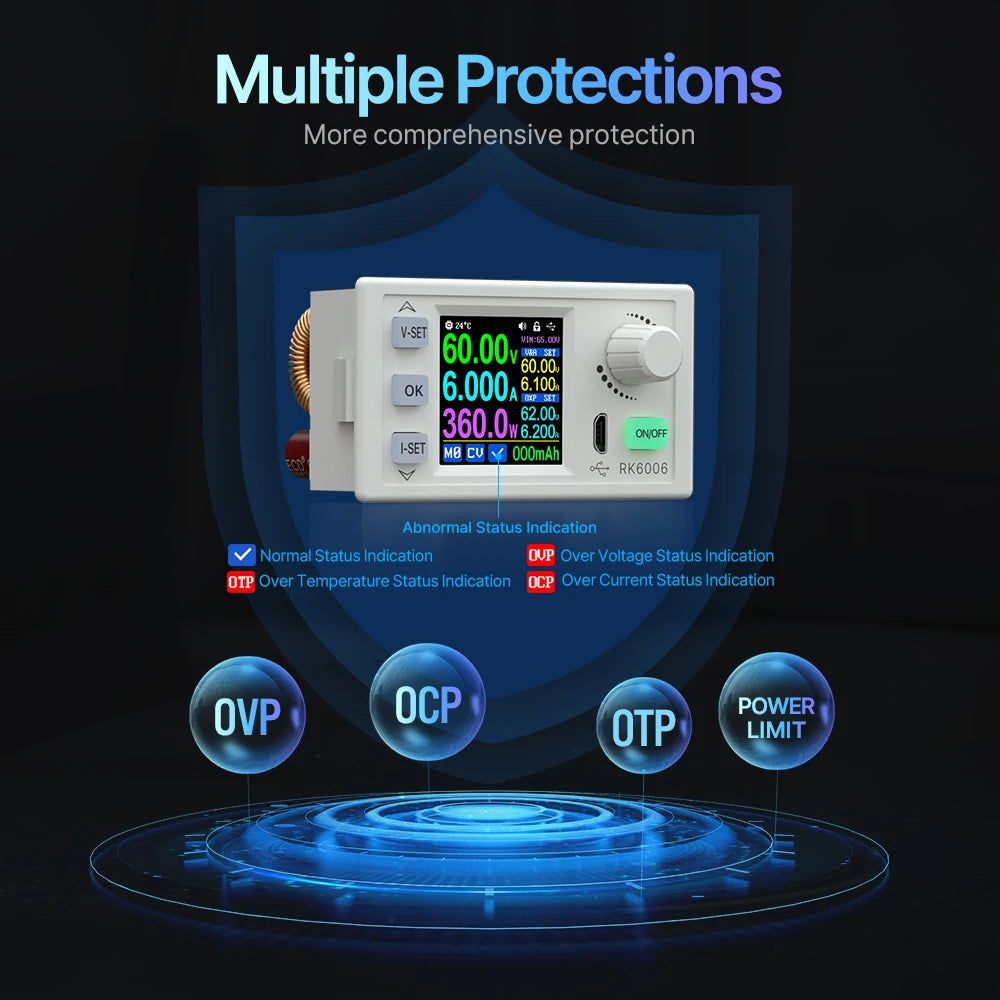

Protection: Short Circuit Protection,Overcurrent Protection,Overvoltage Protection,Over Temperature Protection
Type: DC-DC

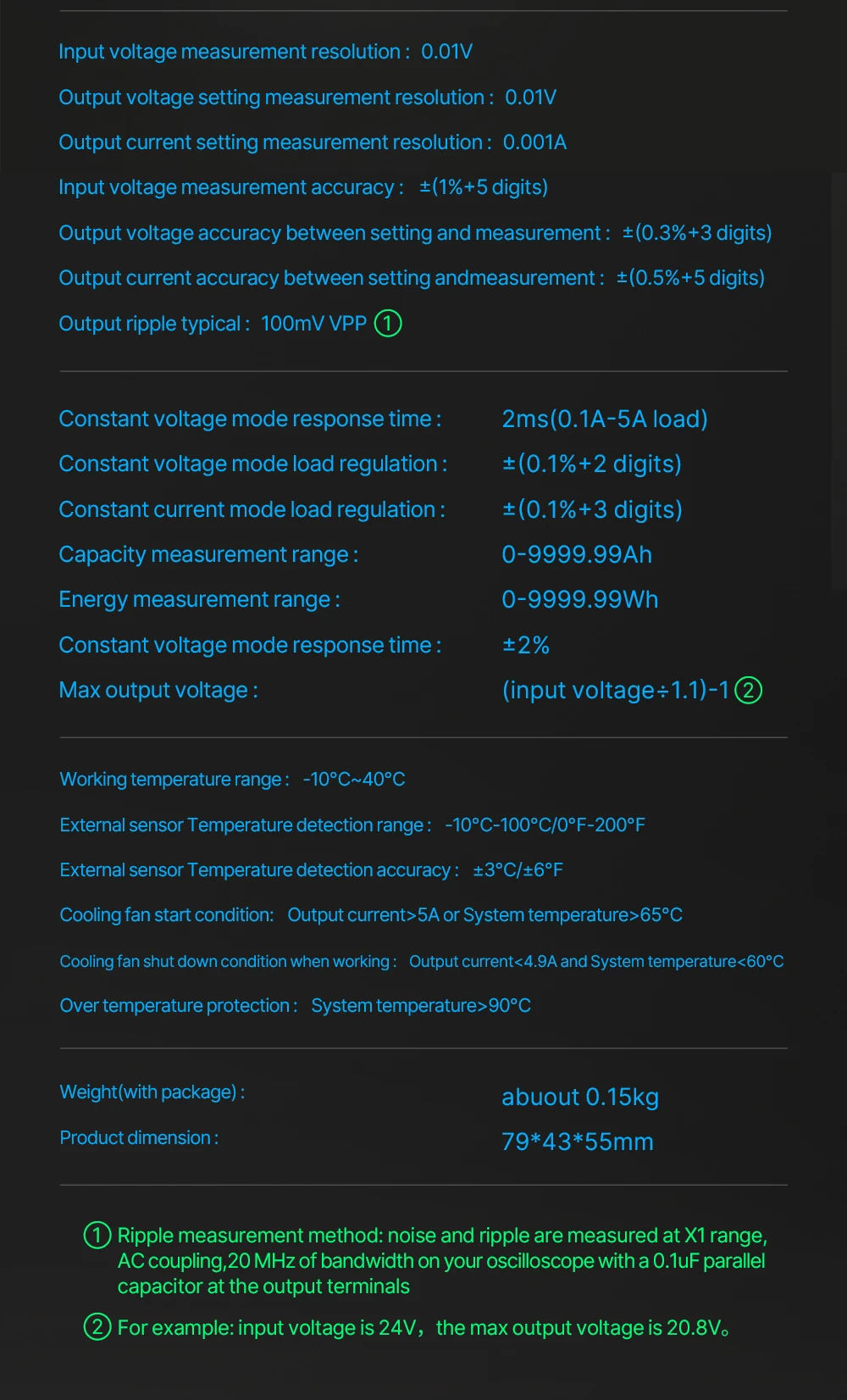

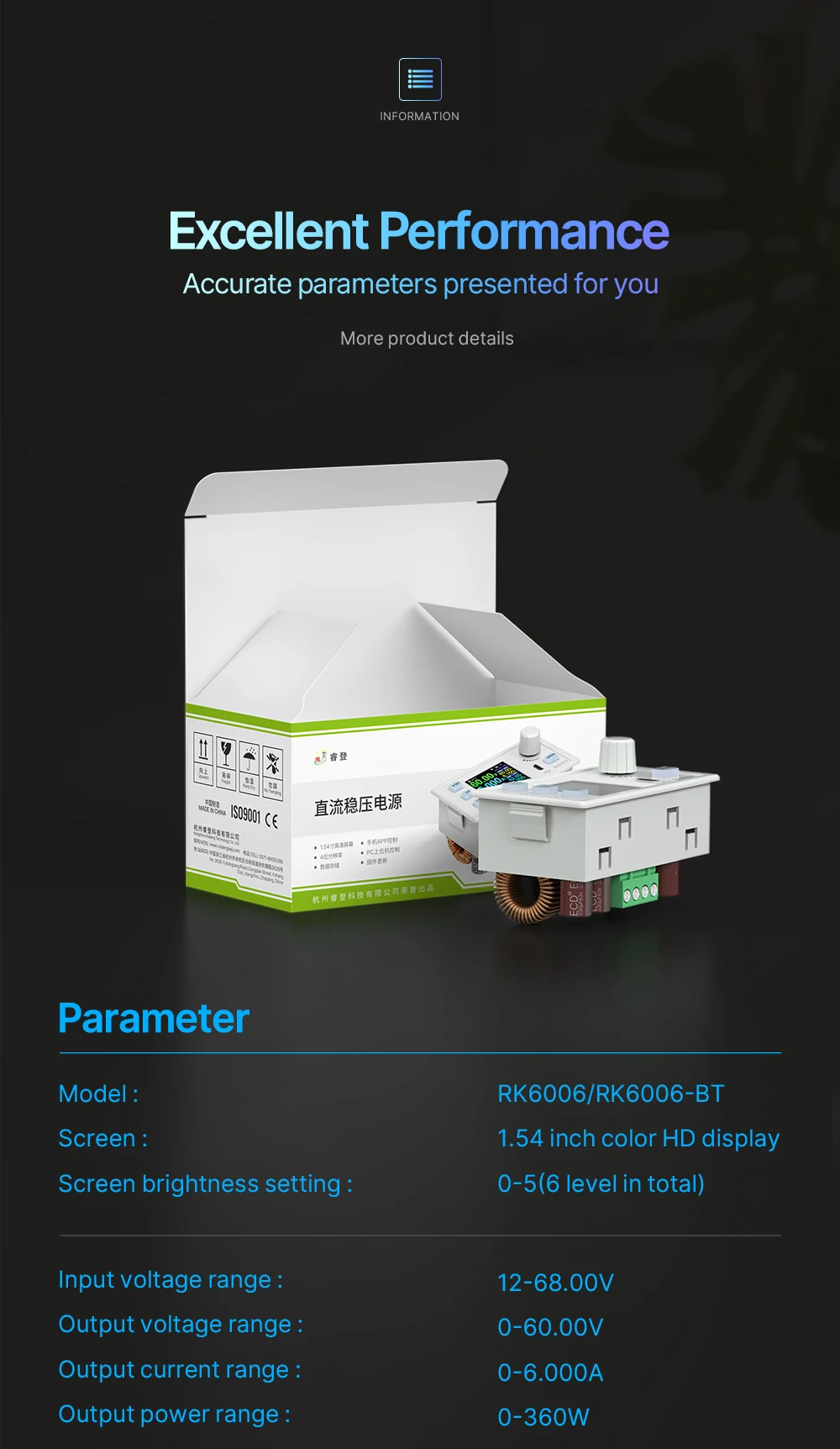

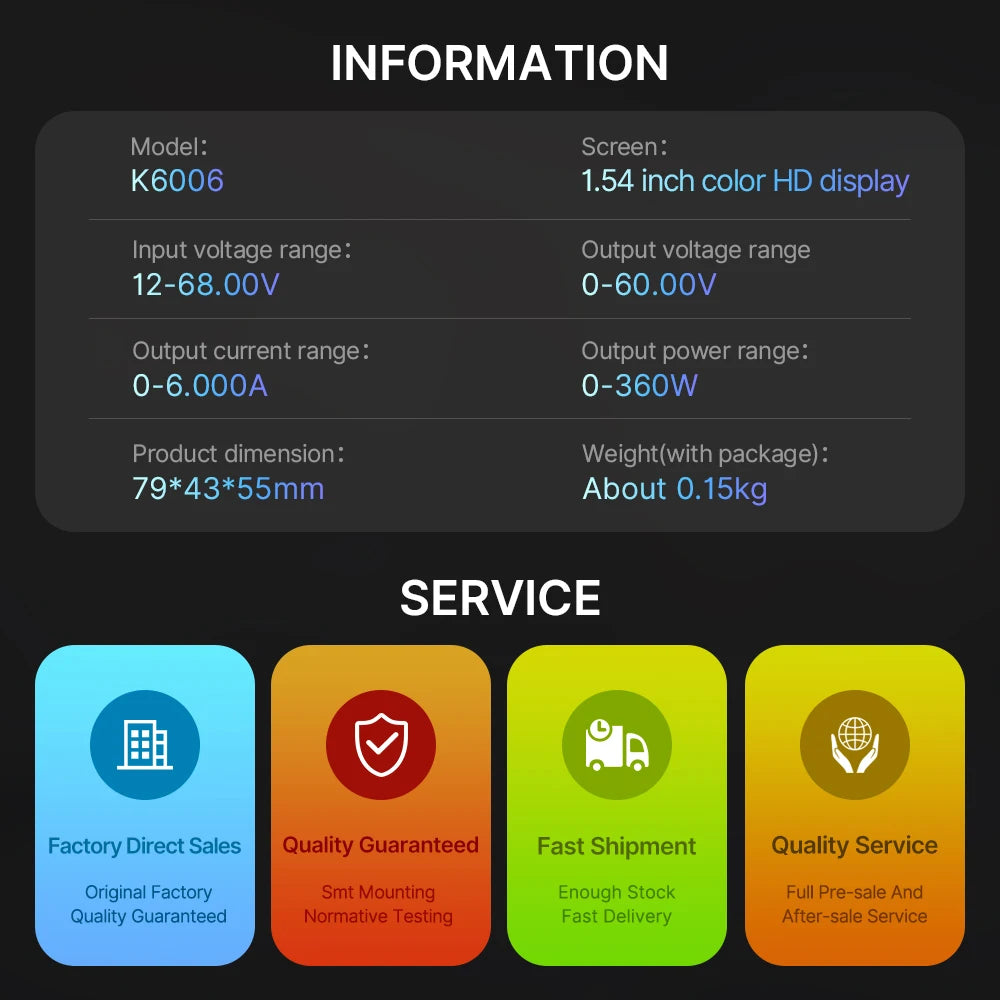

Model: RK6006/RK6006-BT |
Input voltage range: 12-68.00V |
Output voltage range: 0-60.00V |
Output current range: 0-6.000A |
Output power range: 0-360W |
Input voltage measurement resolution: 0.01V |
Output voltagesetting measurement resolution: 0.01V |
Output current setting measurement resolution: 0.001A |
Input voltage measurement accuracy: ±(1%+5 digits) |
Output voltage accuracy: ±(0.3%+3 digits) |
Output current accuracy:±(0.5%+5 digits) |
Output ripple typical:100mV VPP |
Working temperature range: -10℃~40℃ |
Buck working mode: （input voltage÷1.1）-1 |
Screen brightness setting: 0-5(6 level in total) |
Weight(with package):About 0.15kg |
Product dimension: 79*43*54mm |

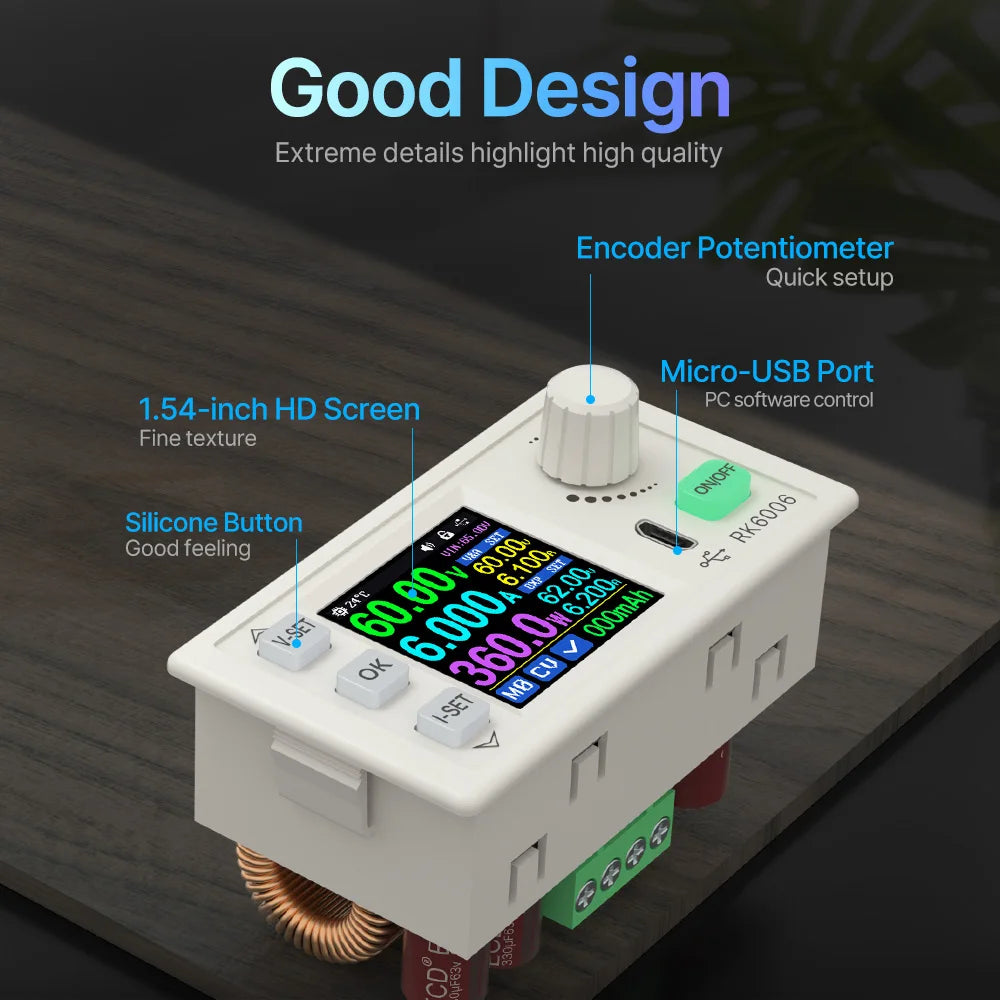

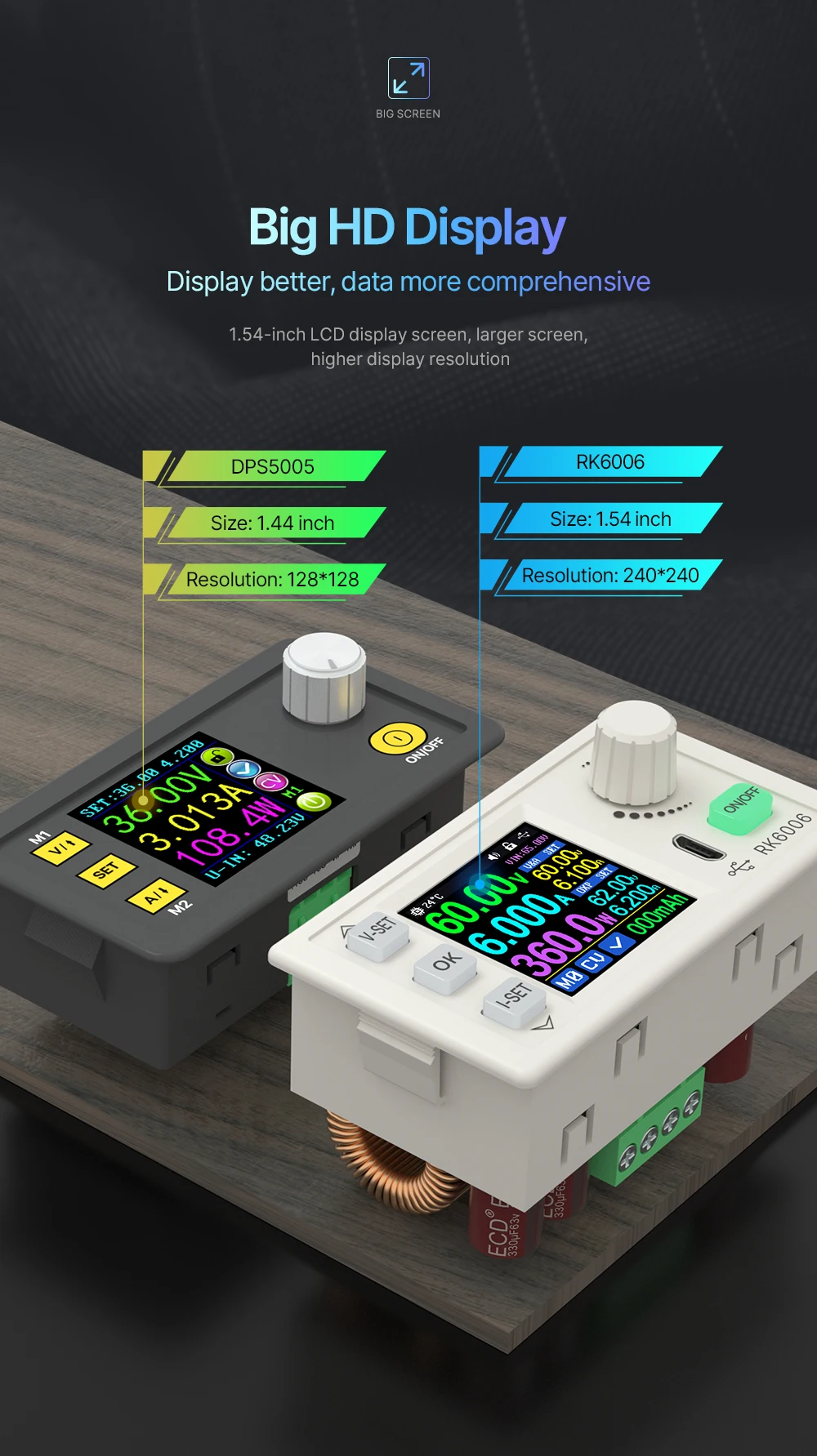

Screen: 1.54 inch 240*240 color HD display |
File Download

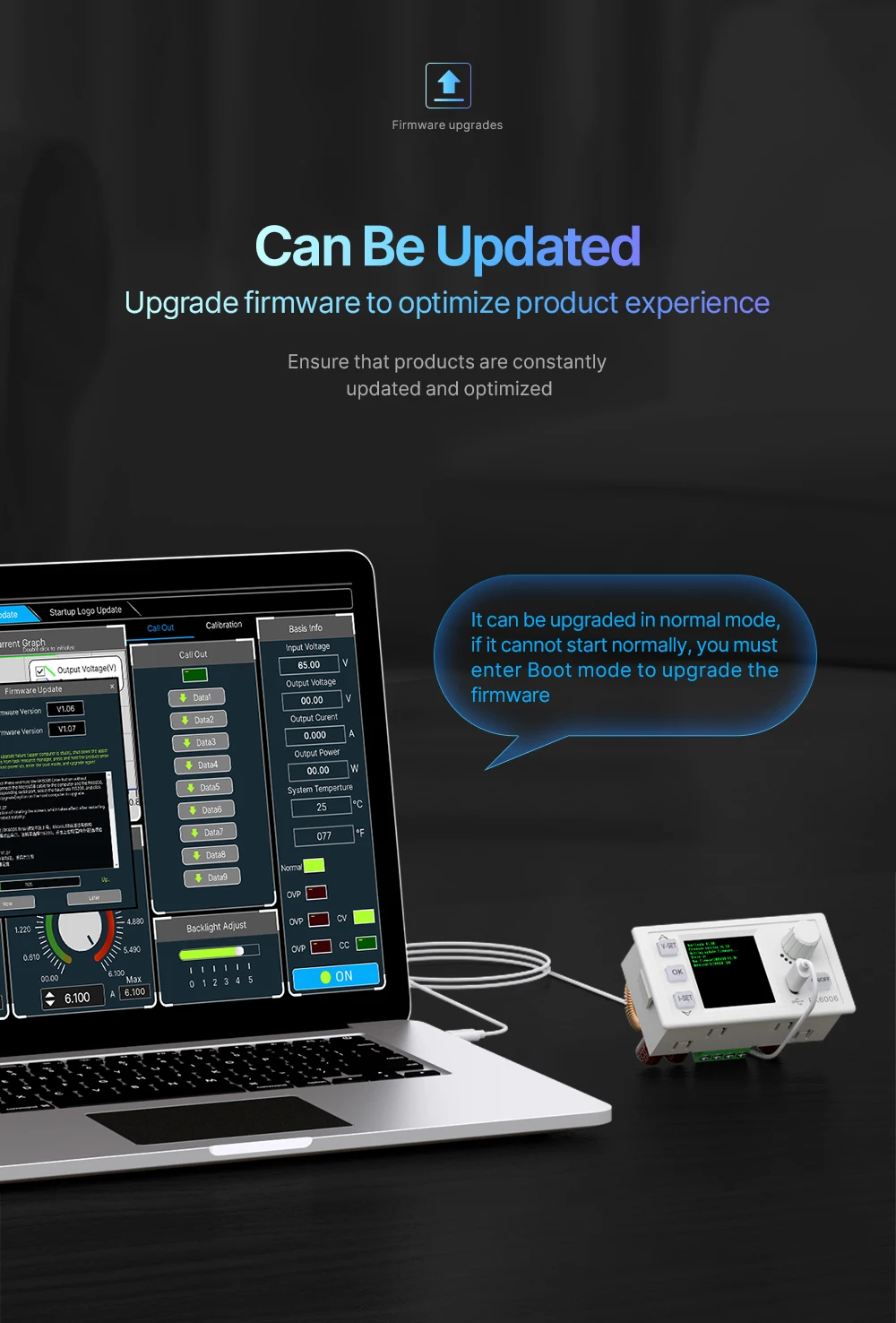

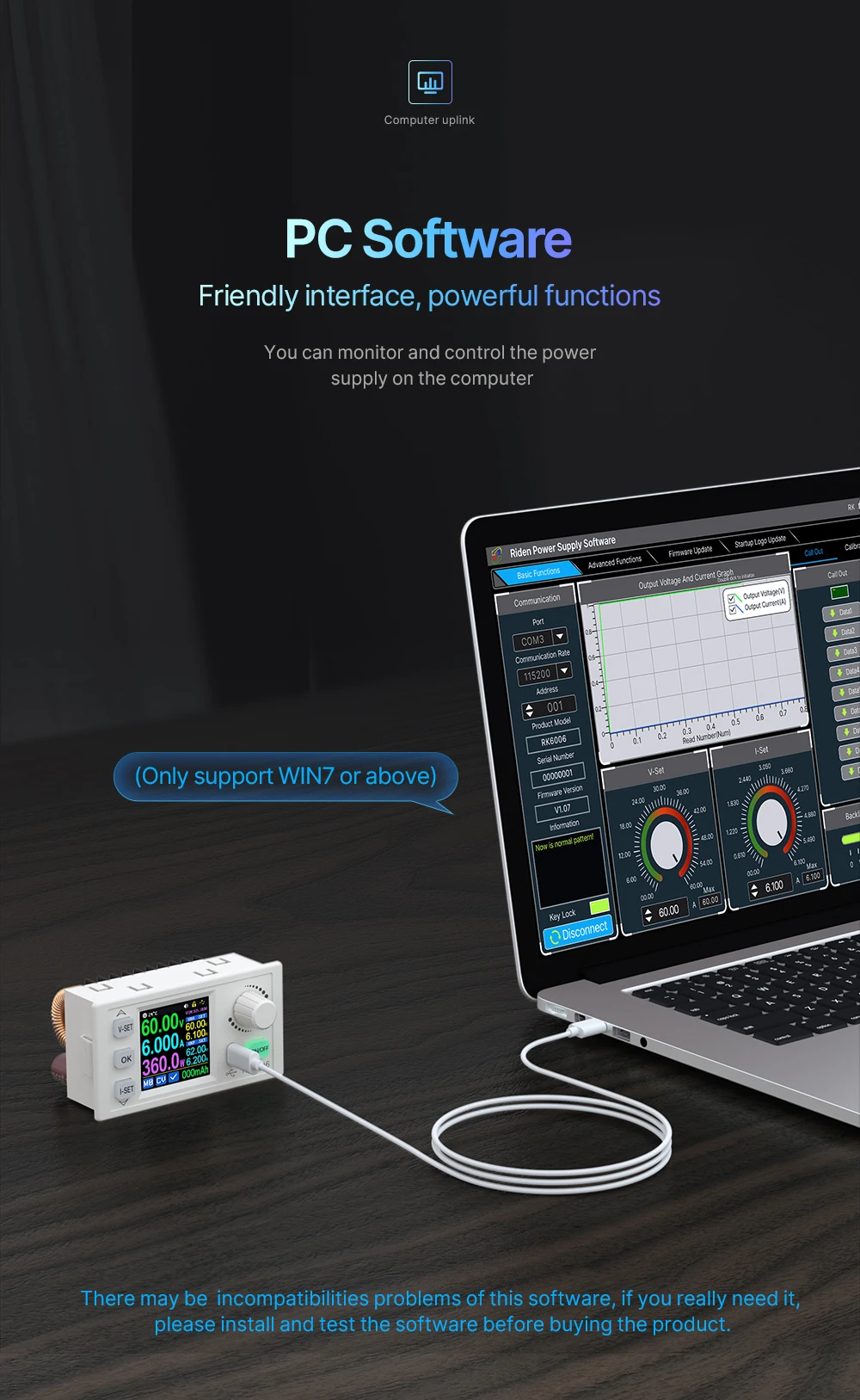

1. RK6006 manual, PC software, APP download link:
https://drive.google.com/drive/folders/1U1g45_d_W2IXQIo4-s5pp4lnu72SbYW6?usp=share_link

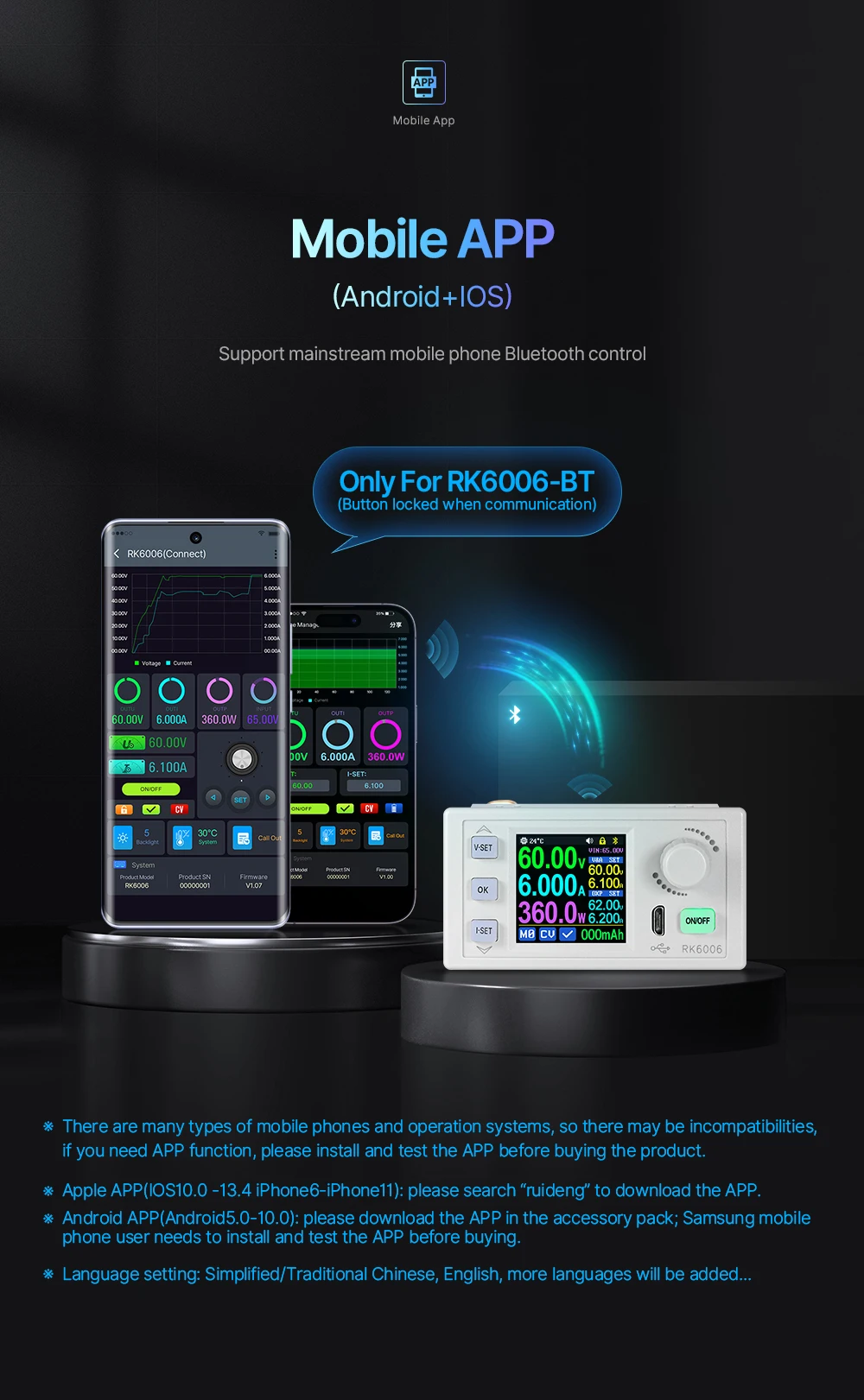

2. APP download: search "RUIDENG" in Google Play or "RUIDENG" in APP STORE
FAQ
1. Q: What is the differences between RK6006 and RK6006-BT?

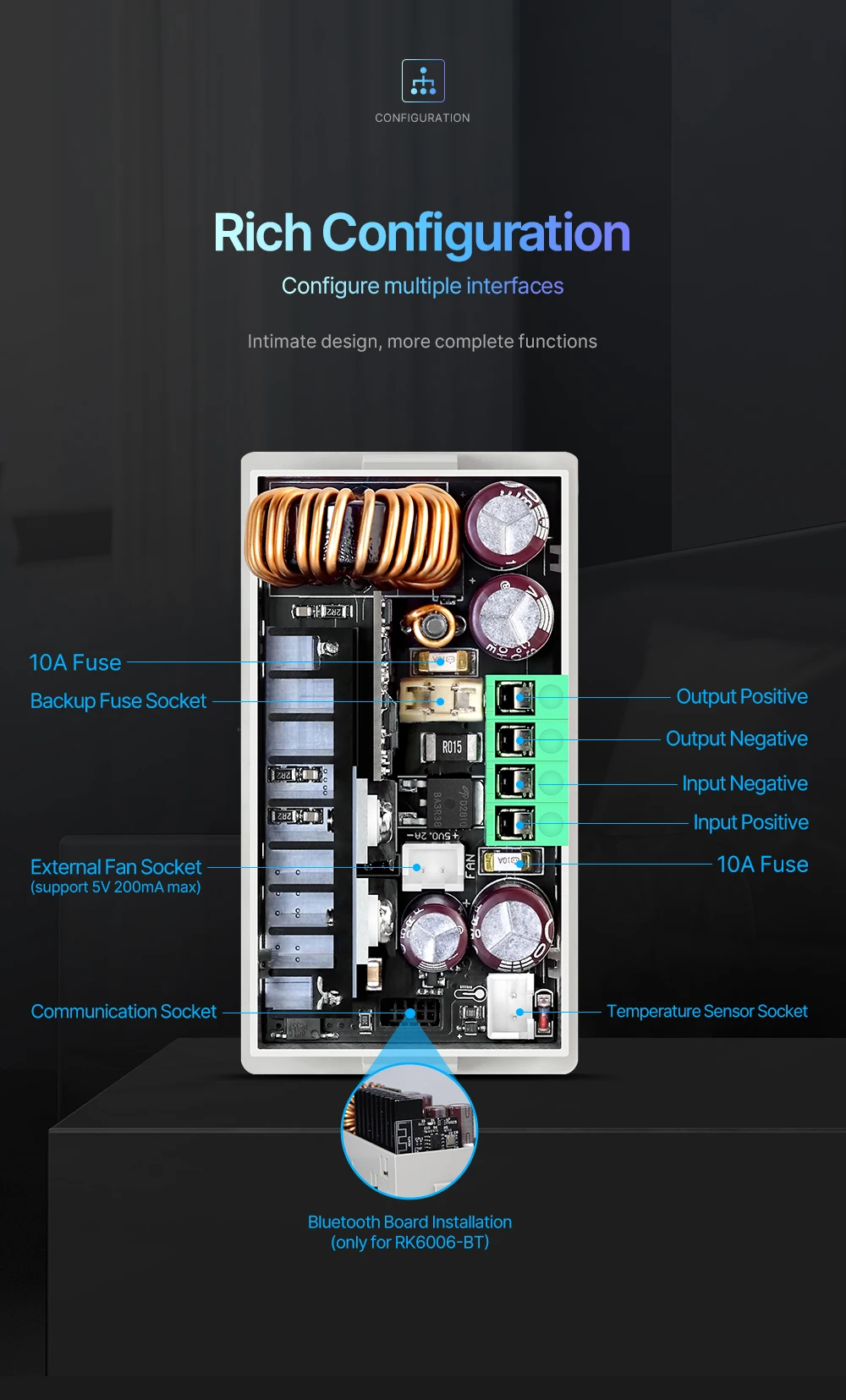

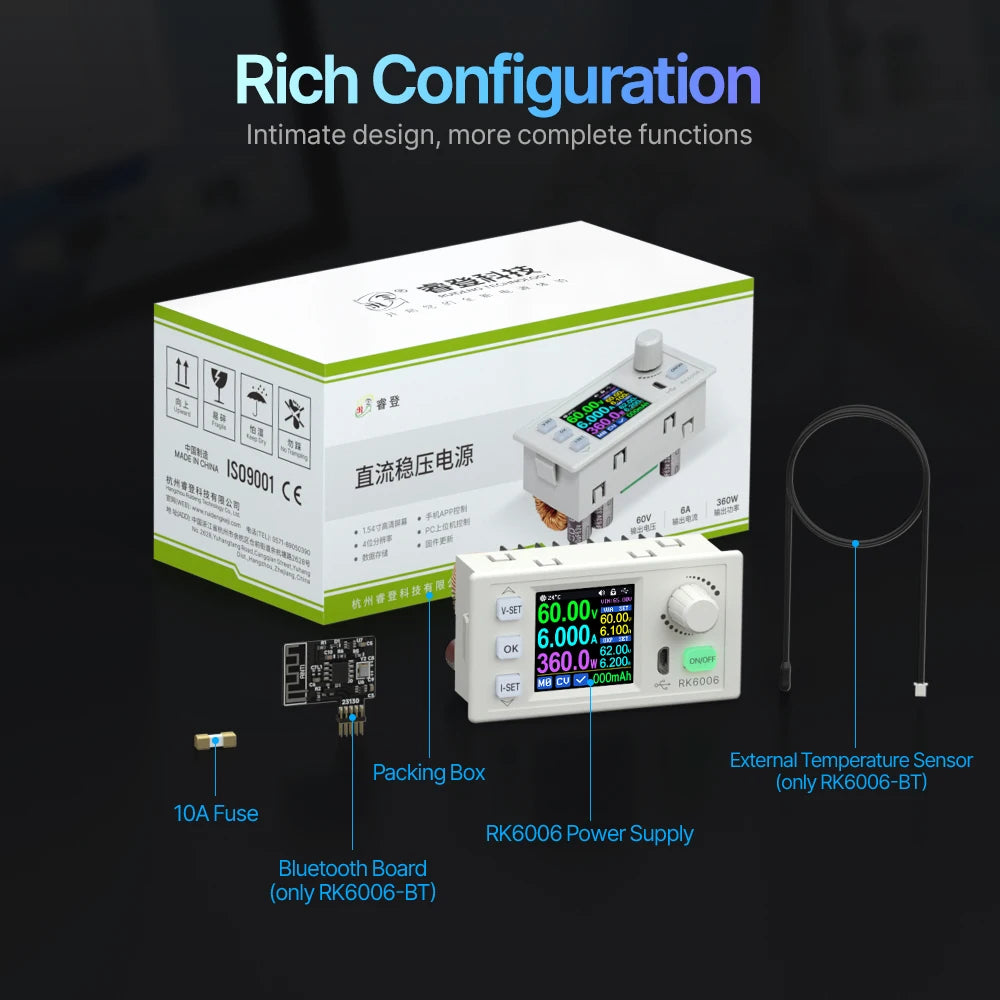

A: RK6006-BT has Bluetooth board , RK6006 doesn't have. RK6006-BT can use Bluetooth board to connect APP, also use USB micro cable to connect PC software . RK6006 doesn't have Bluetooth board, only support PC software by connecting with micro USB cable, do not support APP. and RK6006-BT has external temperature sensor cable, RK6006 does not have that
2. Q: Why the product I get is a bit different with the picture?
A: We keep updating the product hardware and software to make the device better, so the internal material details may be different, but it does not affect you to use the functions.
3. Q: why does the instruction not come with the product?
A: Because the products keep updating, we will add some function with the firmware and hardware update, so you can download the instruction online.
4.Q: Can I use it to power on inductive load?
A: If you connect inductive load (such as motor), the max working voltage and current is 1/3 of full range. don't exceed it.
5. Q: Why there is a fuse in the box? Should I install it?
A:It is a BACKUP fuse in the, if you burn the fuse with wrong operation, you can replace the fuse with the backup fuse to fix it.
SOFTWARE QUESTIONS:
1. Q: The APP crashes on my phone, what the problem is?
A: For APP and PC software, because there may be incompatibilities problems, please download first before buying , if you can download and install, you can make order, or else stop buying. If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.For PC software, it only support win 7 and above for now. For APP, it only support android 8.0 and above.

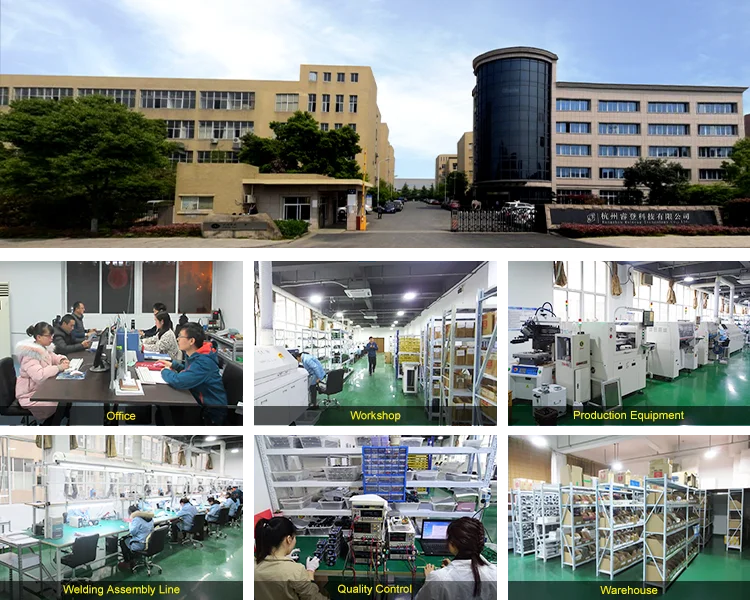

HangZhou RuiDeng Technology Co., Ltd is a professional manufacturer of varied power supply manufacturers, independent research and development, production and sales .
