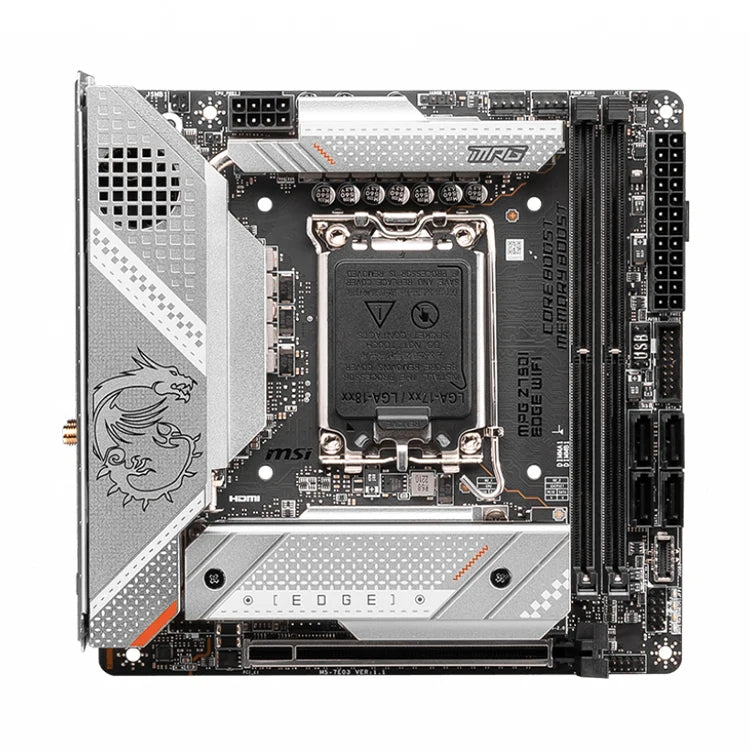

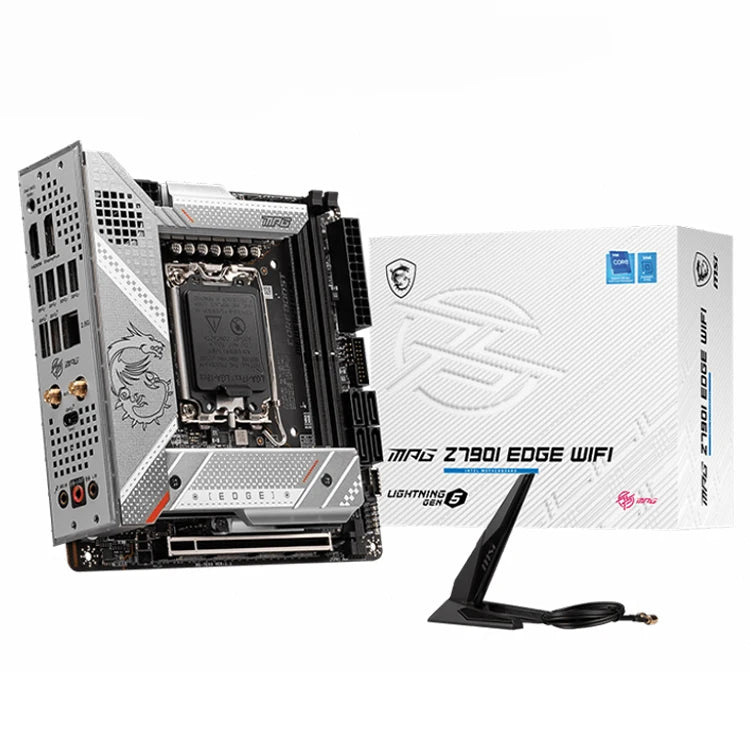

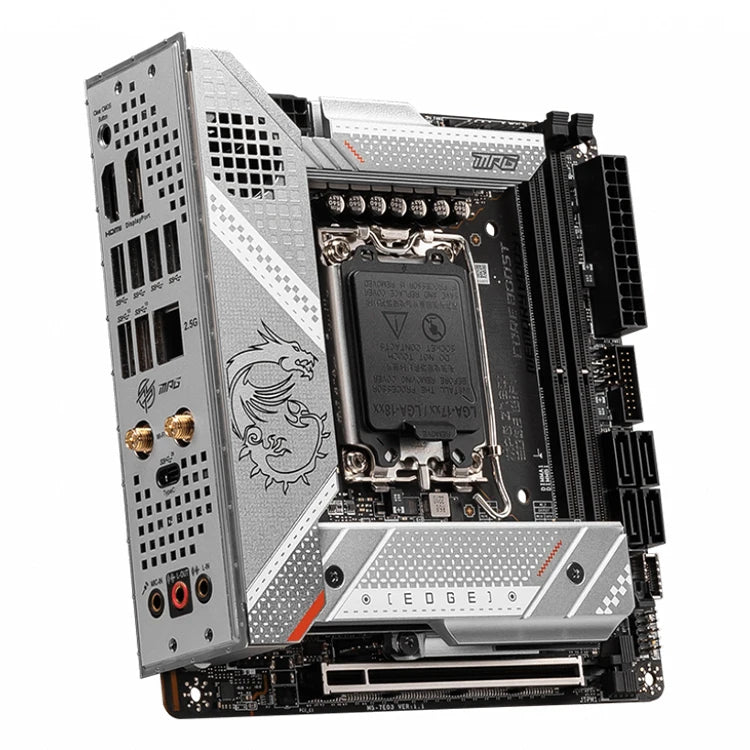

MSI MPG Z790I EDGE WIFI Used Gaming Motherboard Supports Socket LGA1700 for Intel 12th/13th Gen Desktop Processors

MPG Z790I EDGE WIFI

$309.00

$309.00 $309.00

1/6

MSI MPG Z790I EDGE WIFI Used Gaming Motherboard Supports Socket LGA1700 for Intel 12th/13th Gen Desktop Processors

$309.00

$309.00 $309.00

Shipping calculated at checkout.

SPECIFICATIONS

AUDIO: Realtek ALC4080 Codec

Brand: MSI

CPU Support: 12th/13th Gen Intel CPU

LAN: Intel 2.5Gbps LAN

LED FEATURE: 4x EZ Debug LED

Memory: 64GB DDR5

Operating System: Windows 10 64-bit/ Windows 11 64-bit

Product Name: MPG Z790I EDGE WIFI

Size: 170mmx170mm

USB: 2x USB 3.2 Gen2 Type A

application: Desktop

brand name: MSI

chipset: Z790

chipset manufacturer: Intel

cpu type: Intel

form factor: Mini-ATX

fsb / ht: 4800 MHz

graphics card type: Integrated

hard drive interface: SATA

item condition: Used

maximum ram capacity: 64 GB

memory bank: 2 DDR DIMM

memory channel: Double

memory type: DDR5

package: Yes

place of origin: Guangdong, China

ports: Wi-Fi,SATA,DVI,AGP PRO,PCI-Express X16,PCI-Express X8,PCI-Express X4,AGP 2X,USB 2.0,PS2,Ethernet,M.2,USB 3.0,Usb3.1,PCI-E 3.0,PCI-Express X1,AGP 8X,AGP 4X

private mold: Yes

products status: Used

socket type: LGA 1700

with cpu: No

Product Description

MSI MPG Z790I EDGE WIFI Used Gaming Motherboard Supports Socket LGA1700 for Intel 12th/13th Gen Desktop Processors

Supports 13th /12th Gen Intel^® Core™ / Pentium^® / Celeron^® processors for LGA 1700 socket
Supports DDR5 Memory, up to 8000+(OC) MHz
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Enhanced Power Design: Direct 10+1+1 phases power, Core Boost, Memory Boost
Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 12-layer PCB made by server grade level material
Pre-installed I/O Shield: Better EMI protection and more convenience for installation

CHIPSET	INTEL Z790
CPU SUPPORT	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
MEMORY	2x DDR5, Maximum Memory Capacity 64GB Memory Support 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200 (OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MHz • 1DPC 2R Max speed up to 7200+ MHz Supports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS	1x HDMI™ 1x DisplayPort Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	1x PCI-E x16 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
STORAGE	3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G port
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices
LAN	Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2*, FIPS, FISMA Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11."
AUDIO	Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 1x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen 2x2 Type C
LED FEATURE	4x EZ Debug LED
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION	Mini-ITX 170mmx170mm
