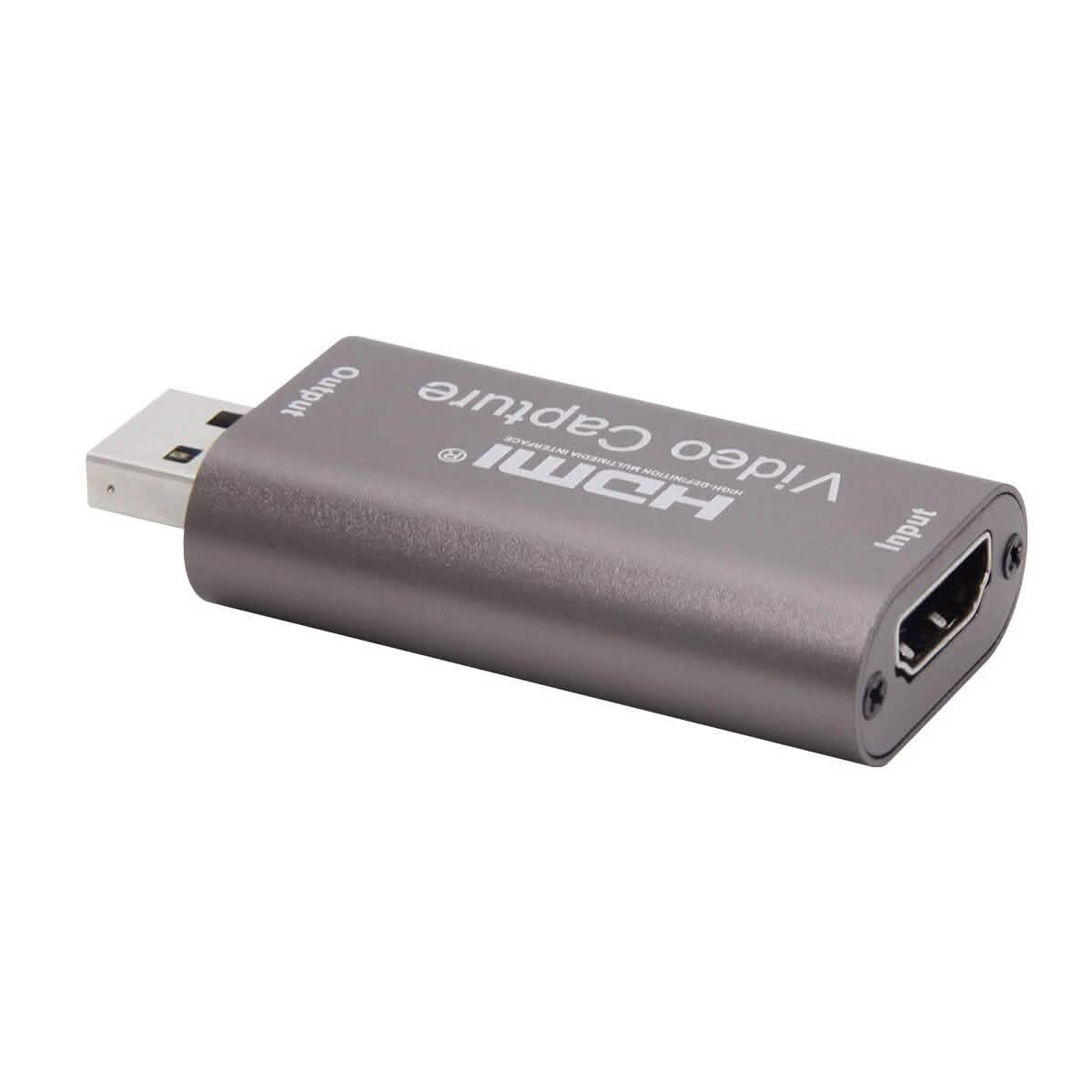

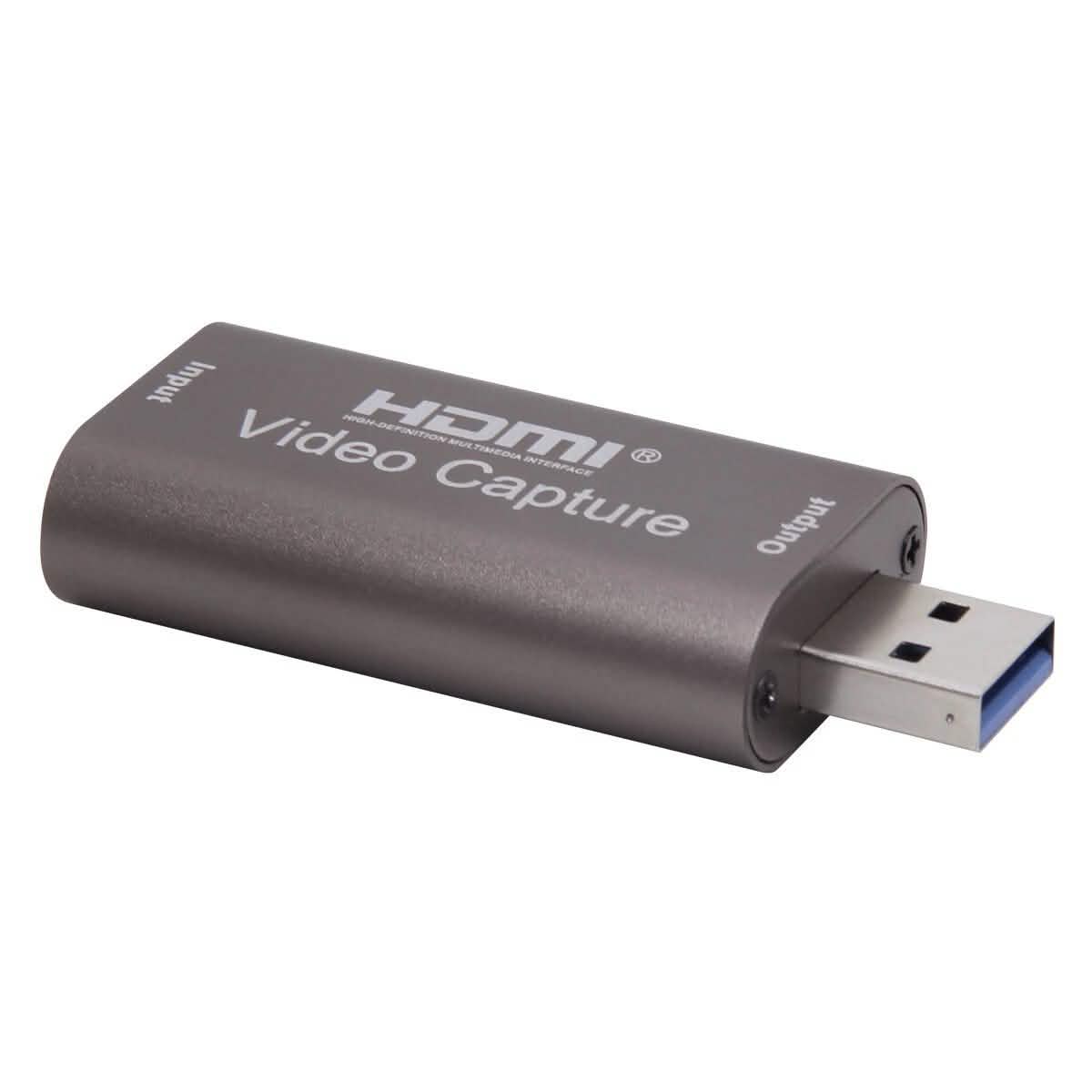

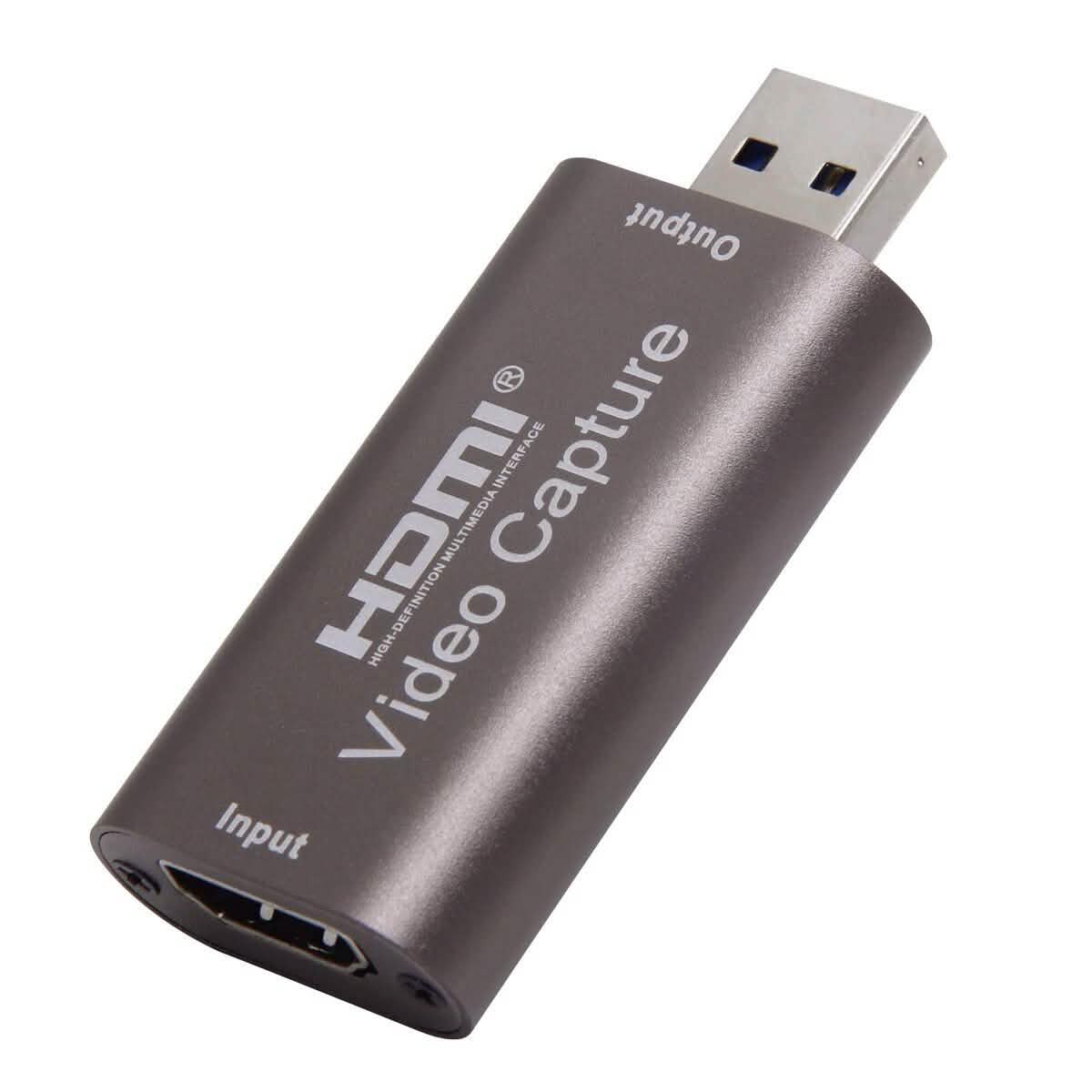

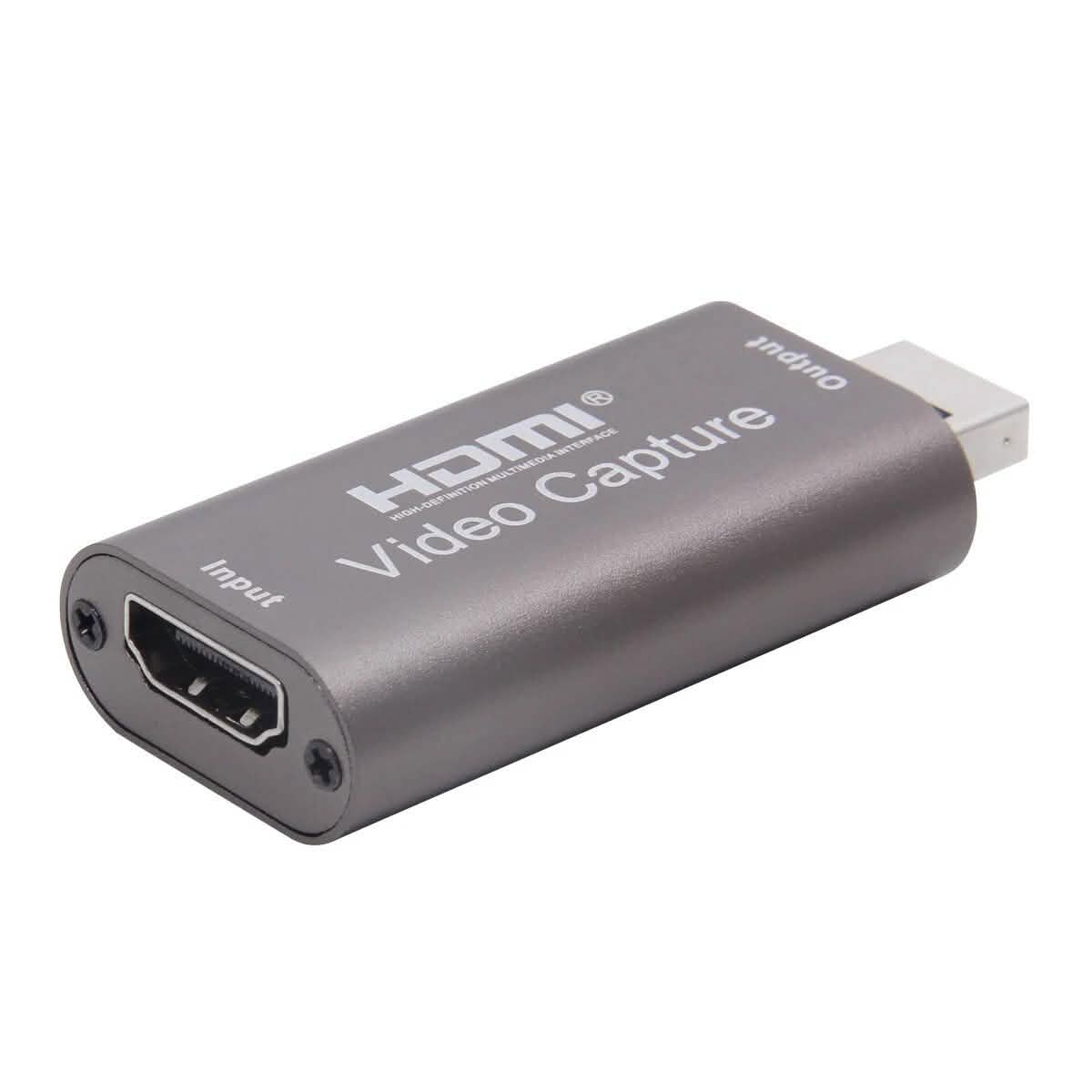

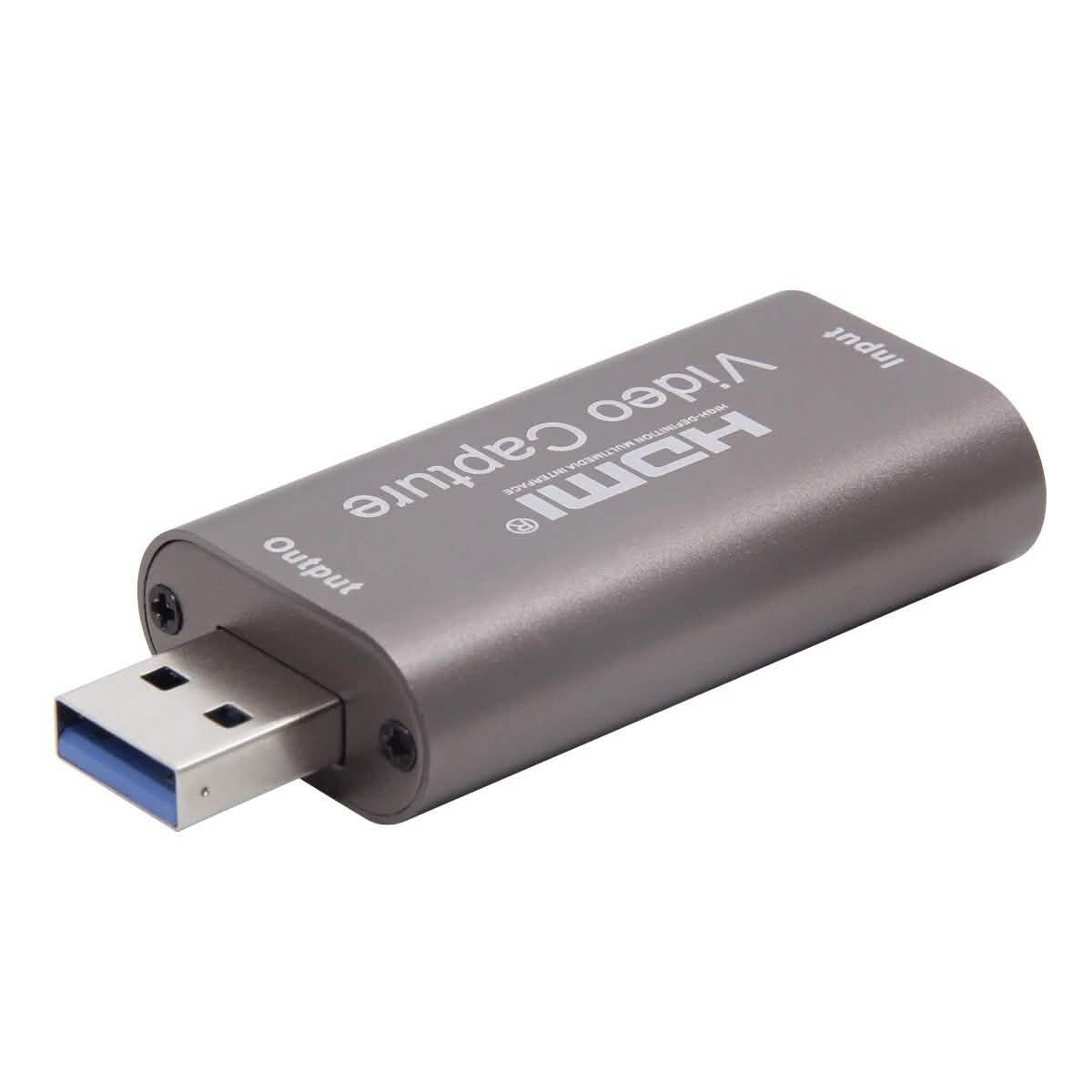

Mini HDMI to USB Video Capture

Mini USB 3.0 HD 1080P 60Hz HDMI to USB Video Capture Card Game Recording Box for Youtube Live Streaming Broadcast Game Recording.

Features:

• This USB 3.0 acquisition card can capture both HDMI video and HDMI audio at the same time.
• It can transmit audio and video signals to computers and smartphones for preview and storage.
• Suitable for HD acquisition, teaching recording, medical image, game, etc.
• Support the maximum input resolution of 4K/30Hz.
• Support the maximum output resolution of 1080P/60Hz.
• Support 8 / 10 / 12 bit color depth.
• When standard AWG26 cable is used, the input transmission distance is up to 15m (resolution of 1080P and below).
• Support most acquisition software, such as for VLC, OBS, Amcap, etc.
• Support for Windows, Android, and Mac.
• Conform to USB video UVC specification.
• Conform to USB audio UAC specification.
• Without external power supply, small and portable.

Specifications:

• HDMI resolution: up to 4K/30Hz
• Video input format: 8 / 10 / 12 bit color depth
• Video output mode: YUV, JPEG
• Video output resolution: maximum output resolution 1080P/60Hz
• Support audio format: L-PCM
• Input cable length: ≤ 15m, AWG26 HDMI standard cable
• Maximum working current: 0.4A/5VDC
• Operating temperature range: (- 10 to + 55 ℃)
• Size: 64 x 28 x 13mm / 2.52 x 1.1 x 0.51in

Connection Operation:

• Connect the UHD signal source and the HDMI input port of the USB acquisition card with one HDMI line.
• Plug the USB male of the USB acquisition card into the USB port of the computer.
• Collection operation steps (OBS): open the software - add a new source - select "video capture device" - set the screen size - select "studio mode" (double window) - click "start recording".

Computer hardware configuration requirement:

• CPU: PC i5-3400 or above; NB i7-3537u 2.0GHz or above
• Display card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
• Storage: 4G RAM

Includes:

• 1 x Video Capture Card
• 1 x User Manual
