SPECIFICATIONS

Charge cable: Standard 1.8M straight

Decode Capabilities: 1D + 2D + QR Code

Field of view: 34° horizontal, 28° vertical

Interface: RS232/USB/COM

Light source: 617nm LED Aimer

Material: ABS+PC

Memory: 512000bits

Minimum Resolution: ≥ 5mil

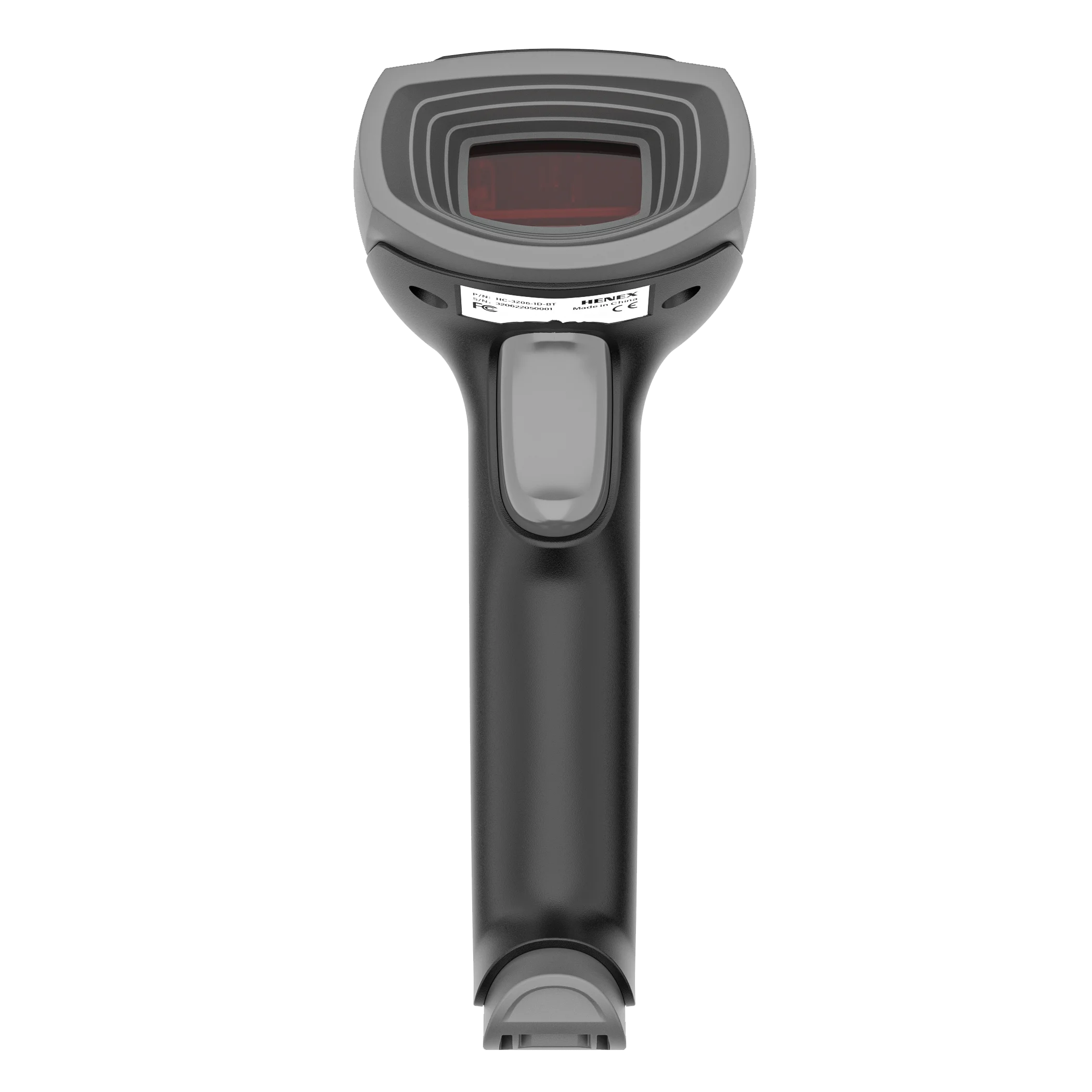

Product Name: POS barcode Scanner for retail

Scan Mode: trigger+auto trigger

after-sales service: Return and Replacement,Repair,Free Spare Parts,Call Center and on-line Technical Support

brand name: HENEX

color: Black

colour depth: 32 Bit

interface type: Usb,COM

max paper size: NO

optical resolution: 30FPS

place of origin: Guangdong, China

private mold: Yes

products status: Stock

scan element type: CMOS

scan speed: 300s

software development kit (sdk): No

type: Barcode Scanner

warranty(year): 3-Year

Contact me

Lisa Yang (Ms)

Email: lisa@henex.cn

Whatsapp:+86 15013116488

Wechat: +86 15013116488

Skype:+86 15013116488

Facebook:

https://www.facebook.com/profile.php?id=100072678301882

Products Description

Specification

Features
● Supports USB, TTL-232 and Virtual serial port.
● Plug and play, not need any driver, easy to operate.
● Use Complete dust-proof design to meet more applications.
● Using latest decoder technology, can read all 1D and 2D barcodes.
● Ergonomic design, comfortable operating sense, it is not easy to fatigue.
● Supports to read screen barcodes, such as mobile phones and computers.
● Widely used in Wechat pay and Alipay, can quickly realize the ID and QR codes.
● Blue LED indicator and loud buzzer sound, can quick feedback reading recods.
Application
Mainly used in commerce, health care, tobacco, some industries, etc.
OPERATIONAL PARAMETER

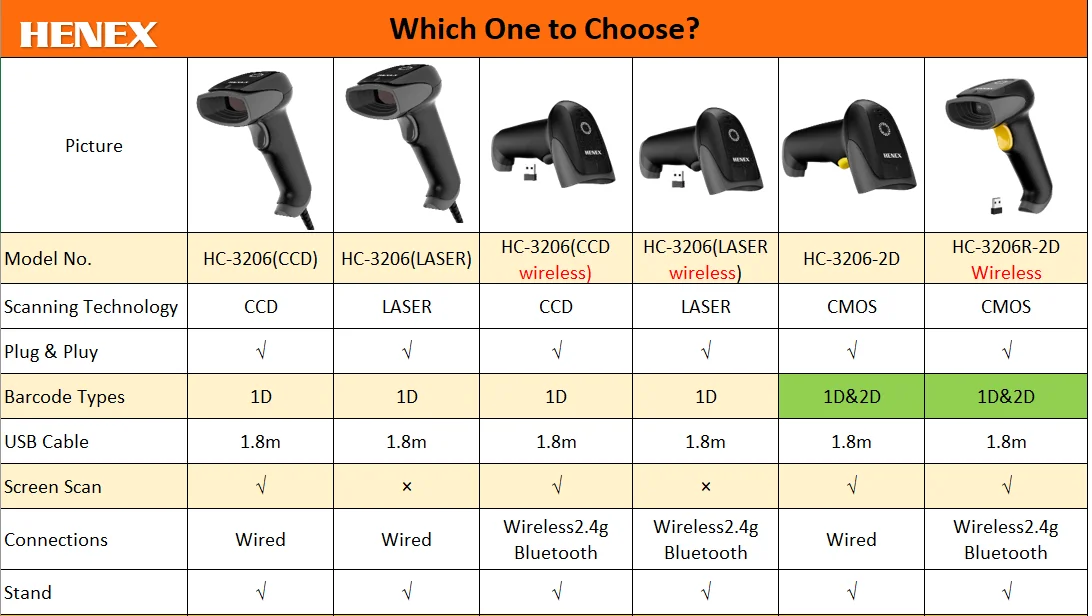

Model No.	HC-3206
Image(Pixels)	640 pixels(H)*480 pixels(v)
Light Source Aiming	617 nm LED; illumination:4500K LED
Depth of Field	40-200mm@UPC/EAN13mil PCS=90%;20-250mm@QR 20mil,PCS=100%
Scan Angle	Elevation angle 65°/Tilt angle 30°/Declination 55°
Field of view	34° horizontal, 28° vertical
Read Resolution	≥ 4 mil
Print Contrast	More than 25%
Visual Indicator	Blue LED Lights , Buzzer
Communication Interfaces	TTL-232, USB (HID-KBW, Virtual serial Port)
Beeper Operation	Programmable tone & Volume
PHYSICAL CHARACTERISTICS

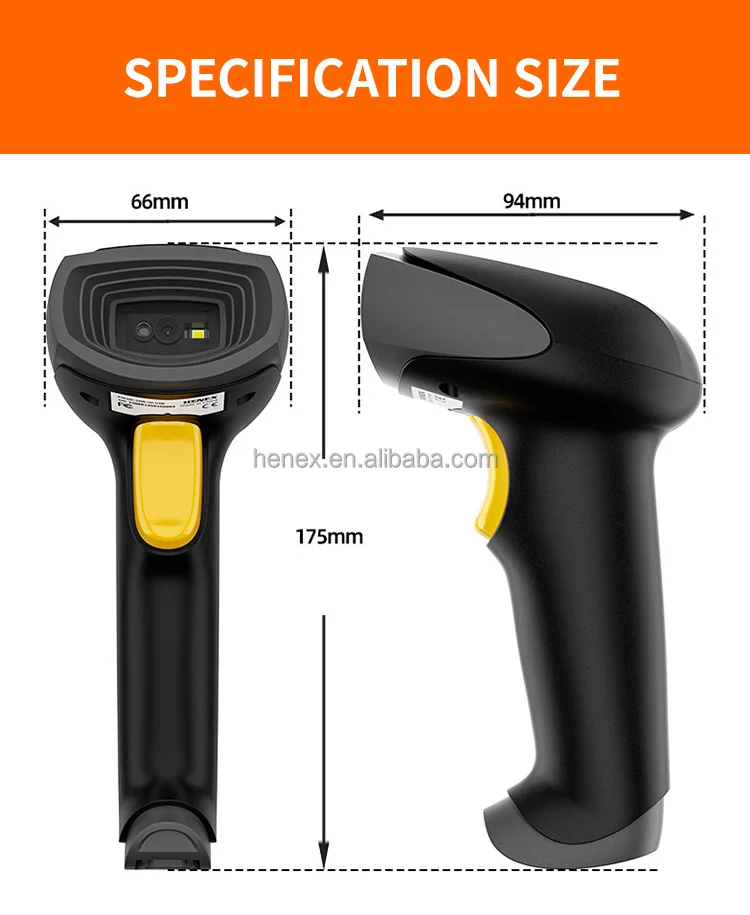

Dimension H x W x L	173mm*67mm*94mm(Length x Width x Height)
Weight	220g (with cable)
Material	ABS + PC
Cable Standard	1.8M straight (USB-RJ45 interface)
POWER PARAMETER
Input Voltage	5VDC±10%
Working current	180mA
SAFETY REGULATORY
Laser Class	CE EN55022 B, FCC Part 15 Class B, VCCI, BSMIEMC CDRH Class II, IEC 60825-1 Class 1
ENVIRONMENTAL PARAMETER
Operating Temperature	-20°C to 50°C
Storage Temperature	-40°C to 60°C
Working Humidity	5% to 95% relative humidity, non-condensing
Ambient Brightness	0 to 100,000 Lux (Daylight)
Drop Durability	Designed to withstand 5 Meters drop

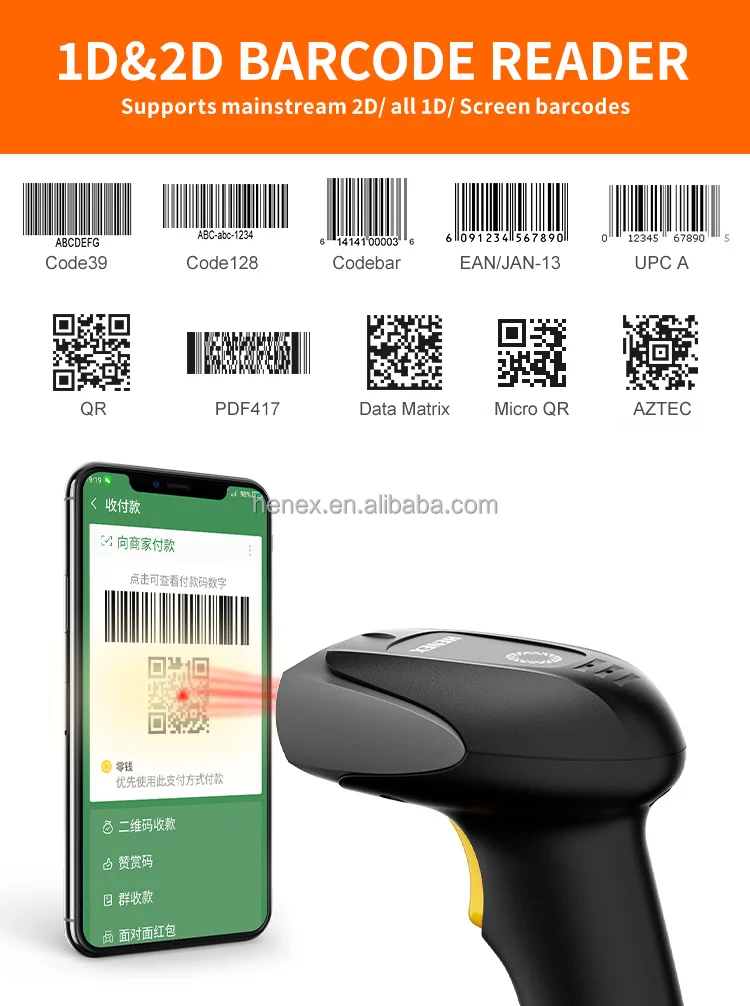

DECODE CAPABILITY
2D	QR Code, Data Matrix, PDF417,Aztec, Hanxin code, Maxicode,etc.
1D	UPC/EAN/JAN,UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128, Code 93, Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode), RSS 14, RSS Limited, RSS Expanded
