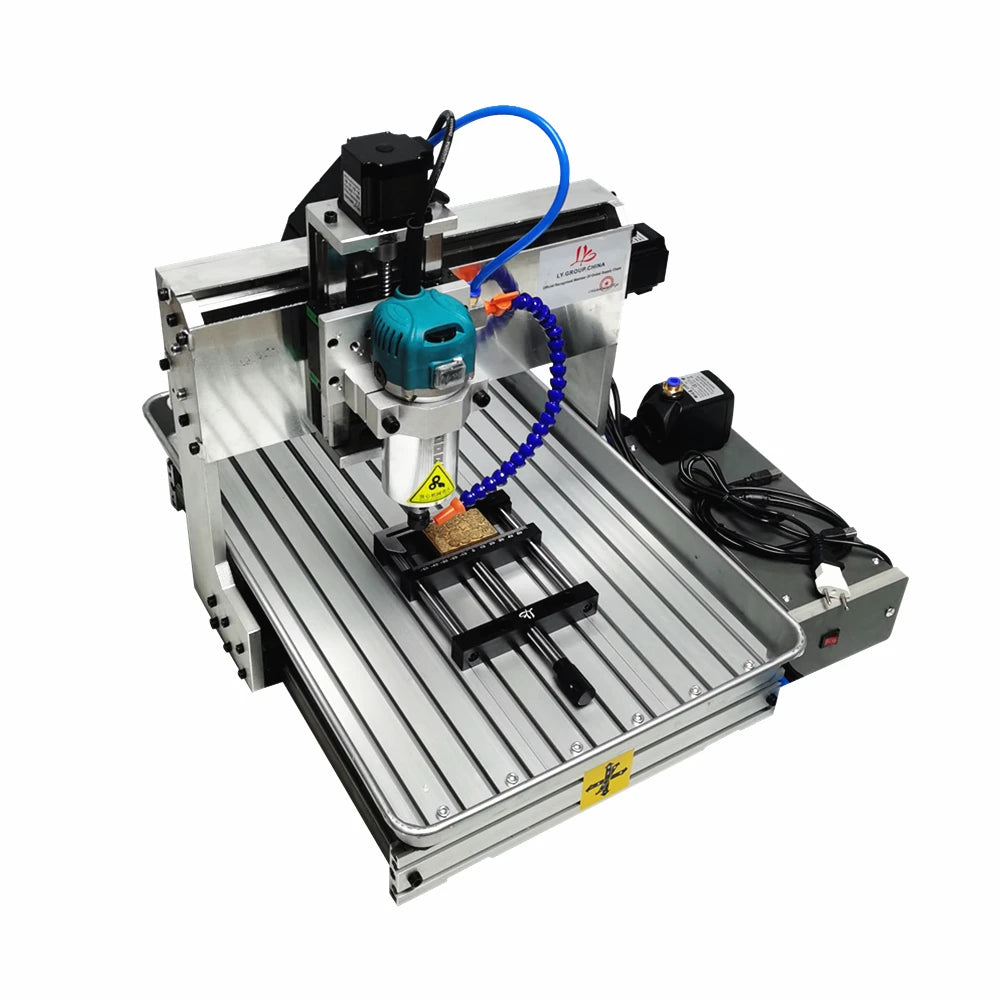

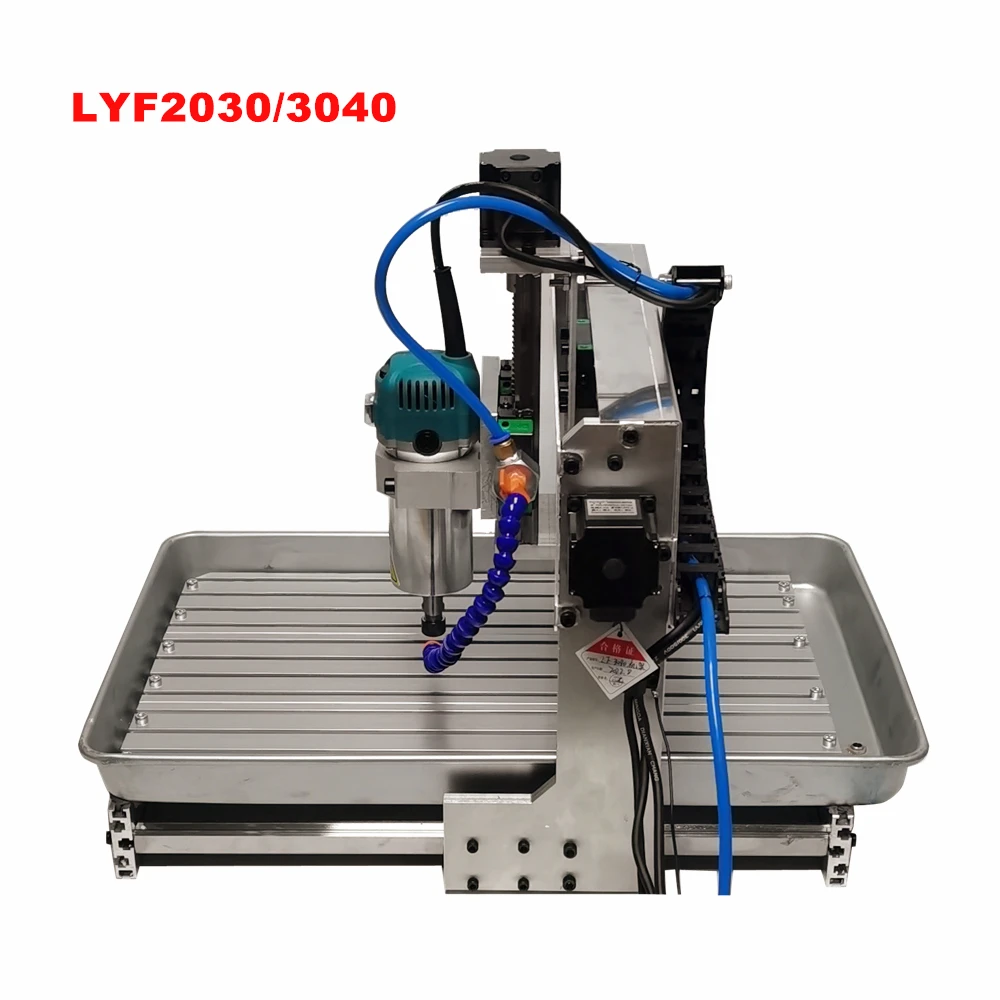

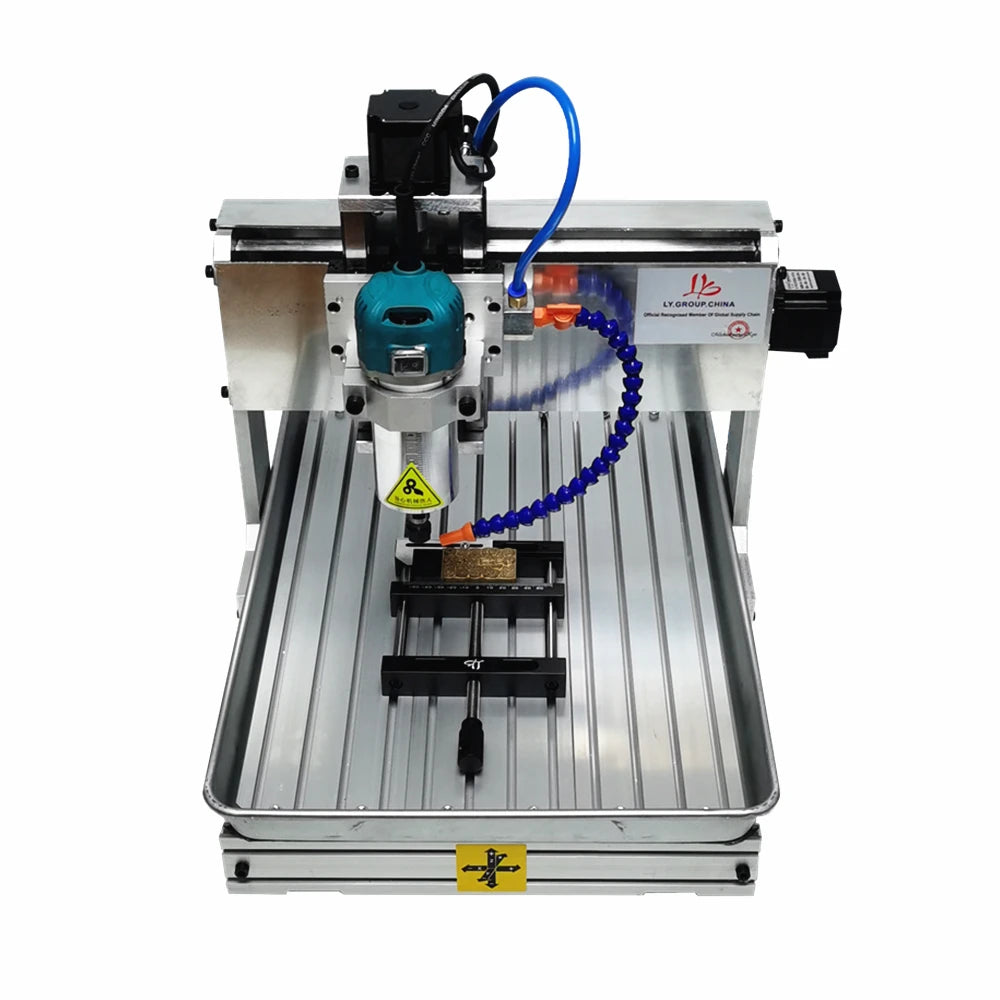

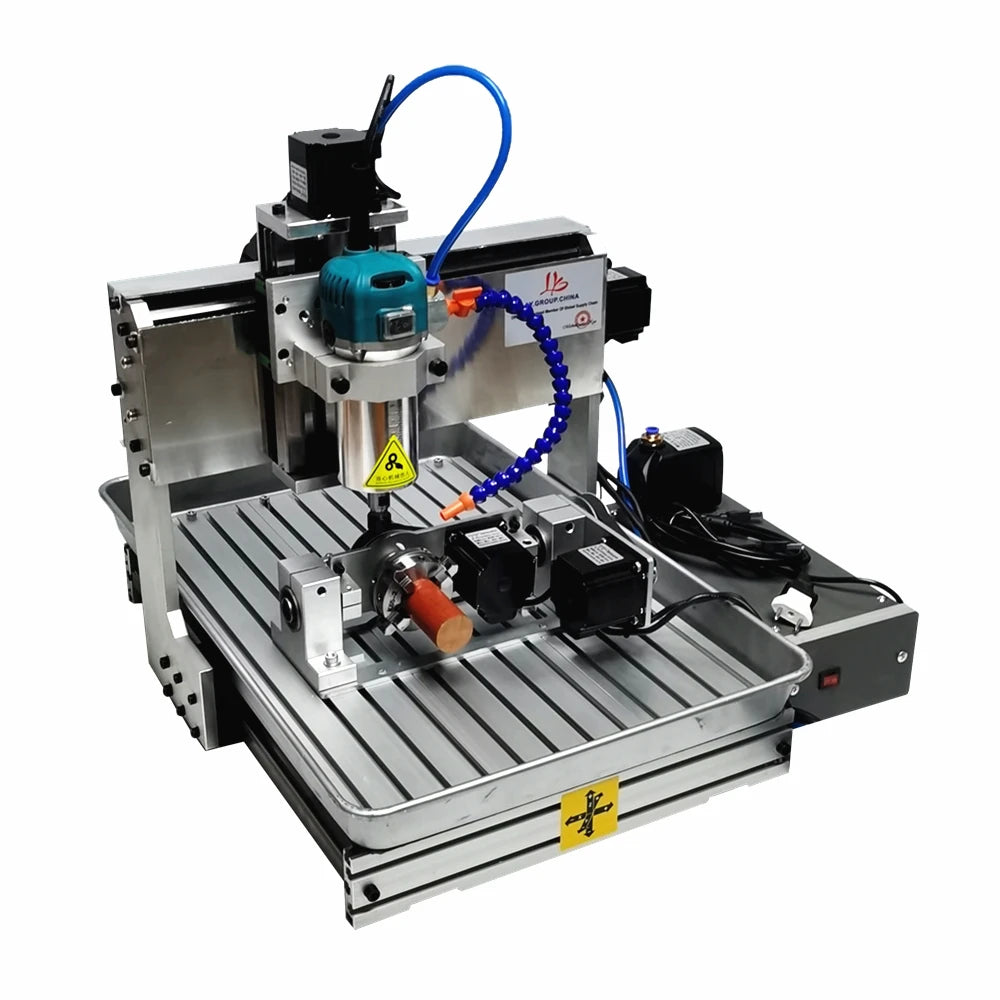

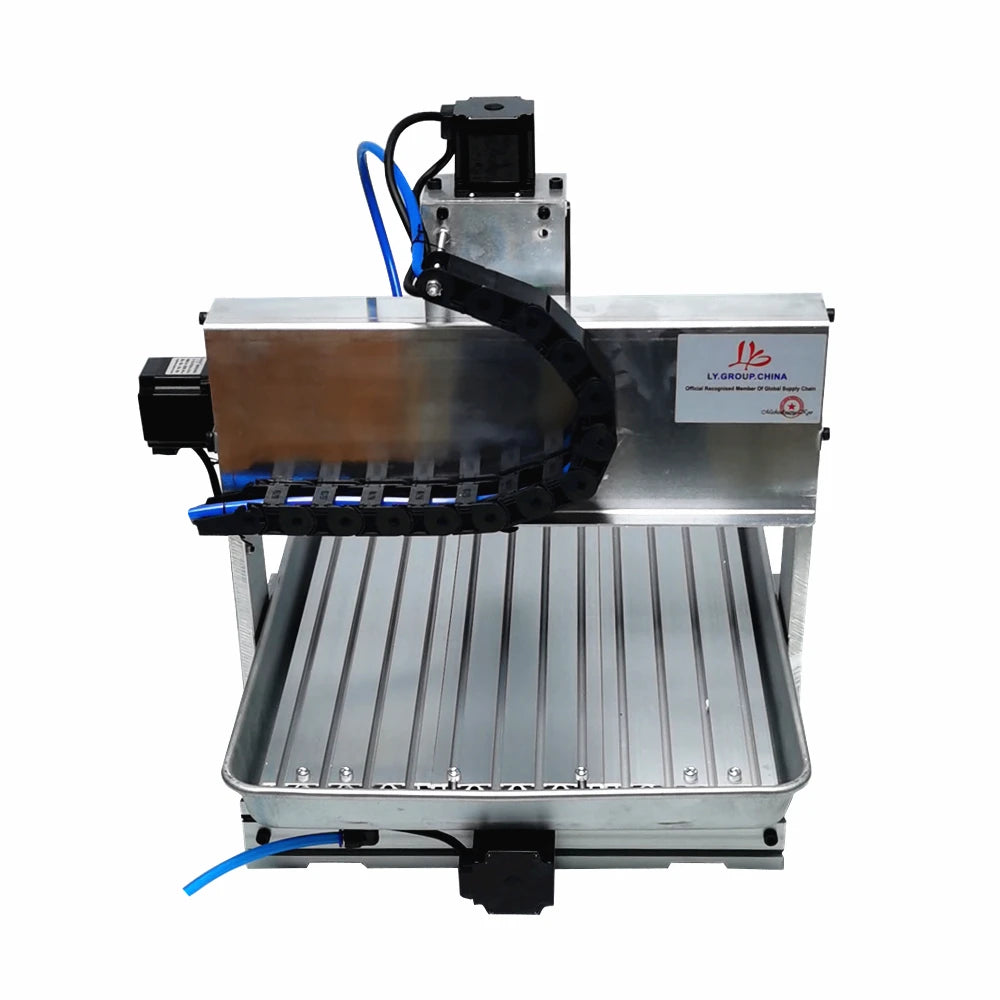

LYBGACNC LYF2030 3040 3060 4060 3/4/5Axis Engraving Machine CNC Router Engraving Drilling and Milling Machine 1500w 110V 220V
LYBGACNC LYF2030 3040 3060 4060 3/4/5Axis Engraving Machine CNC Router Engraving Drilling and Milling Machine 1500w 110V 220V
Description
SPECIFICATIONS

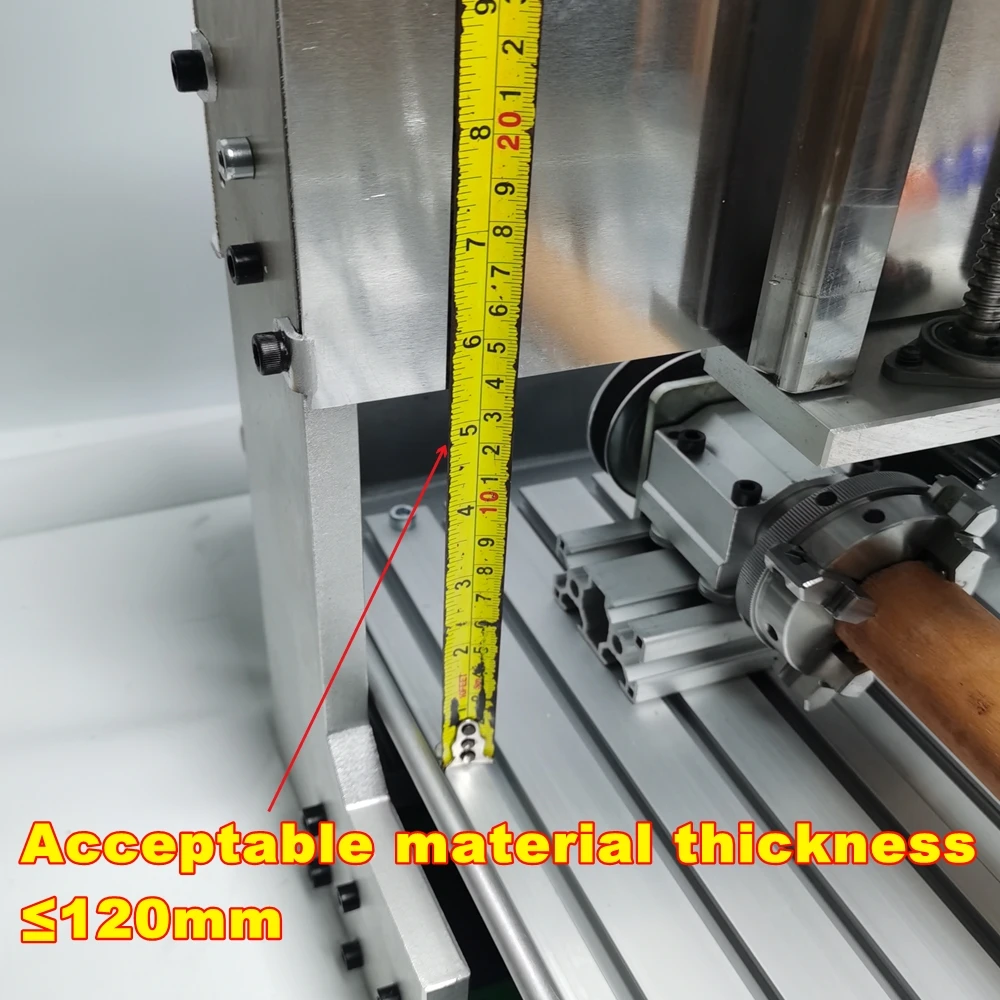

Acceptable material thickness: ≤120mm
Collet type: ER11,1/8"(3.175mm) Collet
Communication interface: USB Port
No. of Spindles: Other
Rack material: 12~15mm aluminum plate
Rail type: Square line rail track
Repeat positioning Accuracy: 0.02mm
Spindle Motor Power (kw): 1.5

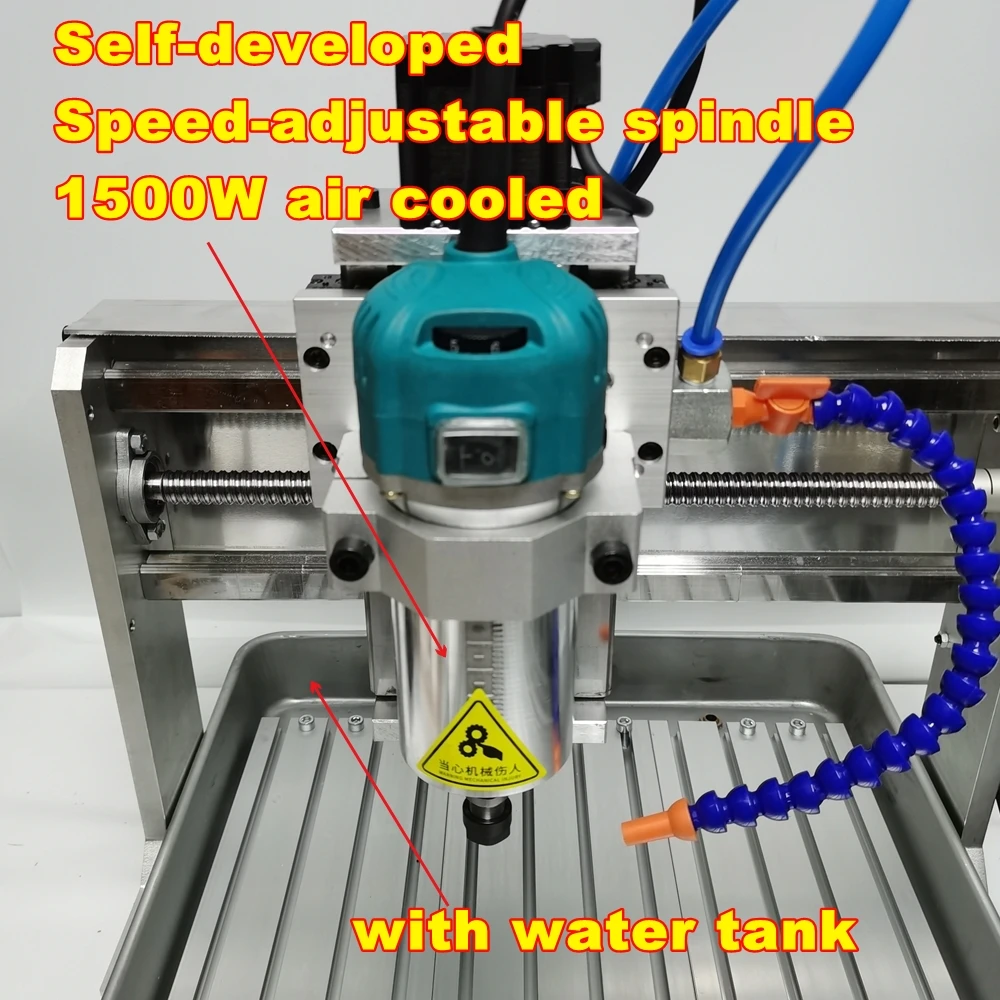

Spindle motor: 1500W Air cooling spindle , 0-30000r/min, 6 speed regulation
Stepper motor and drive: 57HS56
System requirements: Win-XP / Win 7 Win 8 Win10

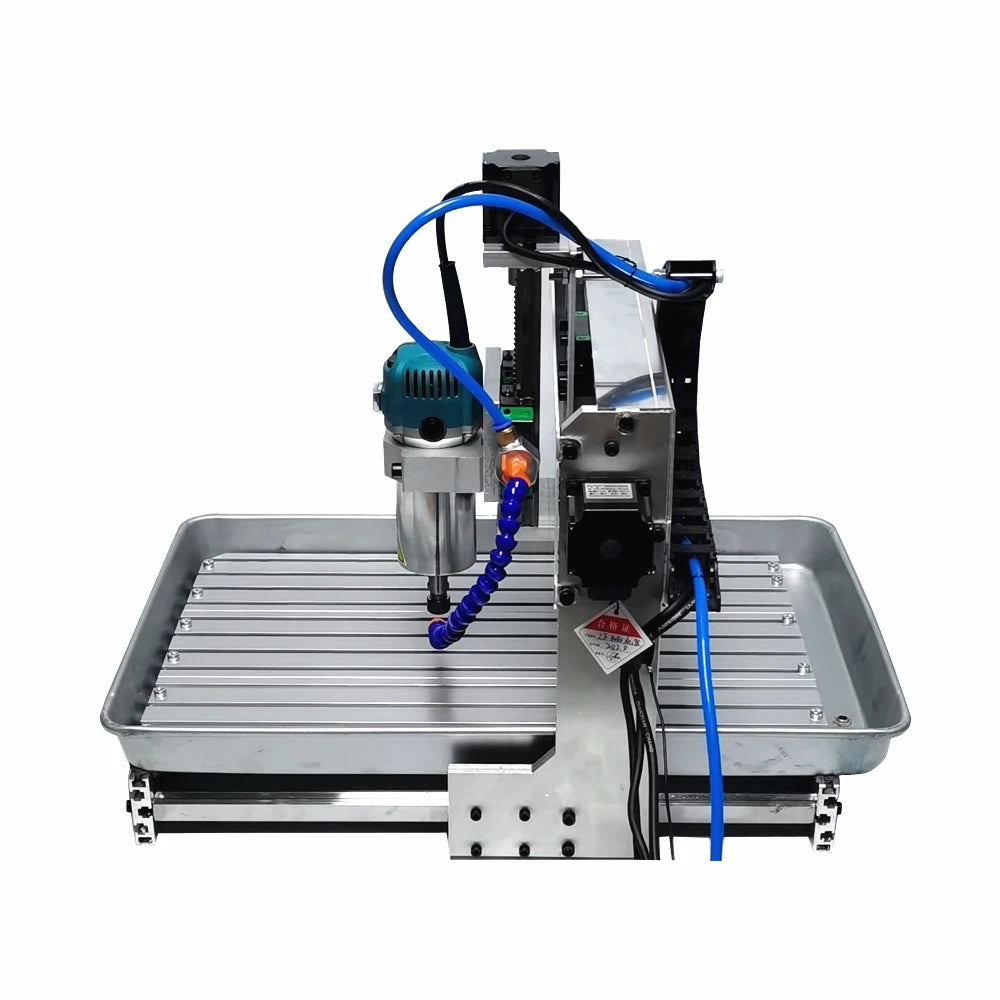

Table material: Aluminum alloy T table + Water tank
brand name: LY
cnc or not: CNC
core components: Motor
dimension(l*w*h): 62*52*50cm
key selling points: Easy To Operate
machine type: CNC Router
machinery test report: Provided
number of axes: 3/4/5
place of origin: Guangdong, China
positioning accuracy (mm): 0.02
range of spindle speed(r.p.m): 0 - 30000 rpm
repeatability (x/y/z) (mm): 0.02
travel (x axis)(mm): 300
travel (y axis)(mm): 400
video outgoing-inspection: Provided
voltage: 110/220
warranty: 1 Year
weight (kg): 43
LYBGACNC LYF2030 3040 3060 4060 3/4/5Axis Engraving Machine CNC Router Engraving Drilling And Milling Machine 1500w 110V 220V
Introduction
This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;
Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;
It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.
It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.

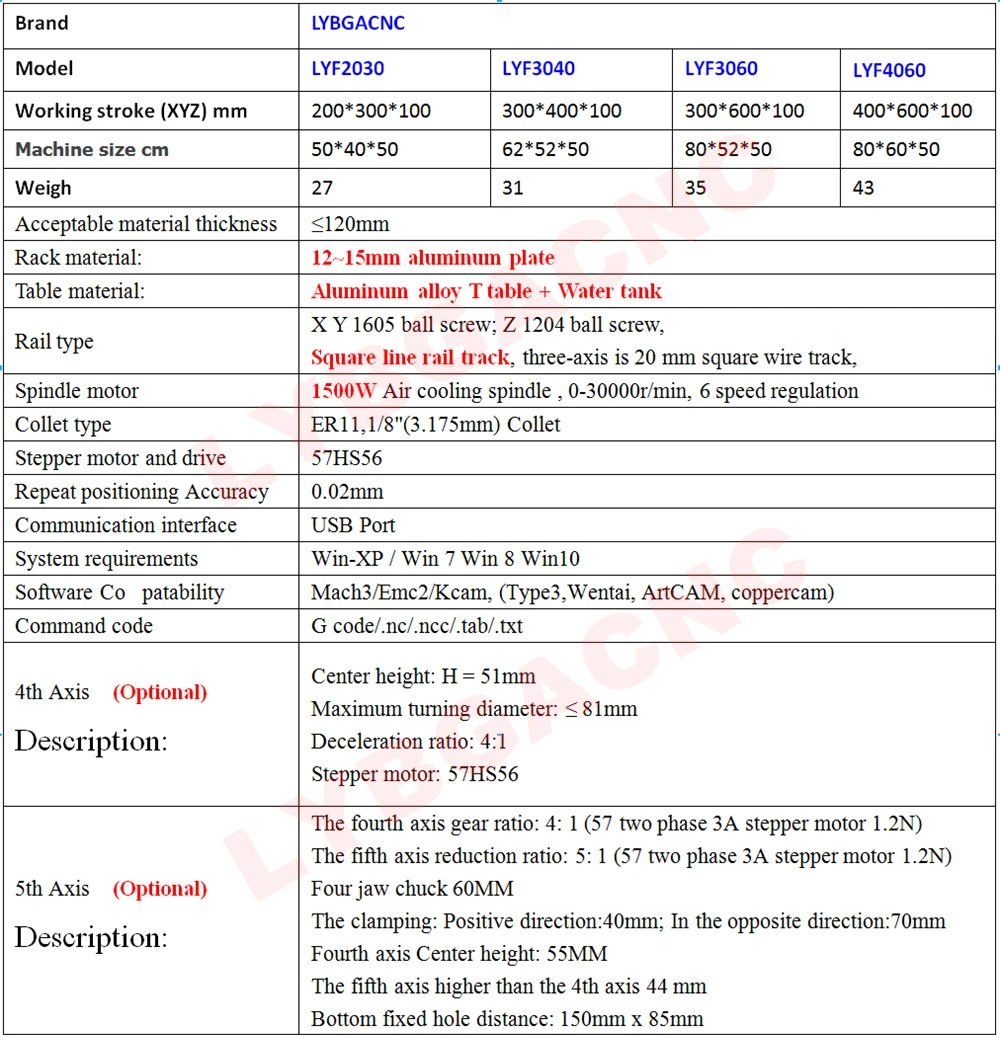

Model and Technical Parameters
|
Brand |
LYBGACNC |
|||
|
Model |
LYF2030 |
LYF3040 |

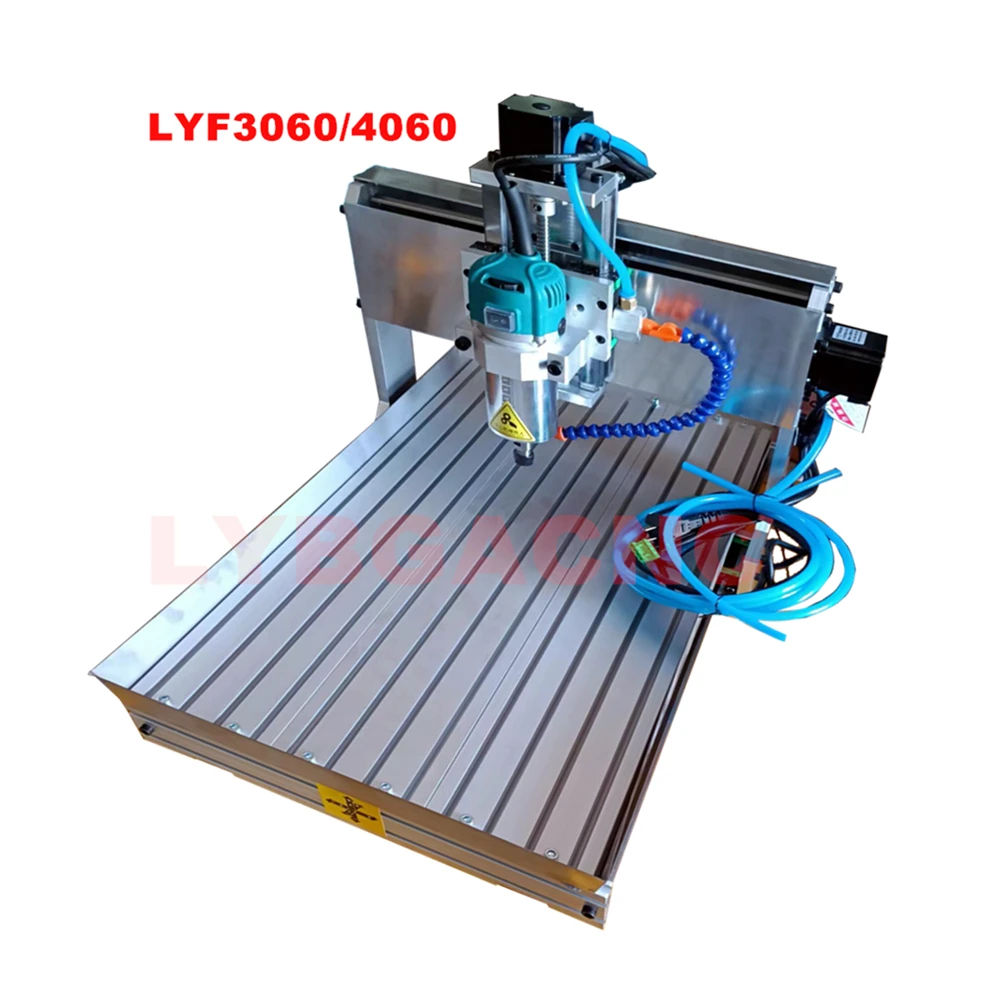

LYF3060 |
LYF4060 |
|
Working stroke (XYZ) mm |
300*400*100 |
300*600*100 |
400*600*100 |
|
|
Machine size cm |
50*40*50 |
62*52*50 |
80*52*50 |
80*60*50 |
|
Weigh |
27 |
31 |
35 |
43 |
|
≤120mm |
||||
|
12~15mm aluminum plate |
||||
|
Table material: |
Aluminum alloy T table + Water tank |
|||
|
Rail type |

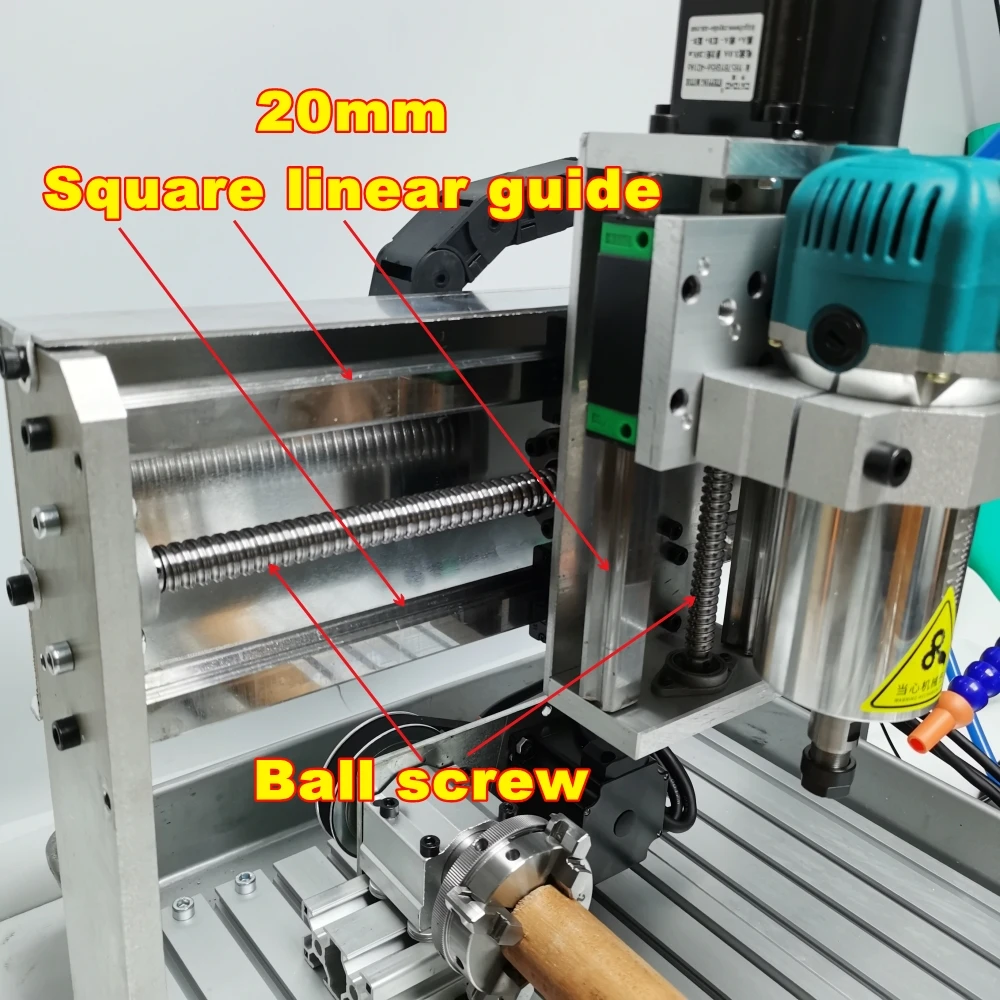

X Y 1605 ball screw; Z 1204 ball screw, Square line rail track, three-axis is 20 mm square wire track, |
|||
|
Spindle motor |
1500W Air cooling spindle , 0-30000r/min, 6 speed regulation |
|||
|
Collet type |
ER11,1/8"(3.175mm) Collet |
|||
|
Stepper motor and drive |
||||
|
Repeat positioning Accuracy |
0.02mm |
|||
|
Communication interface |
USB Port |
|||
|
System requirements |
Win-XP / Win 7 Win 8 Win10 |
|||
|
Software Co patability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code |
G code/.nc/.ncc/.tab/.txt |
|||
|

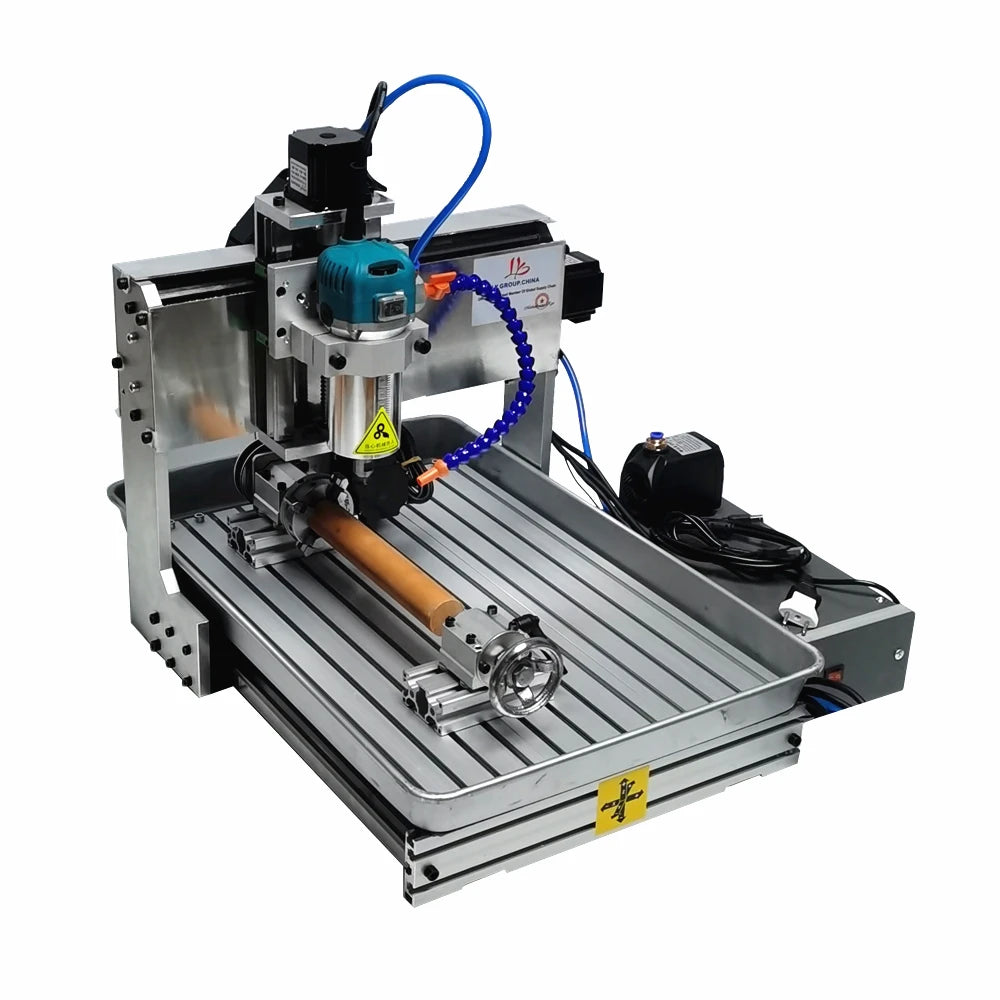

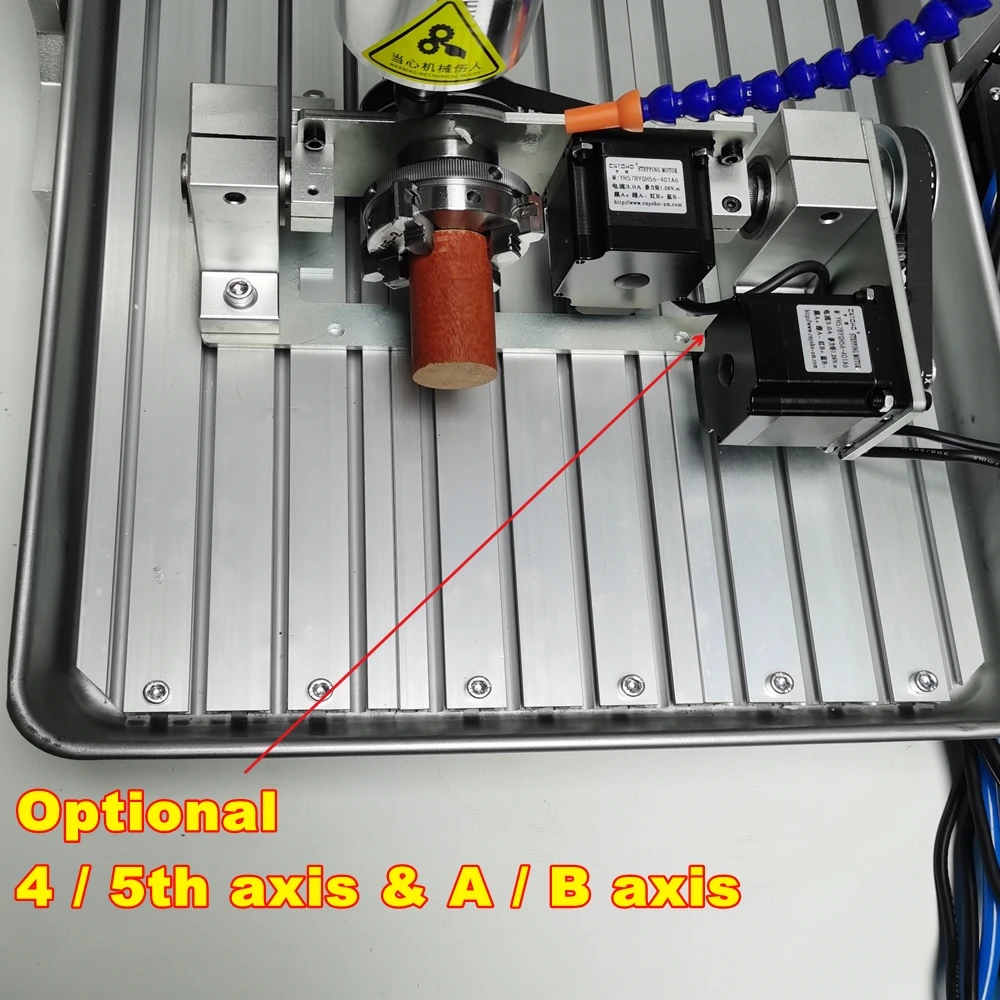

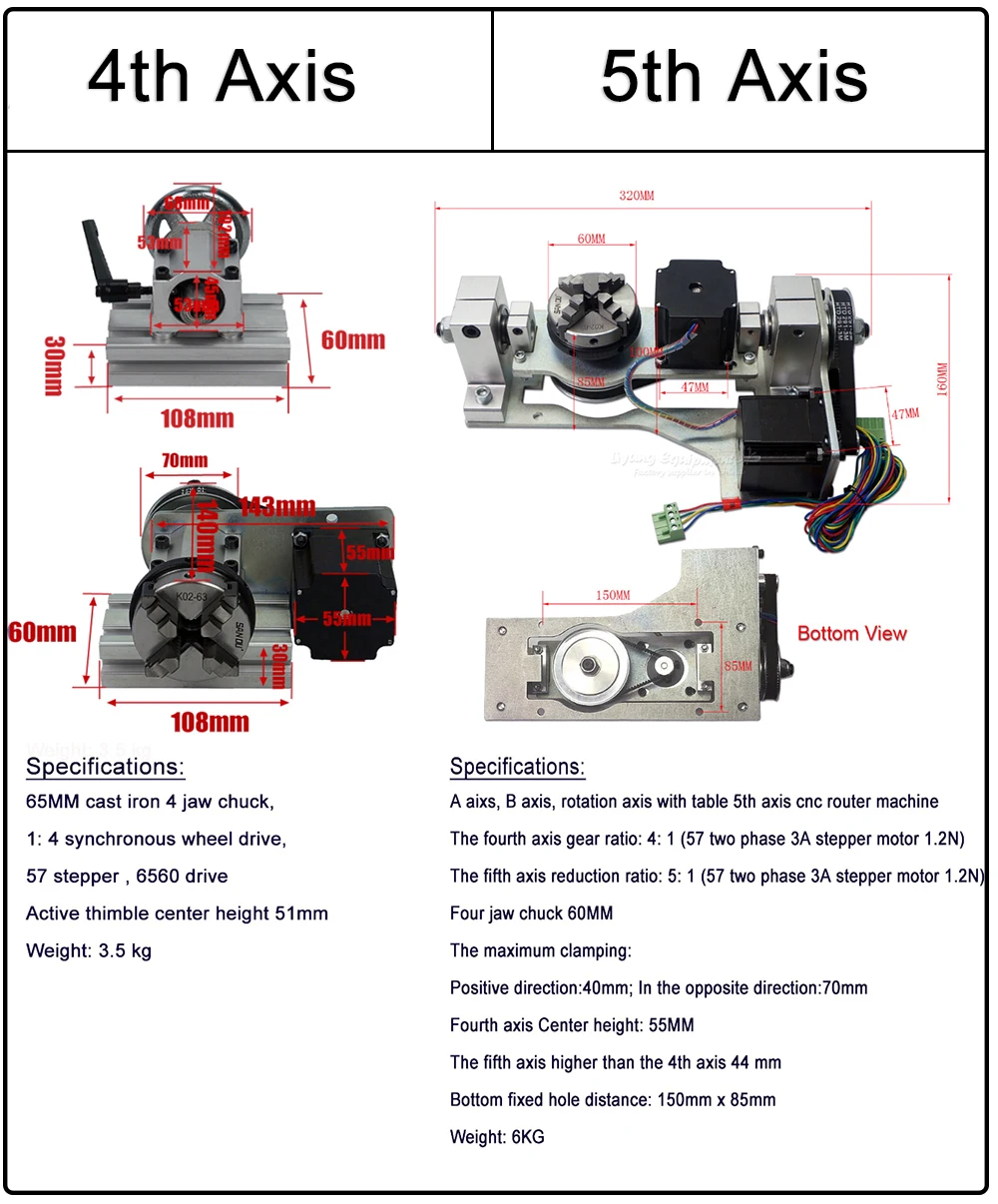

4th Axis (Optional) Description: |
Center height: H = 51mm Maximum turning diameter: ≤ 81mm Deceleration ratio: 4:1 Stepper motor: 57HS56 |
|||
|
5th Axis (Optional) Description: |
The fourth axis gear ratio: 4: 1 (57 two phase 3A stepper motor 1.2N) The fifth axis reduction ratio: 5: 1 (57 two phase 3A stepper motor 1.2N) Four jaw chuck 60MM The clamping: Positive direction:40mm; In the opposite direction:70mm Fourth axis Center height: 55MM The fifth axis higher than the 4th axis 44 mm Bottom fixed hole distance: 150mm x 85mm |
|||
Warranty
More Precise Stepping Motor
Simple operation and installation
1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty
Precautions for use

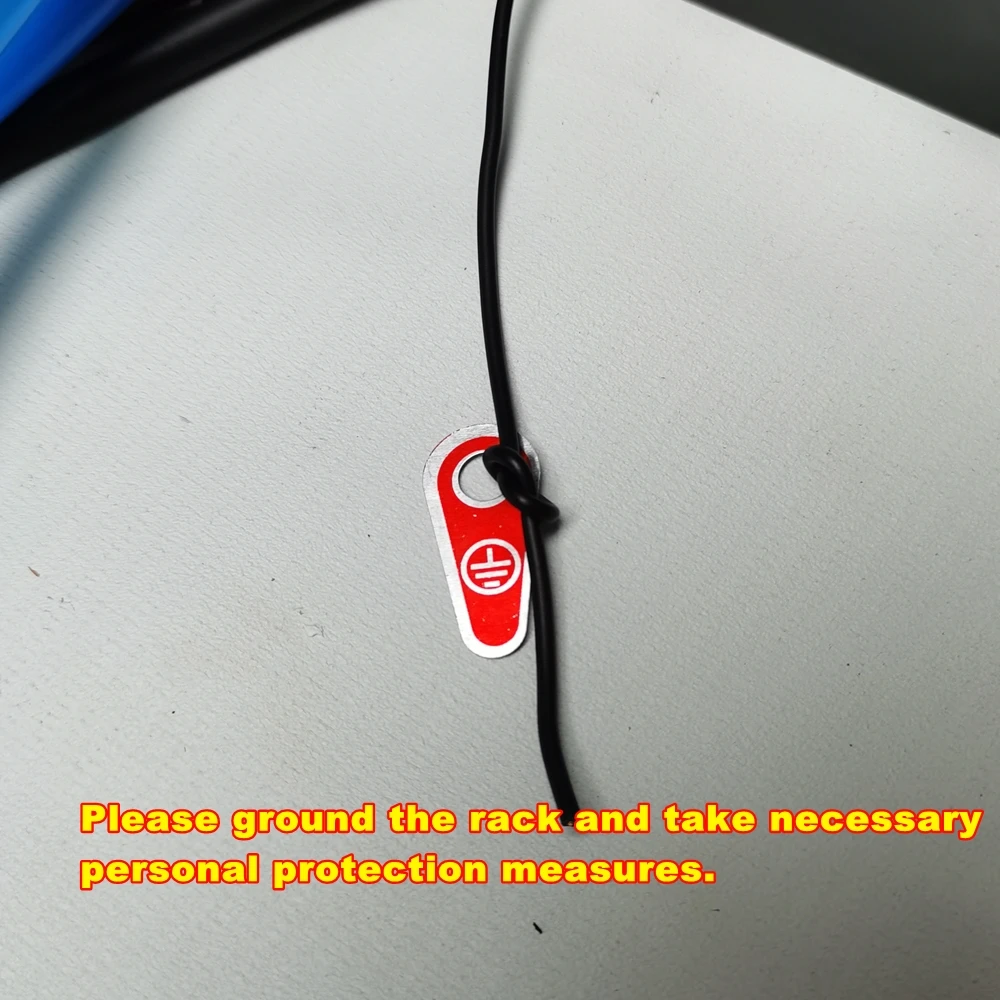

1. Beware of potential safety hazards of electricity use. Please ground the rack and take necessary personal protection measures. It should be placed at a place where children can't touch everyday;
2. The machine is divided into 110 and 220V. Please leave a message when ordering;
3. When the new machine is assembled, the main shaft must be connected to the main shaft output of the control box;
4. After the machine works for a period of time, if the main shaft does not rotate, please check whether the two carbon brushes on the motor are worn;

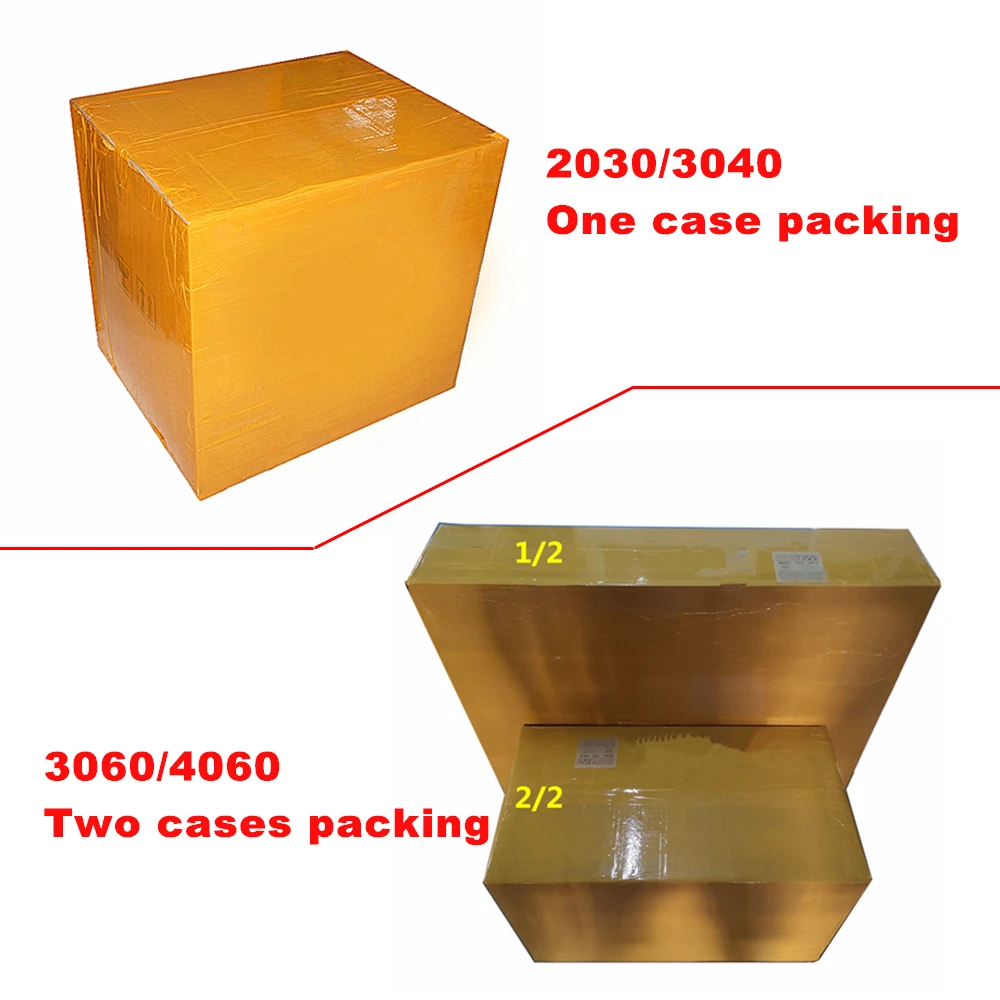

Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
C. 25-30 workdays shipping from China to Russian customers.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
USBearth business group is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .
We has 10 years experiences in manufacturing and foreigh trade
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
