SPECIFICATIONS

Automatic Grade: Automatic

brand name: LY

color & page: Single Color

condition: New

dimensions(l*w*h): 740*250*250mm

max. print area: 300*600mm

place of origin: Guangdong, China

plate type: Screen Printer

usage: Screen Printing

voltage: AC 100-240V 50 / 60Hz

warranty: 1 Year

weight: 50 KG

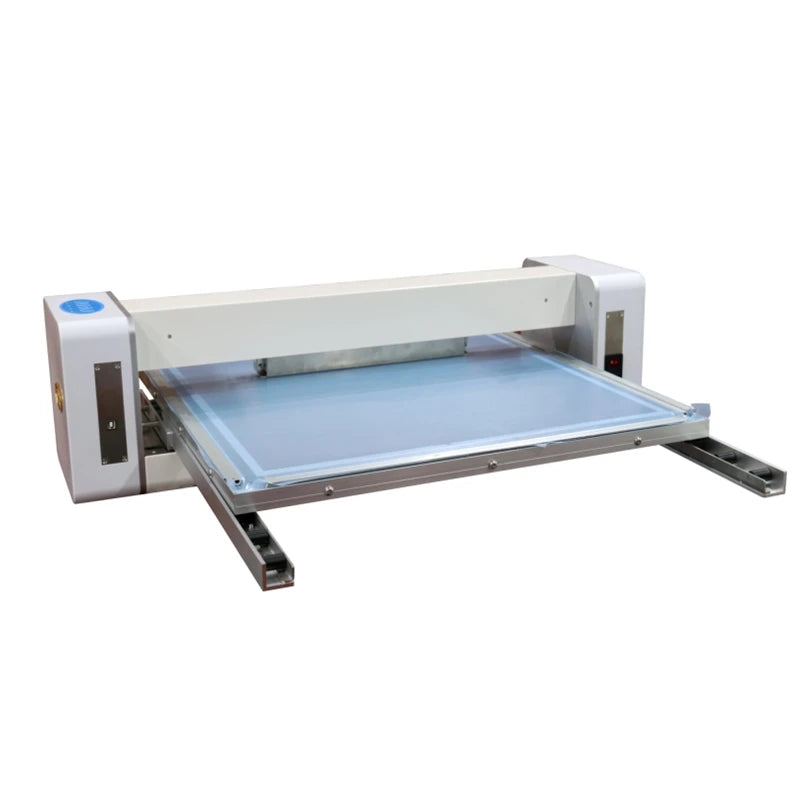

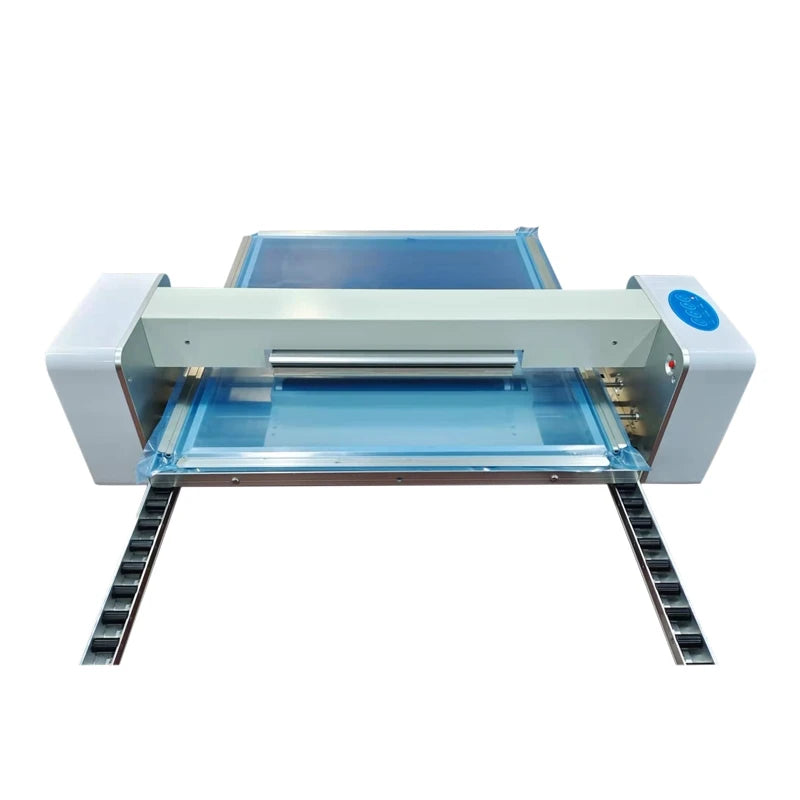

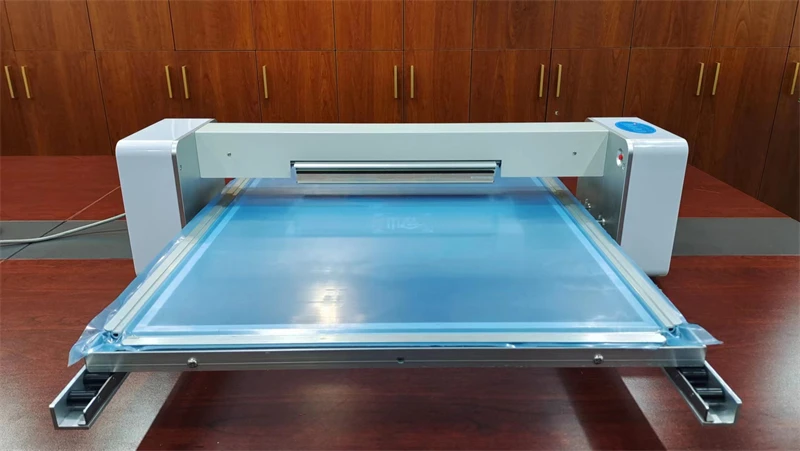

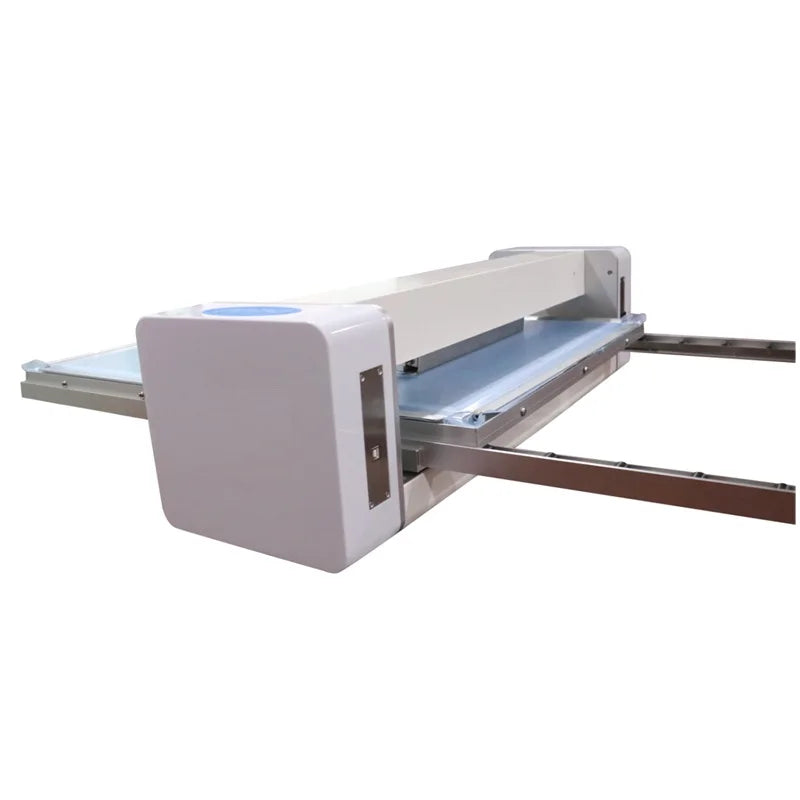

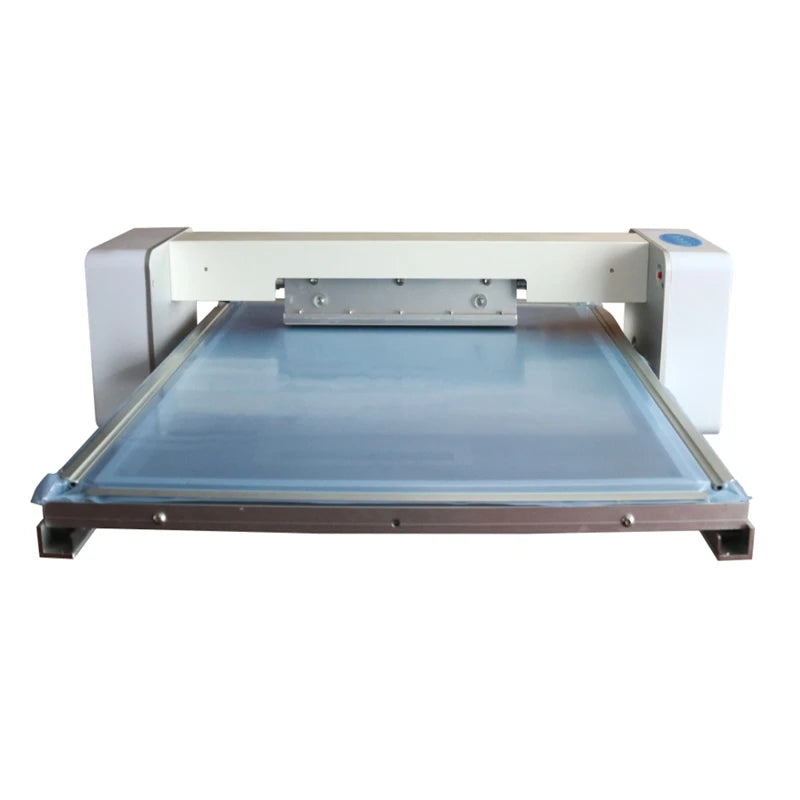

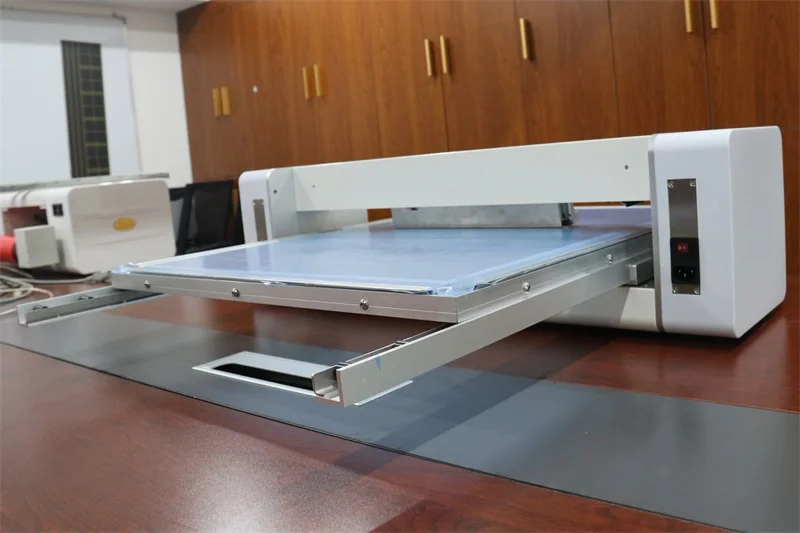

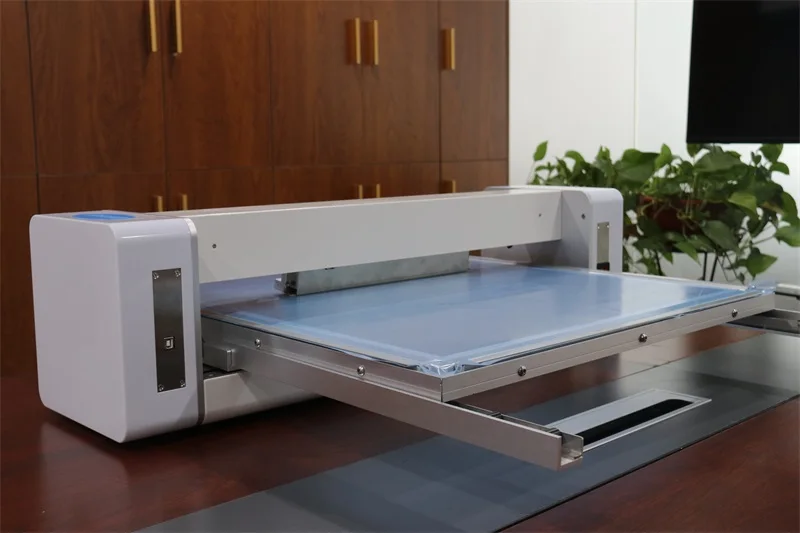

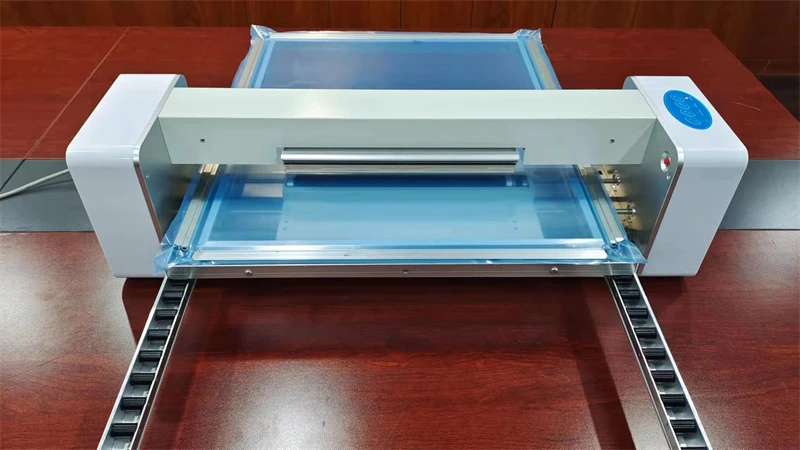

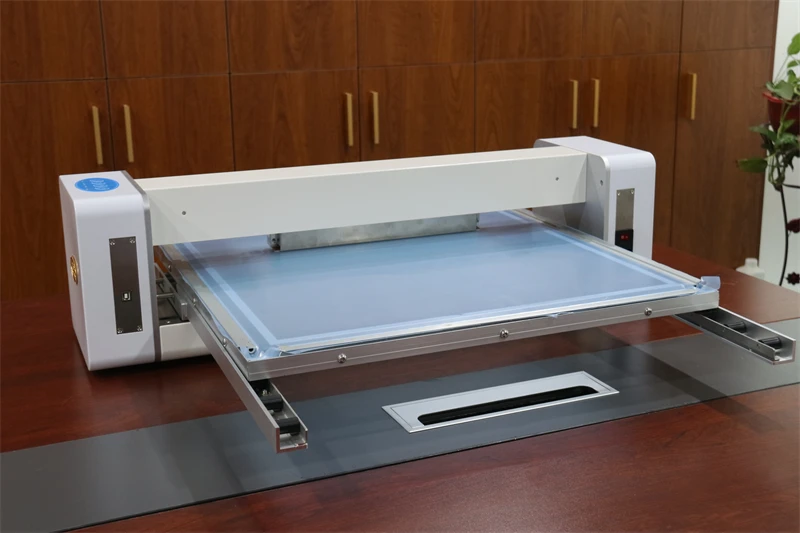

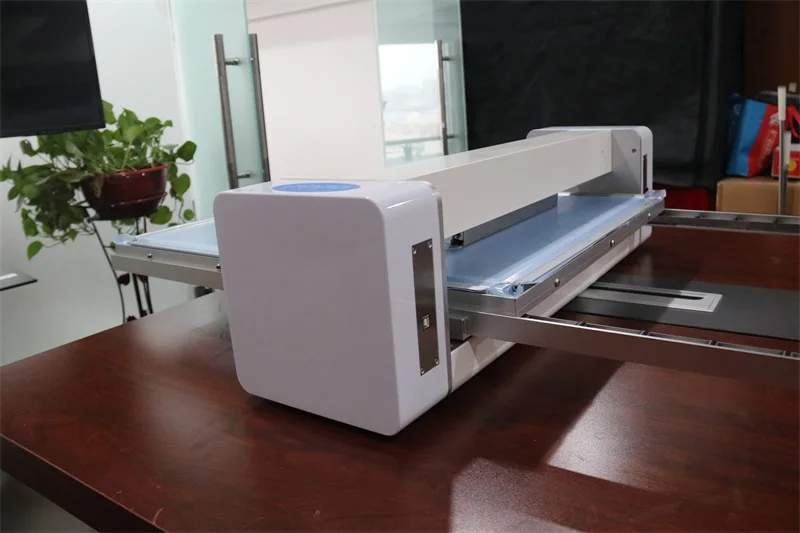

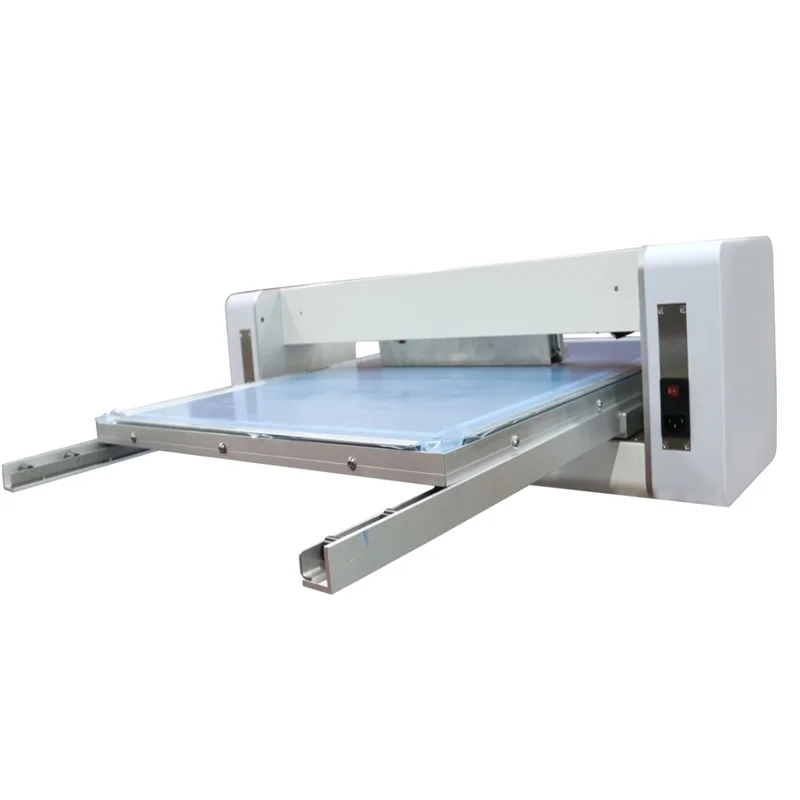

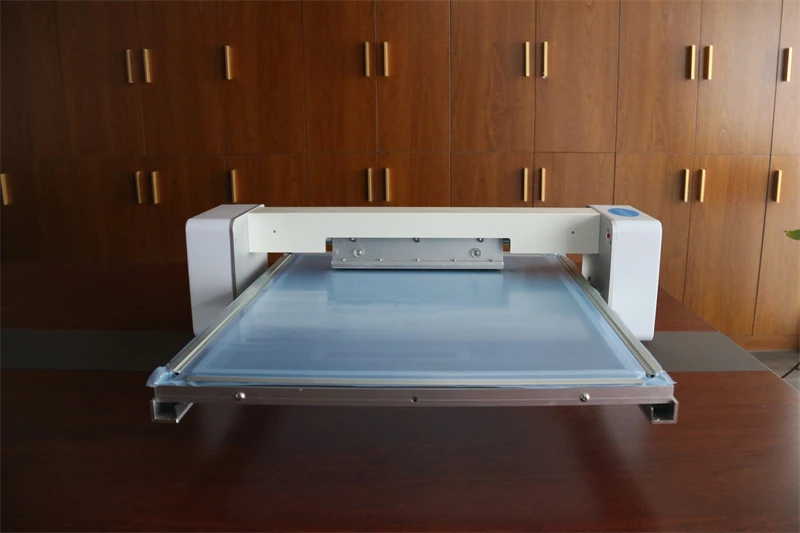

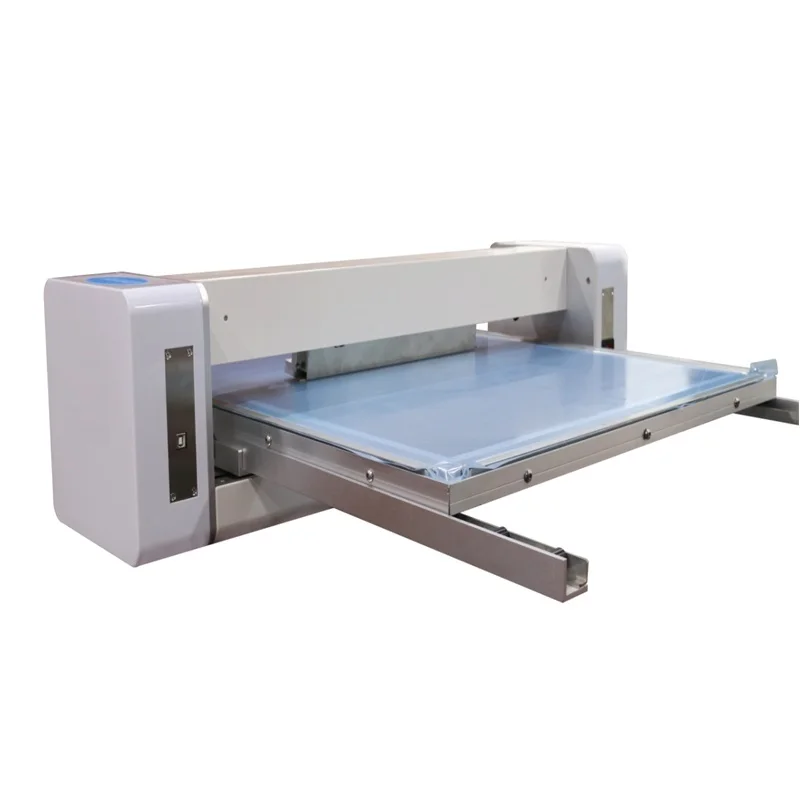

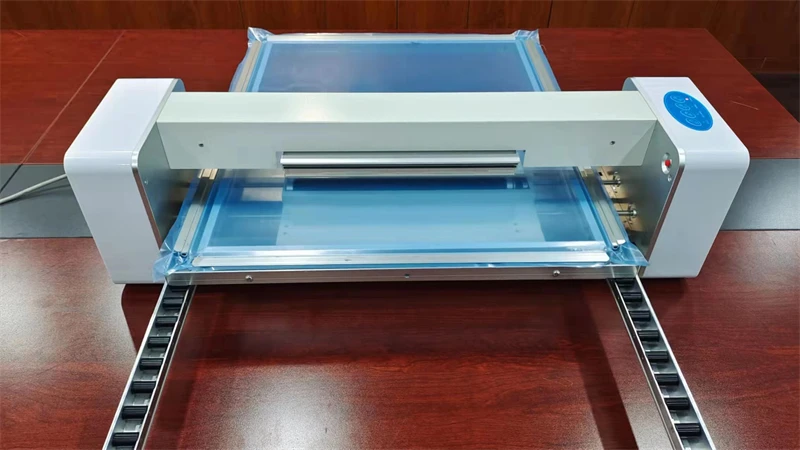

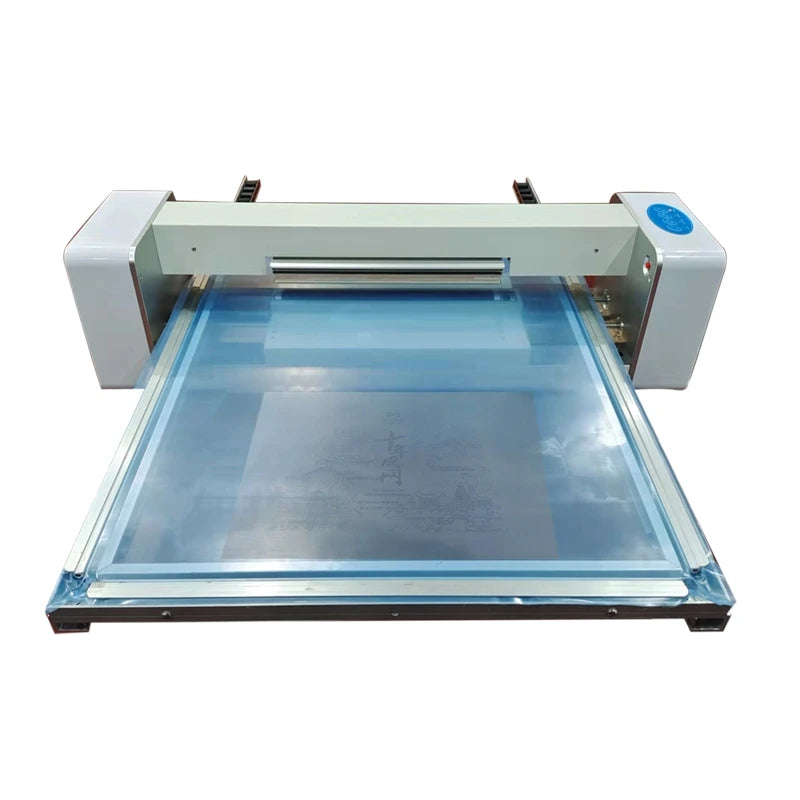

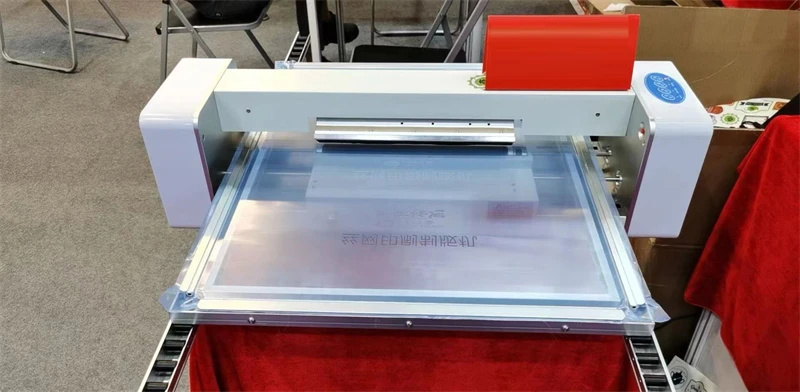

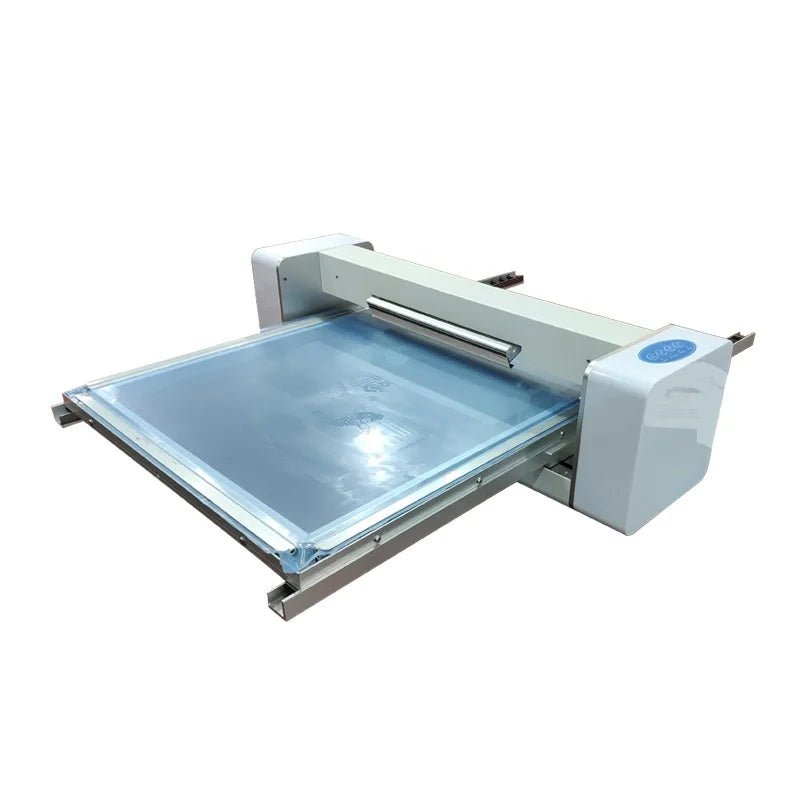

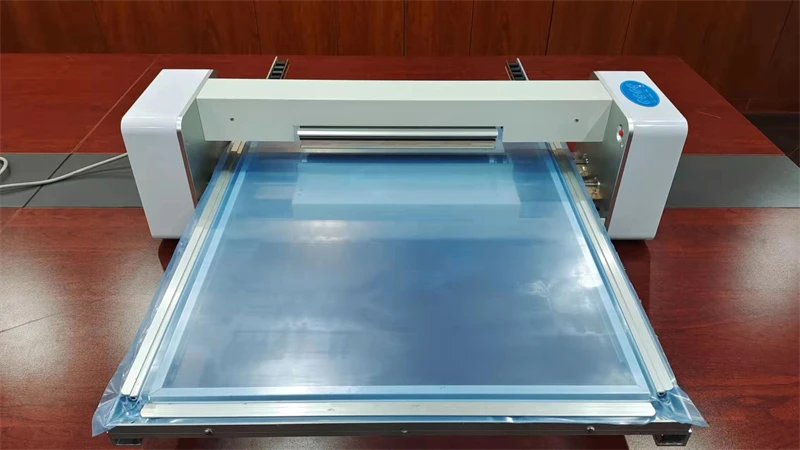

LY 560S Full Automatic A1 Size 600*900MM Digital Screen Printing Plate Making Machine No Need Films Without Plate Burning Process Instant Use

1.     Easy to operate, like a printer to print the screen directly.

   Fast, convenient, 300dpi, printing width 303mm

  (No need professional plate-making skills, direct load picture on computer, no exposure and blow-drying steps)

2. Does not require a large working space. (No darkroom and processing table, no need to store a large number of plates, table-top workbench can be)

3. Save manpower Save money Save time. (Suitable for short time printing and test production, the original outsourcing work can easily be profitable in house.)

4. Environmental protection. (Using dry heat screen plate technology: no exposure and processing, low power consumption, no solvent use, no waste water)

Advantages and Features

Real-time plate making, no need to prepare plates in advance

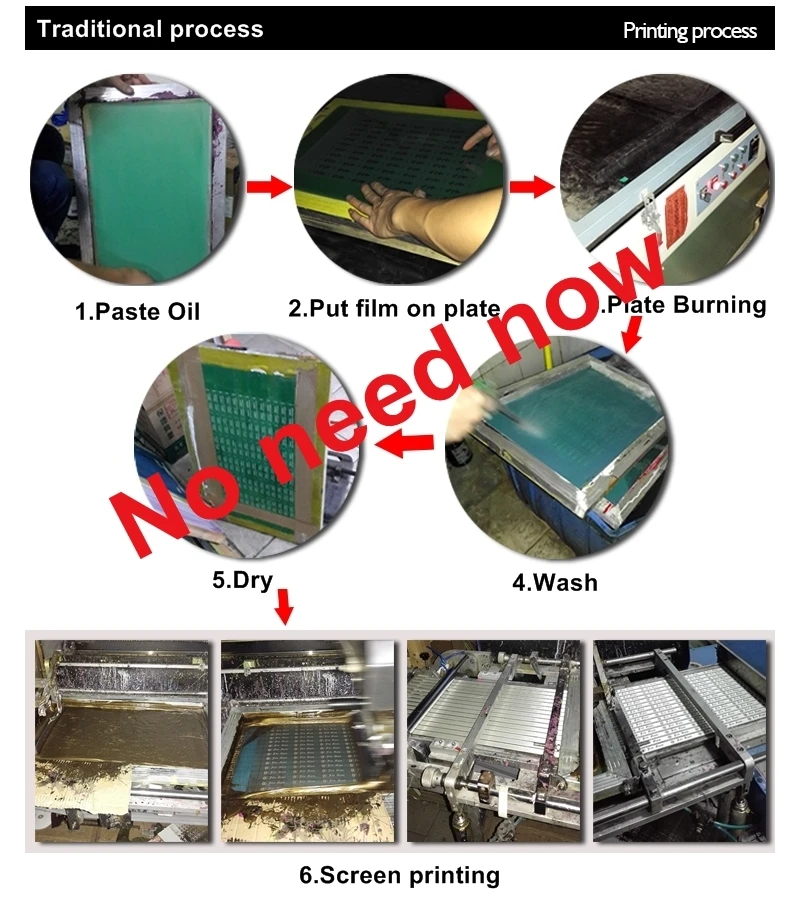

Advanced digital printing technology, no need films, no need to wash, no need chemicals, directly print.

The machine is easy to operate, energy-saving and environment-friendly, saves operation time and space, and does not require professional skills,

It is suitable for short time printing and test production, and can be shipped on the same day to meet the needs of personalization, sampling and small batch production.

Model: 560S

Windows system: XP,WIN7,WIN8,WIN8.1,WIN10

Software operating environment

Suitable for most design softwares, such as Coreldraw, Photoshop, Al, etc.

Interface type USB

Storage capacity 128MB

Working environment Temperature 15° to 30°

Image area size

Min. 10mm(L)*10mm(W)

Max. 300(W)mm*600mm(L)

Screen Plate production time

Approx. 100 seconds [A2(420mm*594mm)].

Screen frame size (inner diameter)

Standard 400mm(length)*500mm(width)

Custom size is available upon request

Resolution

300dpiX600dpi

Screen frame thickness

20mm to 45mm

Power & Voltage

150W & AC 100-240V 50 / 60Hz

Warranty Period

One year

Product Size

740*250*250mm

Gross weight

35kg

Packing List:

A1 Digital Screen Printing Plate Making Machine x 1

600*900 Screen Plate Frame x 1 (Can change into other sizes)

Thermo sensitive Coating Screen Cloth x 1 Square Meter 120 mesh

RE: If need more plate frames, can refer below size:

Optional:

(400*500MM $120 / 400*600MM $140 / 500*600MM $160 /  500*700MM $180 /  600*900MM $200 )

If need more Thermo sensitive Coating Screen Cloth, can refer below:

(Bigger mesh, the silk line will be more finer, with higher resolution but shorter lifetime. Smaller mesh, the silk line will be more thicker, with lower resolution but longer lifetime.)

Optional:

80 Mesh 3 Sizes(W:51.5CM  L:50M/ Roll, W:61.5CM  L:50M/ Roll , W:113CM  L:50M/ Roll) $26/ Per Square Meter

100 Mesh 3 Sizes (W:51.5CM  L:50M/ Roll, W:61.5CM  L:50M/ Roll , W:113CM  L:50M/ Roll) $28/ Per Square Meter

120 Mesh 3 Sizes (W:51.5CM  L:50M/ Roll, W:61.5CM  L:50M/ Roll , W:113CM  L:50M/ Roll) $30/ Per Square Meter

150 Mesh( W:1135MM  L:30M/ Roll) $40/ Per Square Meter

180 Mesh( W:1135MM  L:30M/ Roll) $45/ Per Square Meter

230 Mesh( W:1135MM  L:20M/ Roll) $50/ Per Square Meter

270 Mesh( W:1135MM  L:20M/ Roll) $60/ Per Square Meter

(RE: Cloth on Sale by rolls only)
