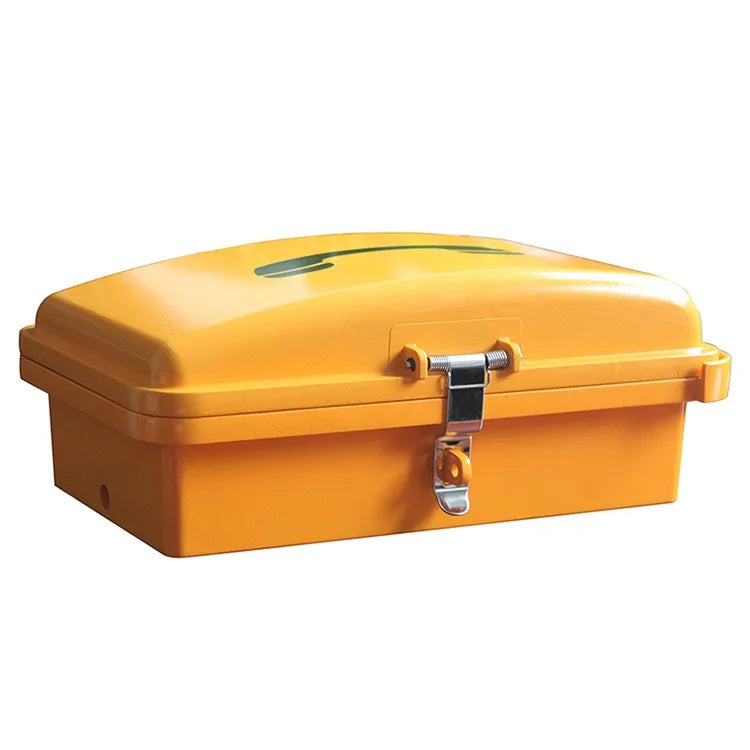

KoonTech High Quality Custom IP66/67 WeatherProof Industrial Outdoor Emergency Telephones Waterproof Telephone KNSP-01T2S
KoonTech High Quality Custom IP66/67 WeatherProof Industrial Outdoor Emergency Telephones Waterproof Telephone KNSP-01T2S
Description
SPECIFICATIONS
Brand Name: KNTECH
Color Option: Yellow/Blue/Red optional
Defence Grade: IP66 (IP67 option)
Keypad: With
Material: Robust Aluminium Allay
Memory: no
Model Number: KNSP-01T2S
Net Weight: 5.3 KG
Network: Wired LAN,Ip,POE
Place of Origin: Guangdong, China
Product Name: Water Proof Telephone KNSP-01T2S
Size: 320*205*120mm
Type: Waterproof Telephone,Waterproof Telephone
Version: VoIP
Voice Mail: No
Warranty: 18 Months
KoonTech High Quality Custom IP66 WeatherProof Industrial Outdoor Emergency Telephones Waterproof Telephone KNSP-01T2S
Industrial telephone feature:
1. Robust aluminium alloy die-cast body, Vandal & tamper-resistant hardware, easy Installation.2. Waterproof rating IP66 dust proof.
3. Full keypad with memory, 10 button programmable speed-dial telephone.
4. Door cover: orient automatically and good self - closing, convenient for use.
5. Weather resistant to IP66 standard, service temperature range from -30 degree to +75 degree.
6. Magnetic reed hook-switch.
7. Lightening protection to ITU-T recommendation K.21.
8. Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
9. Handset with industrial strong curly cord .
10. Silicon keypad keep waterproof and dusty proof.
11. Phone integrity wiring to enable the telephone system to check if the telephone unit is still
Operational.(if PABX have this available we can provide this function).
12. Optional 7 minute time out to release the line if the handset is left off hook. This function
upon buyer’s requirement).
13. Powder coated in UV stabilized polyester finish.
14. The housing covered with a layer of reflective label for easy identification at night.Optional
15. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc. 、
Industrial Voip Phone Specification:
1. VoIP SIP2.0 telephone
2. DTMF dialing
3. MTBF100000hours
4. MTTR: 2 hours
5. Auxiliary Contacts:1 Aux Output, dry contact
6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC
7. Contact Ratings. Load: Resistive load
8. Echo cancellation code:G.167/G.168
9. Rated carry current:1A
10. Max.switching current:1A
11. Max.switching voltage:125 VAC,60VDC
12. Audio Codes:G.711, G.722, G.729
13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
14. Free dial (maximum length of each number is 16 digits)
15. Communication: Full duplex 2-way hands-free communication
16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)
17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
18. Power:Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W

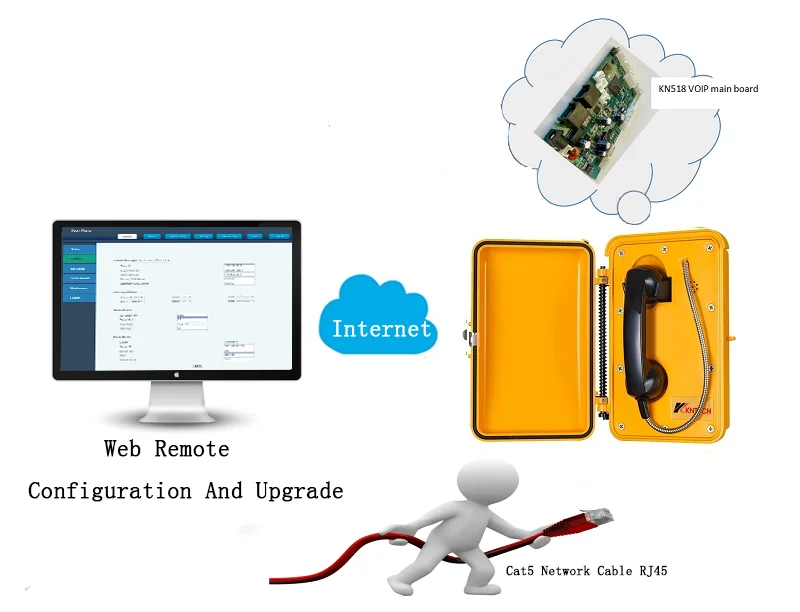

19. Programming:Non-volatile flash memory programming and configuration through Web GUI
20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)

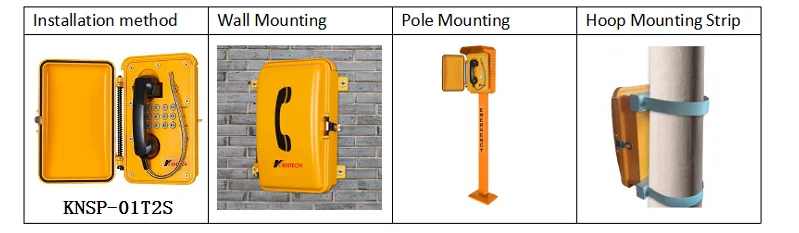

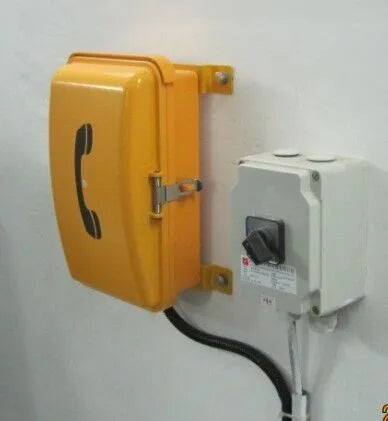

Outdoor Emergency IP Phone Water Proof Telephones with IP66 Protection Door Cover KNSP-01T2S install and the size

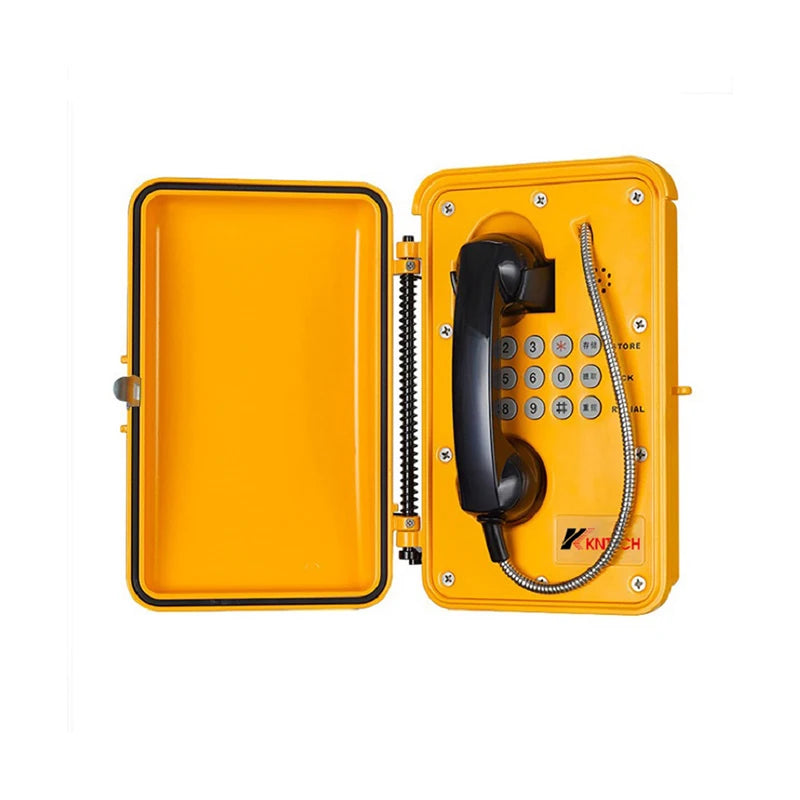

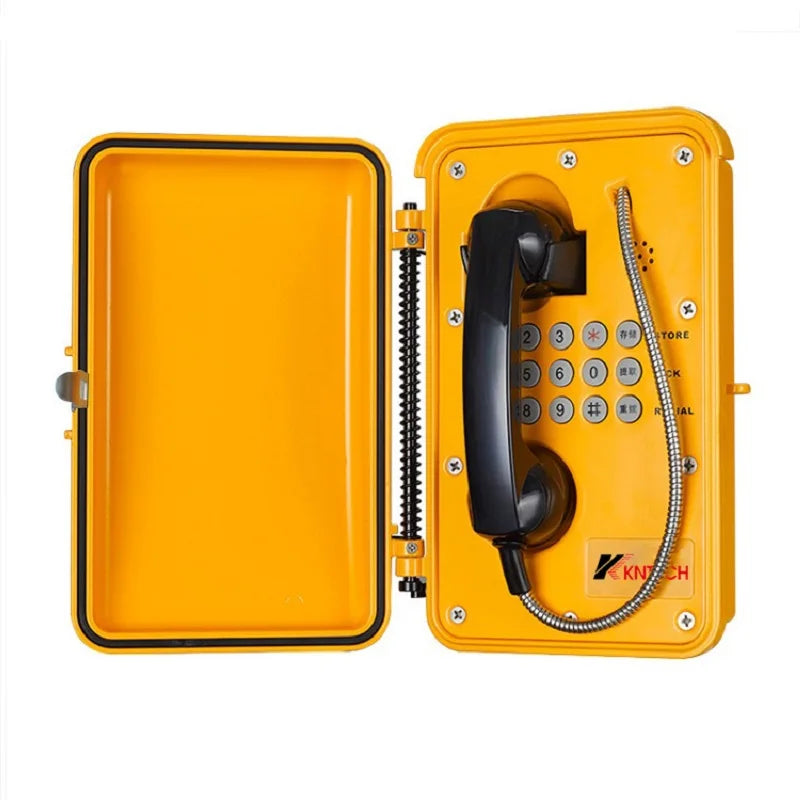

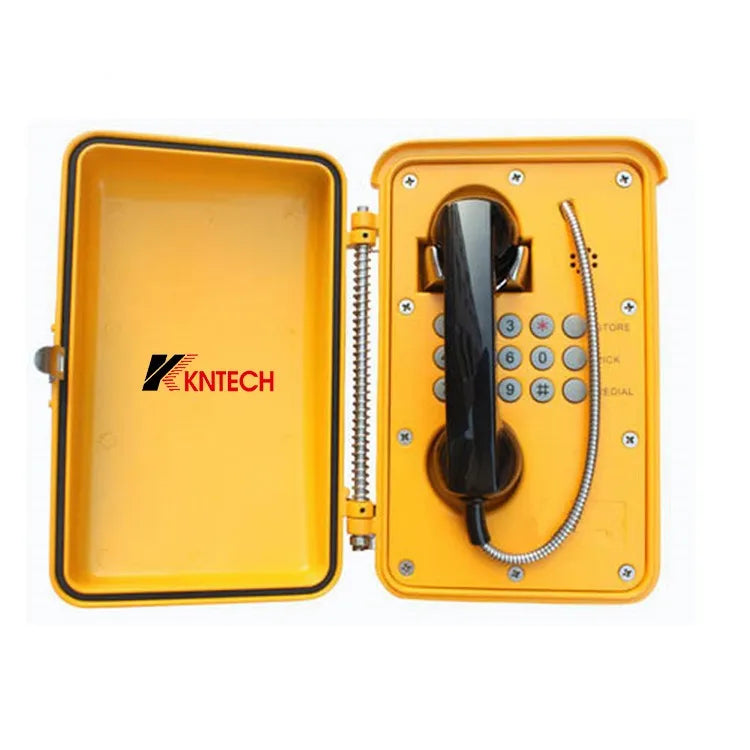

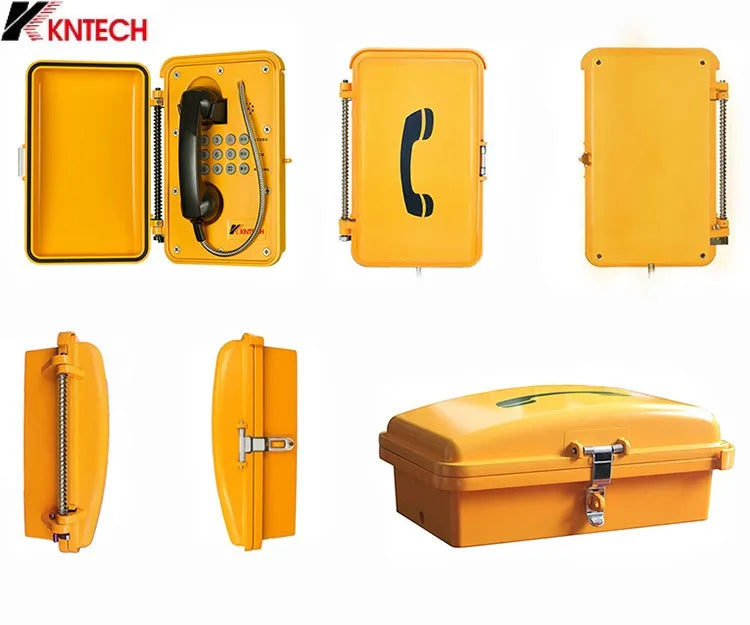

The water proof telephone more detail view

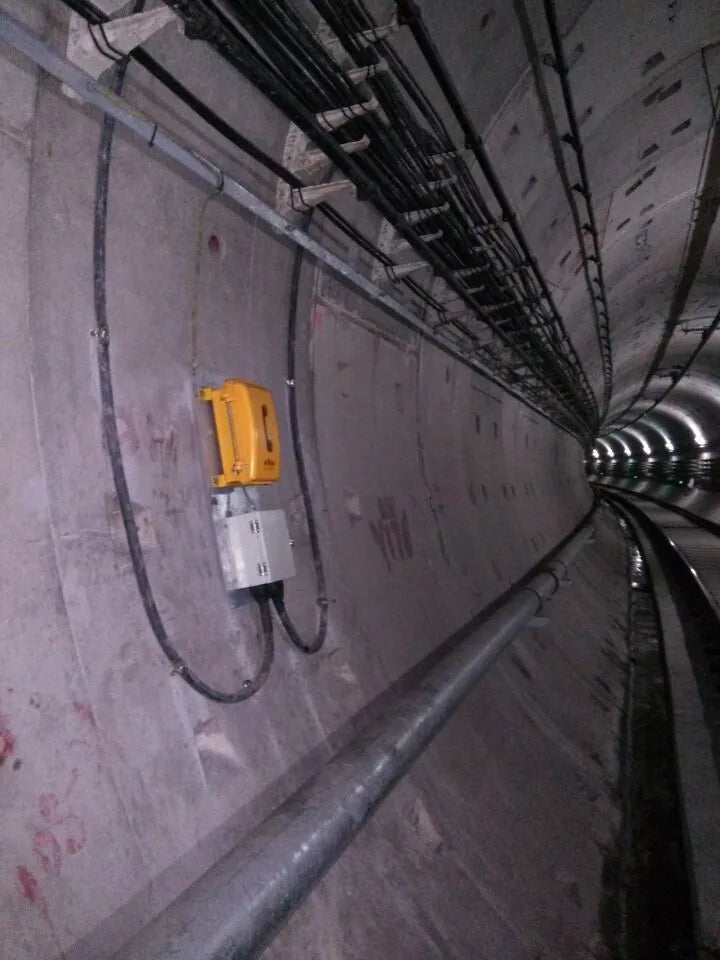

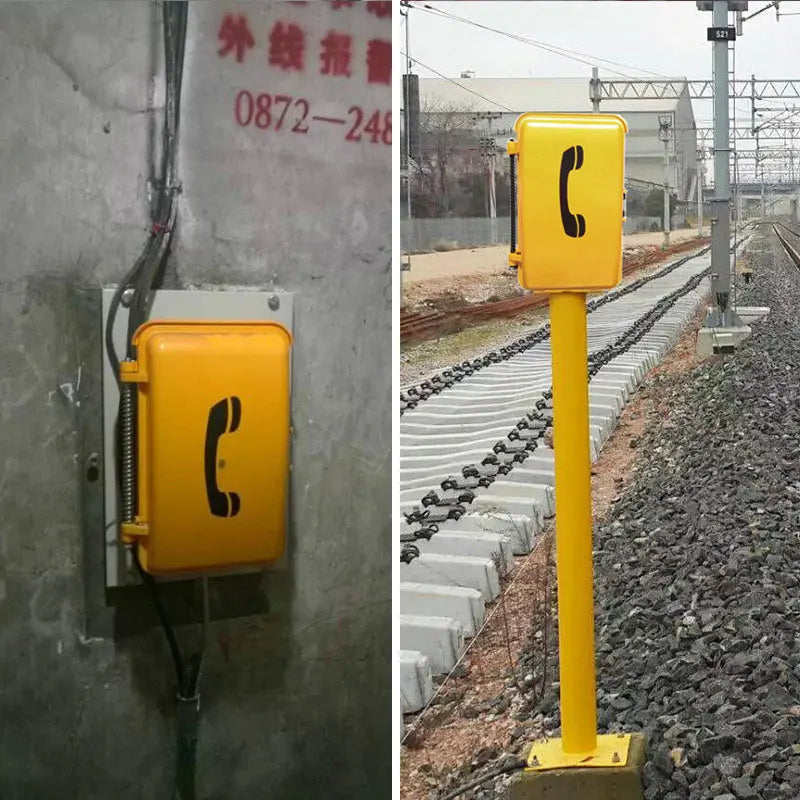

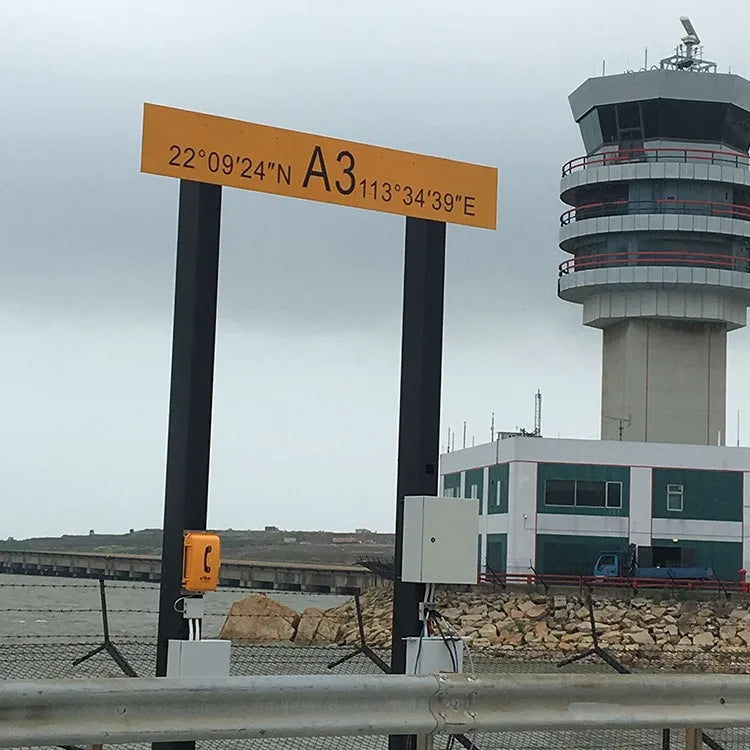

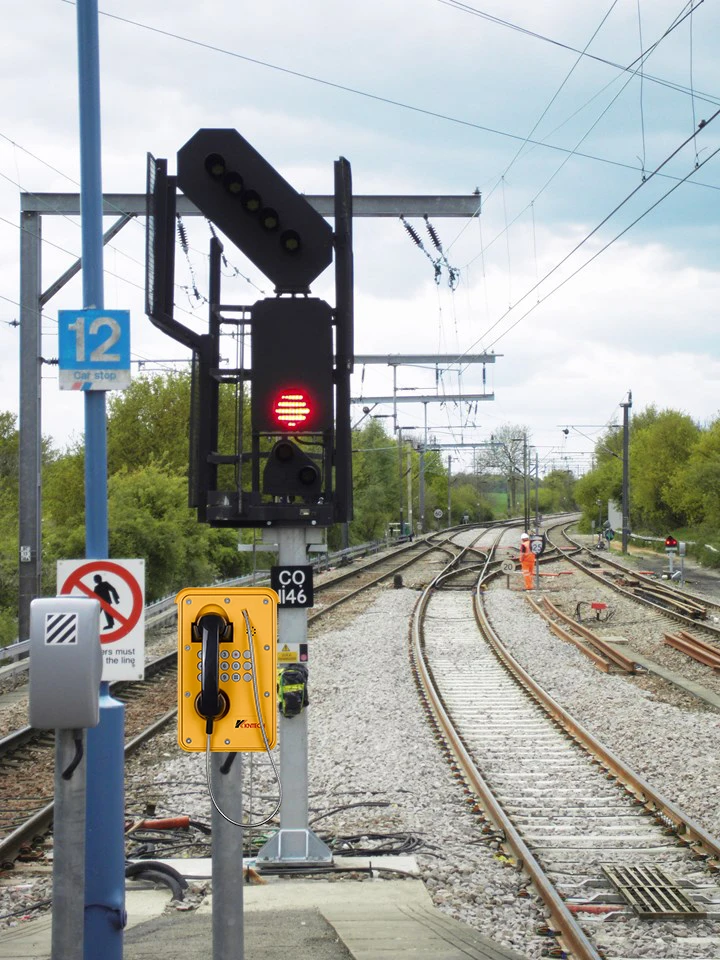

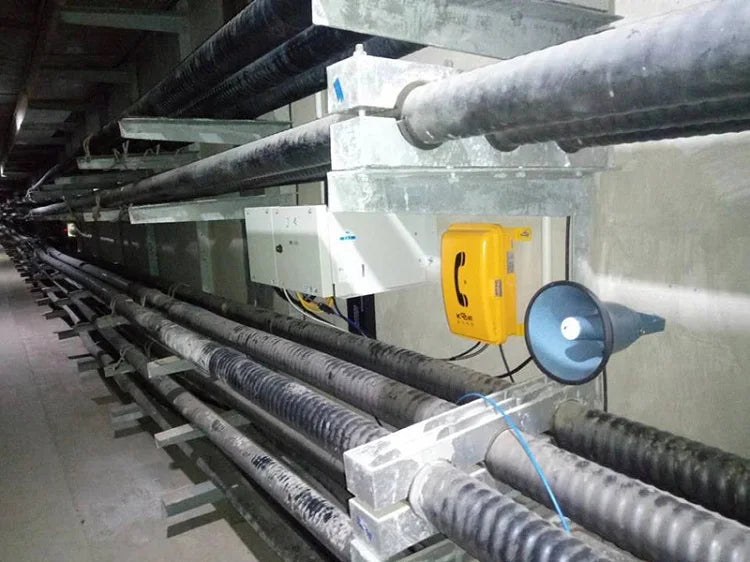

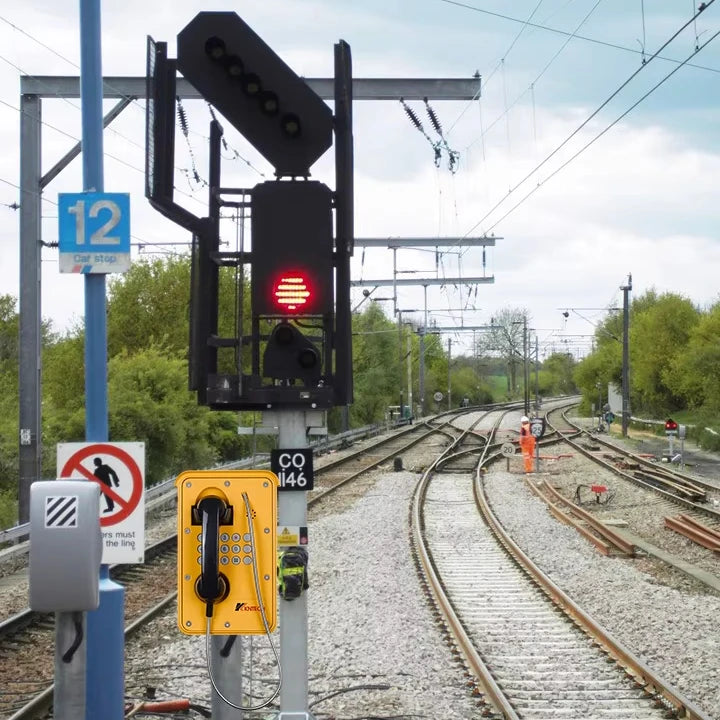

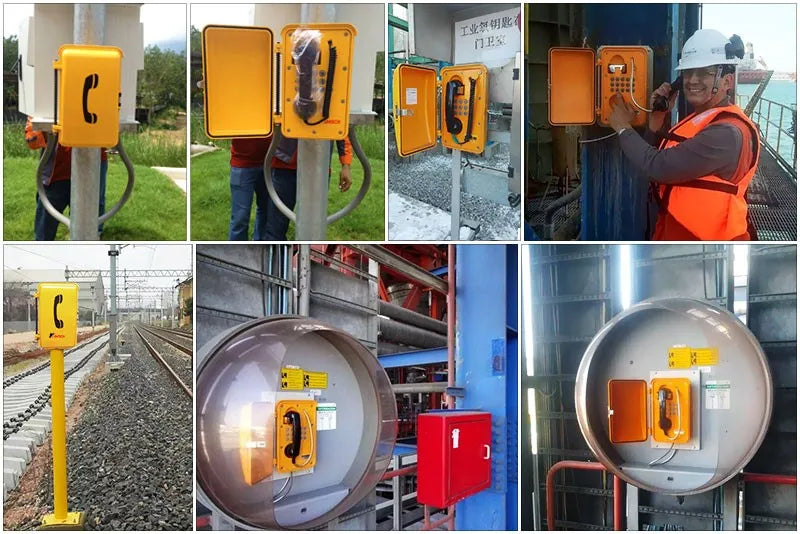

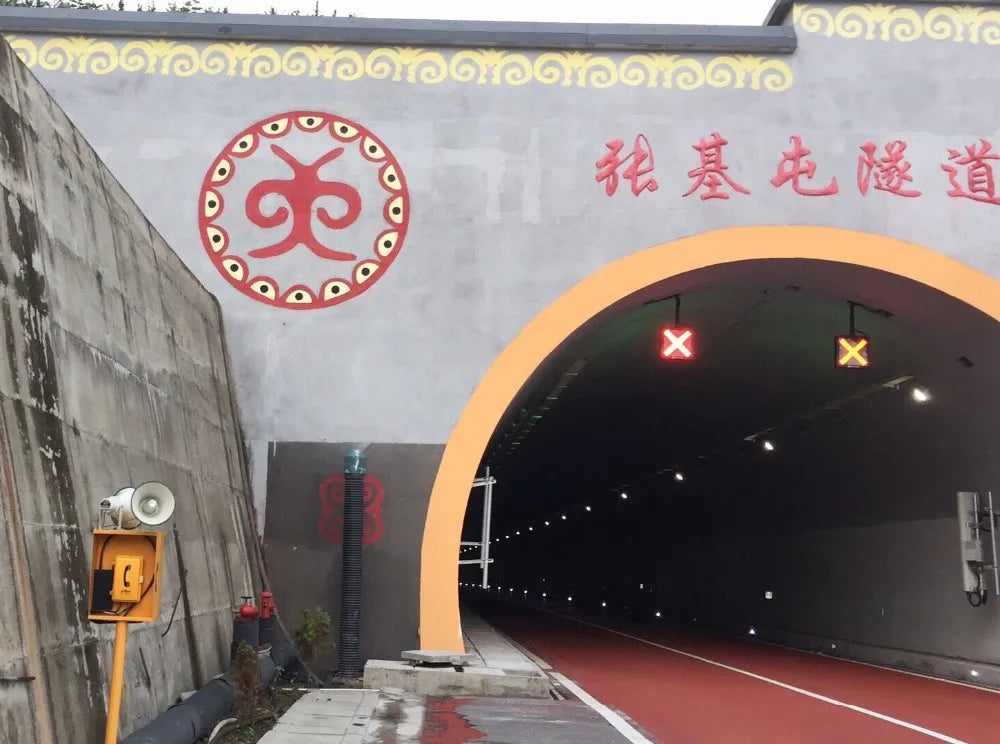

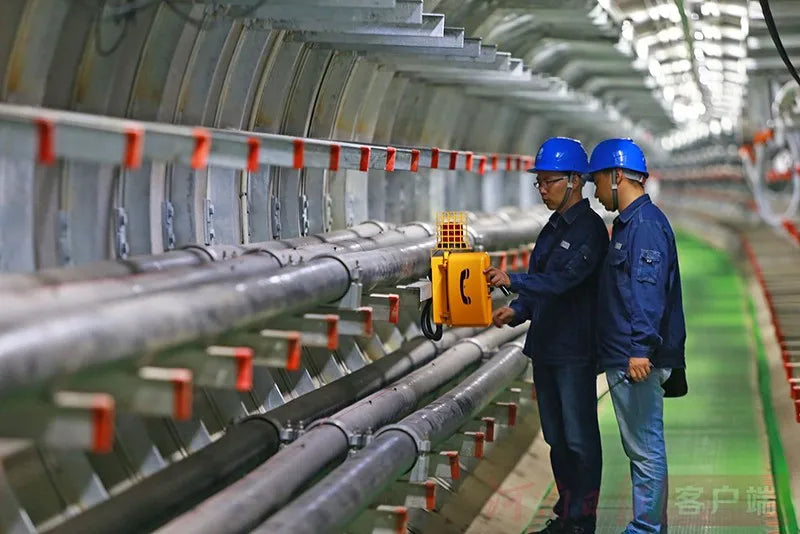

The emergency telephone application:
KNTECH Industrial Telephones are IP66 IP67 weatherproof, anti-corrosion, dustproof, quakeproof. These industrial phones are popular in projects of mining, tunnel, marine, highway, power plant etc.
HongKong Koon Technology Co., Ltd. (KNTECH) engage in research and development of Emergency Communications System; PAGA broadcast scheduling; scenic spots, airport tourists help management program; municipal SOS, 110, 119 alarm system; special industrial IP telephones, SOS telephones, IP PABX, Servier, TR069/SNMP/Modbus network management, SIP scheduling system for metro, tunnel, airports, petrochemicals, metallurgy, nuclear power, marine, ship building, bridge, mine and other industries.
KNTECH is not only manufacturer, but also professional telecom integrator.
Except terminal, we also provide customers professional & complete system solution.

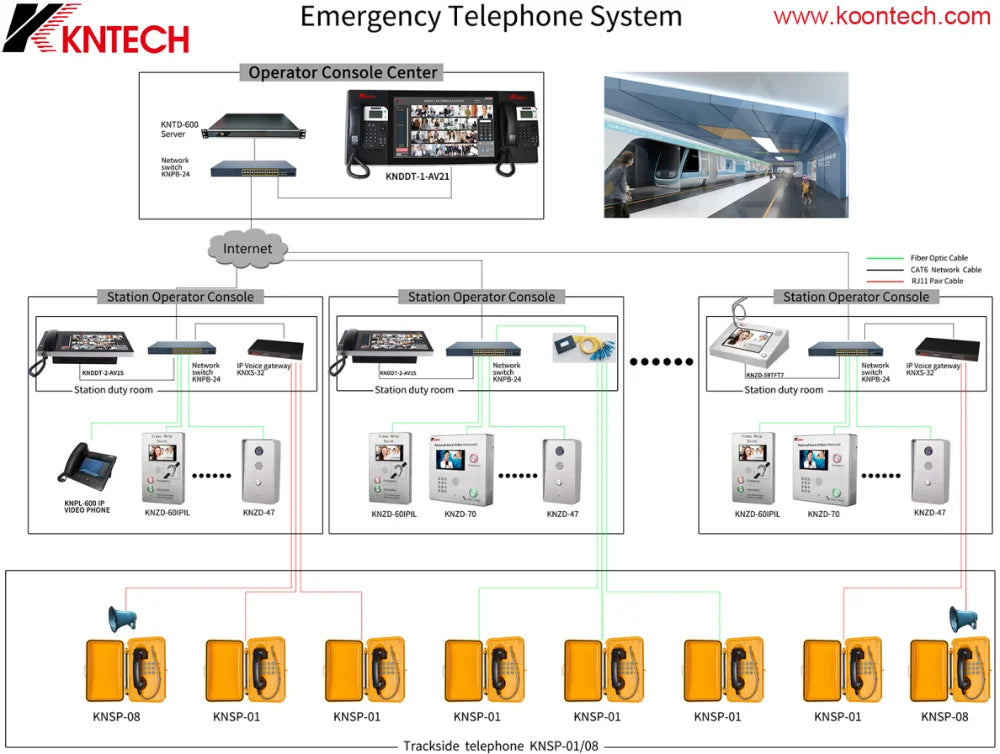

Telecom solution, IP PBX, telephone self-diagnostic system, PAGA system, customized function OEM support, SNMP unified network management system, etc.
SNMP Unified network management system, available to configurate 5,000 telephones at the same time.

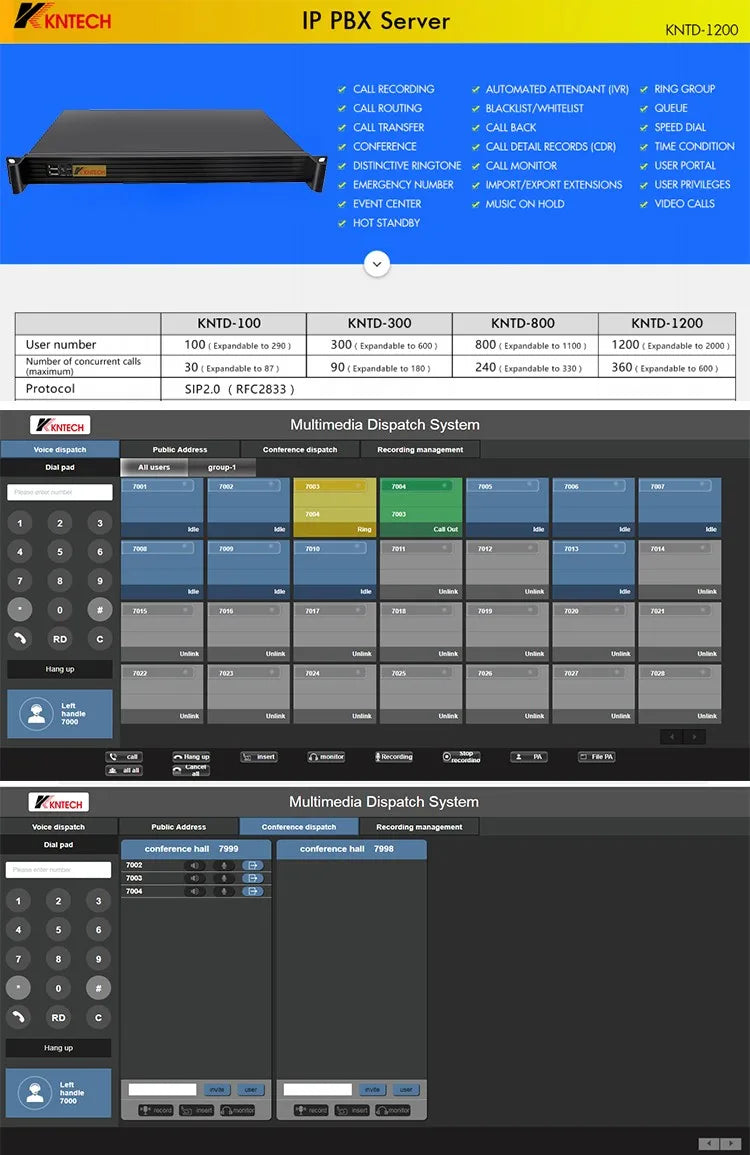

IP PBX max support 5,000 user lines.
KNTECH goods sell to over 100 countries all over the world, very popular for government projects because of high quality and complete solution. Below share some projects.
China Hong Kong |
Hong Kong-Zhuhai-Macau Briage The world's longest sea-crossing bridge |
HongKong Airport |
Express Rail Link XRL Contract 851 |
Shing Mun/ Lion Rock/ Kai Tak Tunnels |
Hong Kong Eastern Harbour Crossing |
Central–Wan Chai Bypass |

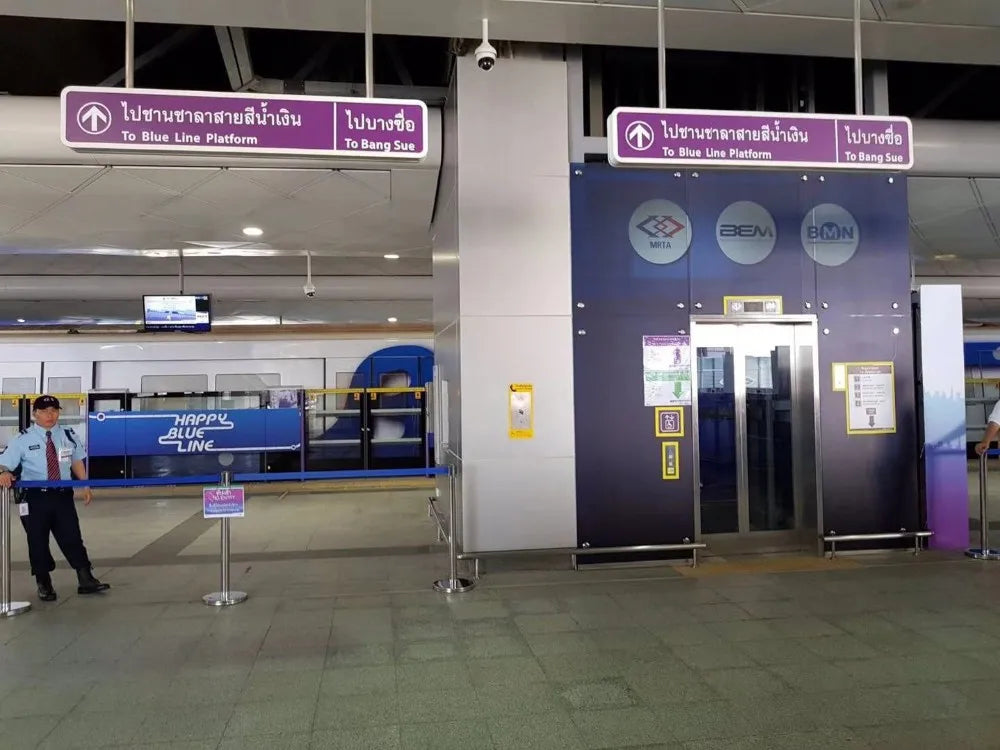

Thailand Metros |
Purple line |
Red line |
Green line |
Blue line |
Pink line |
Yellow line |
Australia Sydney Metro North West Line |
Israel Metro |
Singapore Marine Project |
Brazil Sao Paulo Metro |
Malaysia Kuala Lumpur Railway |
Russia St. Pittsburgh Metro |
Germany Berlin Metro |
Norway OLSO Metro |
Turkey High-speed Railway |
Greek Athens Metro |
Philippines Manila Railway |
Turkey Highway |
India New Delhi Metro |
Saudi Arabia Riyadh Metro |
Slovenia Metro |
India Bangalore Metro |
Saudi Arabia Mecca Railway |
Mexico Metro |
India Hyderabad Metro |
Saudi Arabia Shoaiba Power Plant |
Vietnam Hochimin Railway |
India Mumbai Airport |
Singapore Sentosa Tunnel |
South Russian Railways |
India Kochi Metro |
Singapore SMT Green Line |
Netherlands Bonaire Jail |
India Lucknow Metro |
Singapore Airport Project |
Curacao Jail |
India Mumbai Metro |
Singapore Thomson Line |
Peru Jail |
Thailand KMUTT Project |
Pakistan CPEC Project |
Romanian Prison |
Unit Size: |
320*205*120mm |
|
Unit Box Size: |
439*277 *191mm |
|
Unit Net Weight: |
5.3 KG |
|
Unit Gross Weight: |
7 KG |
|
6pcs in 1 outer Carton |
||
Carton Size: |
730*390*340mm |
|
Carton Net Weight: |
31.8 KG |
|
Carton Goss Weight: |
34 KG |
|
