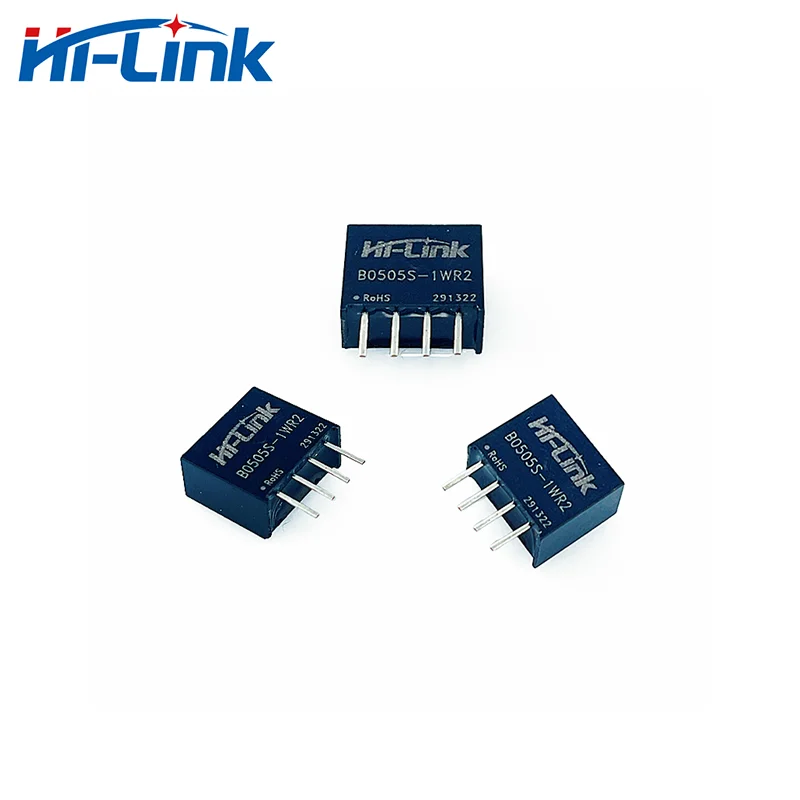

Household Step Down Mini Power Transformer B0505S-1WR2 DCDC 5V 1W 200mA Output Converter Intelligent Switch Power Supply Module

$0.55

$0.55 $0.55

1/6

Household Step Down Mini Power Transformer B0505S-1WR2 DCDC 5V 1W 200mA Output Converter Intelligent Switch Power Supply Module

$0.55

$0.55 $0.55

Shipping calculated at checkout.

SPECIFICATIONS

Brand Name: Hi-Link

Dimension: 19.5*10*7mm

Input Voltage: 4.5-5.5V

Model Number: B0505S-1WR2

Output Current: 200mA

Output Frequency: -

Output Type: Single

Output Voltage: 5V

Place of Origin: Guangdong, China

Product Description

Specification

item	value
Place of Origin	China
	Guangdong
Brand Name	Hi-Link
Model Number	B0505S-1WR2
Output Power	1W
Input Voltage	4.5-5.5V
Output Voltage	5V
Output Current	200mA
Dimension	19.5107mm

Introduction

B_S-1WR2 series----is a small size, high-efficiency micro power, constant voltage, input isolation and non-regulated, single output DC/DC module power supply launched by Hi-Link; this series of products is specially designed for on-board It is designed for applications in the power system that need to generate a set of voltages that are isolated from the input power supply.

Product features

I Features: constant voltage input, isolated unregulated single output isolated unregulated single output,1W power

l Isolation Voltage: 1500VDC

l Efficiency: up to 80%

l Working temperature:-40℃～+85℃

l MTBF≥3.5 million hours(3500000Hrs)

l Output short circuit protection, self-recovery

l Small SIP package, plastic housing

l International standard pin method

l Ripple/Noise (20MH Bandwidth)<100mVp-p

Input characteristics

Project	Working conditions	Min.	Typ.	Max.	Unit
Input current (full load/no load)	3.3VDC input series	--	404/30	--/70	mA
		5VDC input series	--	277/20	--/60
		12VDC input series	--	115/15	--/50
		15VDC input series	--	83/10	--/35
		24VDC input series	--	57/17	--/30
Reflected ripple current		--	15	--	mA
Impulse voltage（Isec.max）	3.3VDC input series	-0.7	--	5	VDC
		5VDC input series	-0.7	--	9
		12VDC input series	-0.7	--	18
		15VDC input series	-0.7	--	21
		24VDC input series	-0.7	--	30
Input filter type		Capacitive filtering
Hot plug		Not support

Output characteristics

Project	Working and test conditions			Min.	Typ.	Max.	Unit
Output load	Load percentage			10	--	100	%
Output voltage accuracy	View error envelope curve			--	--	±15.0	%
Linear adjustment rate	Input voltage variation±1%	3.3V output	--	--	±1.5	%
		Other	--	--	±1.2	%
Load regulation	10%~100% load	3.3VDC output	--	18	--	%
			5VDC output	--	12	--	%
			9VDC output	--	8	--	%
			12VDC output	--	7	--	%
			15VDC output	--	6	--	%
			24VDC output	--	5	--	%
Ripple & Noise	Pure resistive load, 20MHz bandwidth, peak-to-peak			--	50	100	mVp-p
Temperature drift coefficient	Full load			--	--	±0.03	%/°C
Output short circuit protection				--	--	1	S
Note: ①The test method of ripple and noise is twisted pair test method. ②When the output short-circuit time exceeds 1 second, be sure to cut off the input power supply, otherwise the power supply will be permanently damaged.

Product characteristic curve

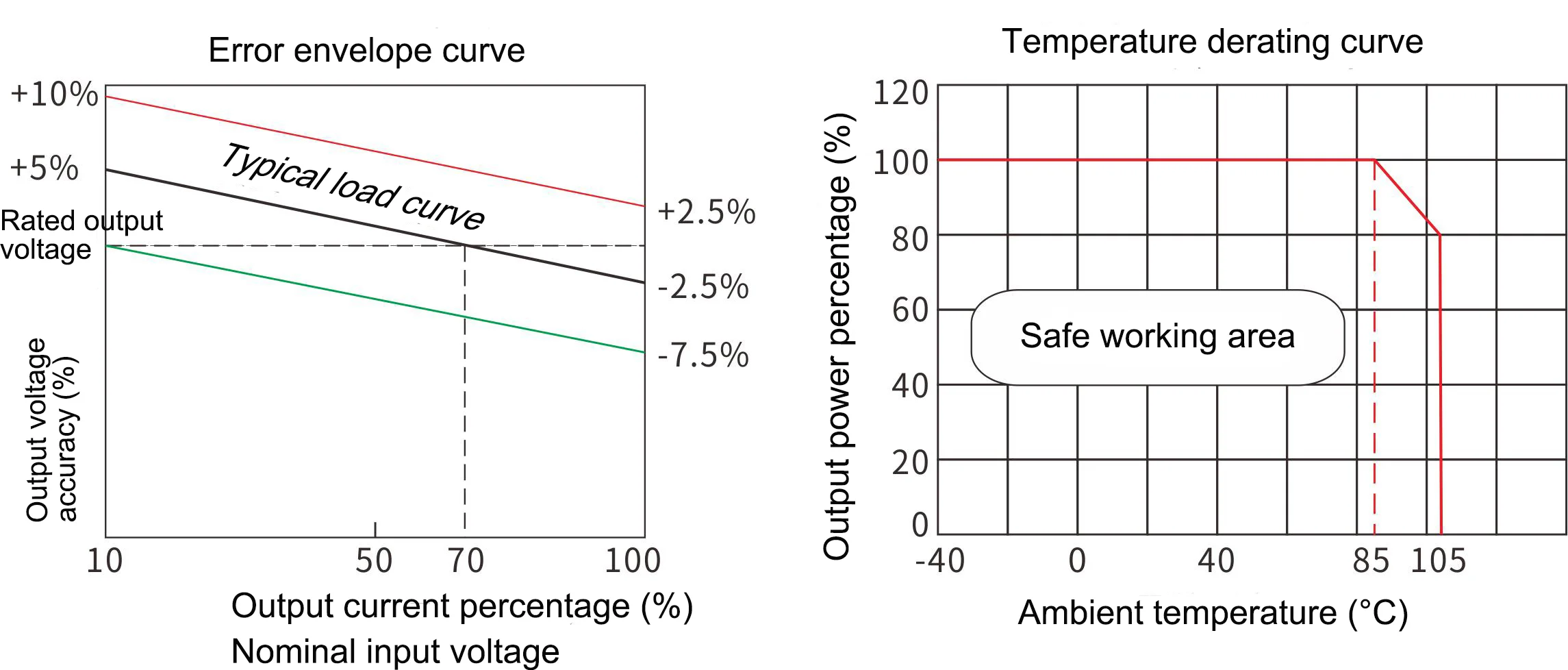

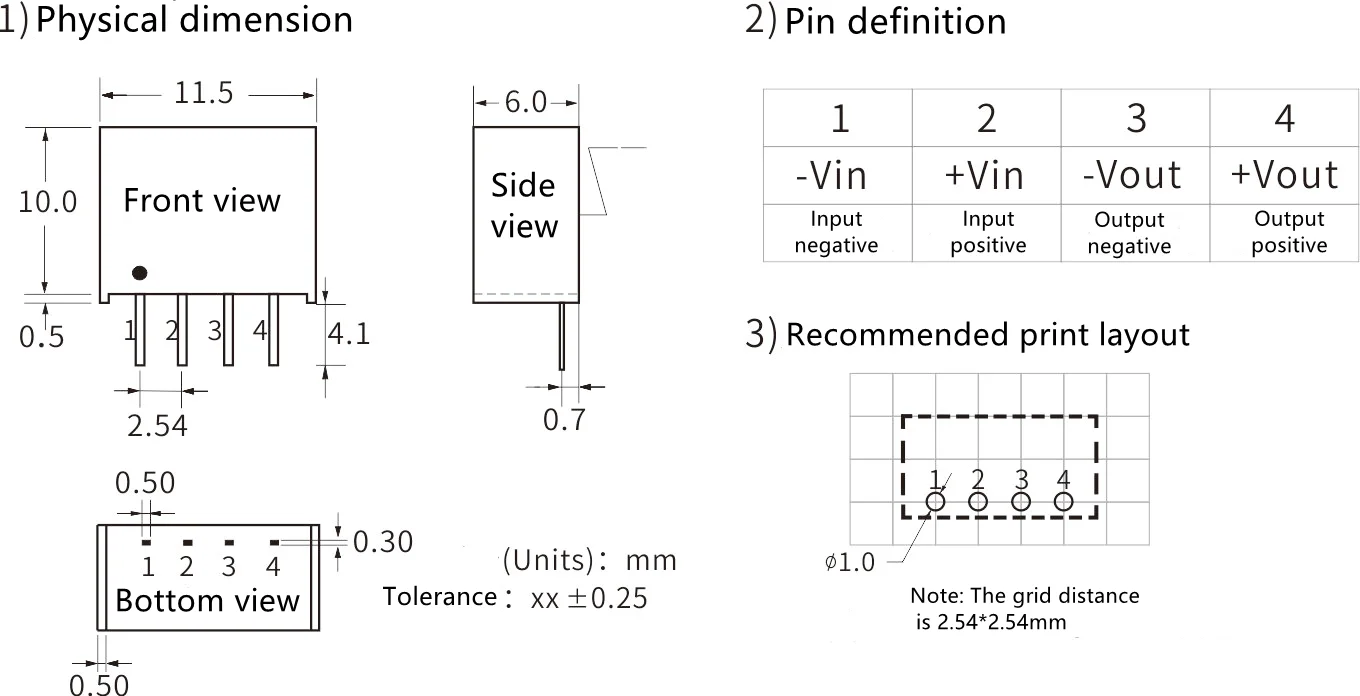

Product Appearance Size and Pin Definition(Recommended printing layout)

*Note: If the definition of each pin of the power module is inconsistent with the selection manual, the label on the physical label shall prevail.

Packing & Delivery

PP bag and foam inside, carton outside
