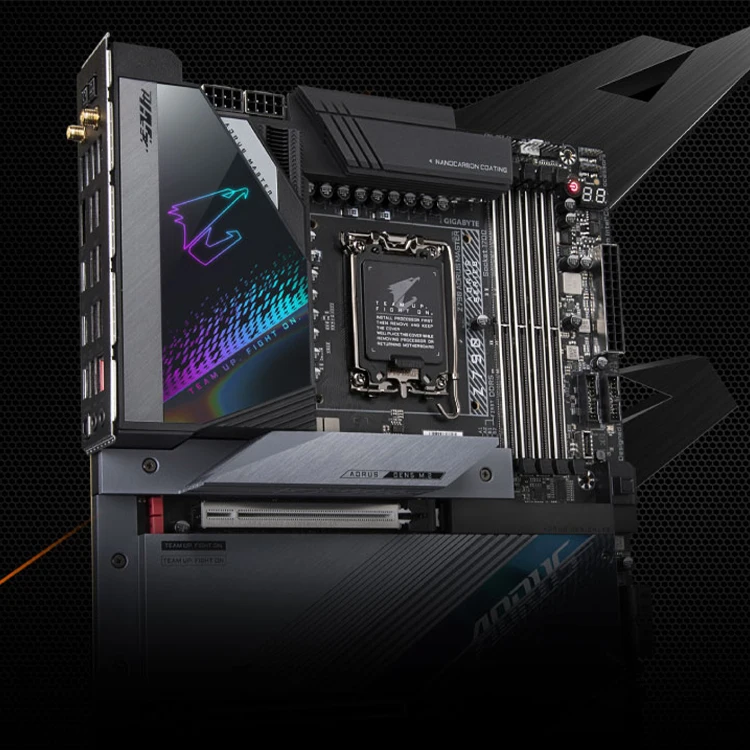

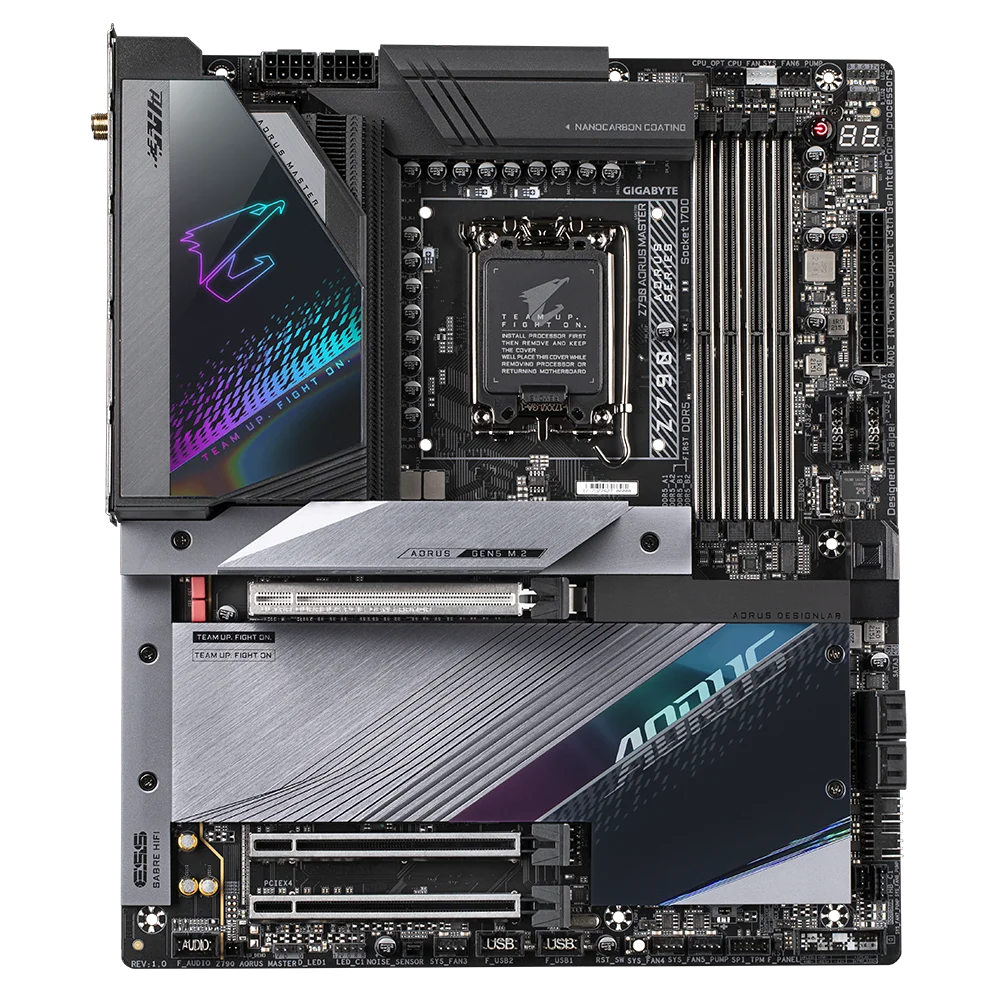

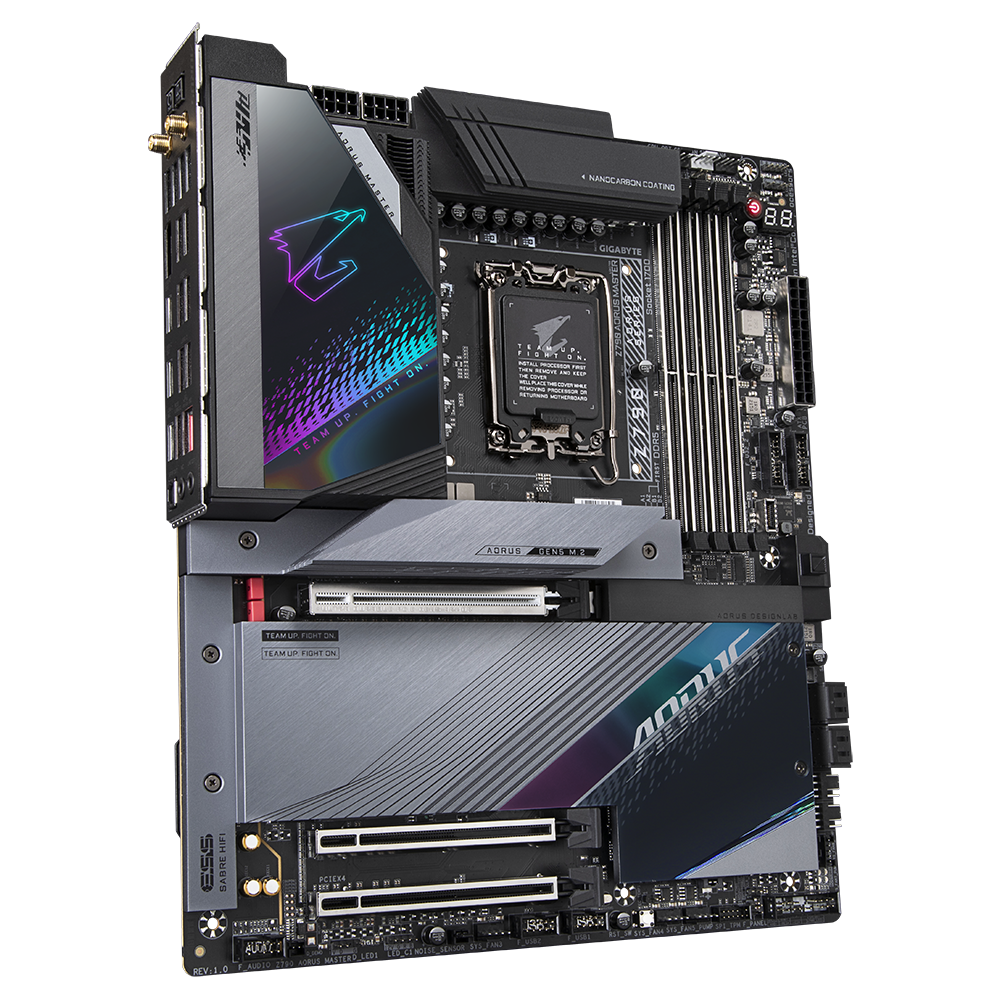

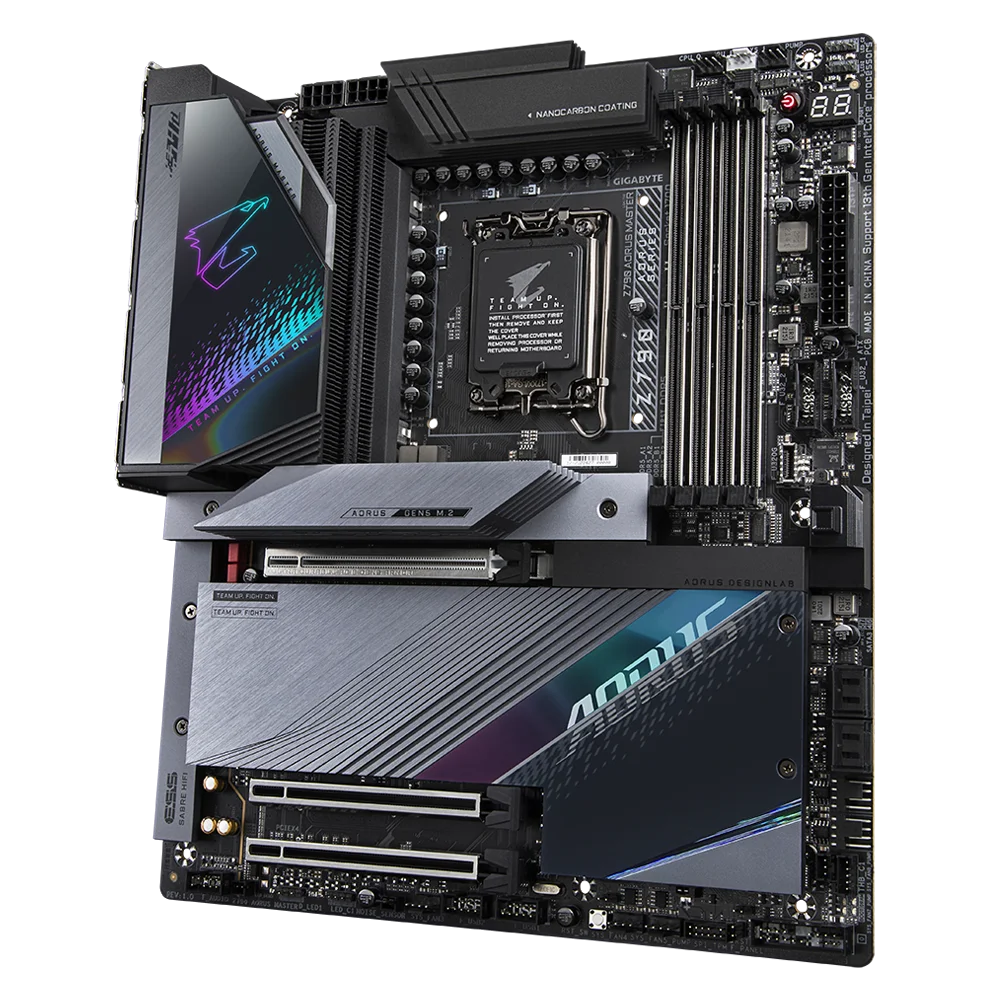

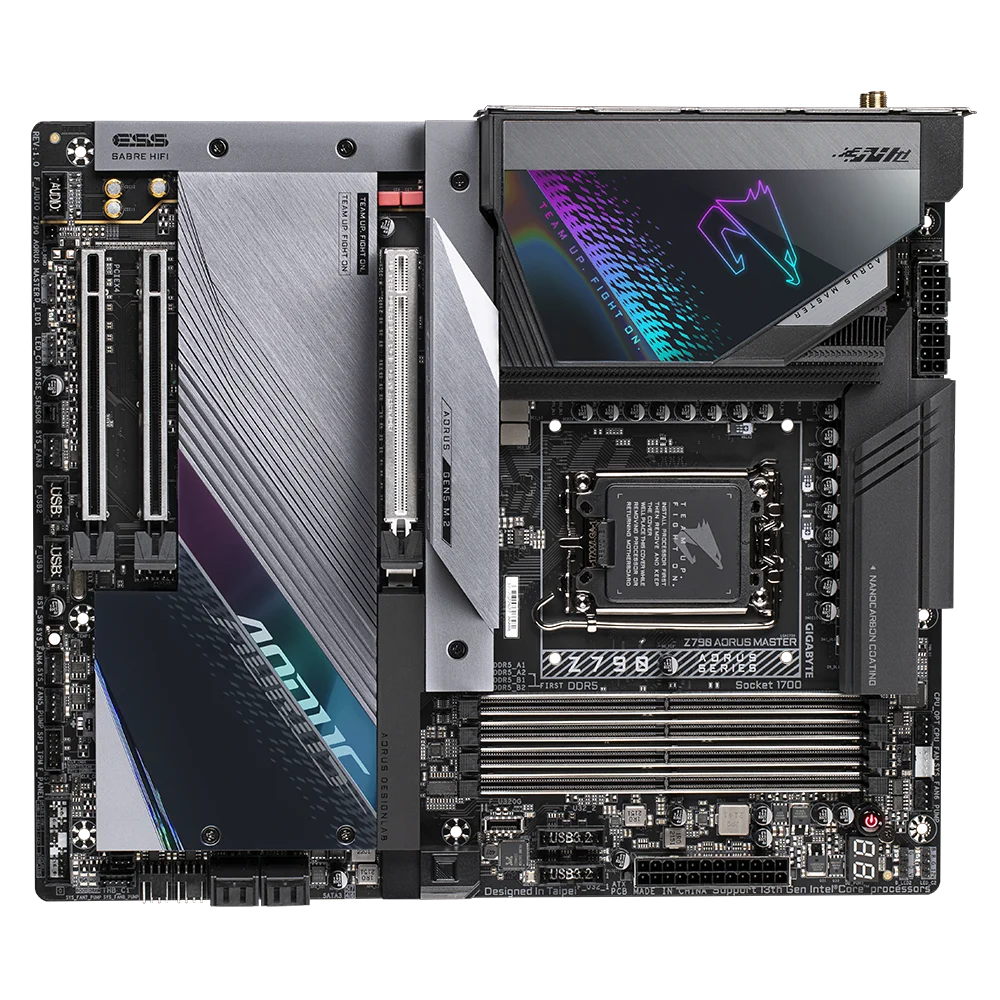

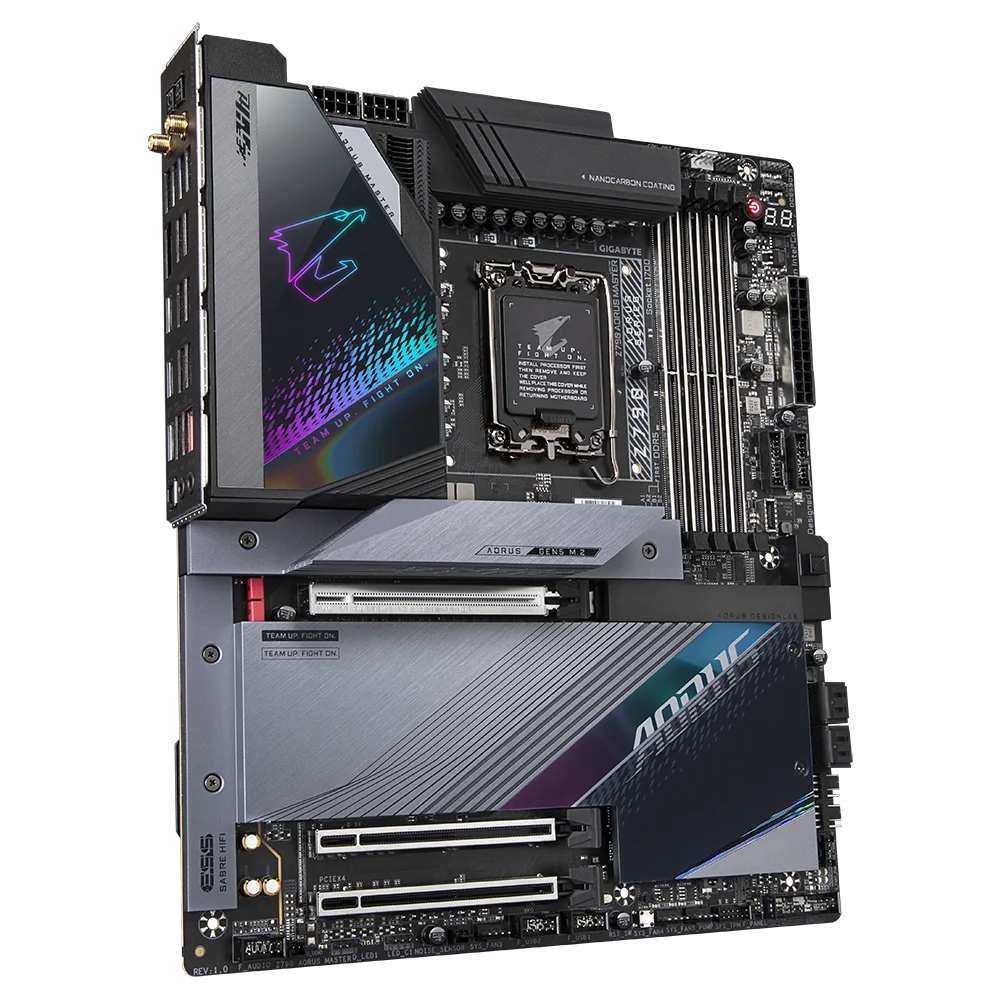

GIGABYTE Z790 AORUS MASTER Used Motherboard supports Intel 13 and 12th Gen Core Series CPU with DDR5 128GB Memory Socket



Key Feature

· Intel^® Socket LGA 1700:Support 13th and 12th Gen Series Processors

· Unparalleled Performance:Direct 20+1+2 Phases Digital VRM Solution

· Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support

· Next Generation Storage:1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors

· Fins-Array III & M.2 Thermal Guard III:To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance

· EZ-Latch Plus:SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design

· Hi-Fi Audio with DTS:X^® Ultra:ALC1220 CODEC and Rear ESS SABRE Hi-Fi 9118 DAC

· Fast Networks:Marvell^® AQtion 10GbE LAN & Intel^® Wi-Fi 6E 802.11ax with DCT

· Extended Connectivity:DP, USB-C^® 10Gb/s, Front and Dual Rear USB-C^® 20Gb/s

· Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection



· CPU

1. LGA1700 socket: Support for the 13th and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*

2. L3 cache varies with CPU

* Please refer to "CPU Support List" for more information.

· Chipset

3. Intel^® Z790 Express Chipset

· Memory

4. Support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

5. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

6. Dual channel memory architecture

7. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

8. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

9. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

· Onboard Graphics

Integrated Graphics Processor-Intel^® HD Graphics support:

10. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

· Audio

11. Realtek^® ALC1220-VB CODEC
* The front panel line out jack supports DSD audio.

12. ESS ES9118 DAC chip

13. Support for DTS:X^® Ultra

14. High Definition Audio

15. 2/4/5.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.

16. Support for S/PDIF Out

· LAN

17. Marvell^® AQtion AQC113C 10GbE LAN chip
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

· Wireless Communication module

Intel^® Killer™ Wi-Fi 6E AX1690

18. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

19. BLUETOOTH 5.3

20. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

· Expansion Slots

CPU:

21. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

22. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

23. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

· Storage Interface

CPU:

24. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)

25. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

26. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)

27. 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

28. 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

29. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices

· USB

Chipset:

30. 3 x USB Type-C^® ports, with USB 3.2 Gen 2x2 support (2 ports on the back panel, 1 port available through the internal USB header)

Chipset+2 USB 3.2 Gen 2 Hubs:

31. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 1 support

32. 7 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+2 USB 3.2 Gen 1 Hubs:

33. 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Chipset+USB 2.0 Hub:

34. 4 x USB 2.0/1.1 ports available through the internal USB headers

· Internal I/O Connectors

35. 1 x 24-pin ATX main power connector

36. 2 x 8-pin ATX 12V power connectors

37. 1 x CPU fan header

38. 1 x water cooling CPU fan header

39. 4 x system fan headers

40. 4 x system fan/water cooling pump headers

41. 2 x addressable LED strip headers

42. 2 x RGB LED strip headers

43. 5 x M.2 Socket 3 connectors

44. 4 x SATA 6Gb/s connectors

45. 1 x front panel header

46. 1 x front panel audio header

47. 1 x USB Type-C^® header, with USB 3.2 Gen 2x2 support

48. 2 x USB 3.2 Gen 1 headers

49. 2 x USB 2.0/1.1 headers

50. 1 x noise detection header

51. 2 x Thunderbolt™ add-in card connectors

52. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

53. 1 x power button

54. 1 x reset button

55. 1 x reset jumper

56. 1 x Clear CMOS jumper

57. 2 x temperature sensor headers

58. Voltage Measurement Points

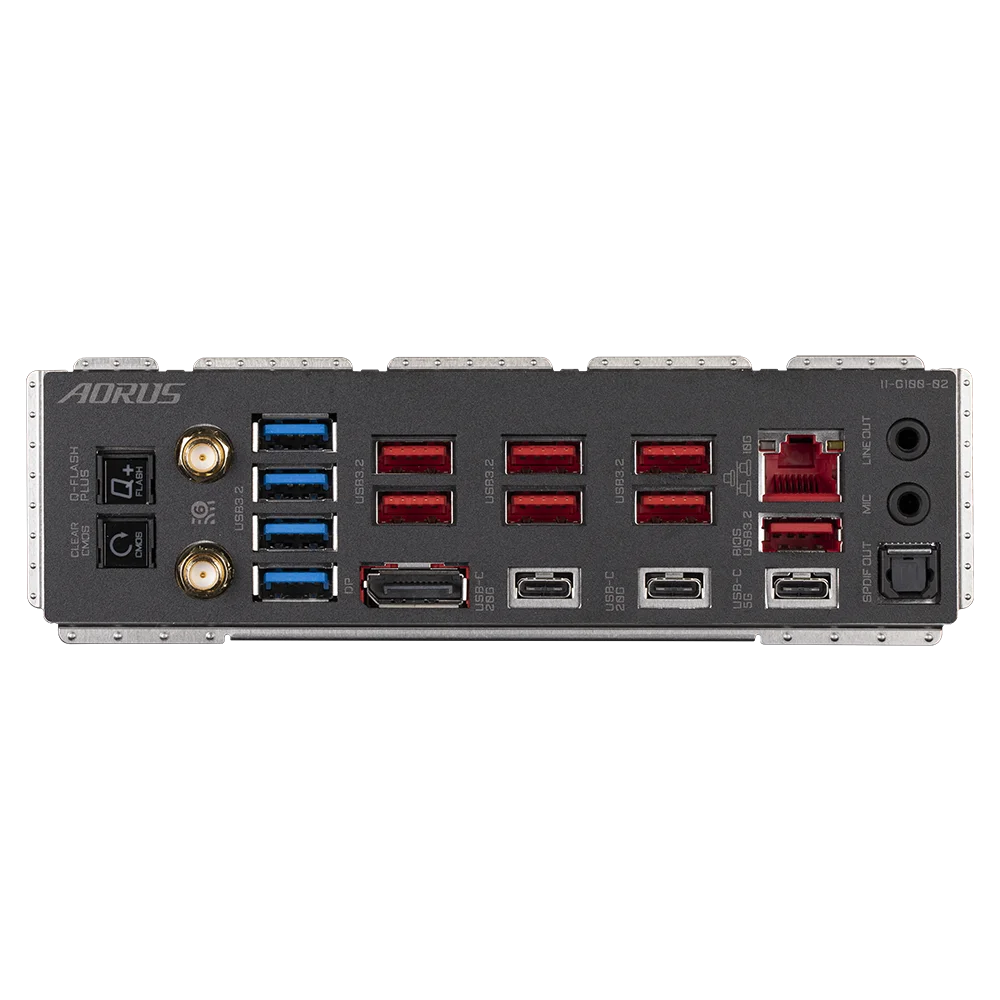

· Back Panel Connectors

59. 1 x Q-Flash Plus button

60. 1 x Clear CMOS button

61. 2 x SMA antenna connectors (2T2R)

62. 1 x DisplayPort

63. 1 x USB Type-C^® port, with USB 3.2 Gen 1 support

64. 2 x USB Type-C^® ports, with USB 3.2 Gen 2x2 support

65. 7 x USB 3.2 Gen 2 Type-A ports (red)

66. 4 x USB 3.2 Gen 1 ports

67. 1 x RJ-45 port

68. 1 x optical S/PDIF Out connector

69. 2 x audio jacks

· I/O Controller

70. iTE^® I/O Controller Chip

· H/W Monitoring

71. Voltage detection

72. Temperature detection

73. Fan speed detection

74. Water cooling flow rate detection

75. Fan fail warning

76. Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

77. Noise detection

· BIOS

78. 1 x 256 Mbit flash

79. Use of licensed AMI UEFI BIOS

80. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

· Unique Features

81. Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

82. Support for Q-Flash

83. Support for Q-Flash Plus

84. Support for Smart Backup

· Bundled Software

85. Norton^® Internet Security (OEM version)

86. LAN bandwidth management software

· Operating System

87. Support for Windows 11 64-bit

88. Support for Windows 10 64-bit

· Form Factor

E-ATX Form Factor; 30.5cm x 26.0cm
