ELP 2MP 1080P Infrared Wide Angle USB Camera CMOS OV2710 MJPEG 120fps/60fps/30fps High Frame Rate Night Vision USB Webcam
ELP 2MP 1080P Infrared Wide Angle USB Camera CMOS OV2710 MJPEG 120fps/60fps/30fps High Frame Rate Night Vision USB Webcam
Description
SPECIFICATIONS
Camera housing: Mini black box metal housing
High frame rate: 640*480 100fps / 1280*720 60fps
Image Sensor: 1/2.7" Ominivision OV2710
Lens: 170 degree wide angle fisheye lens
Max. Resolution & frame rate: 1920x1080
Night vision: with 10pcs 850nm ir leds
Shutter Type: Electronic rolling shutter / Frame exposure
USB Cable option: default with 3 m length (/5m optional)
USB Protocal: USB2.0 HS/FS, USB1.1 FS
auto focus: No
brand name: ELP
image sensor: CMOS
interface type: Usb
max. resolution: 1920*1080
model number: ELP-USBFHD05MT-KL170IR
pixels: 2 Mega
place of origin: Guangdong, China
products status: Stock
support OS: Windows Linux with UVC Mac-OS X 10.4.8 Wince with UVC Android 4.0
ELP 2MP 1080P Infrared Wide Angle USB Camera CMOS OV2710 MJPEG 120fps/60fps/30fps High Frame Rate Night Vision USB Webcam

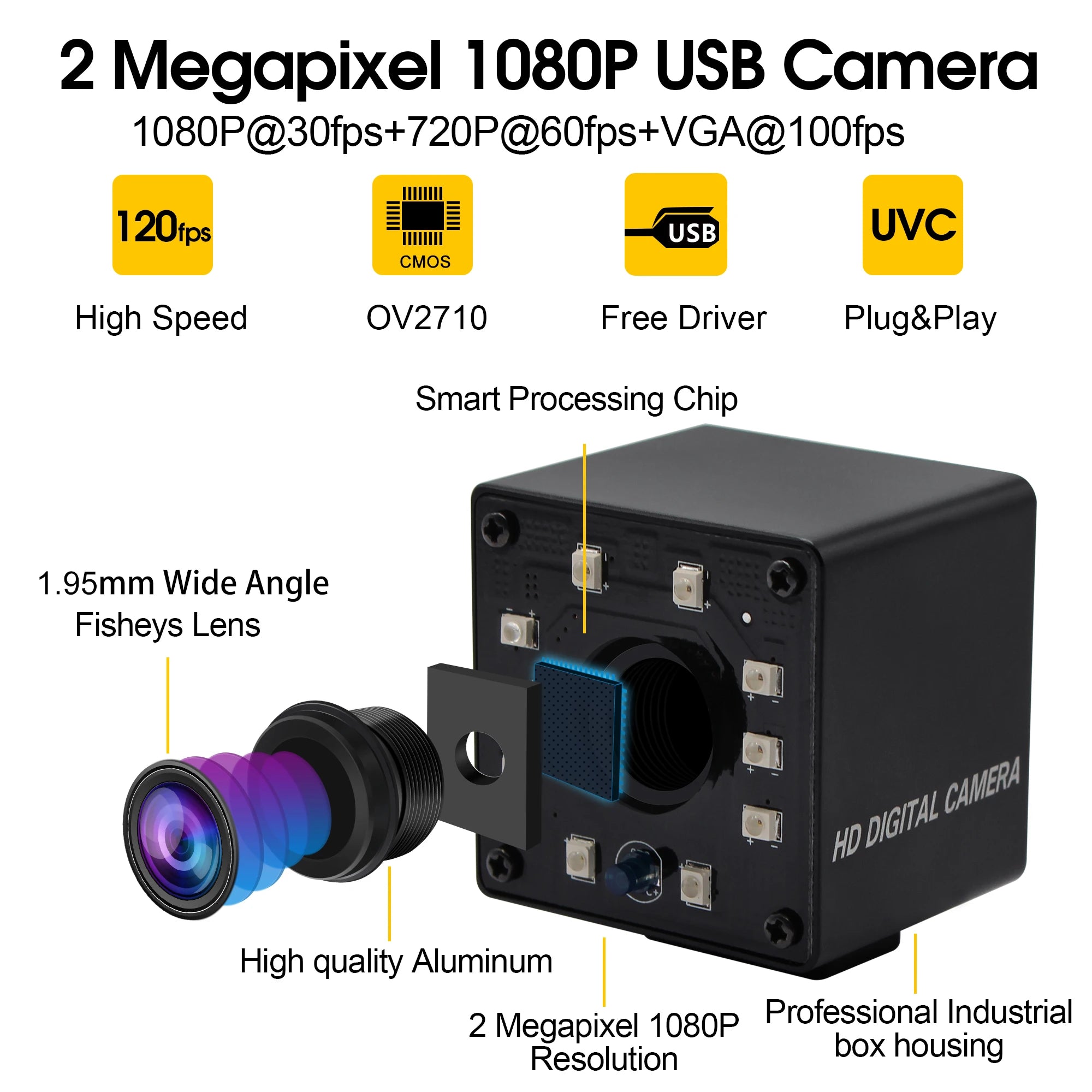

* 2MP 1080P Full HD wide angle fisheye USB 2.0 Camera module with IR LED
* High quality Image Sensor - 1/2.7” omnivision OV2710 Color CMOS sensor
* High frame rate - 640*480@120fps, 1280*720 @60fps, 1920*1080 30fps

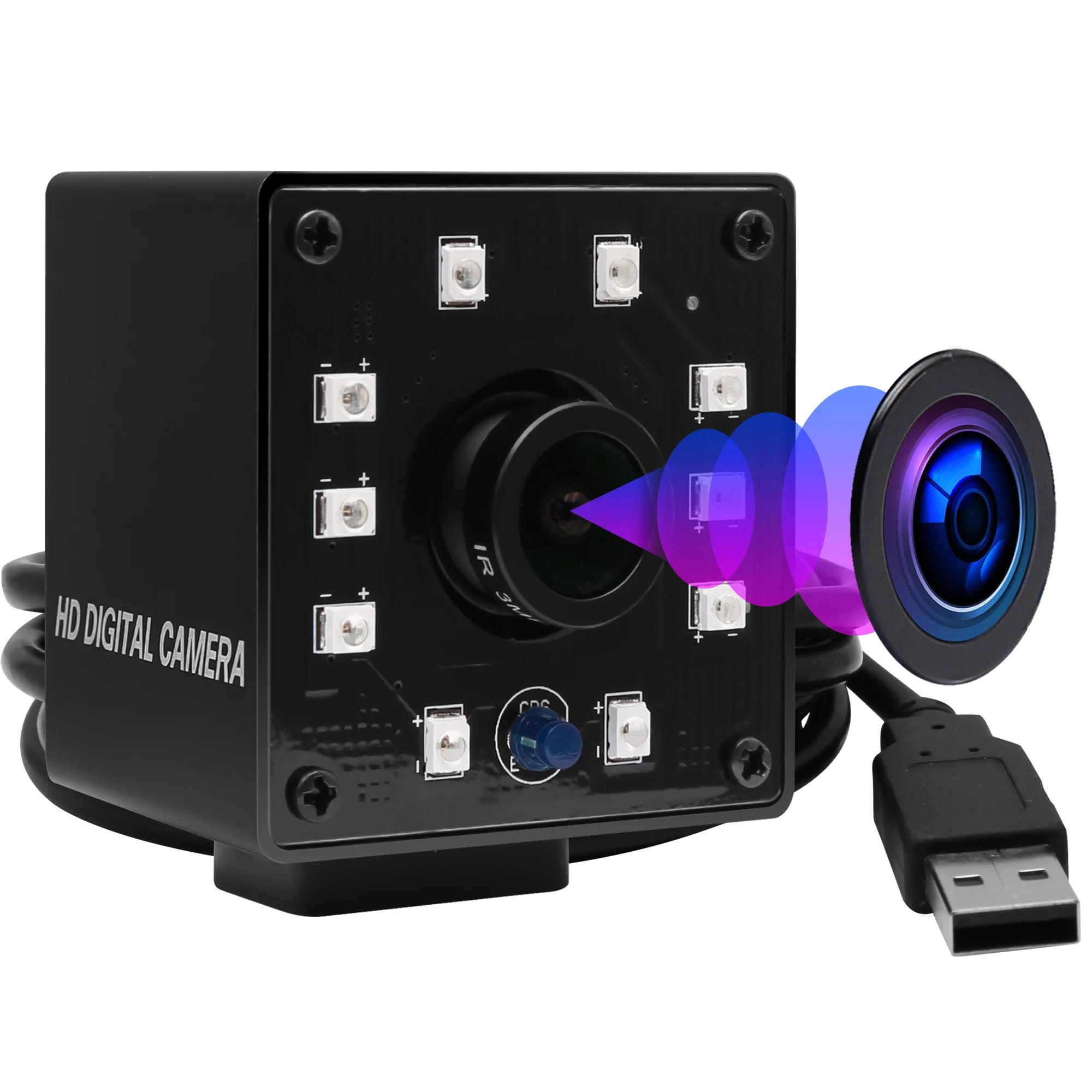

* With 170 degree wide angle fisheye lens
* With 10PCS 850nm IR LED for day and night vision
* With Mini Black Box Metal housing with 1/4” Tripod screw hole
* With standard 3M USB Cable, Other length is customized
* High speed USB 2.0 plug&play port suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.

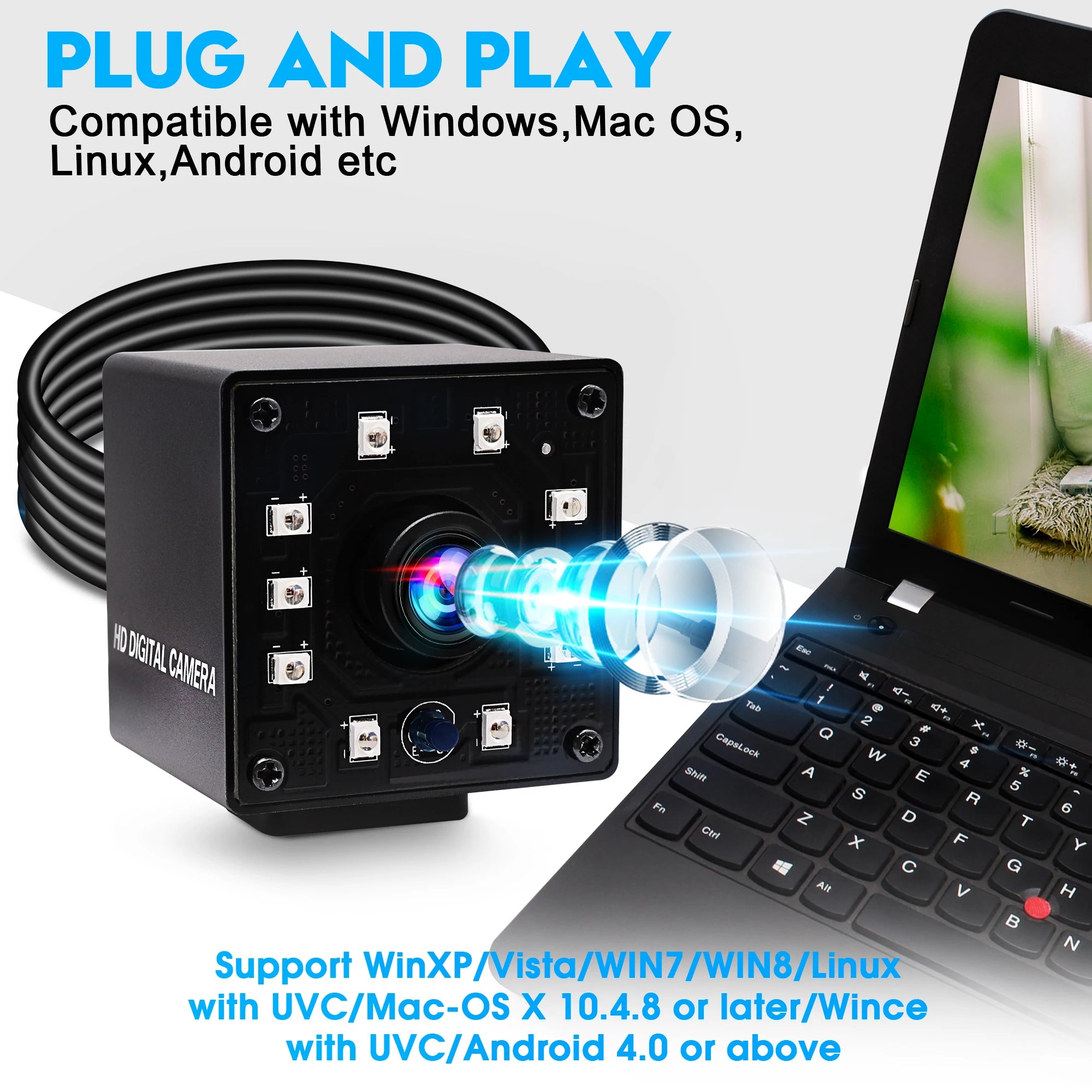

* UVC compliant - support Windows, Linux, Android system with UVC
* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
* Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk, medical device etc.
| Model | ELP-USBFHD05MT-KL170IR |
| Sensor | OV2710 |
| Lens Size | 1/2.7 inches |
| Pixel Size | 3.0um X 3.0um |
| image area | 5856 µm x 3276 µm |
| Max. Resolution | FULL HD 1920(H)X1080(V) |
| Compression format | MJPEG / YUV2(YUYV) |
| Resolution & frame |
320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps 640X480 VGA MJPEG@120fps/ 800X600 SVGA MJPEG@60fps 1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps 1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps |
| Special function | Lens correction/ Defective pixel correction/ Black sun cancellation |
| Mini illumination | 0.05lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Sensitivity | 3.7V/lux-sec@550nm |
| Connecting Port type | USB2.0 High Speed(Support USB2.0 HS/FS, USB2.0 OTG) |
| USB Protocol | USB2.0 HS/FS USB1.1/USB1.0 |
| Connecting Port type | USB2.0 High Speed |
| OTG Protocol | USB2.0 OTG |
| Free Drive Protocol | USB Video Class(UVC) |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Adjustable parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure |
| Lens Parameter | Standard 170 degree fishyee lens |
| Night vision | Support, works with IR CUT and IR LED, for day and night vision |
| LED board power connector |
Support 2P-2.0mm socket, with 12pcs 850nm ir led board Support IR CUT for day night no color distortion view |
| Power supply | USB BUS POWER 4P-2.0mm socket |
| Power supply | DC5V |
| Operating Voltage | 120mA~220mA |
| Working current | 0~60℃ |
| Working temperature | -20~75℃ |
| Board size /Weight | 38X38mm(Compatible 32X32mm)/ about 30g |
| Cable | Standard 1M (optional 2M,3M,5M) |
| Operating system request |
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
Camera effect show:
ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment, machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Our USB Camera includes VGA 640X480,1MP,1.3MP,2MP,3MP,5MP and 8MP resolution.
Some features are shown as below. Just click and check !
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 12 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
