SPECIFICATIONS

Alignment: manual or auto

Application: scanning

Feature: Easy Operation

Function: Scan

Item: China Top

Keywords: 3D

Precision: 0.02mm

Product name: 3D Scanner

Scan head weight: 0.8kg

after-sales service: Return and Replacement,Repair,Free Spare Parts,Onsite Training and Inspection,Call Center and on-line Technical Support

brand name: guandiao

color: Red,Blue

colour depth: 64 Bit

interface type: Usb

max paper size: 600x600mm

optical resolution: 4 million megapixel

place of origin: China

products status: Stock

scan element type: CCD

scan speed: 0.01s

single speed: 3s

type: 3D Scanner

warranty(year): 1-Year

Specification

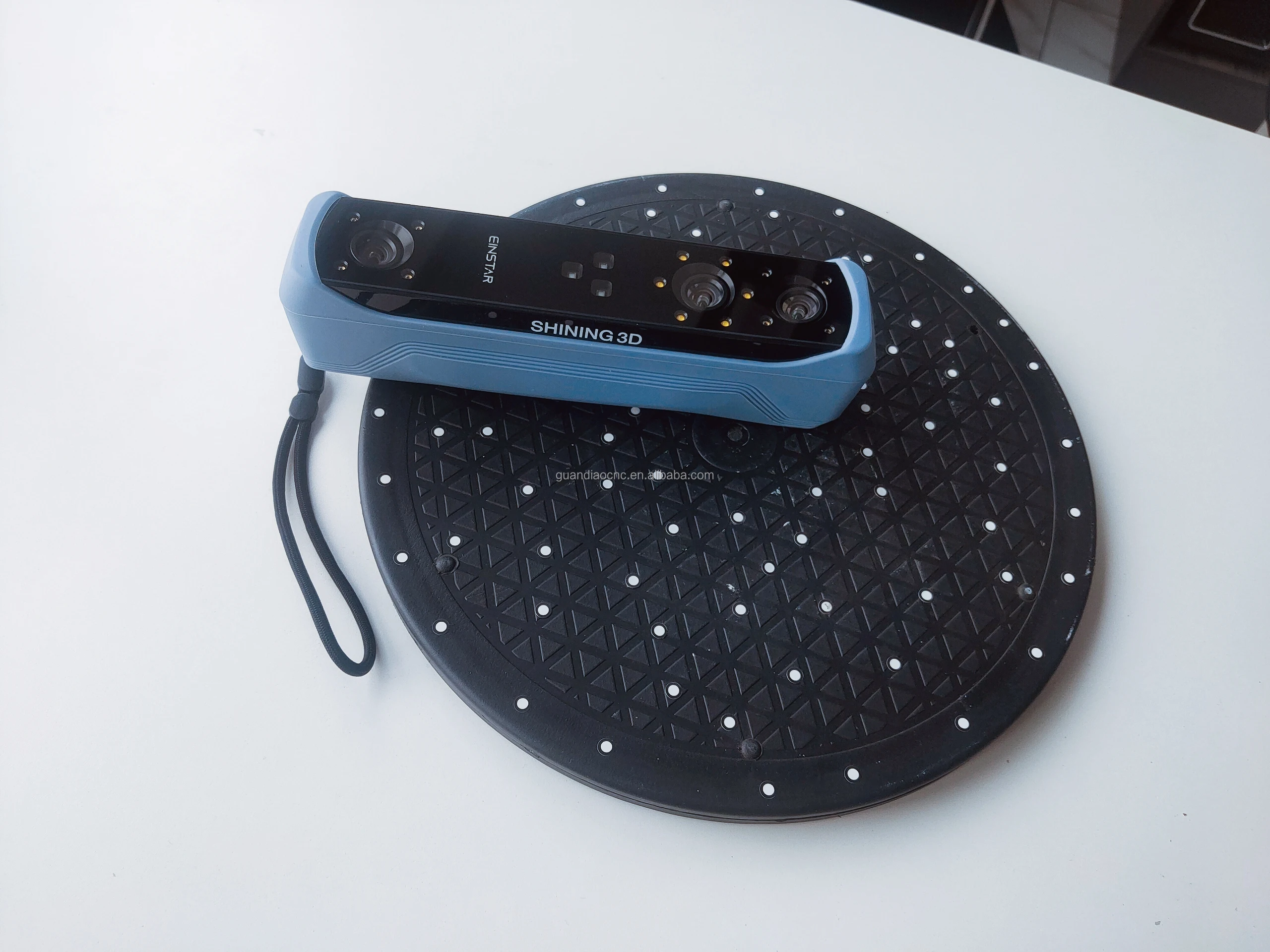

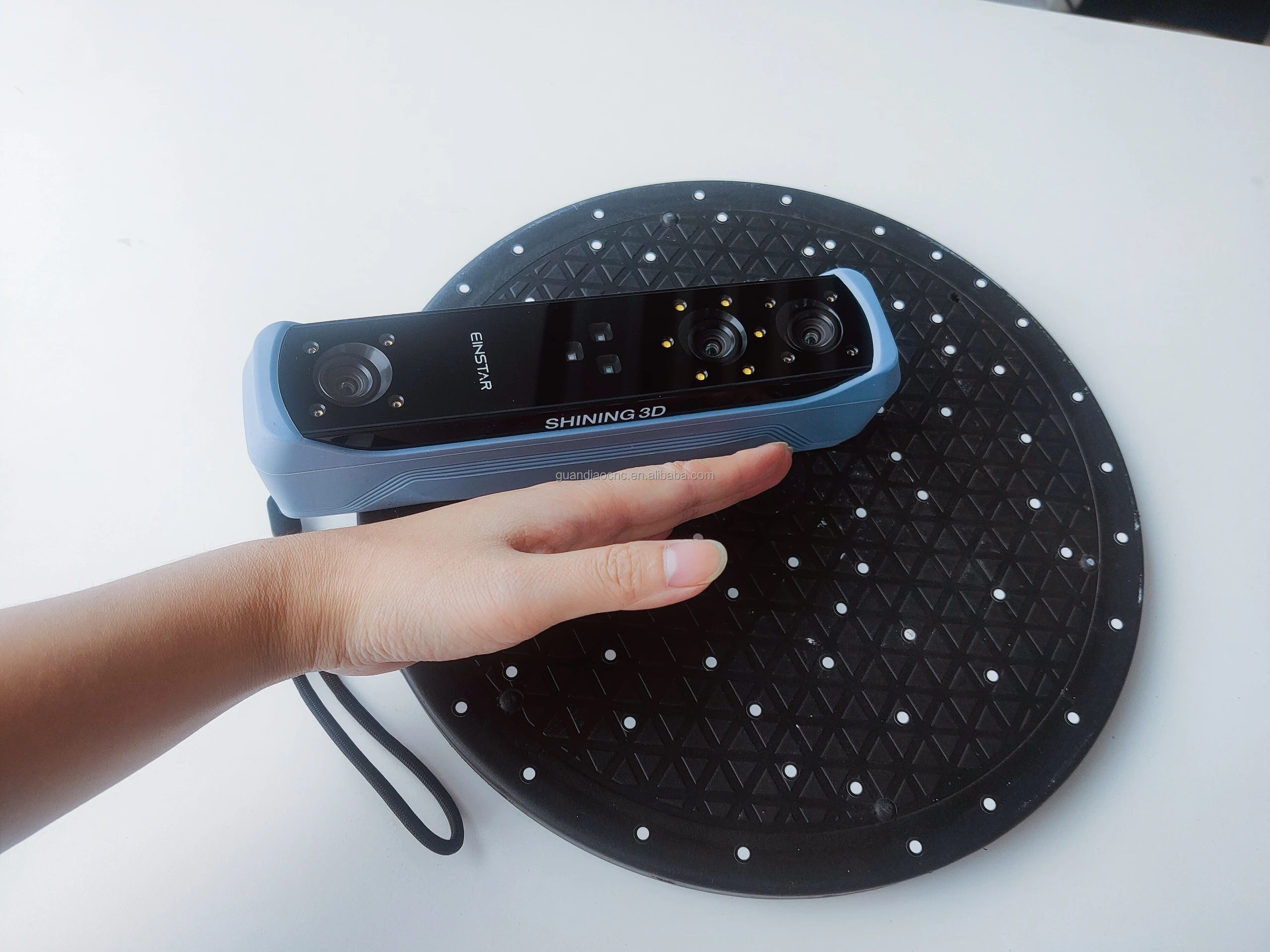

MODEL	EINSTAR
Scan Mode	Structed Light Scan
Point Distance	0.1 mm ~ 3 mm
Light Source	Infrared VCSEL structured light
Working Distance	Effective Working Distance: 160mm-1400mm; Optimal Working Distance: 400mm
Depth of Field	160-1400mm
Maximum FOV	434mm*379mm (under optimal work distance)
Scan Speed	980,000points/s, up to 14FPS
Align Modes	Feature Alignment, Hybrid Alignment, Texture Alignment, Global Markers
Safety	Eye-safe
Texture Scan	Yes
Outdoor Scanning	Yes
Interface	USB2.0 or above
Output Formats	OBJ; STL; PLY; P3; 3MF
Scanner Size	220mm*46mm*55mm
Carrying Case Size	245mm*245mm*90mm
Scanner Body Weight	500g
Operating Temperature Range	0-40℃
Operating Humidity Range	10-90%
Certifications	CE, FCC, ROHS, WEEE, KC
Recommended Configuration	OS: Win10/11, 64 bit; Graphics card: NVIDIA GTX1060; Video memory: ≥6GB; Processor: I7-11800H; Memory: ≥32GB
Basic Computer Configuration	OS: Win10, 64 bit; Graphics card: NVIDIA GTX1050; Video memory: ≥4GB; Processor: I7-7700H; Memory: ≥16GB

Scan Mode	Rapid Scan	Laser Scan
Scan Accuracy	Up to 0.05mm	Up to 0.04mm
Volumetric Accuracy*	0.05+0.1mm/m	0.04+0.06mm/m
Scan Speed	1,200,000 points/s 20FPS	480,000 points/s 55FPS
Camera Frame Rate	55FPS	55FPS
Align Mode	Feature Alignment/ Markers Alignment/Texture Alignment/ Hybrid Alignment	Markers Alignment
Working Distance	470mm	470mm
Depth of Field	200mm-700mm	350mm-610mm
Max FOV	420mm*440mm	380mm*400mm
Point Distance	0.25mm-3mm	0.05mm-3mm
Light Source	Blue LED	7 Blue Laser Crosses
Safety	Eye-safe	Class I（Eye-safe）
Built-in Color Camera	Yes	Yes
Texture Scan	Yes	No
Connection Standard	USB3.0
Output Formats	OBJ;STL;ASC;PLY;P3;3MF
Dimensions	108mmx110mmx237mm
Weight	710g
Recommended Configuration	OS：Win10，64 bit；Graphics card：NVIDIA GTX1080 and higher；Video memory：≥4G；Processor：I7-8700；Memory：≥32GB
* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm（rapid scan)/0.06mm(laser scan) per 100cm.The conclusion is obtained by measuring the center of sphere under marker alignment.

Show details

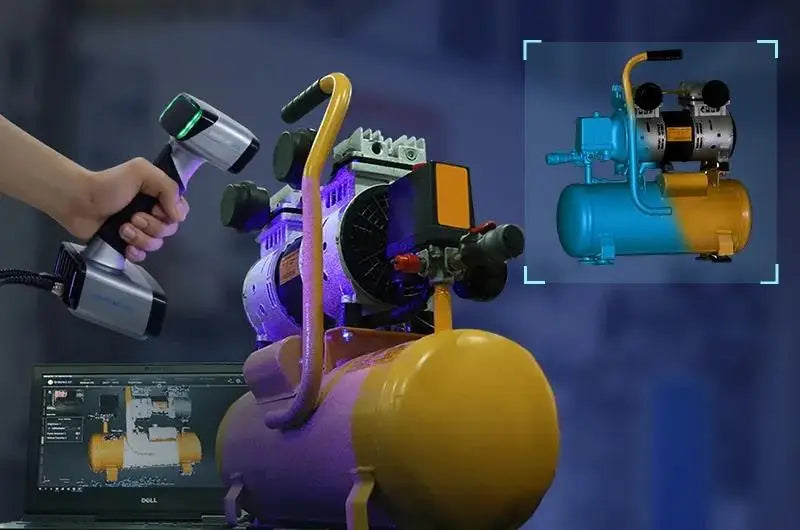

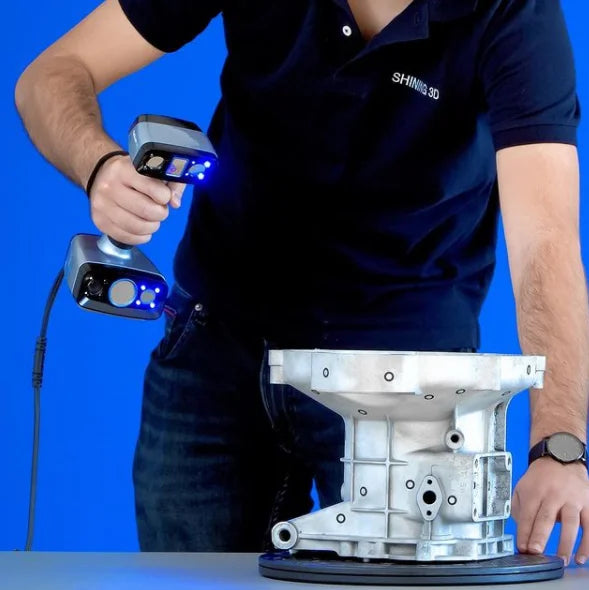

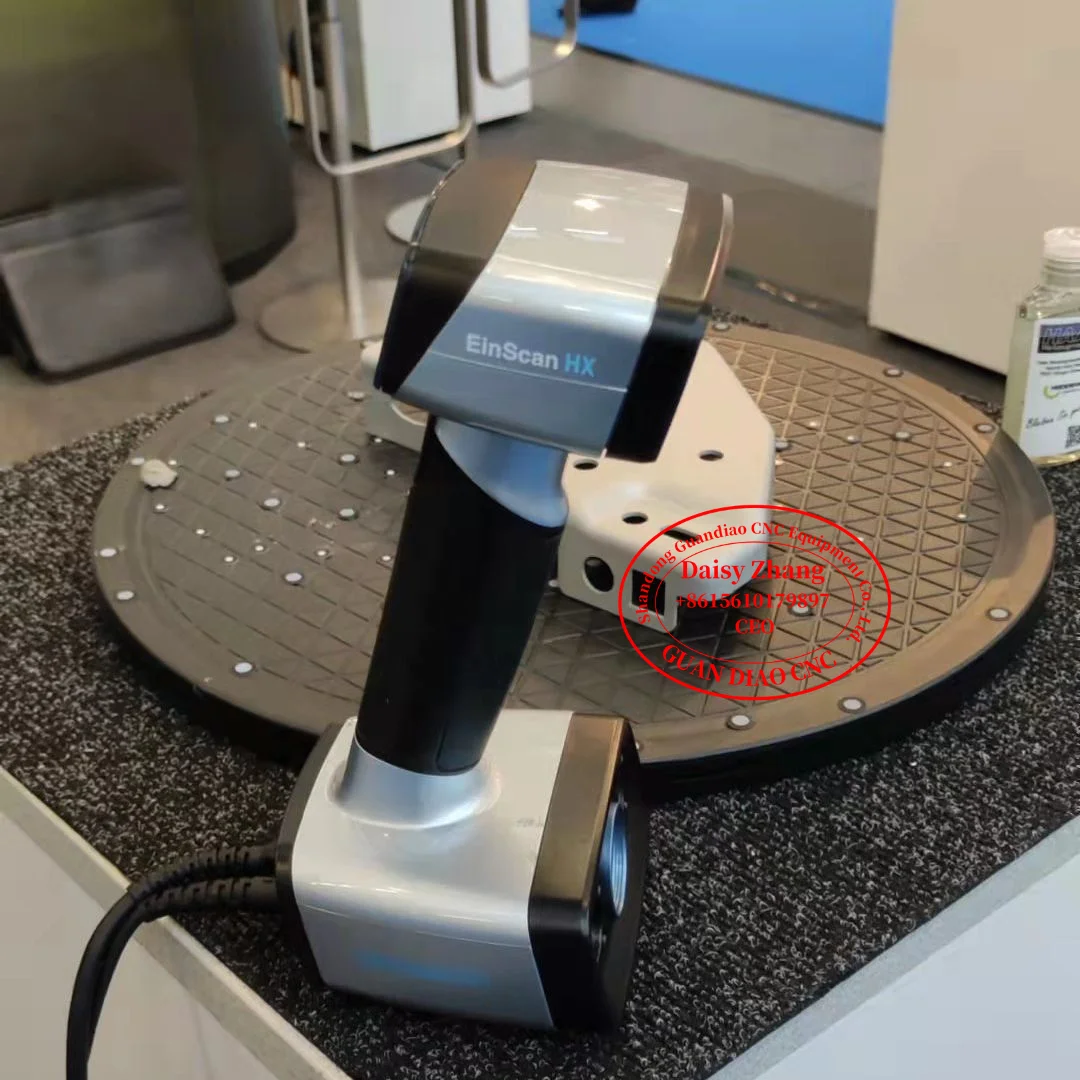

Double Blu-ray

With dual blue light, EinScan HX combines the advantages of LED structured light and laser, improves the adaptability to scanning materials and ambient light, and gives the product a wide range of applications

High-quality data

In the laser mode, the accuracy is 0.04mm, the minimum dot pitch is 0.05mm, and the high resolution displays the fine details of the object, which meets the needs of most industrial application scenarios.

Fast and efficient

The blue LED structured light scanning is adopted, and the three-dimensional data can be quickly obtained without pasting the marking points. The laser scanning mode is equipped with 7 pairs of cross lines + 1 line blue laser.

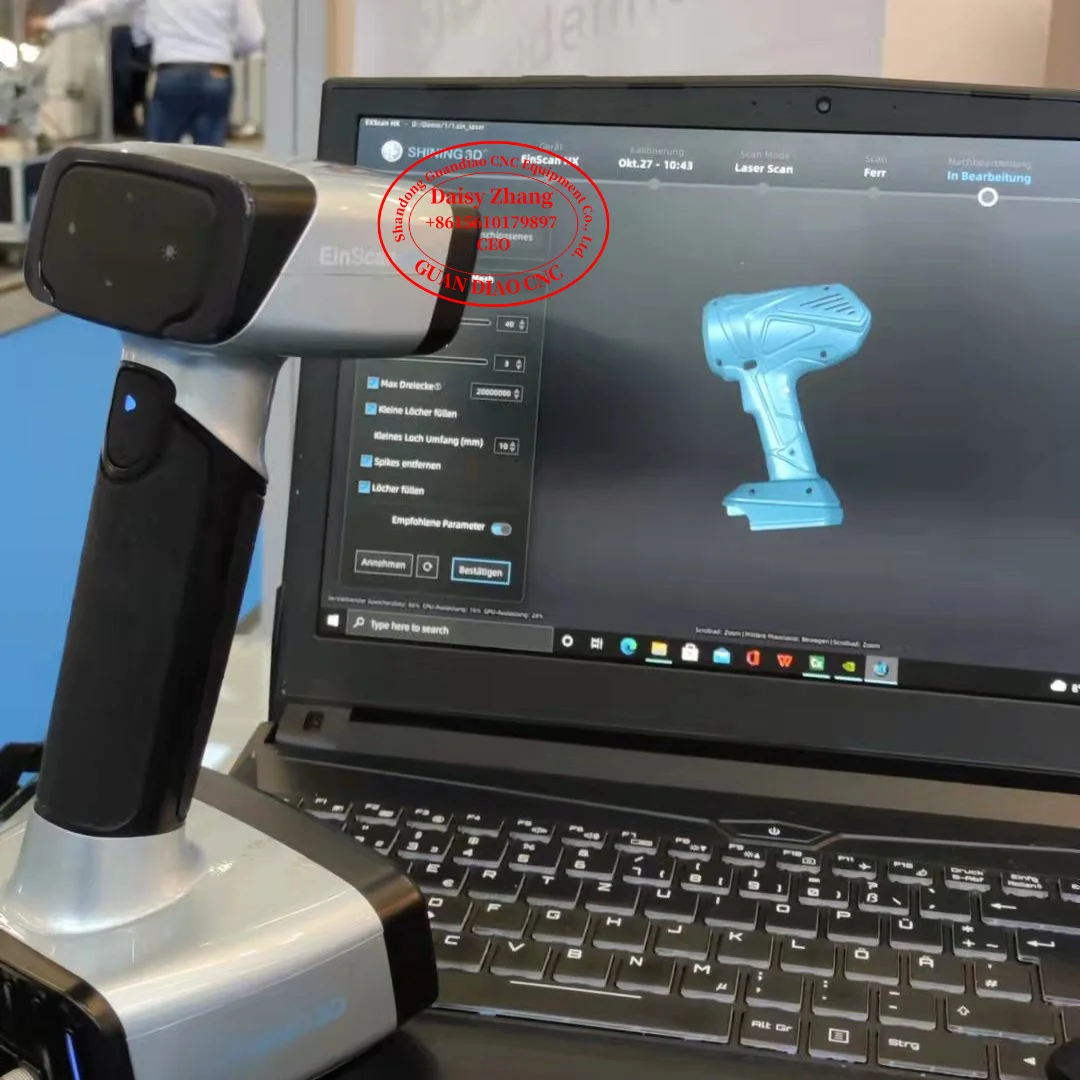

Portable and easy to use

There is no redundant software setting, clear work instruction process, flexible and portable, and can be flexibly applied in various scanning scenarios.

Wide range of materials

Unique reflective material and black surface algorithm, software one-click setting, easily obtain high-quality 3D data of black and reflective material objects.

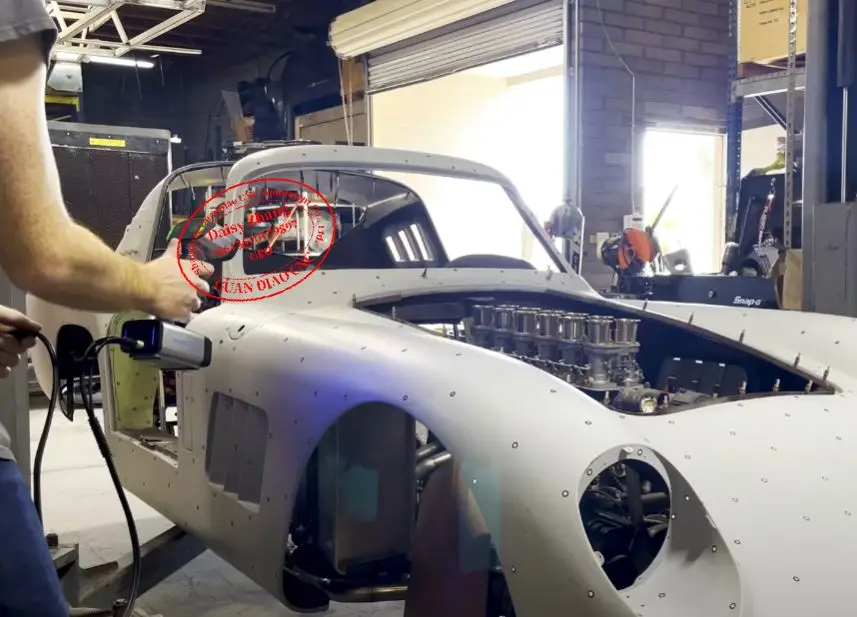

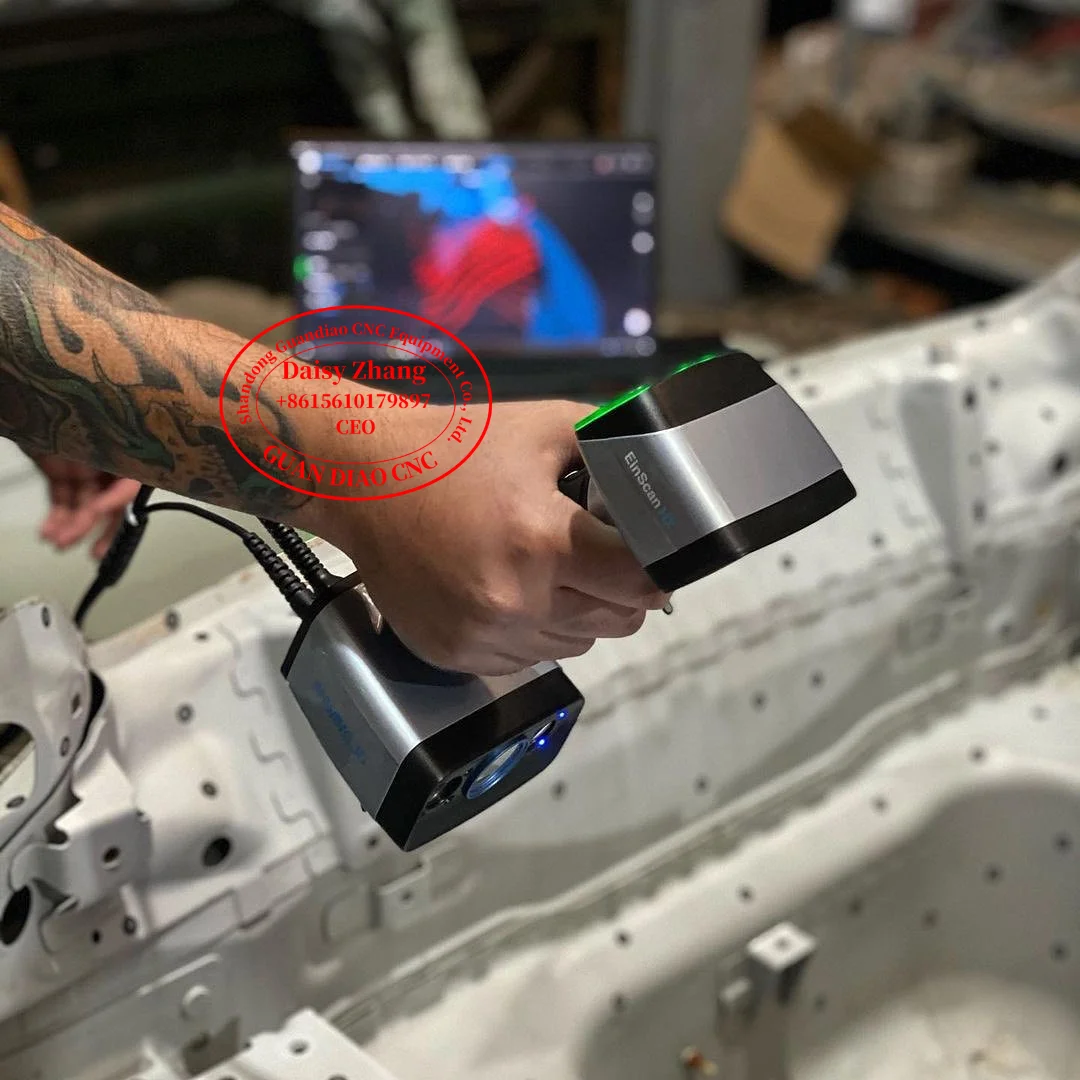

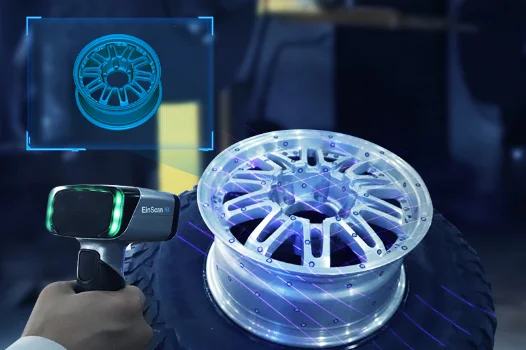

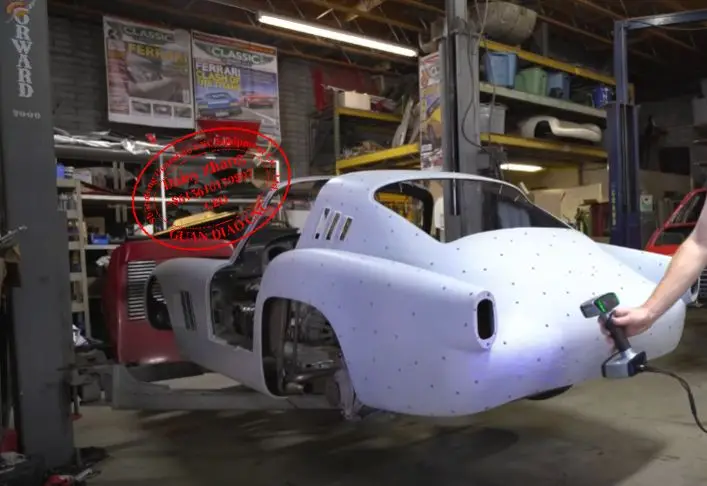

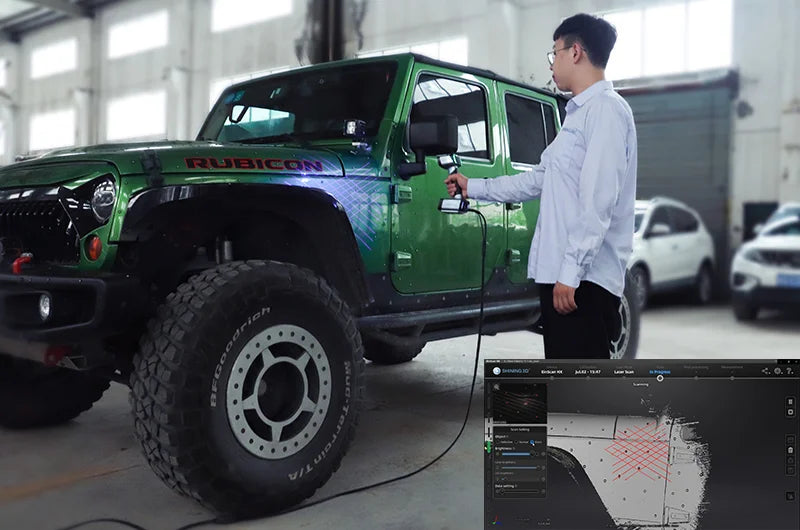

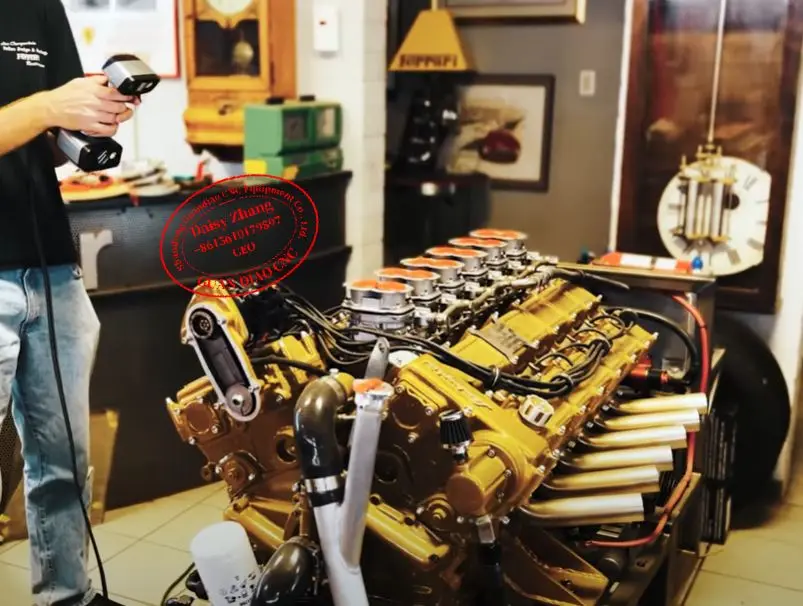

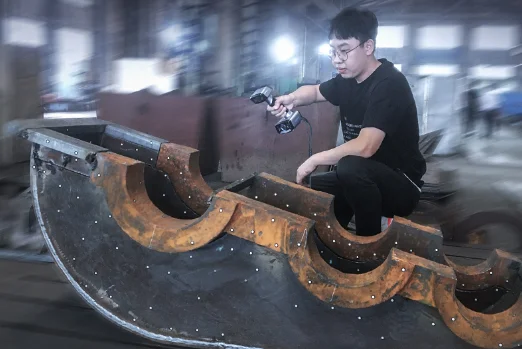

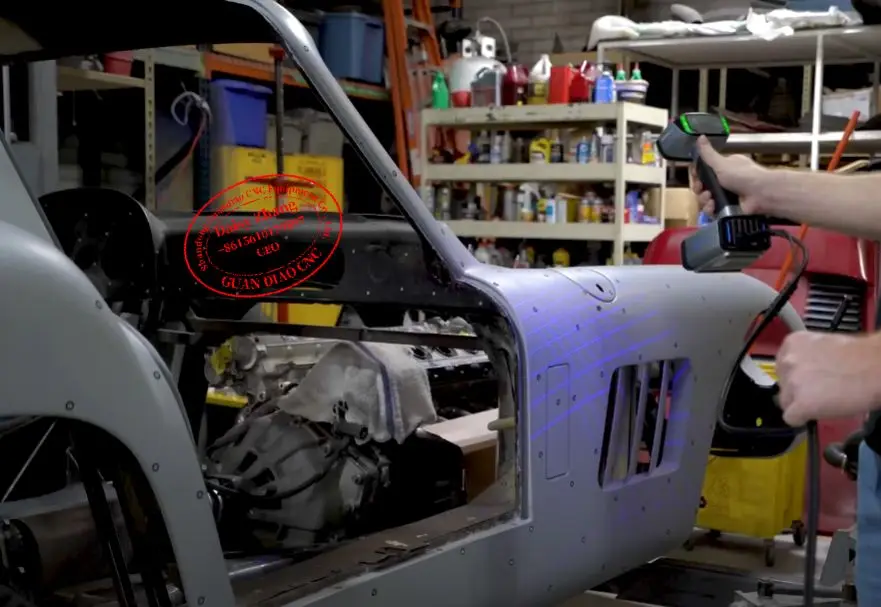

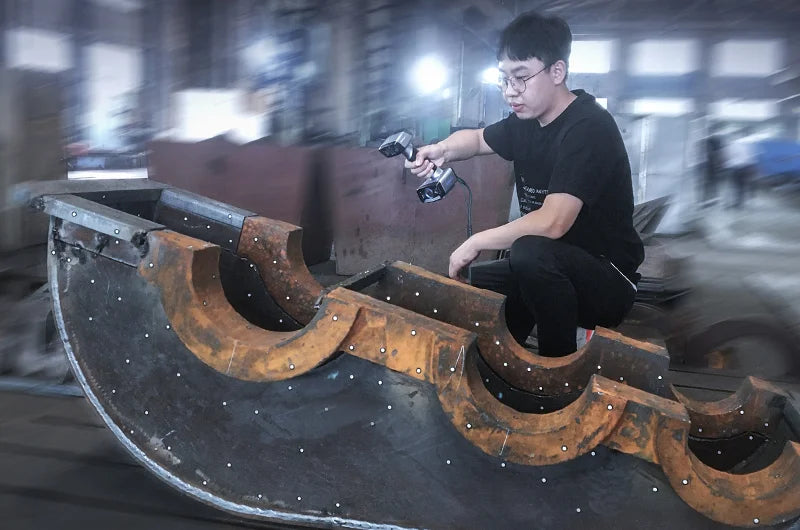

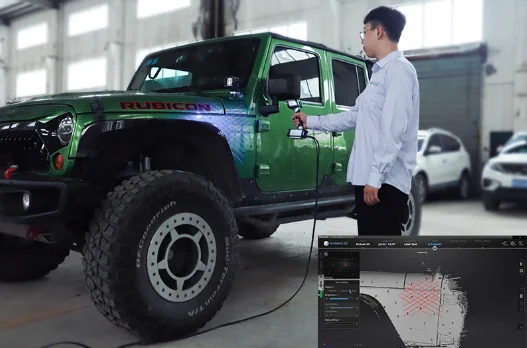

Application
