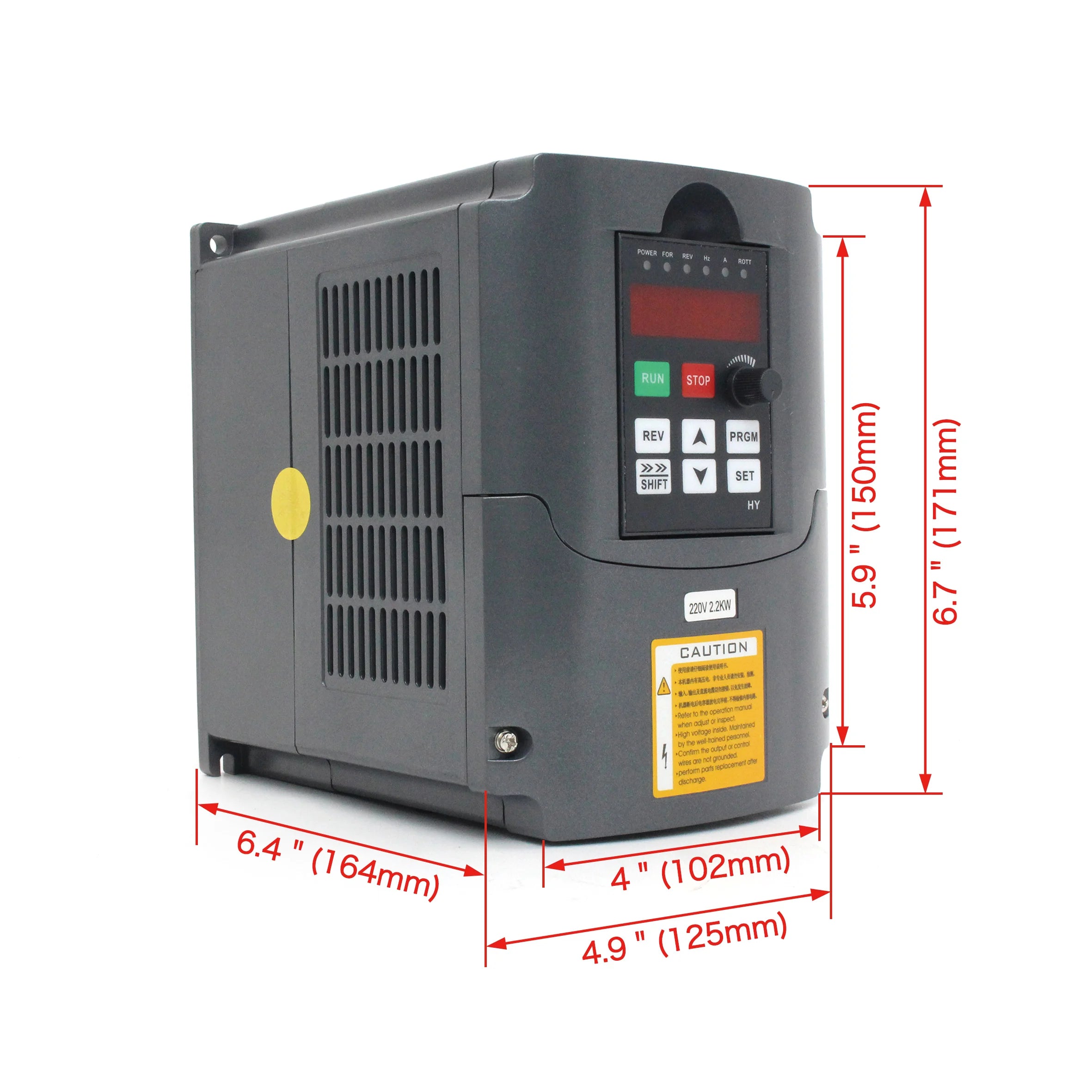

2.2KW HY HUANYANG 110V/ 220v /380v Inverter CNC Spindle motor speed control Variable Frequency Drive 0-400Hz 3P output HY02D223B
2.2KW HY HUANYANG 110V/ 220v /380v Inverter CNC Spindle motor speed control Variable Frequency Drive 0-400Hz 3P output HY02D223B
Description
SPECIFICATIONS
Brand Name: NONE
Certification: CE
High-concerned chemical: None
Model Number: HY02D223B
Origin: Mainland China
Type: DC/AC Inverters

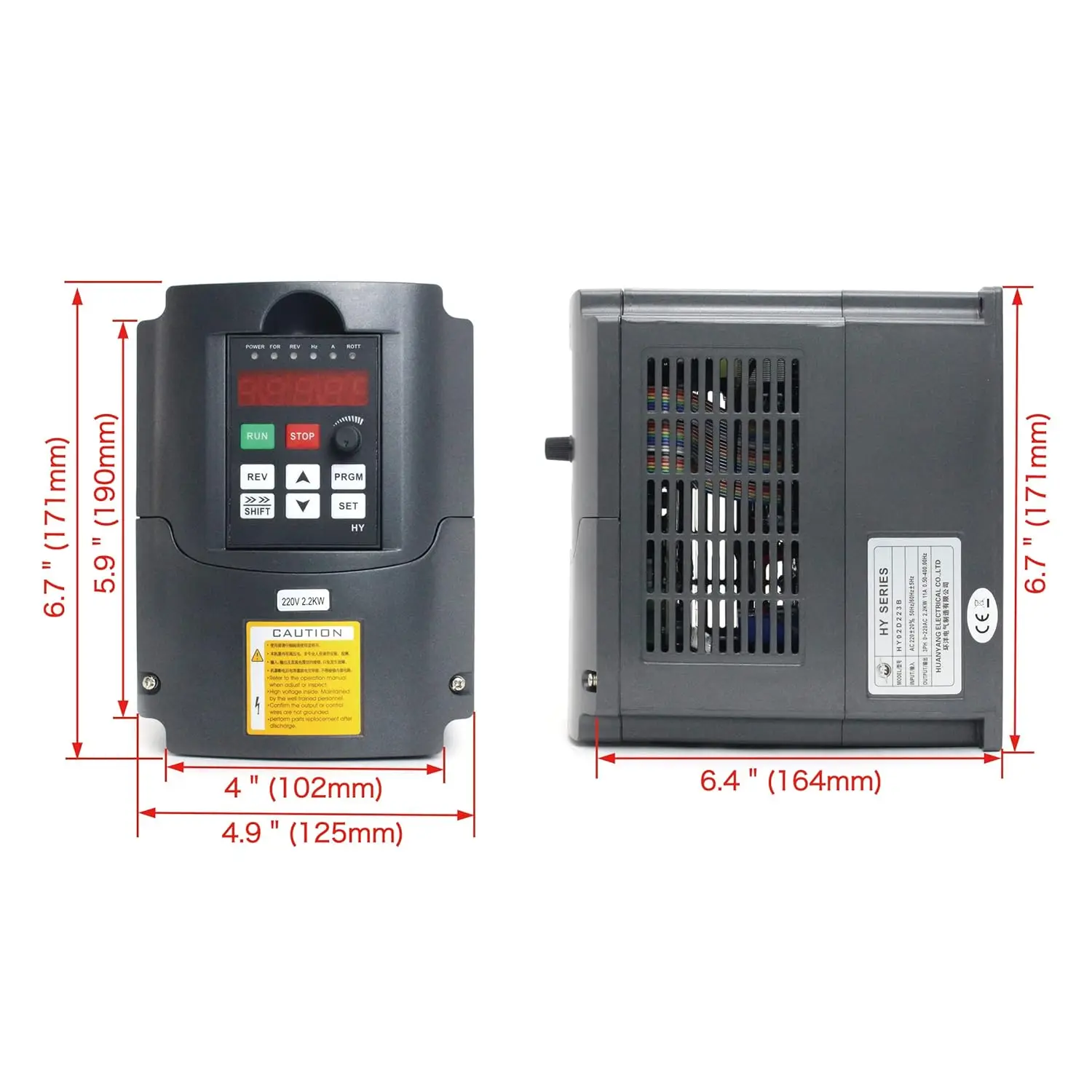

Weight: 1.8kg

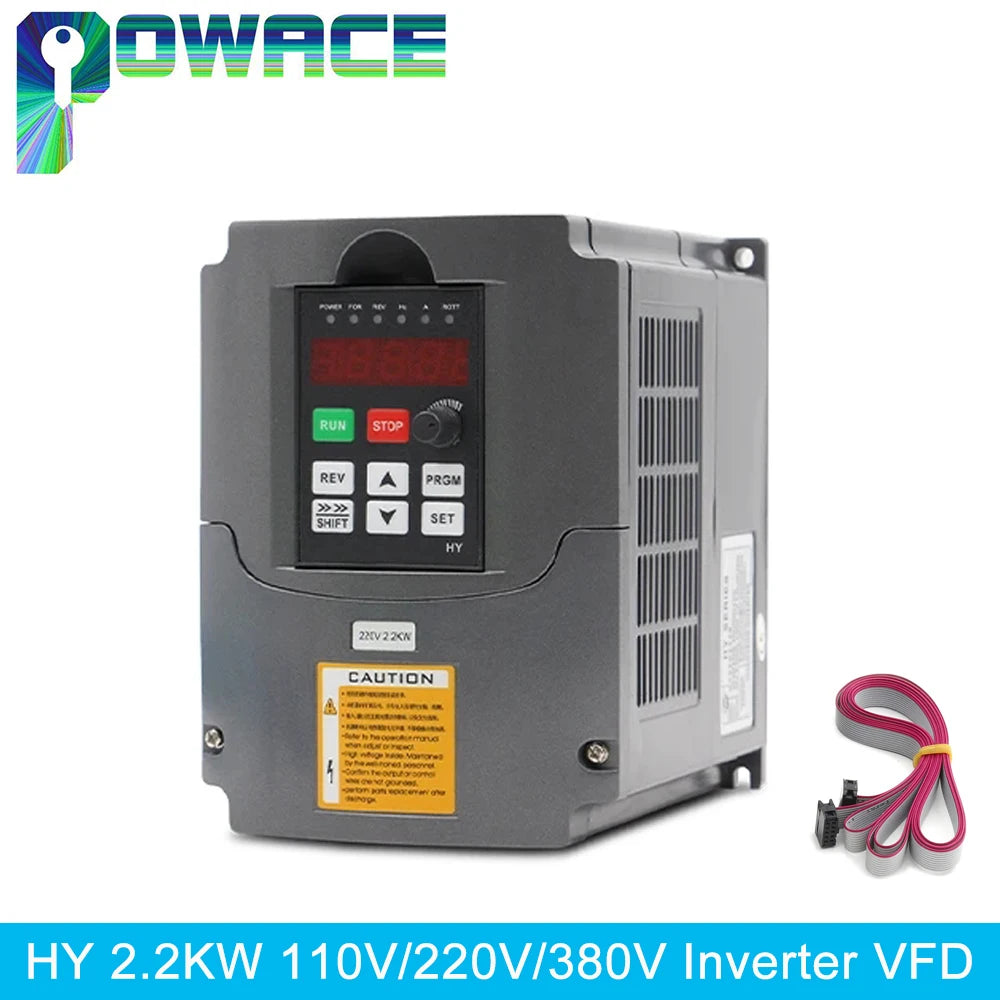

Package include:
1 x HY 2.2KW Inverter VFD
1 x 2M extension cable
User Manual Files:
English user manual:https://drive.google.com/file/d/0B49xwe9ffk3fZ3VWR3NHMjB6VkU/view?usp=sharing
Setting video:https://www.youtube.com/watch?v=1-D1gscZQvA
https://www.youtube.com/watch?v=Q9912w665RA
Spindle setting:https://www.youtube.com/watch?v=Tdn_KANxff4
Features:
Inverter Type: 380v 4A
Input Voltage:380V(+/-15%)
Input Frequency:48-63 Hz
Output Voltage:380VAC
Output Frequency:0-400 Hz
Input Phase:3 phase
Output Phase:3 phase
Warranty:1 year from the date you purchased
Inverter Type: 220v 7A
Input Voltage:220V(+/-15%)
Input Frequency:48-63 Hz
Output Voltage:220VAC
Output Frequency:0-400 Hz
Input Phase:1 or 3 phase
Output Phase:3 phase
Warranty:1 year from the date you purchased

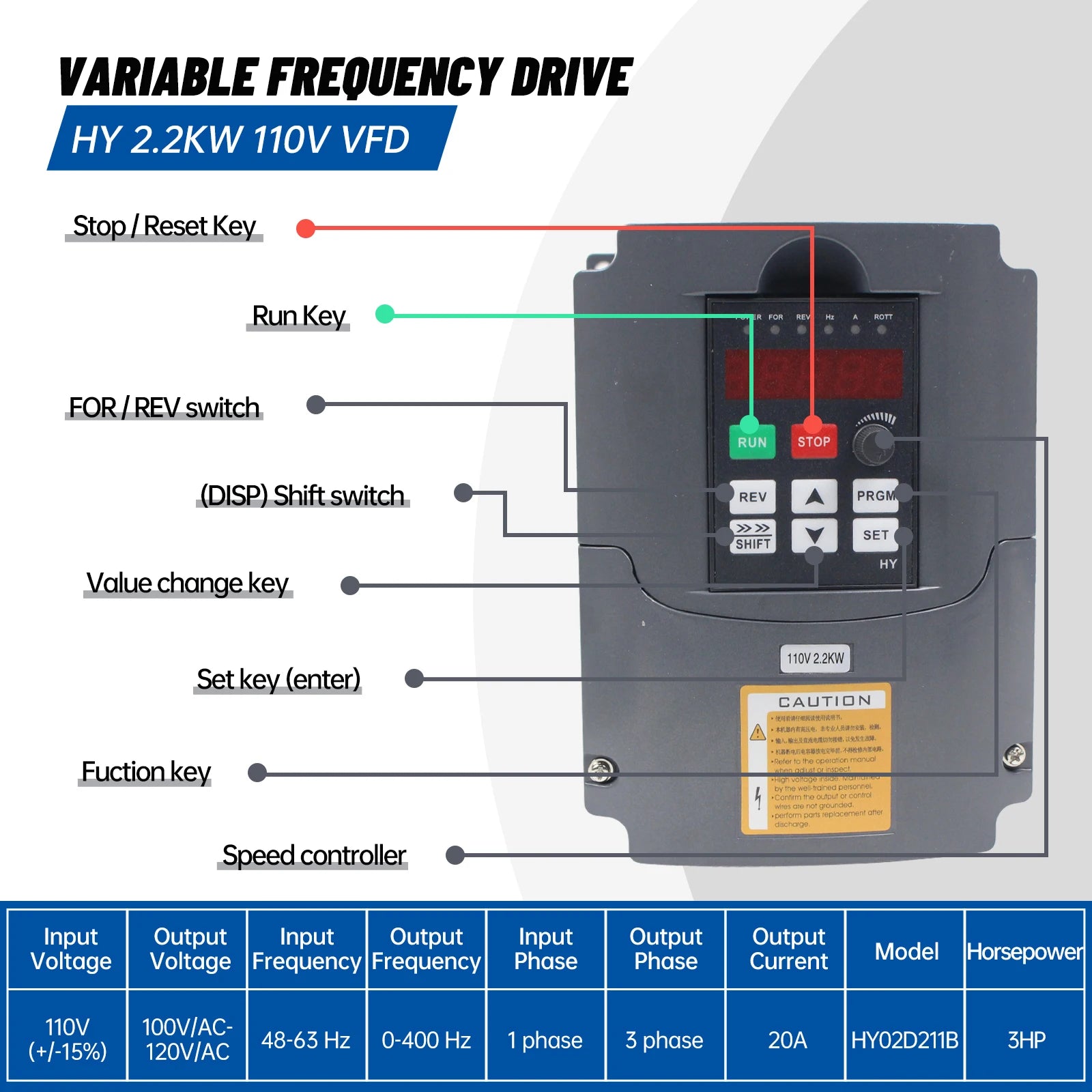

Inverter Type: 110v 13A
Input Voltage:110V(+/-15%)
Input Frequency:48-63 Hz
Output Voltage:110VAC
Output Frequency:0-400 Hz
Input Phase:1 or 3 phase
Output Phase:3 phase
Warranty:1 year from the date you purchased
Original HY (Huanyang) brand inverter, stable using.
Control Mode is SPWM,it is very easy to use and convenient Protection functions are very strong, Fin over-heat protection, Overload protection, Fuse protection, Restart after instant stop,stall protection. Powful function.
·PID control;advanced calculous PID closed-loop arithmetic,quick responding speed and high suitability;
·Easy PLC function can realize 16 legs of speed and inverter control function;
·RS485 communication port,adopting standard international MODBUS main circuit control;
·With extremely strong anti-jamming capability:
·Low output ratting torque 0.5HZ-150%,low speed running ability:
·Carrier adjustable by 16KHZ,completely soundless working environment;
·Broad voltage working area,normal running in 304V-456V:
·Auto voltage regulation(AVR)technique,for ensuring the inverter load capability:
·Various control technique by both synchronization and non-synchronization,dynamically realize fast starting without changing brakes;
·With perfect error protection and short circuit starting protection capability;
·Dead-time compensation and auto torque slip compensation function,can realize 180%high orque output at low frequency 0.25Hz；
·Unique EMC design,can minimize inverter's pollution to power；
·Overall reinforcement layer to suit all kinds of harsh enviroment；
